Kohler · RCL Series (Residential Liquid-Cooled)

Kohler 30RCL

30 kW standby · Natural Gas / LPG · Liquid-cooled

30 kW residential liquid-cooled standby generator. Premium whole-house backup for larger homes with multiple HVAC zones.

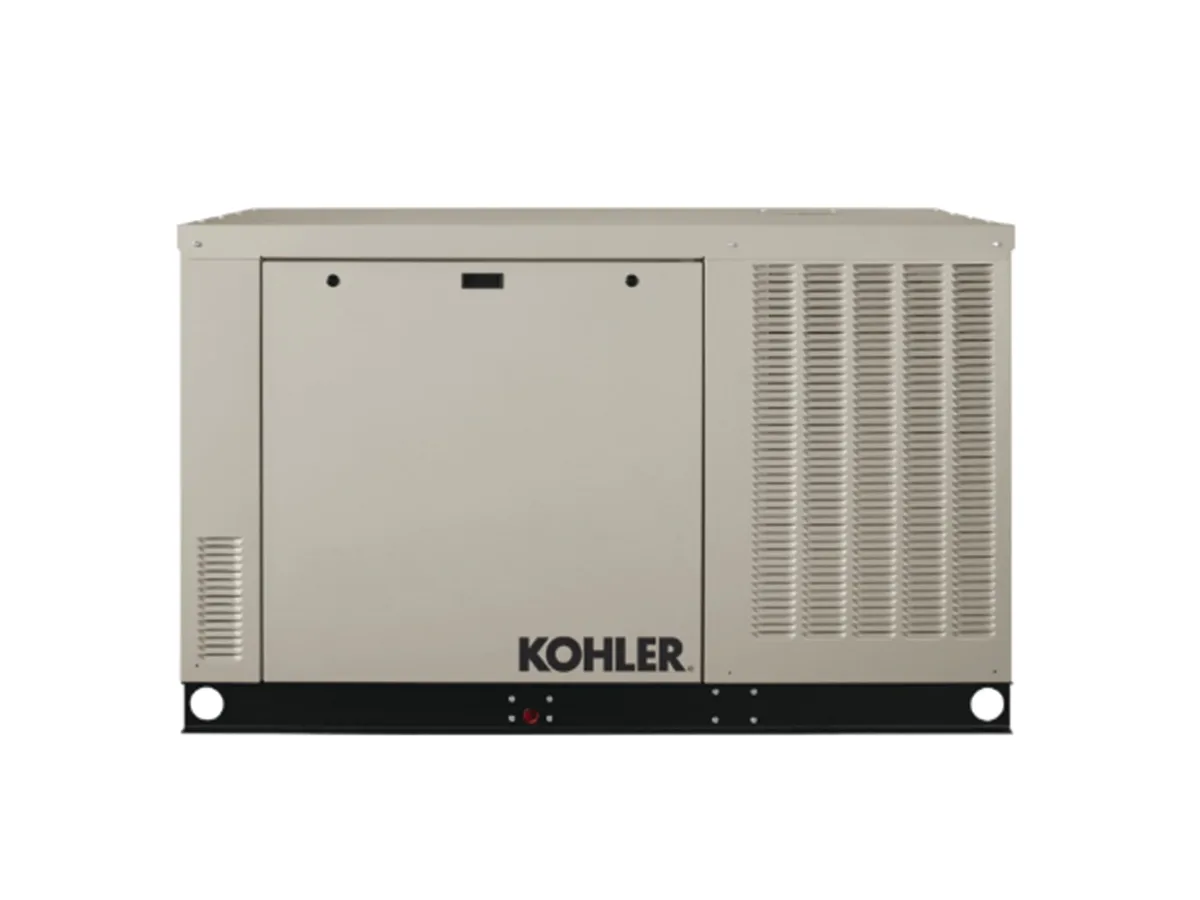

Kohler Kohler 30RCL generator — specifications and details
Standby power
30 kW
Voltage options
120/240V
Frequency / Phase
60 Hz · 1-phase
Engine
Kohler KG2204T · 2.2L
EPA / Emissions
EPA Stationary Spark Ignition
residential-largewhole-house-premiumhome-officeestate
Configure & QuoteDownload spec sheet

Overview#

The Kohler 30RCL is a 30-kilowatt residential liquid-cooled standby generator. It uses the turbocharged KG2204T variant of Kohler's 2.2L 4-cylinder block, running at 1800 RPM.

This is a common choice for the premium residential market in Los Altos Hills, Hillsborough, Atherton, Woodside, and Saratoga.

Sizing guidance#

Standby ratings apply to installations served by a reliable utility source. The standby rating is applicable to varying loads with an average load factor of 80% for the duration of a power outage.

Our service experience#

The 30RCL is our most-installed residential RCL in premium communities. It serves the typical mid-to-large estate with pool, dual HVAC, and home office.

Engineering specifications

Physical

Length
74 in
Width
32.9 in
Height
46 in
Wet weight
1,320 lb

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Ready to order this model?

Configure your Kohler 30RCL

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Kohler 30RCL

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

315,000 BTU/hr≈ 315.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Parts cross-reference

starting Battery
Group 24

Compatible equipment

More in the RCL Series (Residential Liquid-Cooled)

Kohler RCL Series: 24–60 kW liquid-cooled residential standby — quieter, longer-lived, and larger than air-cooled.

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohler generators →

Similar models

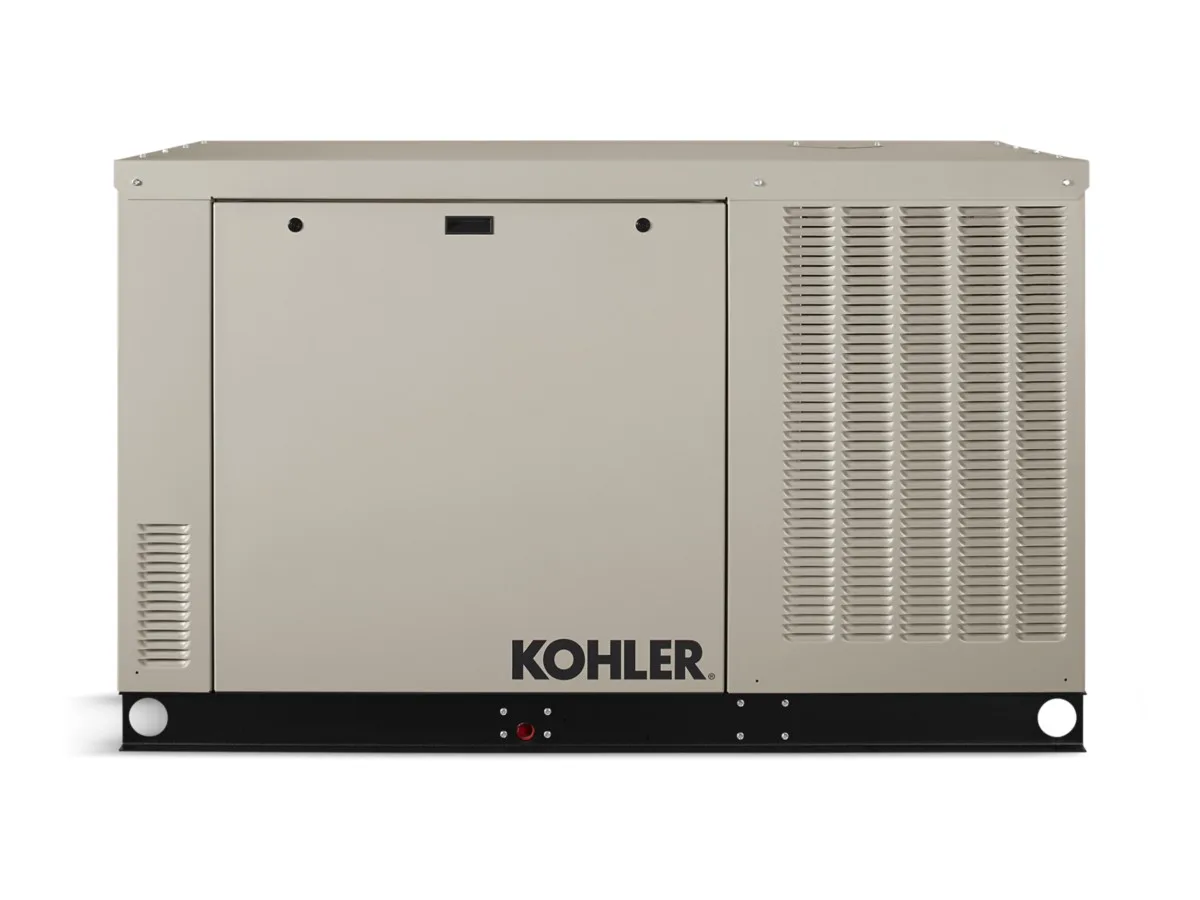

Kohler Kohler 24RCL 24 kW liquid-cooled standby generator
