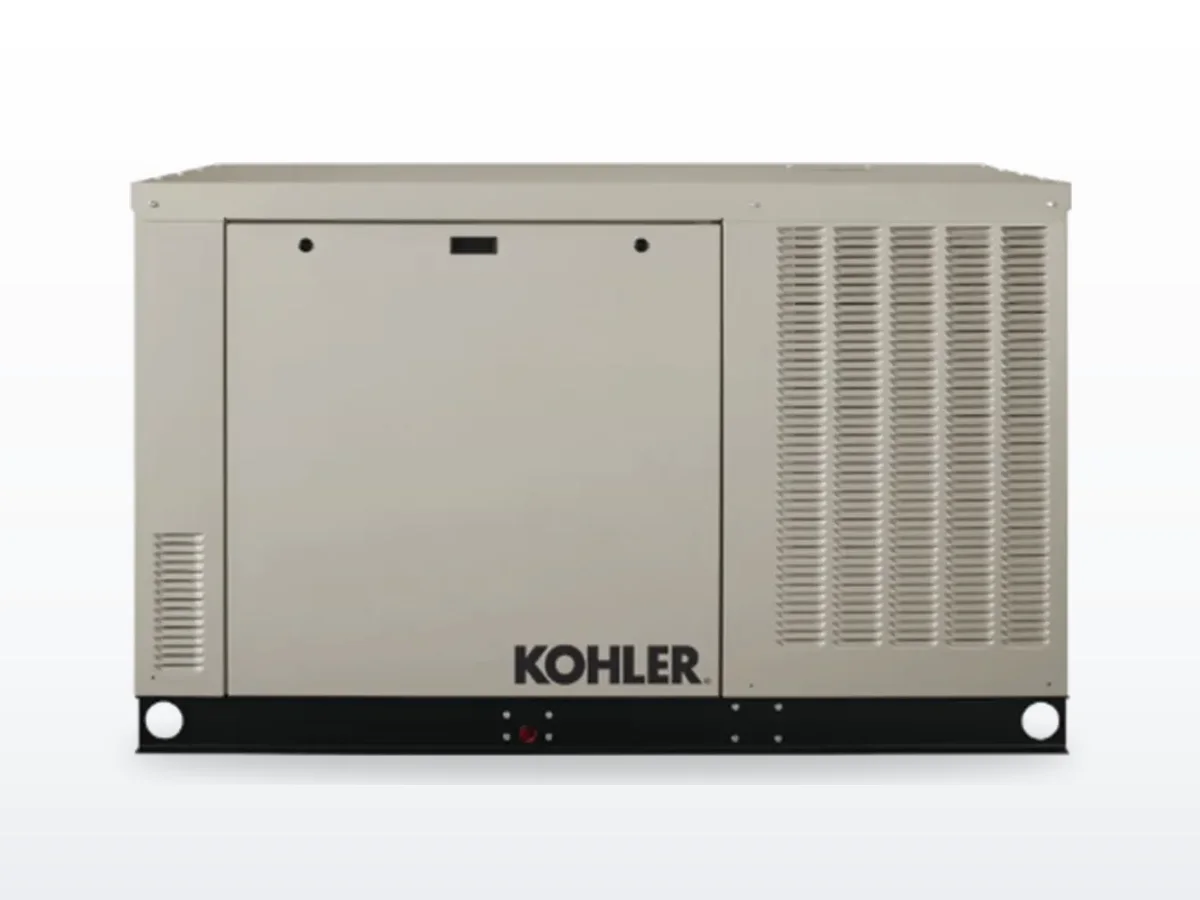

The Kohler 38RCL (and its current 38RCLB / 38RCLC variants) is a 38-kilowatt residential/light-commercial liquid-cooled standby generator. Like the 30RCL, it uses the turbocharged 2.2L Kohler KG2204T 4-cylinder engine running at 1800 RPM, with a larger alternator delivering the higher rated output.
This is a common choice for Silicon Valley estates with main house plus guest house on one panel, triple-zone HVAC, pool heating, EV charging, and home workshop loads that push past what a 30 kW unit can serve.
The 38RCL is rated 38 kW on both natural gas and LP, single-phase 120/240 V (also offered in 3-phase 208/240/480 V variants). Typical residential applications:
Larger estates with three-zone HVAC
Pool + spa with gas or heat pump heating
Guest house on the same electrical service
Workshop with welding/compressor loads
Multiple Level 2 EV chargers

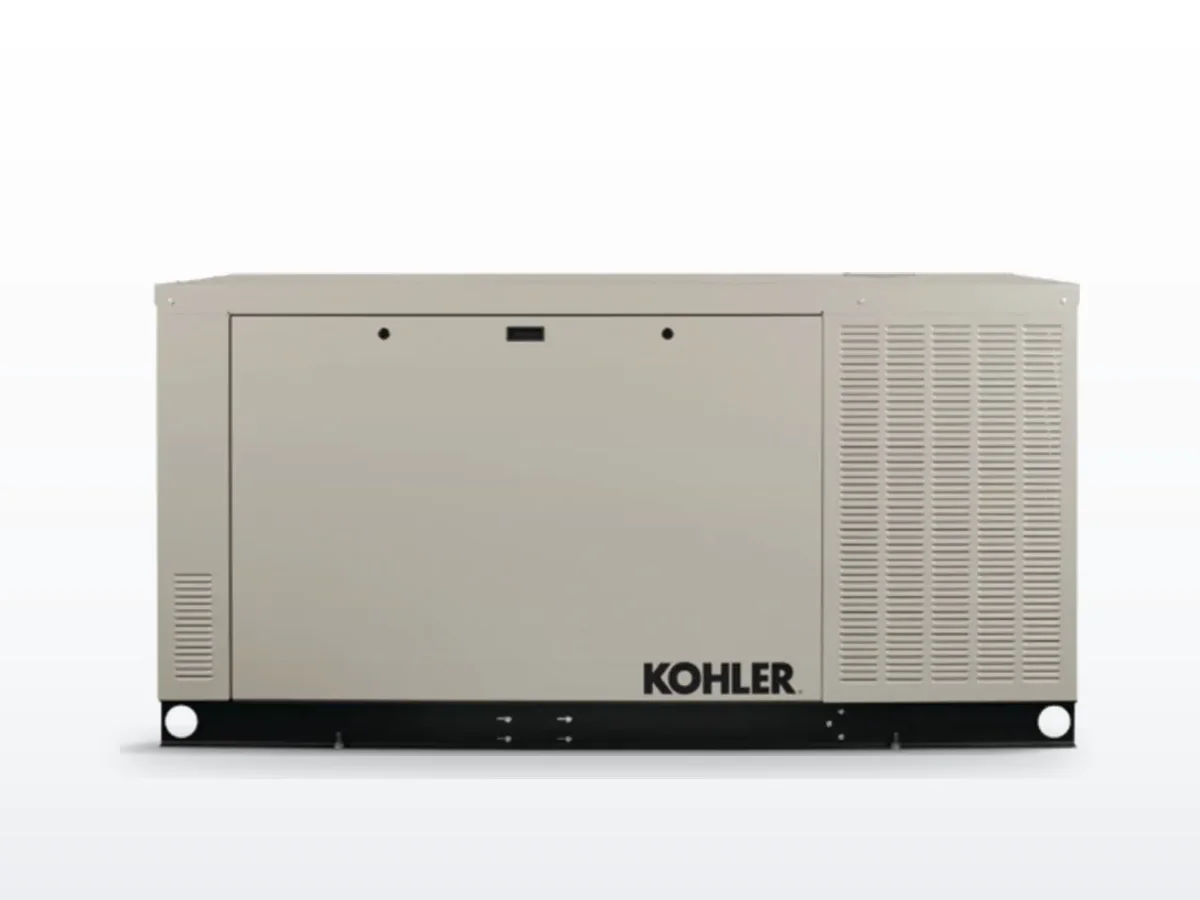

Step up to 48RCL if your load study indicates 400A service, four+ HVAC zones, or commercial-grade kitchen equipment.
The 38RCL is a popular unit for Atherton, Hillsborough, and Los Altos Hills estates. At this capacity, gas supply sizing becomes critical — we always verify gas line sizing and meter capacity as part of the install survey. Many older Bay Area homes have 1" gas lines that cannot support a 38 kW genset at full load without a meter/regulator upgrade.
Engineering specifications
Physical
Length
74 in
Width
32.9 in
Height
46 in
Wet weight
1,370 lb
Acoustic
Sound @ 7m, full load
61 dBA
Enclosure
Sound-attenuated
Fuel system & runtime
BTU/hr @ full load
492,000
Ready to order this model?
Configure your Kohler 38RCL
Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Fuel demand at 75% load
399,000 BTU/hr≈ 399.0 cf/min @ 1,000 BTU/cf
On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.
Service intervals
Manufacturer-recommended intervals for the Kohler 38RCL under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Battery
Failed to start during outage
8,760+
minor
Coolant system (hoses/thermostat)
Slow coolant loss or overtemp fault
—
minor
Fuel regulator
Unstable fuel pressure, hunting idle
—
moderate
Parts cross-reference
starting Battery
Group 26R
Frequently Asked Questions
What size home needs a 38 kW generator?
The 38RCL serves homes 5,000-8,000+ sq ft with three HVAC zones, pool/spa, guest house on same panel, home workshop, and/or multiple EV chargers. It's the generator for estates where 30 kW isn't enough margin.
Can the 38RCL power a guest house?
Yes — if the guest house is fed from the main panel (not a separate service), the 38RCL can cover both structures. For separate-service guest houses, you'd need either a second ATS or a sub-feed configuration.
How does the 38RCL compare to two smaller units?
A single 38RCL is simpler, cheaper to maintain, and more reliable than paralleling two residential units. The only reason to split: if the main house and guest house are on separate services more than 100 ft apart.
