Automatic Transfer Switch Services
Your automatic transfer switch is the critical link between utility power and your generator. When the grid fails, the ATS detects the outage, signals the generator to start, and transfers your building's electrical load — all within seconds. We keep that link reliable with scheduled inspections, annual maintenance, and comprehensive transfer testing.
Visual Inspection (Monthly / Quarterly)
Regular visual inspections catch developing problems before they prevent a transfer. Our technicians perform these checks on a monthly or quarterly schedule depending on your facility's requirements and NFPA 110 classification.
- Inspect engine for obvious faults
- Inspect ATS wiring connections
- Inspect contacts visually without removing barriers
- Confirm all time delay settings
- Observe all parameters in ATS controller
- Verify output start
- Observe proper operation
Annual Maintenance
Once per year, we perform a comprehensive ATS maintenance that requires de-energizing both power sources. This is the only way to inspect the internal contacts, linkages, and mechanical components that determine whether your switch will operate under load.
- Perform all visual inspections
- De-energize both power sources
- Remove barriers and inspect main contacts
- Verify operation of auxiliary contacts
- Lubricate all linkages and moving parts
- Lubricate main contacts
- Reassemble and verify proper operation
- Re-energize and perform building transfer (Normal to Load, Emergency to Load)
- Return to auto and verify no alarms
Why ATS Maintenance Matters
The automatic transfer switch is the single most critical point of failure in any emergency power system. A generator that starts perfectly and runs at full capacity is completely useless if the ATS does not transfer your building's load. And unlike a generator — which exercises itself weekly — the ATS transfer mechanism only operates during real outages or scheduled tests.
Without regular inspection and maintenance, ATS contacts corrode, linkages seize, control board capacitors degrade, and time delay settings drift. These failures are silent — you will not know your ATS has a problem until the next power outage, when it is too late to fix it.
For facilities governed by NFPA 110, ATS maintenance is not optional. The standard requires periodic testing and maintenance of all transfer switch equipment. Our maintenance programs satisfy these requirements and provide documented proof of compliance for inspectors and auditors.
Single Point of Failure
The ATS is the only component that must work for generator power to reach your building. No redundancy, no backup — it transfers or it does not.
Silent Failures
ATS problems do not announce themselves. Corroded contacts, seized linkages, and drifted settings are invisible until you need the switch to operate.
Compliance Requirement
NFPA 110 mandates periodic ATS testing and maintenance. Documented service records are required for Joint Commission, fire marshal, and insurance inspections.
Related Services
Generator Maintenance
Complete preventive maintenance programs for your generator — oil changes, filter replacements, coolant analysis, and load bank testing.
Learn more →NFPA 110 Compliance
End-to-end compliance support including assessment, testing schedules, documentation, and audit preparation for emergency power systems.
Learn more →Load Bank Testing
Resistive load bank testing at full rated capacity to verify generator performance, burn off wet stacking, and satisfy NFPA 110 annual test requirements.
Learn more →Generators We Support with ATS Services
Generac
Generac SD050
50 kW industrial diesel with Generac 3.4L engine. 10-15% below Kohler pricing. Digital controller, NFPA 110 ready.
50 kW standby · Diesel · Liquid-cooled
50 kW industrial diesel standby generator. Generac 3.4L turbocharged-aftercooled inline-4, EPA Certified Stationary Emergency, Digital H control with NFPA 110 Level I/II.
Generac

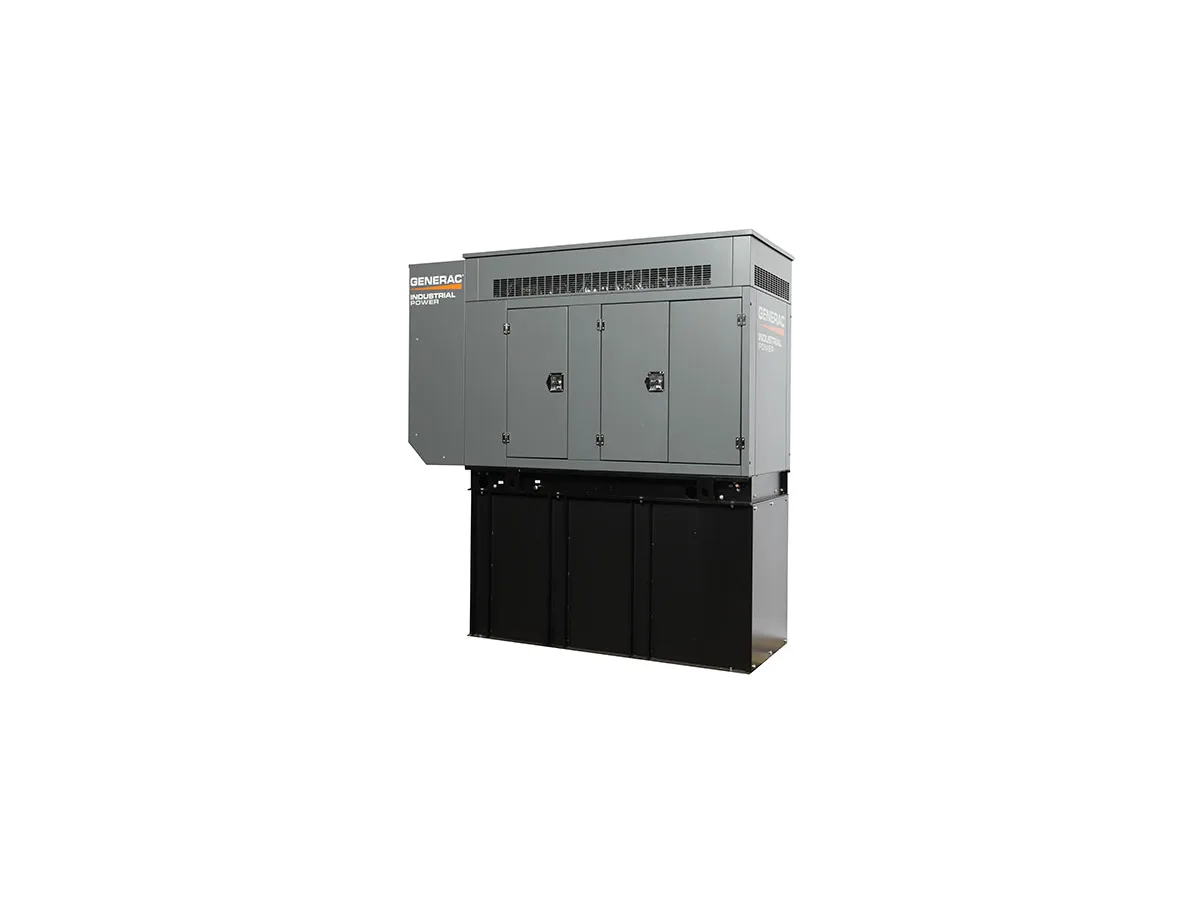

Generac SD060
60 kW industrial diesel with Iveco/FPT 4.5L engine. 10-15% below Kohler equivalent. Sound-attenuated options available.
60 kW standby · Diesel · Liquid-cooled
60 kW industrial diesel standby generator. Iveco/FPT 4.5L turbocharged inline-4, EPA Certified Stationary Emergency, Digital H control with NFPA 110 Level I/II.
Hipower Systems
Hipower HDI-1000
Data center-grade features at 15-25% below Cat/Cummins/Kohler — full vertical integration with NFPA 110 L1, seismic, and 200 mph wind ratings.
1 MW standby · Diesel · Liquid-cooled
1000 kW standby diesel generator with Mitsubishi engine. Heavy-duty industrial large-frame series.
Hipower Systems

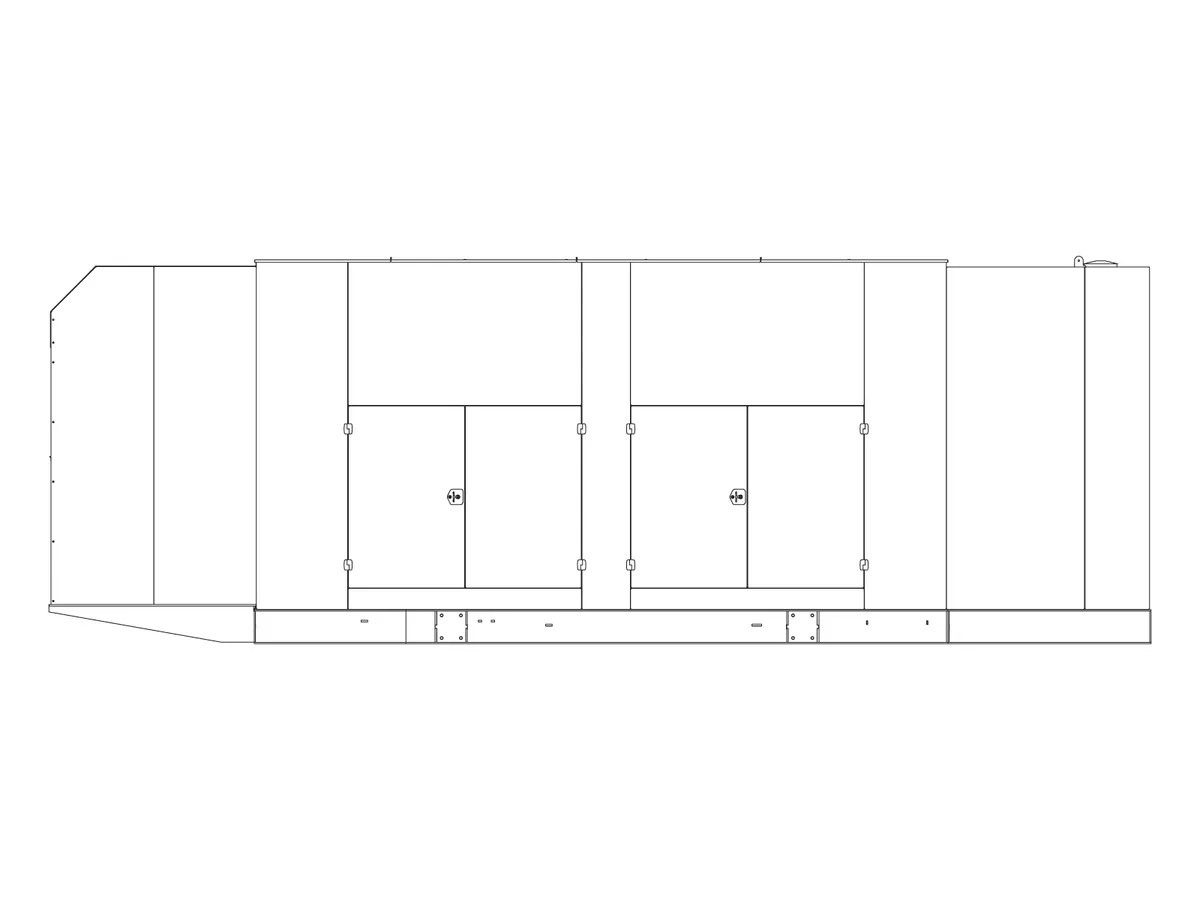

Hipower HDI-800
Data center-grade features at 15-25% below Cat/Cummins/Kohler — full vertical integration with NFPA 110 L1, seismic, and 200 mph wind ratings.
800 kW standby · Diesel · Liquid-cooled
800 kW standby diesel generator with Mitsubishi engine. Heavy-duty industrial large-frame series.
MTU

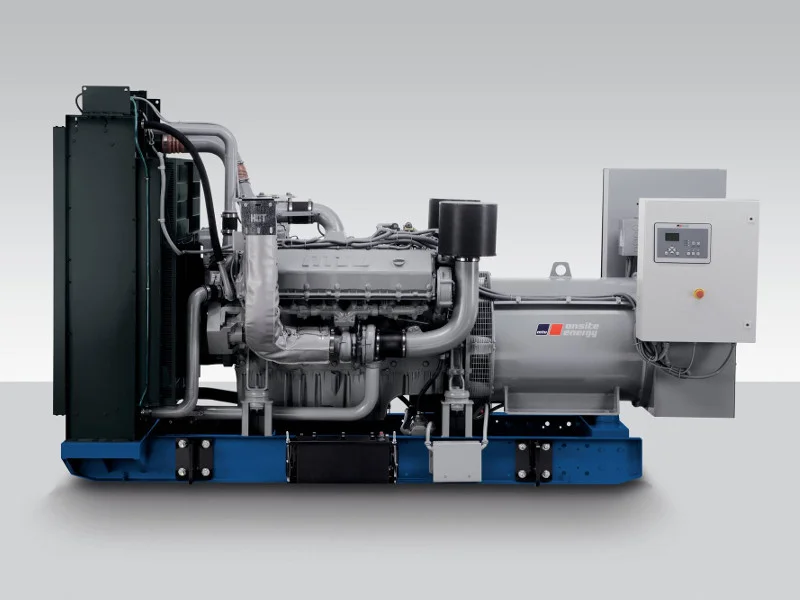

MTU 12V1600 DS750
750 kW diesel standby — 12V1600 sweet spot. Same footprint as DS600/DS900, 50°C radiator, 51 gph, Leroy-Somer alternator.
750 kW standby · Diesel · Liquid-cooled
750 kW Tier 2 diesel standby generator. mtu 12V1600G71S engine, 22.44L V-12 with turbocharging and aftercooling, LSA 49.3 M8 alternator.
MTU

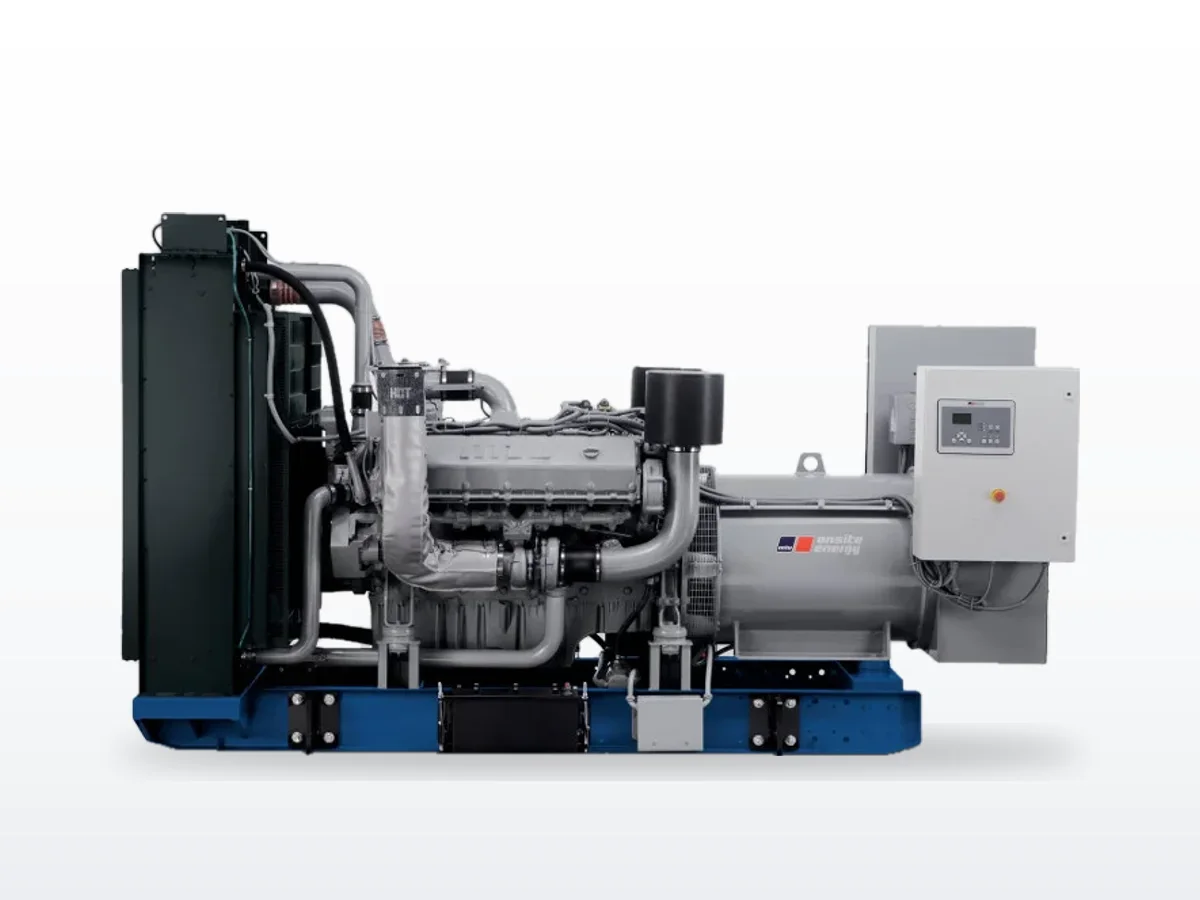

MTU 12V1600 DS900
