Overview#

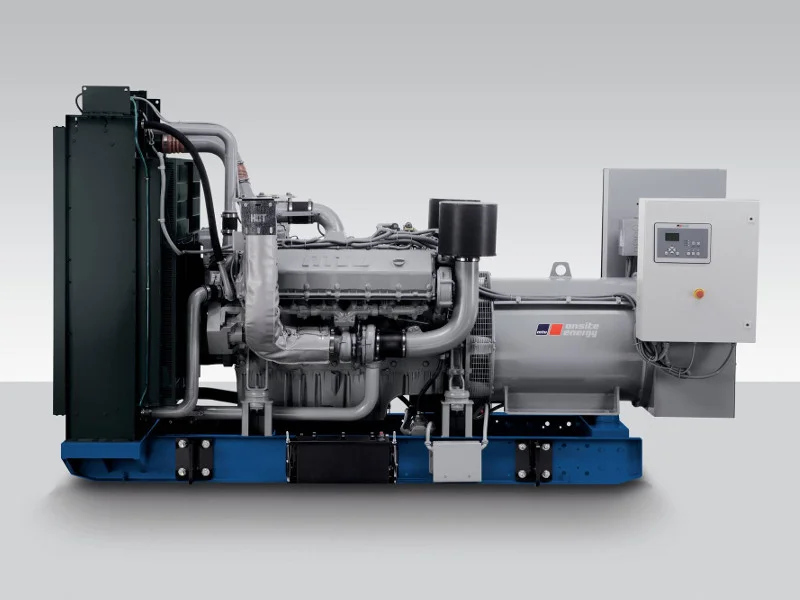

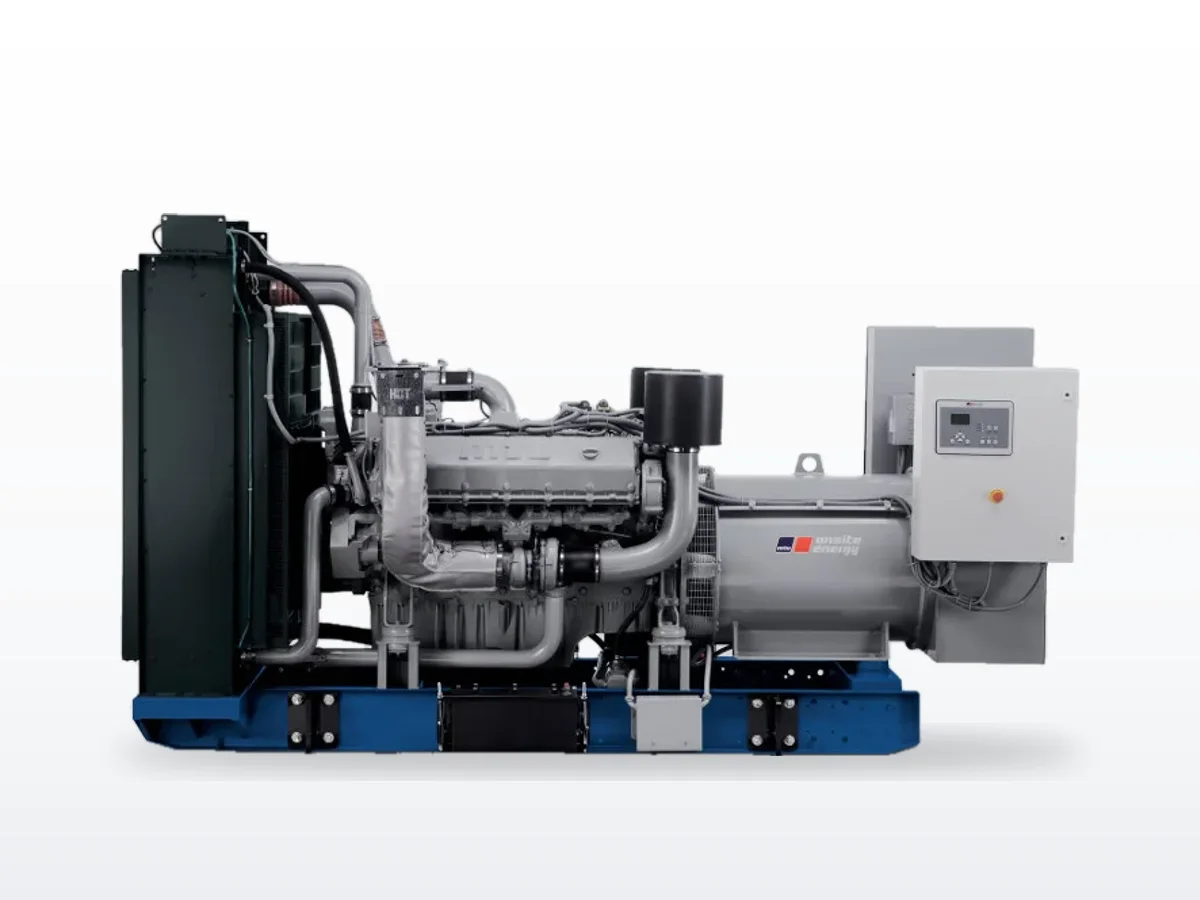

The MTU 12V1600 DS750 is a 750 kW standby diesel generator set built on the mtu 12V1600 engine platform — a 22.44-liter, 12-cylinder turbocharged and aftercooled diesel producing up to 836 kWm (1,121 bhp) at 1800 RPM. The genset is rated at 750 kW (937 kVA) standby and 690 kW prime, with output voltage configurations spanning 208V through 600V in three-phase arrangements. The unit carries EPA Tier 2 and SCAQMD certifications for stationary emergency operation.
The DS750 pairs the 12V1600G71S engine with a Leroy-Somer LSA 49.3 M8 alternator (at 480V) — a 4-pole, Class H unit rated for 130 degrees C temperature rise. The complete genset shares its 178 x 84.1 x 85.8 in footprint with the DS600 and DS900 variants, simplifying equipment room planning for projects where the final load calculation may shift between power classes during design.
The mtu 12V1600 platform at 750 kW#
The 12V1600 is a common-rail injection diesel with a 4.96 in bore and 5.91 in stroke, delivering strong transient response through its electronic fuel management. The 15.89:1 compression ratio is optimized for reliable cold-start performance and efficient combustion across the load range. At the DS750 rating, exhaust flow is 5,686 CFM at 898 degrees F, requiring appropriately sized exhaust systems but running cooler than the DS900 variant (1,024 degrees F). The radiator is rated for 50 degrees C (122 degrees F) ambient — well above typical Northern California summer conditions, providing comfortable thermal margin for most installations in the Bay Area and surrounding regions.
Our service experience#
We see the 12V1600 DS750 deployed across healthcare campuses, commercial high-rises, and data center facilities throughout the Bay Area and Northern California. The 750 kW rating hits a practical sweet spot — large enough to cover most single-building emergency loads without stepping up to the physically larger 16V2000 platform. The mtu brand has earned a strong reputation for reliability in our service territory, and the 12V1600 platform specifically is compact for its power class at just 178 inches long.
Parts sourcing runs through the Rolls-Royce Power Systems / mtu dealer network, which maintains adequate West Coast inventory for routine maintenance items. For critical-facility installations, we recommend maintaining a site spare set of fuel filters and belts, as some mtu-specific consumables can have longer lead times than domestic engine brands. Combustion air demand is 2,416 SCFM — a figure that must be accounted for in equipment room ventilation design alongside the radiator cooling circuit.
