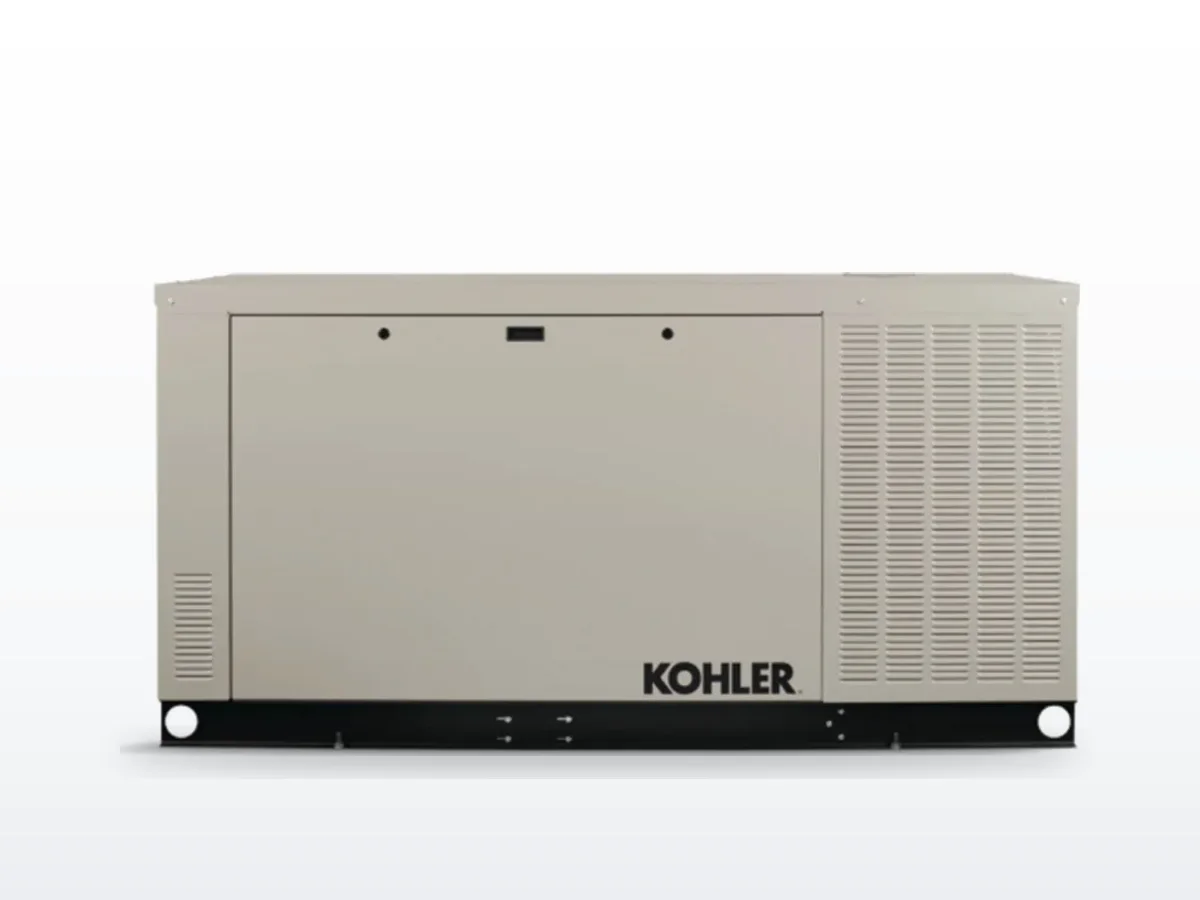

The Kohler 48RCL (current variants 48RCLB and 48RCLC) is a 48-kilowatt residential/light-commercial liquid-cooled standby generator — near the top of what Kohler classifies as residential. It steps up from the 2.2L 4-cylinder used in the 24/30/38 RCL units to the Kohler KG6208 6.2L naturally-aspirated V8 (the same industrial-grade GM-based block used in Kohler's KG40-KG125 industrial gensets), running at 1800 RPM.
At 48 kW it's commonly applied to whole-estate backup: 400A electrical services, multi-zone HVAC, heated pools, guest houses, workshops, and multiple EV chargers running together.
This is the single biggest installation challenge for the 48RCL. At full load on natural gas, fuel consumption can exceed 350 CFH — many residential gas meters and supply lines cannot deliver this flow without an upgrade. Every 48RCL installation requires a gas capacity survey that includes:
Gas meter capacity (CFH rating)
Supply line diameter from meter to generator
Total household gas demand (furnaces, water heaters, range, dryer) running simultaneously with the generator
Regulator capacity and pressure drop
For propane installations, a 500+ gallon tank with adequate vaporization capacity is required.
The 48RCL is our ultra-premium residential install — typically Atherton, Woodside, and Hillsborough compounds. At this capacity, the generator is the size of a small commercial unit and the installation approaches commercial complexity (concrete pad engineering, gas line upsizing, potential transformer upgrade). Service follows the operator manual; the 6.2L V8 has a larger oil and coolant capacity than the 2.2L units below it, and pad placement plus sound-barrier planning matter on tight lots.
Engineering specifications
Physical
Length
89.8 in
Width
32.9 in
Height
46.5 in
Dry weight
1,690 lb
Acoustic
Sound @ 7m, full load
61 dBA
Enclosure
Sound-attenuated
Fuel system & runtime
BTU/hr @ full load
875,000
Ready to order this model?
Configure your Kohler 48RCL
Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Fuel demand at 75% load
504,000 BTU/hr≈ 504.0 cf/min @ 1,000 BTU/cf
On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.
Service intervals
Manufacturer-recommended intervals for the Kohler 48RCL under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Battery
Failed to start, low cranking voltage
8,760+
minor
Coolant pump / thermostat
Overtemp fault, slow warmup
—
moderate
Fuel regulator / gas valve
No-start, hunting idle, fuel pressure fault
—
moderate
Parts cross-reference
starting Battery
Group 31
Frequently Asked Questions
What size home needs a 48 kW generator?
The 48RCL serves properties with 400A electrical service, 8,000+ sq ft main residence, multiple structures, 4+ HVAC zones, and heavy electrical loads like commercial kitchens, heated pools, or extensive workshop equipment.
Is the 48RCL the largest residential Kohler generator?
The 48RCL and 60RCL are the two largest units in the residential lineup. Above 48 kW residential, you're entering light-commercial territory where a Kohler KG60 (industrial platform) may be more appropriate.
Does the 48RCL require a 400A service?
Not necessarily, but homes that need 48 kW typically have 400A service. The ATS must match your electrical service size. For 400A service, you'll need a 400A transfer switch — Kohler offers this in their commercial KCS line.
Gas supply requirements for 48 kW?
The 48RCL requires significant gas flow — typically a 1.5-2 inch gas line and adequate meter capacity. Most residential meters in the Bay Area are 250-400 CFH; the 48RCL at full load may consume 350+ CFH on natural gas. A gas capacity survey is essential before installation.

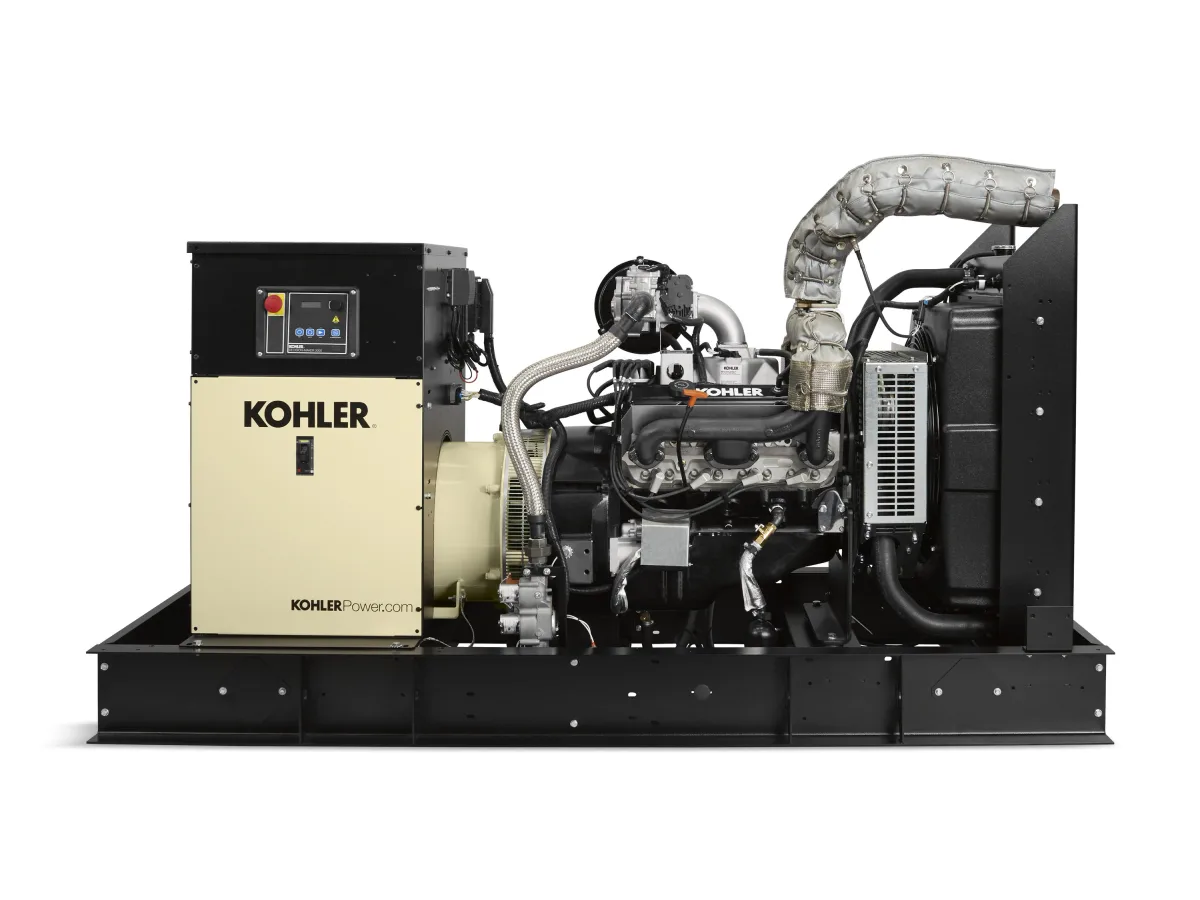

50 kW commercial standby on NG/LP for retail, offices, and light commercial where diesel storage is impractical or prohibited.

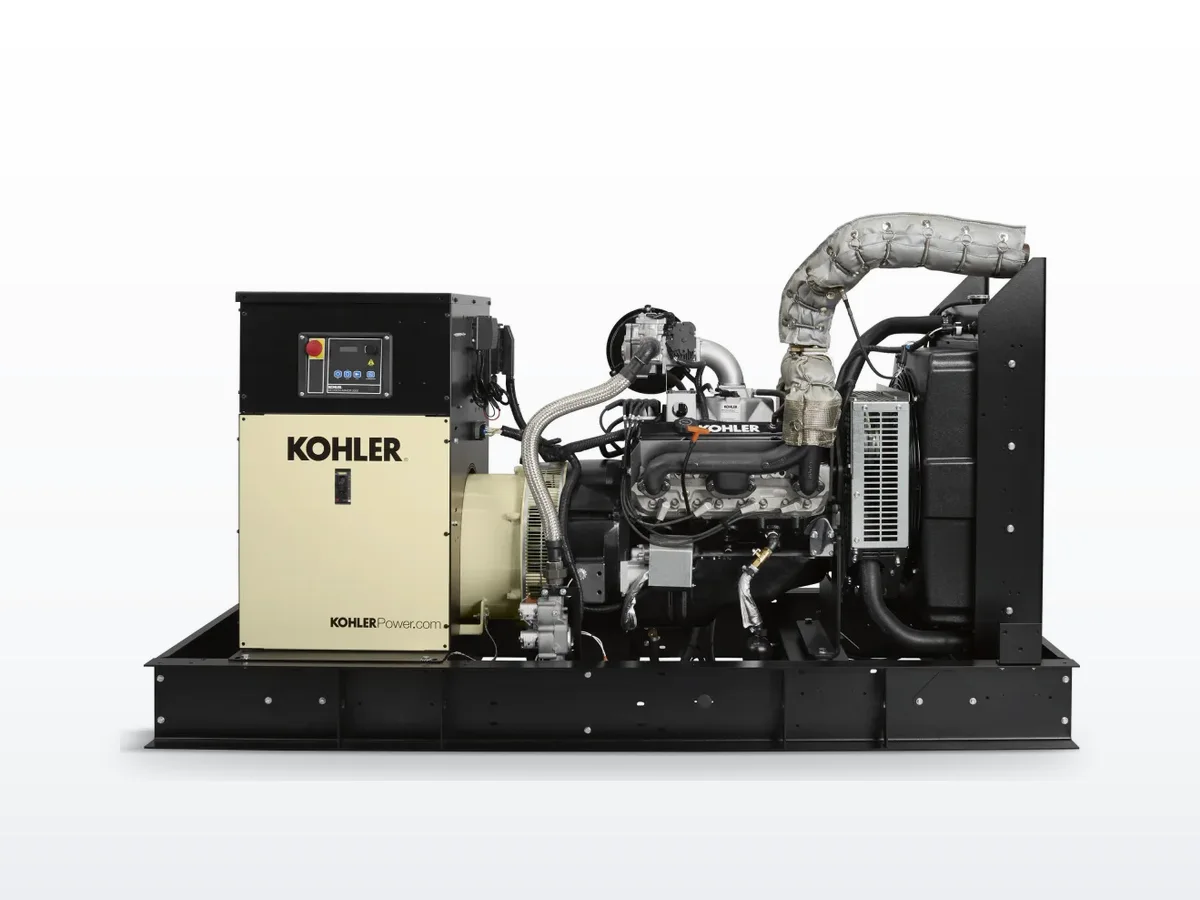

41-50 kW gaseous-fueled commercial standby generator with Brushless Rare-Earth Permanent-Magnet alternator. Industrial gaseous unit for commercial backup on natural gas or propane.
