Kohler · RCL Series (Residential Liquid-Cooled)

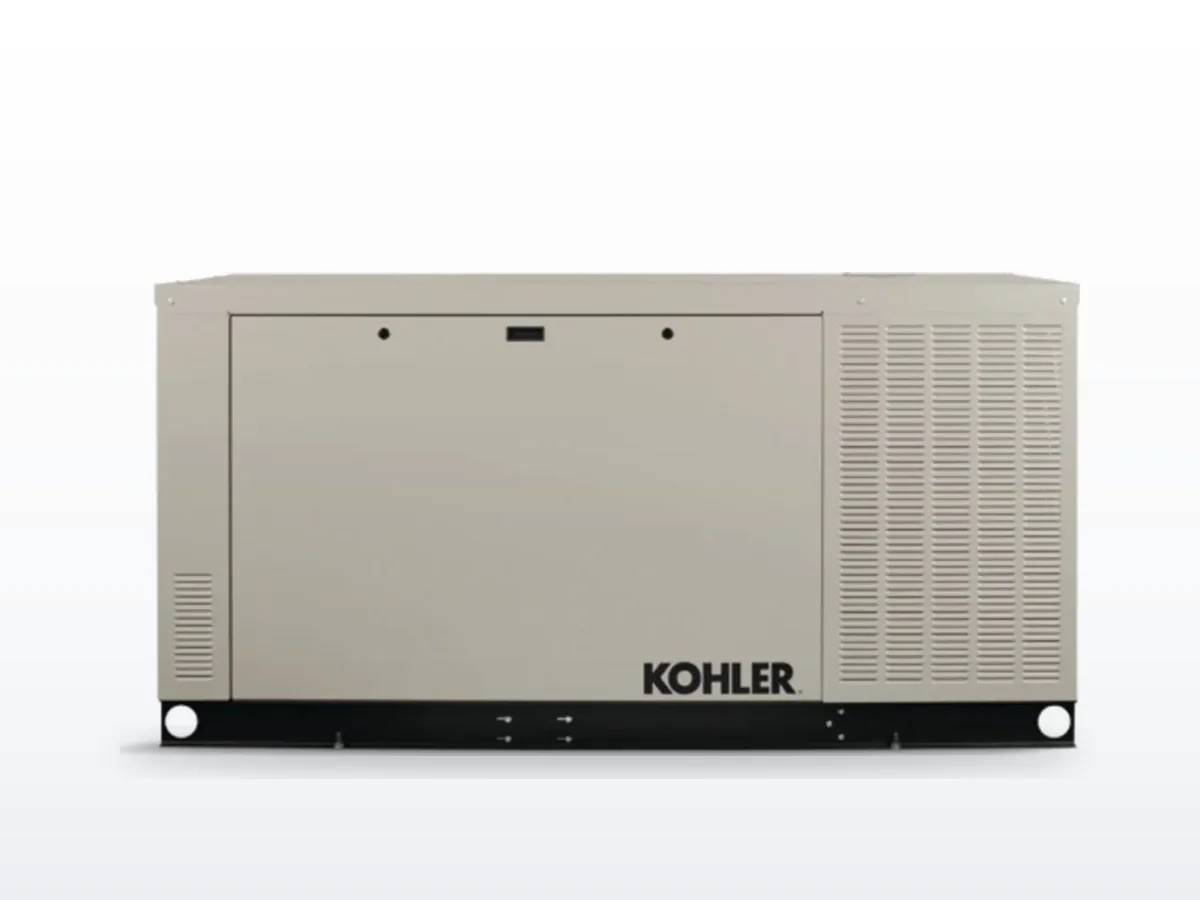

Kohler 60RCL

60 kW standby · Natural Gas / LPG · Liquid-cooled

60 kW residential liquid-cooled standby generator. The largest unit in Kohler's residential lineup for mega-estates and multi-structure properties.

Kohler Kohler 60RCL generator — specifications and details
Standby power
60 kW
Voltage options
120/240V
Frequency / Phase
60 Hz · 1-phase
Engine
Kohler KG6208 · 6.2L
EPA / Emissions
EPA Stationary Spark Ignition
residential-mega-estatecompoundmulti-structureresidential-commercial-hybrid
Configure & QuoteDownload spec sheet

Overview#

The Kohler 60RCL (current variant 60RCLB) is a 60-kilowatt residential/light-commercial liquid-cooled standby generator — the largest unit in Kohler's residential RCL lineup. It uses the same Kohler KG6208 6.2L naturally-aspirated V8 (industrial GM-based block) at 1800 RPM as the 48RCL, with a larger alternator delivering the higher rated output.

At 60 kW single-phase, this is effectively a small commercial generator in a residential enclosure. It powers entire compounds: main residence, guest house, pool house, workshop, and staff quarters on one panel.

The residential-commercial boundary#

The 60RCL shares an engine platform with Kohler's KG-series industrial gensets, but it's packaged for residential service. The differentiators between an RCL and the equivalent industrial KG-series unit are typically:

  • Phases: RCL is single-phase 120/240 V; industrial KG variants are available in single- and three-phase.
  • Voltages: RCL is 120/240 V; industrial KG variants are also offered at 208 V and 480 V.
  • Controller, enclosure, and warranty: the RCL ships with the residential RDC2 controller and aluminum residential enclosure; industrial KG units use industrial controllers and enclosures with different warranty terms.

The 60RCL is the right choice when: single-phase 120/240 V service, residential installation constraints, and the owner wants a residential-class product with residential warranty support.

An industrial KG-series unit is better when: three-phase or higher voltage is needed, the duty cycle is commercial, or the installation calls for an industrial enclosure and controller.

Our service experience#

The 60RCL is rare in our territory — we see perhaps 5-10 active units. These are exclusively on Atherton/Woodside compounds with very large residences. The gas supply challenge is significant: full-load consumption typically requires gas-utility coordination, a dedicated gas run, and sometimes a service upgrade. We always coordinate with PG&E during the pre-install survey for any 48+ kW residential installation. Sound-barrier walls or strategic pad placement away from bedrooms and property lines is standard practice for the V8.

Engineering specifications

Physical

Length
89.8 in
Width
32.9 in
Height
46.5 in
Wet weight
1,894 lb

Acoustic

Sound @ 7m, full load
63 dBA
Enclosure
Sound-attenuated

Fuel system & runtime

BTU/hr @ full load
1,013,000

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler 60RCL

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Kohler 60RCL

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

630,000 BTU/hr≈ 630.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Service intervals

Manufacturer-recommended intervals for the Kohler 60RCL under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
BatteryFailed to start, low cranking voltage8,760+minor
Coolant systemOvertemp, coolant loss, thermostat failure—moderate
Voltage regulatorVoltage fluctuation under heavy variable load—moderate
Fuel system (regulator/solenoid)No-start, hunting, fuel pressure faults—moderate

Parts cross-reference

starting Battery
Group 31

Frequently Asked Questions

Is the 60RCL the largest Kohler home generator?
Yes — the 60RCL is the flagship of Kohler's residential lineup. Above 60 kW residential, Kohler recommends transitioning to their industrial KG line (which starts at KG40 and is built for commercial duty cycles, three-phase, and institutional applications).
When should I choose the 60RCL over a Kohler KG-series industrial unit?
Choose the 60RCL for single-phase 120/240 V residential service. Choose a comparable industrial KG-series genset for three-phase commercial applications or where the industrial enclosure, controller, and warranty package are required. Both share the same Kohler KG6208 6.2L V8 engine block, so engine architecture isn't the differentiator — alternator phase, controller, enclosure, and rated duty are.
Gas supply for 60 kW residential?
Per Kohler's 60RCL spec sheet, full-load natural-gas consumption is on the order of several hundred CFH. This typically requires a dedicated gas run from the meter, potentially a meter upgrade, and coordination with the gas utility. Verify exact CFH at the rated load against the current spec sheet before sizing the gas system.

Compatible equipment

Engine

Transfer switches

More in the RCL Series (Residential Liquid-Cooled)

Kohler RCL Series: 24–60 kW liquid-cooled residential standby — quieter, longer-lived, and larger than air-cooled.

View all 5models in this series →

Similar models

Kohler Kohler 48RCL 48 kW liquid-cooled standby generator

Kohler

Kohler 48RCL

48 kW liquid-cooled residential -- Kohler KG6208 V8 at 1800 RPM. Estate-class capacity with commercial-grade power quality.

48 kW standby · Natural Gas / LPG · Liquid-cooled

48 kW residential liquid-cooled standby generator. Ultra-premium whole-estate backup for the largest residential electrical systems.

EPA Stationary Spark IgnitionSingle-phaseresidential-estate-largecompound
Kohler Kohler 26RCA 26 kW air-cooled standby generator

Kohler

Kohler 26RCA

Top-of-line air-cooled at 26 kW -- Kohler CH1006 V-twin. Largest capacity before stepping up to liquid-cooled RCL series.

26 kW standby · Natural Gas / LPG · Air-cooled

26 kW residential air-cooled standby generator. The largest air-cooled unit in Kohler's residential lineup for larger homes on a budget.

Single-phaseresidential-largewhole-house

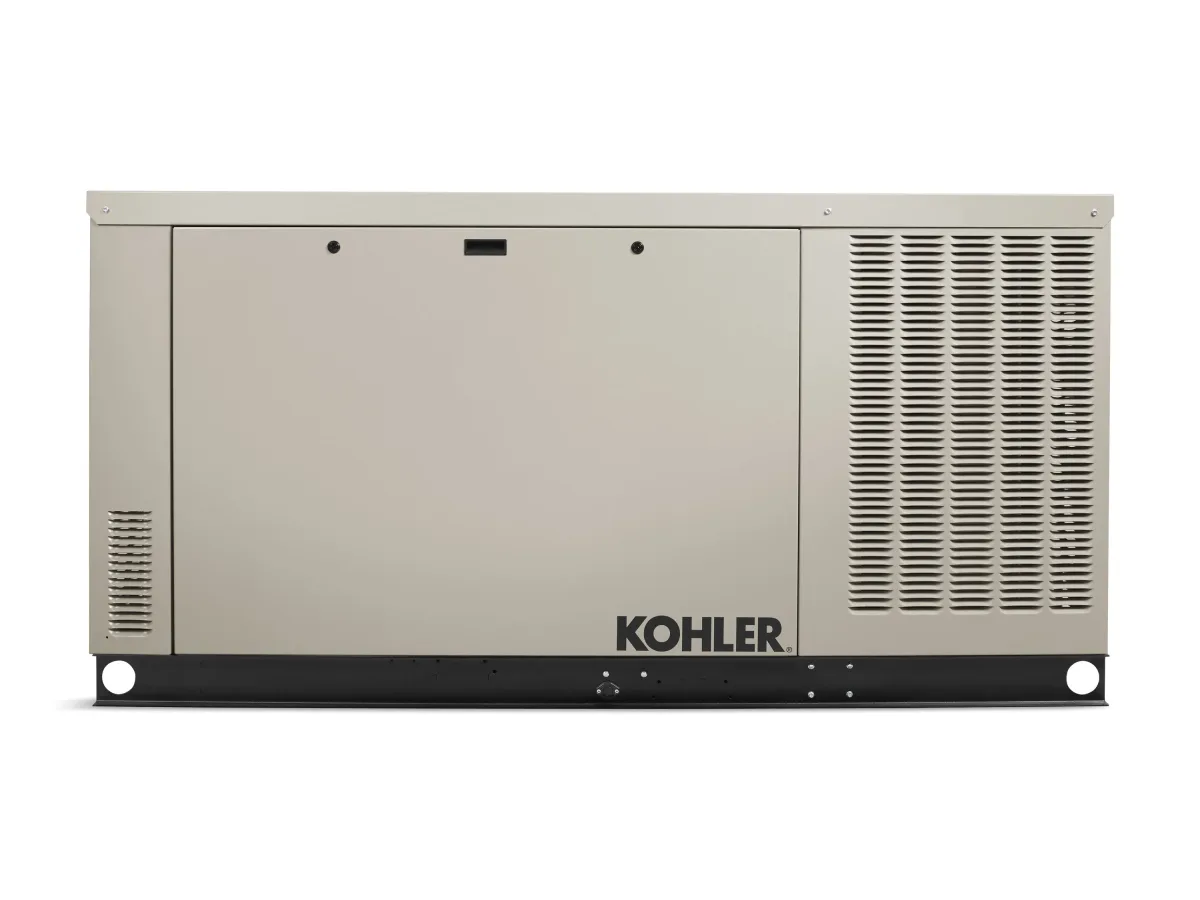

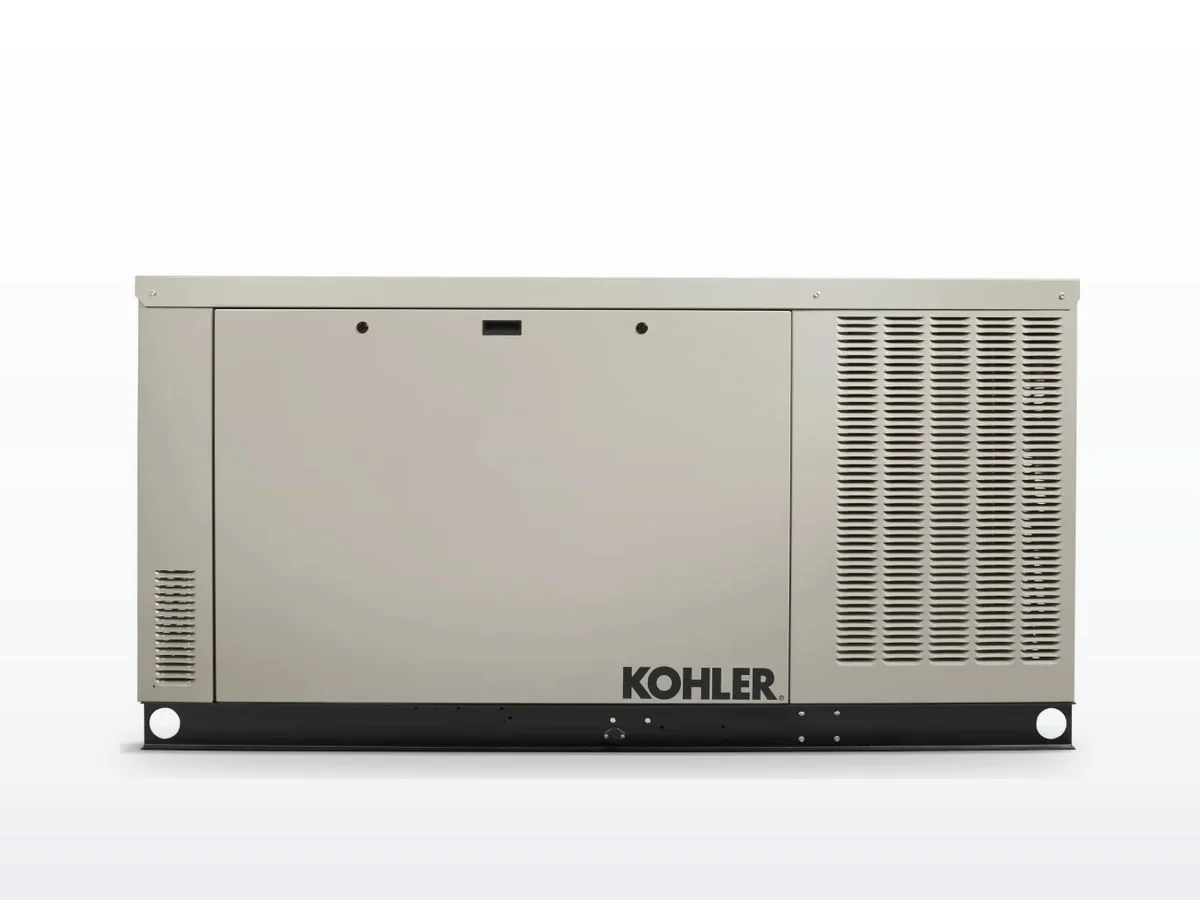

Kohler Kohler 36CCL 36 kW liquid-cooled standby generator
