Kohler · RCA Series (Residential Air-Cooled)

Kohler 20RCA

20 kW standby · Natural Gas / LPG · Air-cooled

20 kW residential air-cooled standby generator. Mid-range air-cooled backup for medium homes on natural gas or propane.

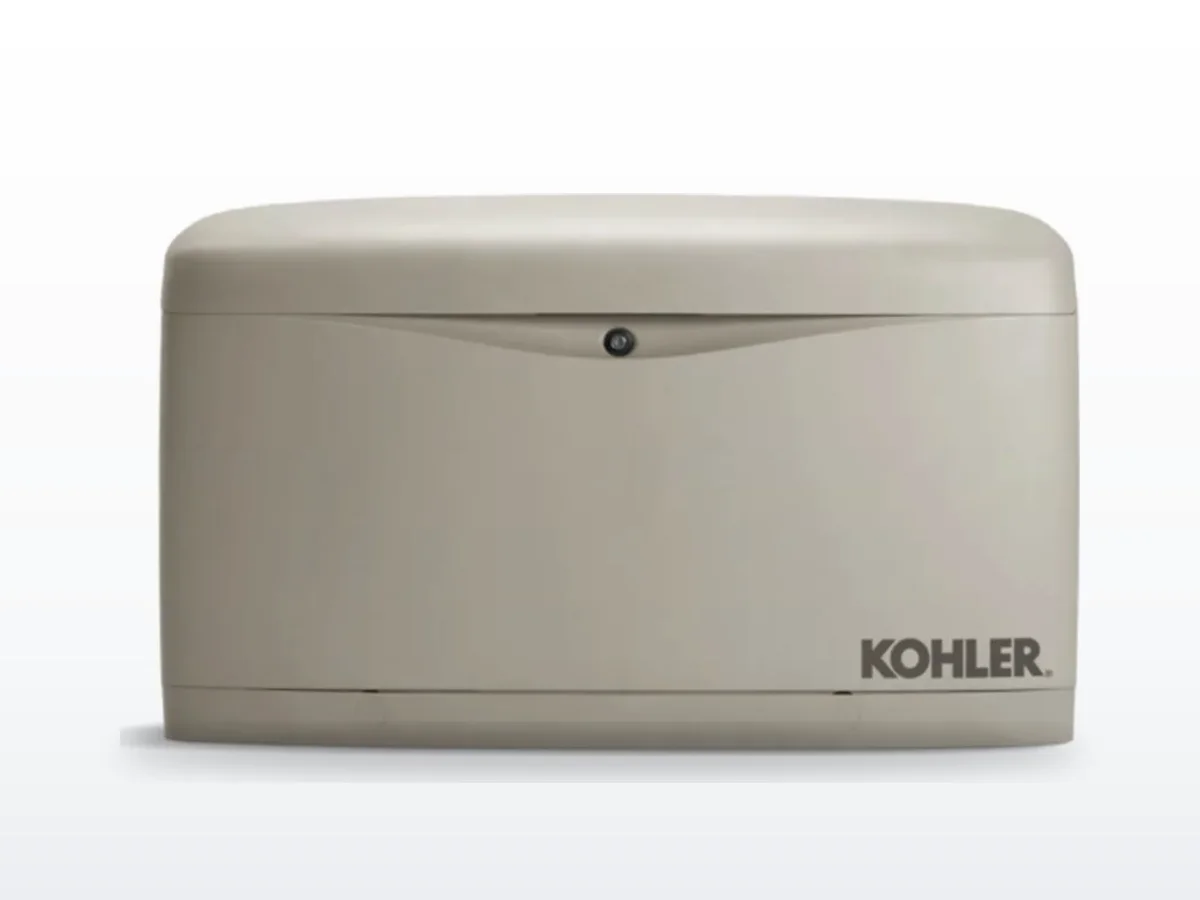

Kohler Kohler 20RCA generator — specifications and details
Standby power
20 kW
Voltage options
120/240V
Frequency / Phase
60 Hz · 1-phase
Engine
Kohler CH1000 · 1L
residential-mediumwhole-houseessential-circuits-large
Configure & QuoteDownload spec sheet

Overview#

The Kohler 20RCA is a 20-kilowatt residential air-cooled standby generator. Per Kohler's factory spec sheet, it pairs the Kohler CH1000 999 cc V-twin (3,600 RPM) with a single-phase 120/240 V alternator and an aluminum sound enclosure, and it can run on either natural gas or LP.

The 20 kW size point#

20 kW is one of the more common residential standby sizes. Installed cost on the air-cooled platform is competitive with comparable Generac Guardian models in the same kW band; selection should be driven by the home's actual load calculation, the local dealer/service network, and whether the installation site favors air-cooled or liquid-cooled.

Service intervals#

Per Kohler's RCA owner manual, with Kohler PRO 10W-50 oil and the PRO extended-life filter, oil and filter changes are on a 300-hour / 2-year interval. Without the PRO oil/filter, the manual specifies 100 hours / yearly oil and 200 hours / yearly filter. We default to the PRO regimen.

Our service experience#

The 20RCA is a common Kohler residential install in our territory. For clients in noise-sensitive neighborhoods or hot inland climates we typically recommend a liquid-cooled RCL unit instead.

Engineering specifications

Physical

Length
47 in
Width
26.2 in
Height
32.2 in
Dry weight
555 lb

Acoustic

Sound @ 7m, full load
69 dBA
Enclosure
Sound-attenuated

Fuel system & runtime

BTU/hr @ full load
281,000

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler 20RCA

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Kohler 20RCA

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

210,000 BTU/hr≈ 210.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Service intervals

Manufacturer-recommended intervals for the Kohler 20RCA under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 200 hours or 24 months
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
BatteryFailed to start during outage—minor
Spark plugsHard starting, rough idle—minor
Cooling system (fins/fan)Overtemp under sustained full load—moderate

Parts cross-reference

Frequently Asked Questions

What is the engine in the 20RCA?
Per the Kohler factory spec sheet and CH940-CH1000 service manual, the 20RCA uses a Kohler CH1000 V-twin air-cooled engine — 999 cc, 90 x 78.5 mm bore/stroke, 8.8:1 compression — at 3,600 RPM.
What is the rated output on natural gas vs LP?
The factory spec sheet lists 20 kW standby at 60 Hz on either NG or LP at 120/240 V single phase. The underlying engine produces more shaft power on LP than on NG, but the genset's electrical rating is the published figure to use for sizing.
Should I consider a liquid-cooled unit instead?
For homes whose worst-case load runs near 20 kW continuously, or for installations in hot inland climates where ambient routinely exceeds 100 °F, a liquid-cooled platform (such as a 24RCL/38RCL) typically delivers longer engine life and lower derate at high ambient. Discuss with your installer based on your actual load study.

Compatible equipment

Transfer switches

More in the RCA Series (Residential Air-Cooled)

Kohler RCA Series: 14–26 kW air-cooled residential standby — entry-point whole-house backup on natural gas or LP.

View all 3models in this series →

Similar models

Kohler Kohler 14RCA 14 kW air-cooled standby generator

Kohler

Kohler 14RCA

Entry-level Kohler standby at 14 kW -- Kohler CH740 V-twin with Decision-Maker controller. Quieter than most air-cooled competitors.

14 kW standby · Natural Gas / LPG · Air-cooled

14 kW residential air-cooled standby generator. Kohler's entry-level whole-house backup on natural gas or propane.

Single-phaseresidential-smallwhole-house-basic

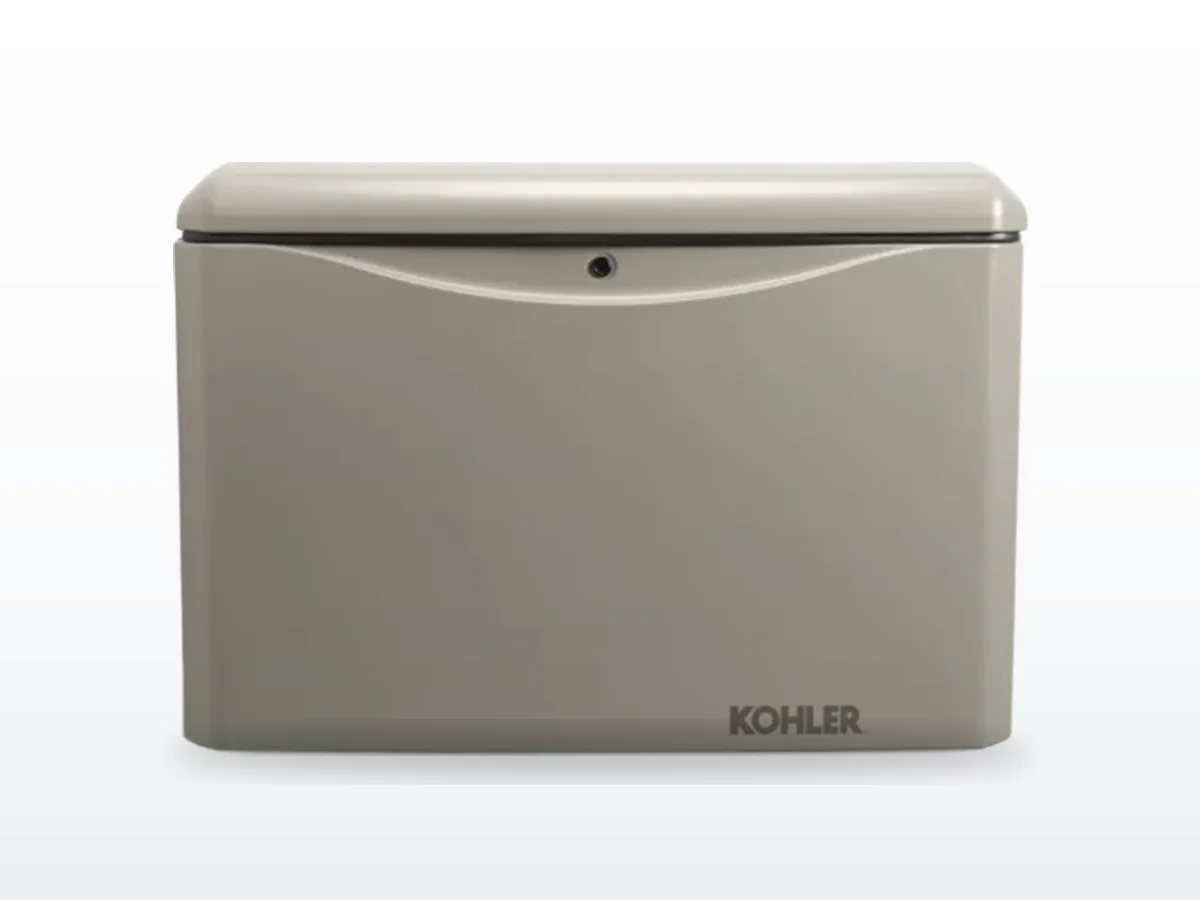

Kohler Kohler 26RCA 26 kW air-cooled standby generator

Kohler

Kohler 26RCA

Top-of-line air-cooled at 26 kW -- Kohler CH1006 V-twin. Largest capacity before stepping up to liquid-cooled RCL series.

26 kW standby · Natural Gas / LPG · Air-cooled

26 kW residential air-cooled standby generator. The largest air-cooled unit in Kohler's residential lineup for larger homes on a budget.

Single-phaseresidential-largewhole-house

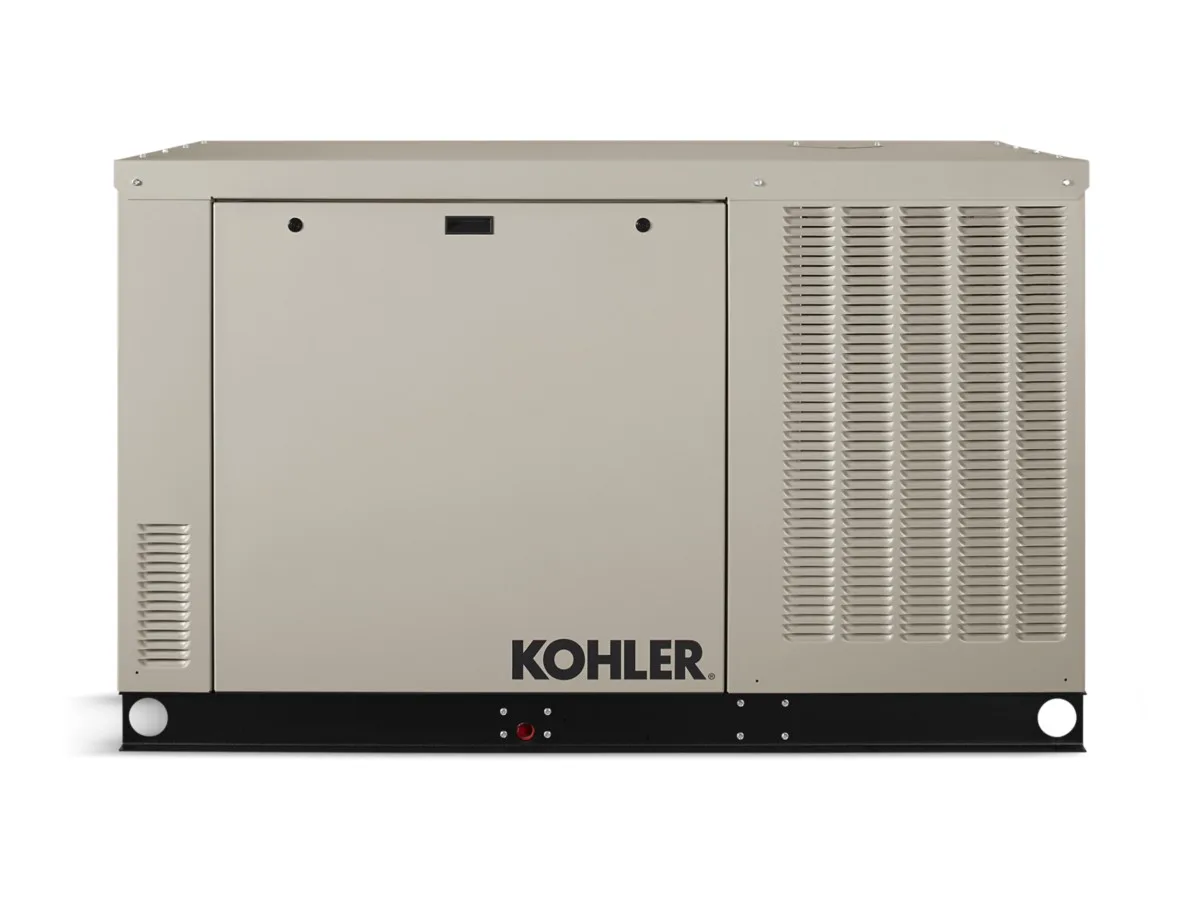

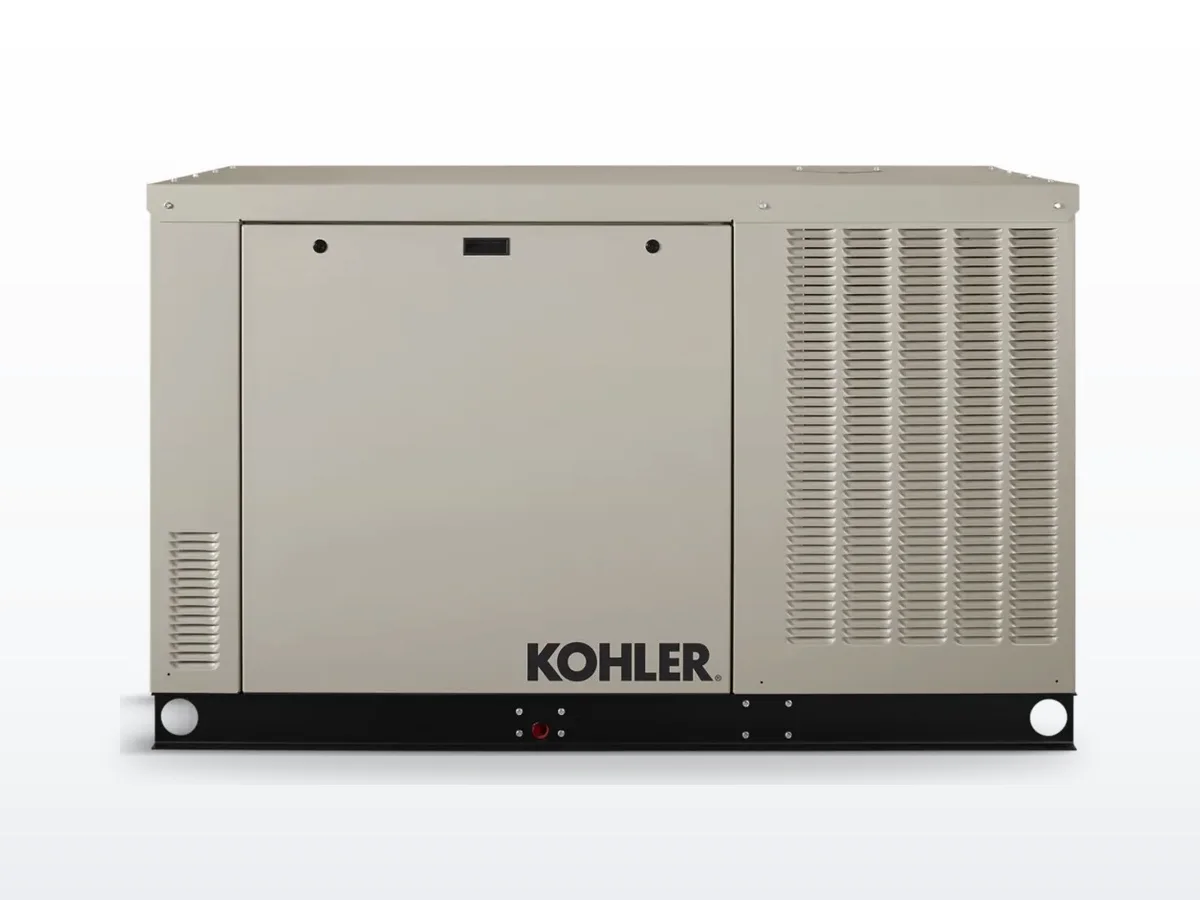

Kohler Kohler 24RCL 24 kW liquid-cooled standby generator
