Kohler · REOZ Series (Diesel Mobile Trailer)

Kohler 90REOZT4

85 kW standby / 76 kW prime · Diesel · Liquid-cooled

90 kW Tier 4 Final diesel mobile trailer generator. John Deere-powered portable diesel for construction, events, and temporary power applications.

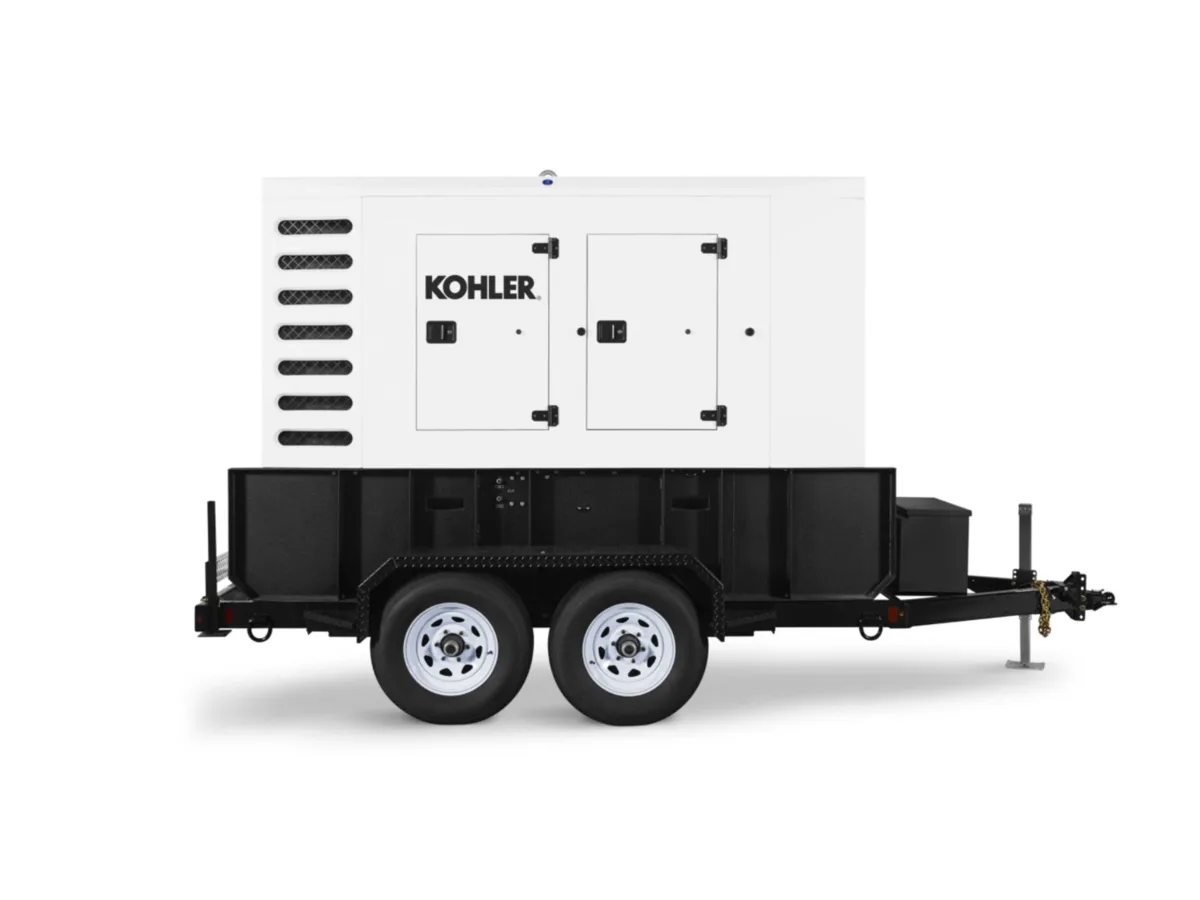

Kohler Kohler 90REOZT4 generator — specifications and details
Standby power
85 kW / 76 kW prime
Voltage options
120/208V, 277/480V, 120/240V
Frequency / Phase
60 Hz · 1/3-phase
Engine
John Deere 4045HFG04 · 4.5L
EPA / Emissions
Tier 4 Final

Overview#

The Kohler 90REOZT4 is an 85-kilowatt standby (76 kW prime) EPA Tier 4 Final diesel mobile trailer generator powered by a John Deere 4045HFG04 engine at 1800 RPM.

The 4045HFG04 meets Tier 4 Final using selective catalytic reduction (SCR) with Diesel Exhaust Fluid (DEF), unlike the smaller Kohler KDI units that use EGR+DOC alone. The unit includes an 8.0-gallon DEF tank alongside the main 192-gallon diesel tank, with a DEF quality sensor integrated into the Decision-Maker 3500 controller. The brushless rare-earth permanent-magnet alternator (Fast-Response X) provides 300% sustained short-circuit current for up to 10 seconds.

The 90REOZT4 uses a dual-axle trailer rated at 6,000 lb. per axle — stepping up from the single-axle trailers on the 35/45/55REOZT4 models. DOT and Transport Canada compliant. Dimensions are 116.2" x 44.1" x 84.9", making it a larger footprint that may require a wider tow vehicle.

Specifications#

SpecValue
Standby Power85 kW
Prime Power76 kW
Voltage120/208V, 120/240V, 277/480V, 347/600V
Frequency60 Hz
EngineJohn Deere 4045HFG04
Cylinders4 inline
Displacement4.5 L (275 cu. in.)
AspirationTurbocharged, Charge Air Cooled
EmissionsEPA Tier 4 Final (nonroad, SCR+DEF)
RPM1800
FuelUltra Low Sulfur Diesel / HVO / RD
CoolingLiquid (unit-mounted radiator, 50°C ambient)
Fuel consumption — 100% load6.4 gph (standby)
Fuel consumption — 75% load4.8 gph (standby)
Diesel tank192 gal (727 L) — 24 hr minimum runtime
DEF tank8.0 gal (30.1 L)
Sound level69 dB(A) @ 7 m (prime, full load)
Dimensions (L x W x H)116.2" x 44.1" x 84.9"
ControllerDecision-Maker 3500

Service & Maintenance#

The John Deere 4045HFG04 oil pan holds 21 liters (22.2 quarts) with filter. DEF system health checks should be part of every service visit — DEF quality alerts will trigger derate warnings and eventually a no-start condition if the issue is not addressed. Use only AUS32 DEF per ISO 22241-1.

Common Failure Modes#

The 90REOZT4 uses SCR/DEF technology rather than the simpler EGR+DOC system of the smaller REOZT4 models, which introduces additional service requirements. DEF quality alerts and NOx sensor faults are the most common system-level issues; a failing DEF quality sensor will trigger a derate warning even when DEF is good.

Turbocharger wear appears at higher hours — power loss under load and elevated exhaust smoke are the primary indicators. The 4045HFG04's turbocharger is a field-replaceable unit, but diagnosis should confirm the cause before replacement since injector fouling presents with similar symptoms.

Battery failures (single 12V, 450 CCA) are common on standby units.

Our service experience#

OnPoint Generators provides installation, maintenance, load bank testing, and emergency service for Kohler industrial generators throughout Northern California and the Central Valley. The 90REOZT4 is a common choice for large construction projects and industrial planned outages requiring DOT-mobile power above 50 kW. The John Deere 4045 engine is one of the most widely-supported industrial diesel platforms in the world — parts are available through both Kohler/Rehlko and John Deere dealer networks, which simplifies emergency parts procurement at remote job sites.

FAQ#

What is the standby rating of the Kohler 90REOZT4?#

The 90REOZT4 is rated at 85 kW standby (106 kVA at 0.8 PF three-phase) at 120/208V. Prime power is 76 kW. All ratings are per Kohler spec sheet G5-416.

Does the 90REOZT4 require DEF?#

Yes. Unlike the smaller 35/45/55REOZT4 models that use EGR+DOC only, the 90REOZT4 uses a selective catalytic reduction (SCR) system requiring Diesel Exhaust Fluid (DEF). The unit includes an 8.0-gallon DEF tank. DEF should be checked and refilled at each service visit and before extended deployments.

What is the sound level of the Kohler 90REOZT4?#

Per Kohler published specifications, the 90REOZT4 is rated at 69 dB(A) log average at 7 meters with full load at the prime rating.

Engineering specifications

Physical

Length
116.2 in
Width
44.1 in
Height
84.9 in
Wet weight
5,605 lb

Acoustic

Enclosure
Sound-attenuated

Fuel system & runtime

Integral fuel tank
192 gal
Fuel use @ full load
6.4 GPH
Fuel use @ 75% load
4.8 GPH
Fuel use @ 50% load
3.4 GPH

Photos

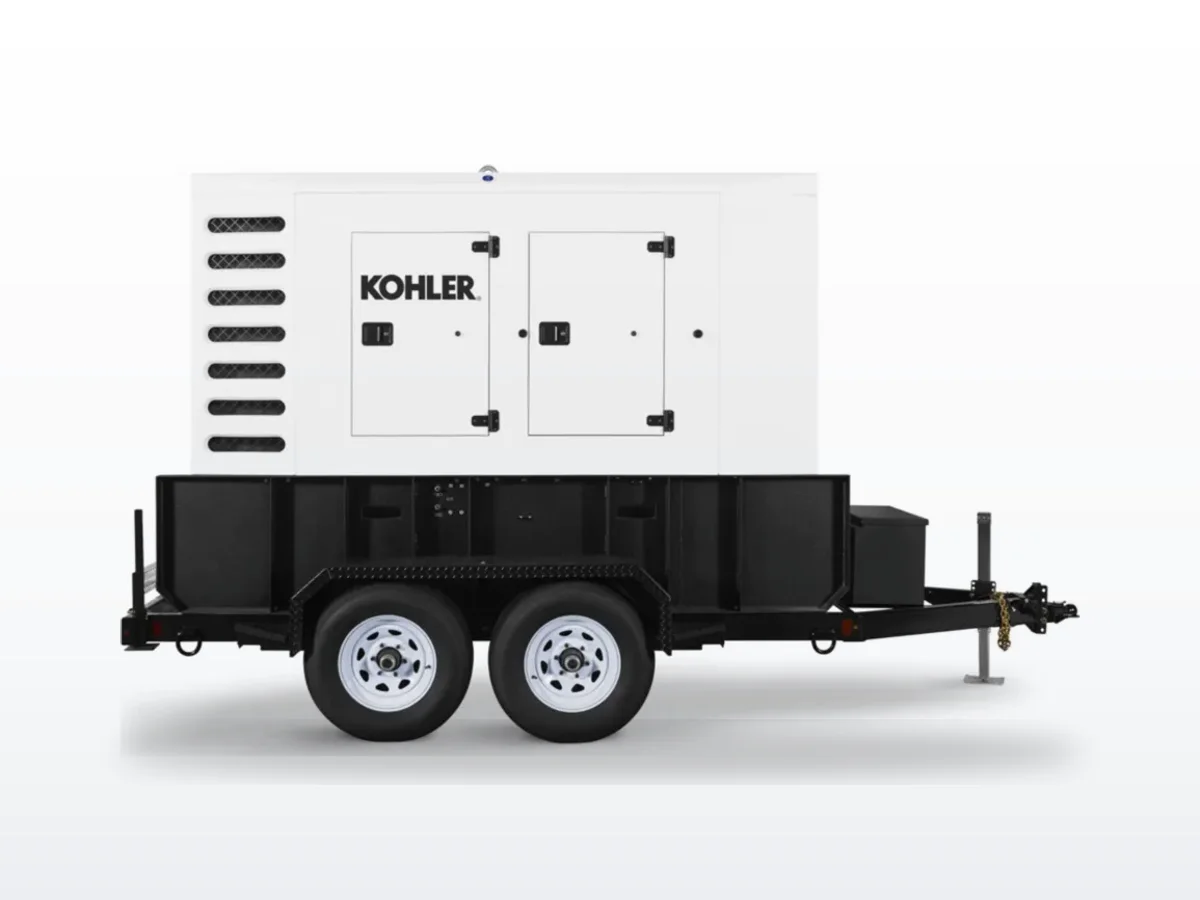

Kohler 90REOZT4 — product photo

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler 90REOZT4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Kohler 90REOZT4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

38.9 hours(1.6 days)

Fuel consumption ≈ 4.94 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

Is the 90REOZT4 a mobile or stationary generator?
The 90REOZT4 is a trailer-mounted mobile generator, EPA Tier 4 Final certified for nonroad applications. It includes a 727-liter (192-gallon) fuel tank with 24-hour runtime at 75% load.
What controller does the 90REOZT4 use?
The 90REOZT4 uses a DEC3500 digital controller with auto voltage sensing and paralleling capability.

Compatible equipment

More in the REOZ Series (Diesel Mobile Trailer)

Kohler REOZT4 trailer generators: 30–150 kW EPA Tier 4 Final diesel, built for temporary and emergency deployment.

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohler generators →

Similar models

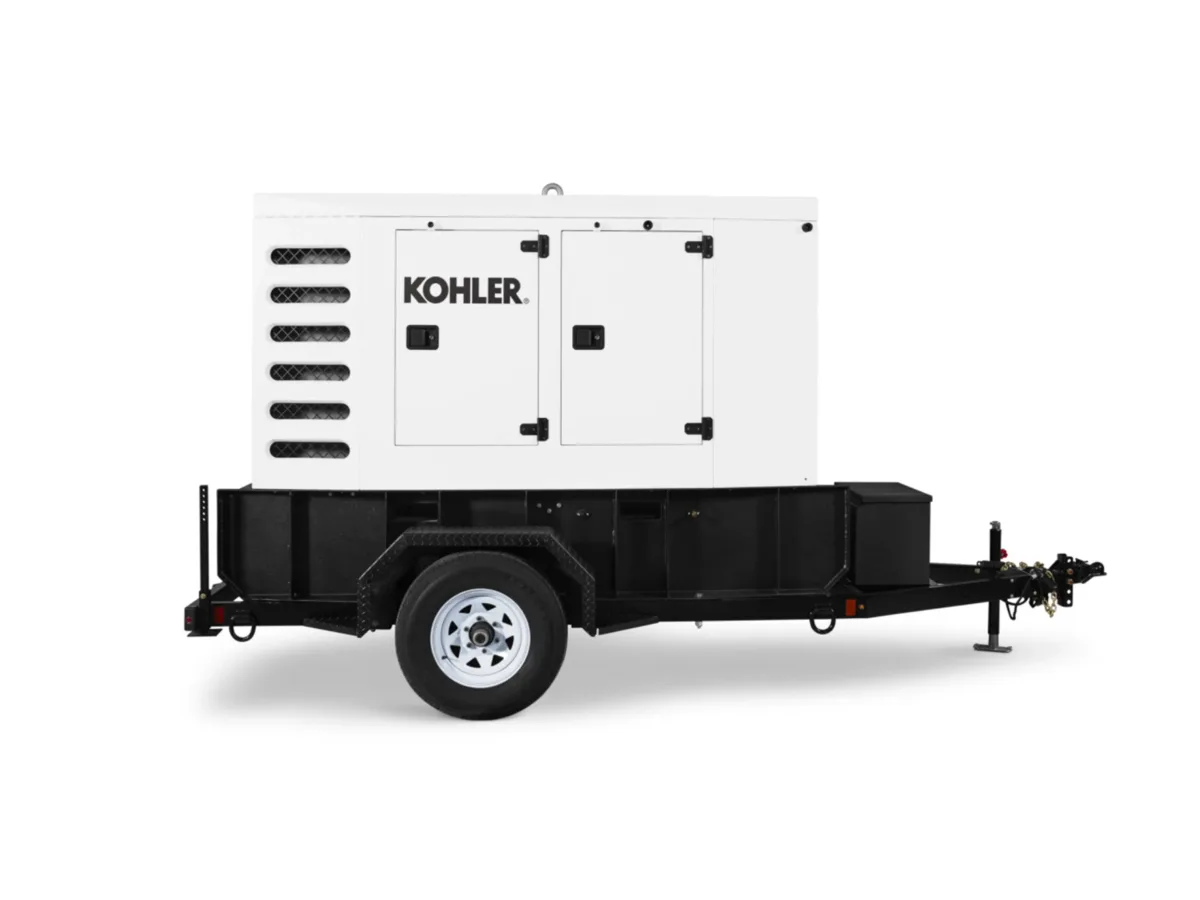

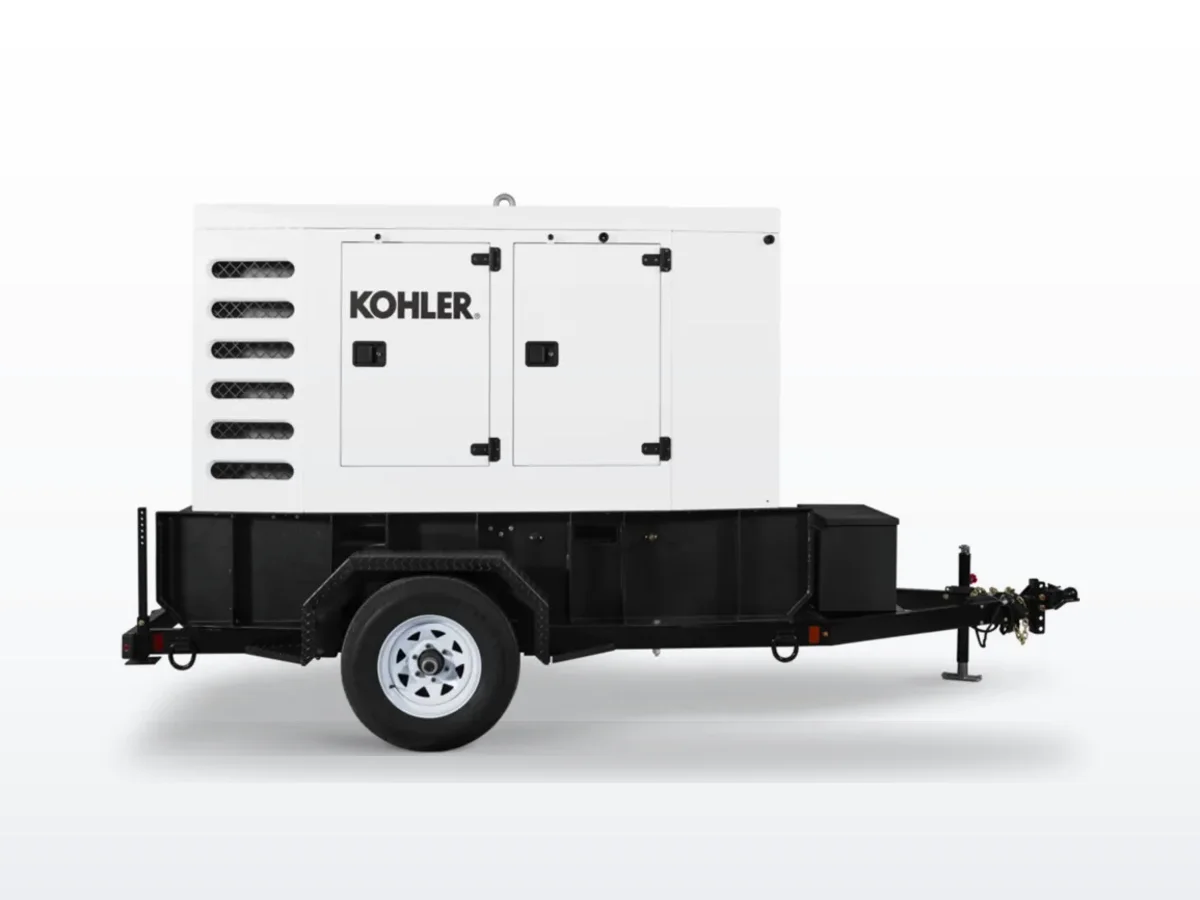

Kohler Kohler 55REOZT4 47 kW liquid-cooled standby generator

Kohler

Kohler 55REOZT4

47 kW mobile diesel trailer -- Tier 4 Kohler KDI 3404 TCR. DOT-towable for temporary and emergency power deployment.

47 kW standby · Diesel · Liquid-cooled

55 kW Tier 4 Final diesel mobile trailer generator. Kohler-powered portable diesel for construction, events, and temporary power applications.

Tier 4 Final3-phasecommercialhealthcare

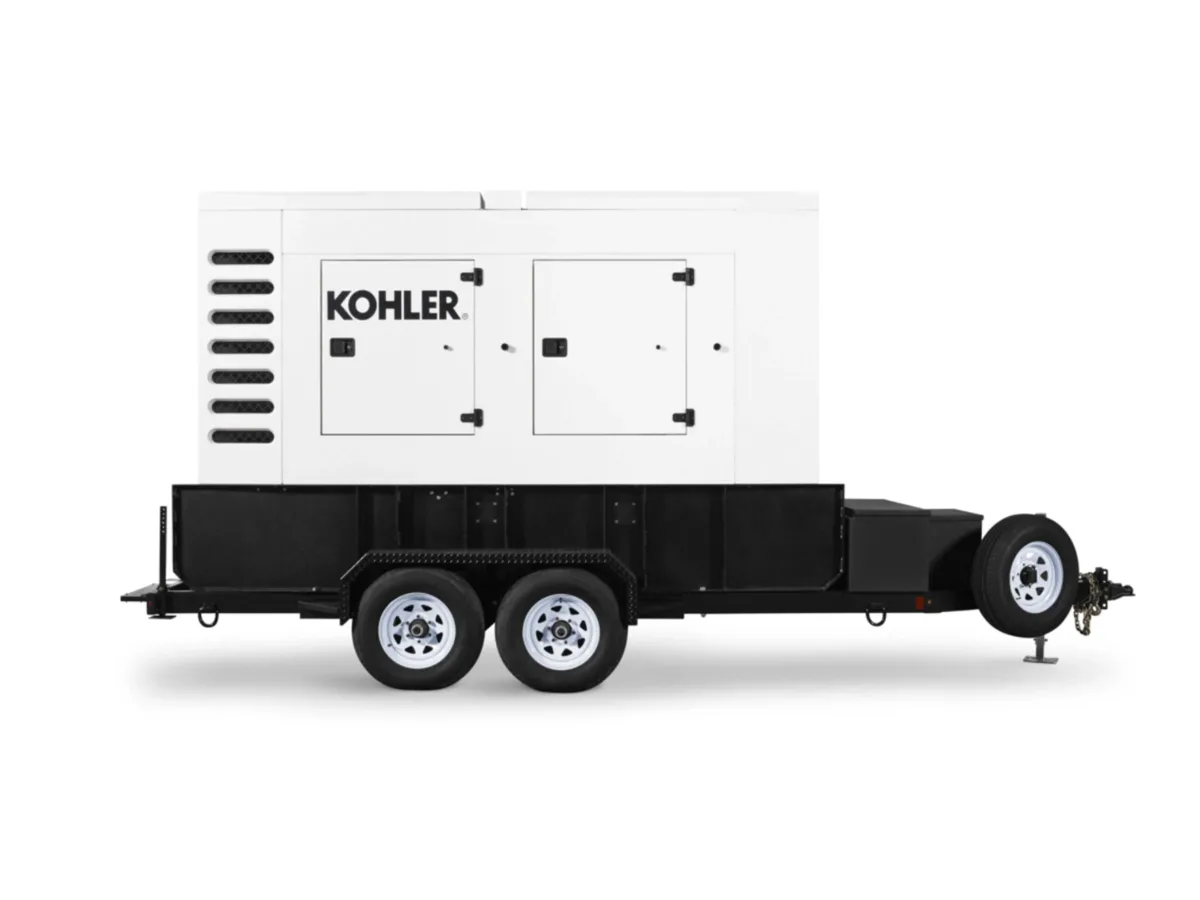

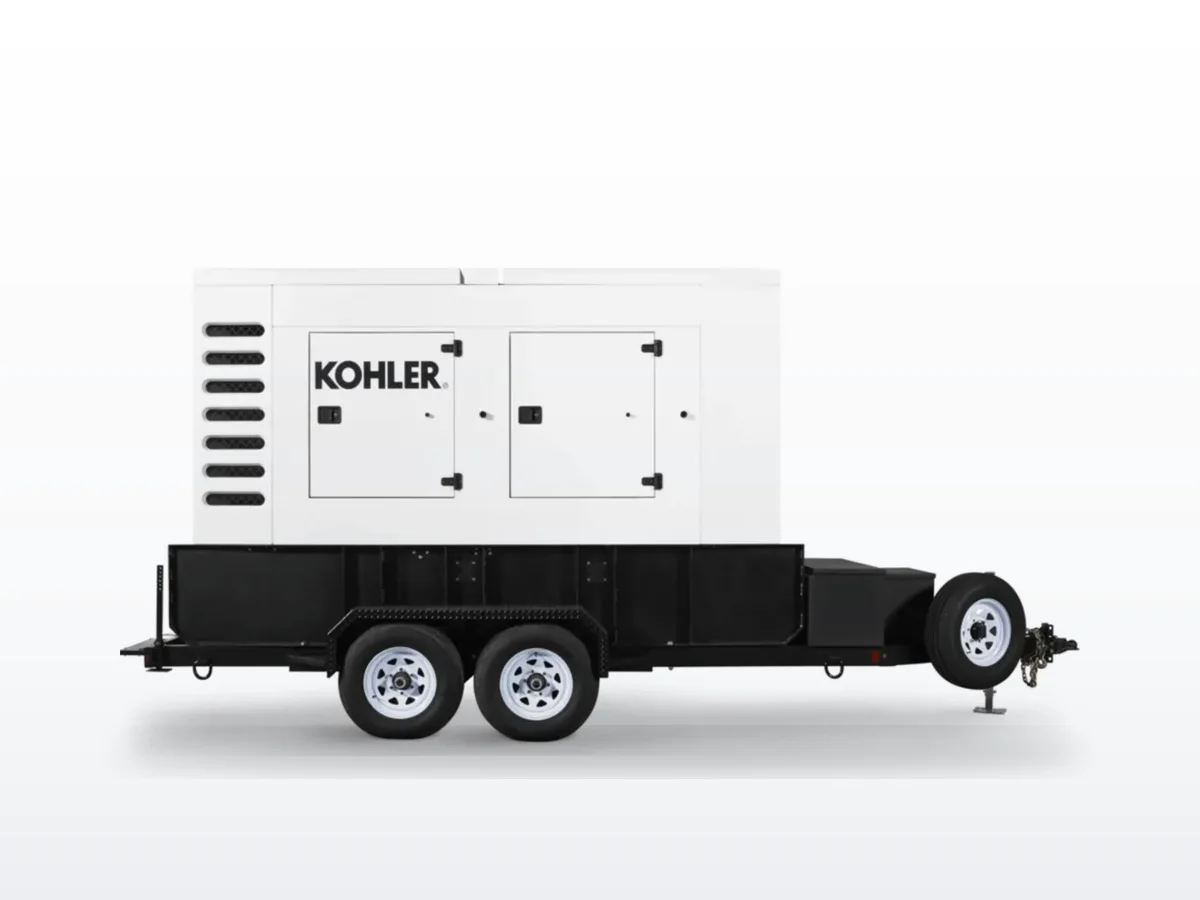

Kohler Kohler 145REOZT4 130 kW liquid-cooled standby generator

Kohler

Kohler 145REOZT4

130 kW mobile diesel trailer -- Tier 4 John Deere 6068HG550. DOT-towable for large temporary power and emergency deployment.

130 kW standby · Diesel · Liquid-cooled

130 kW diesel mobile trailer Tier 4 Final commercial standby generator powered by John Deere. Reliable standby power for commercial and institutional facilities.

Tier 4 Final3-phasecommercialhealthcare

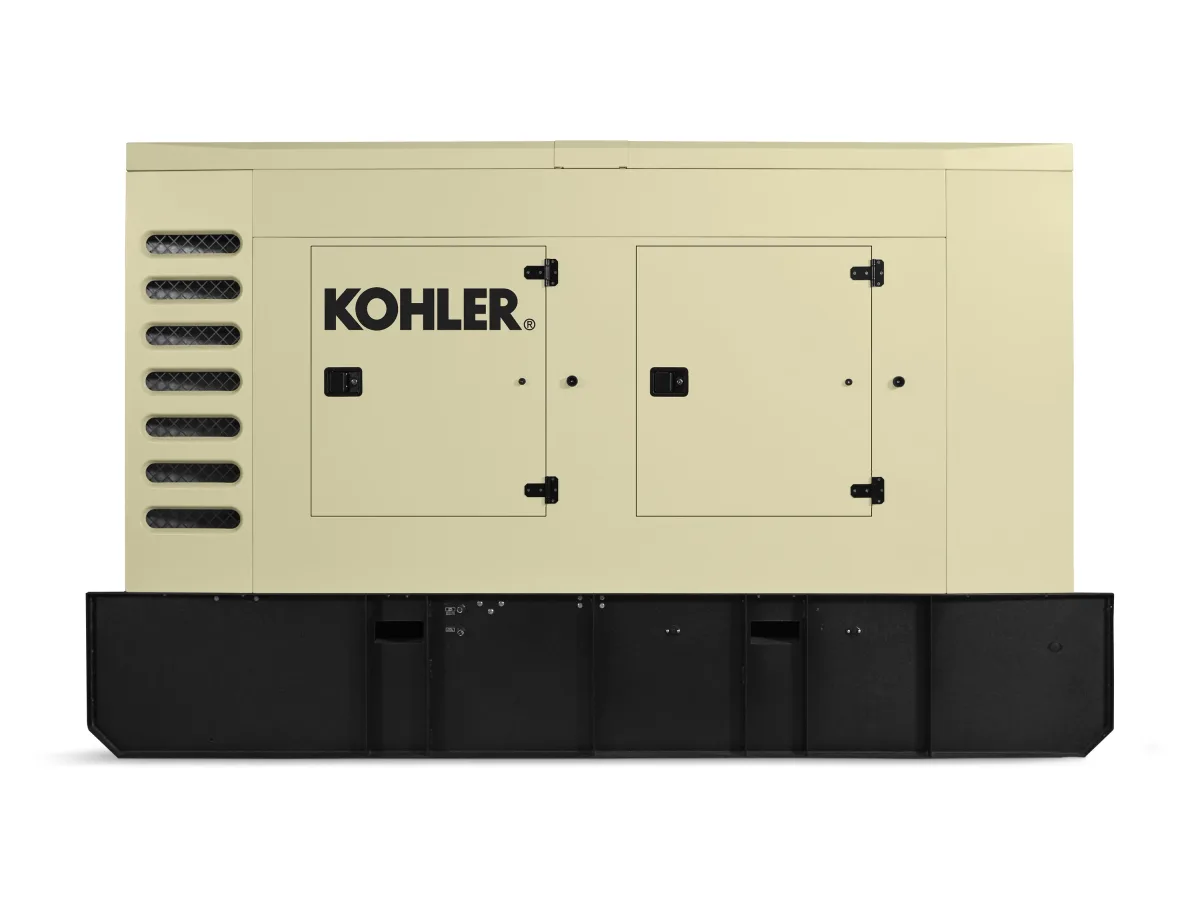

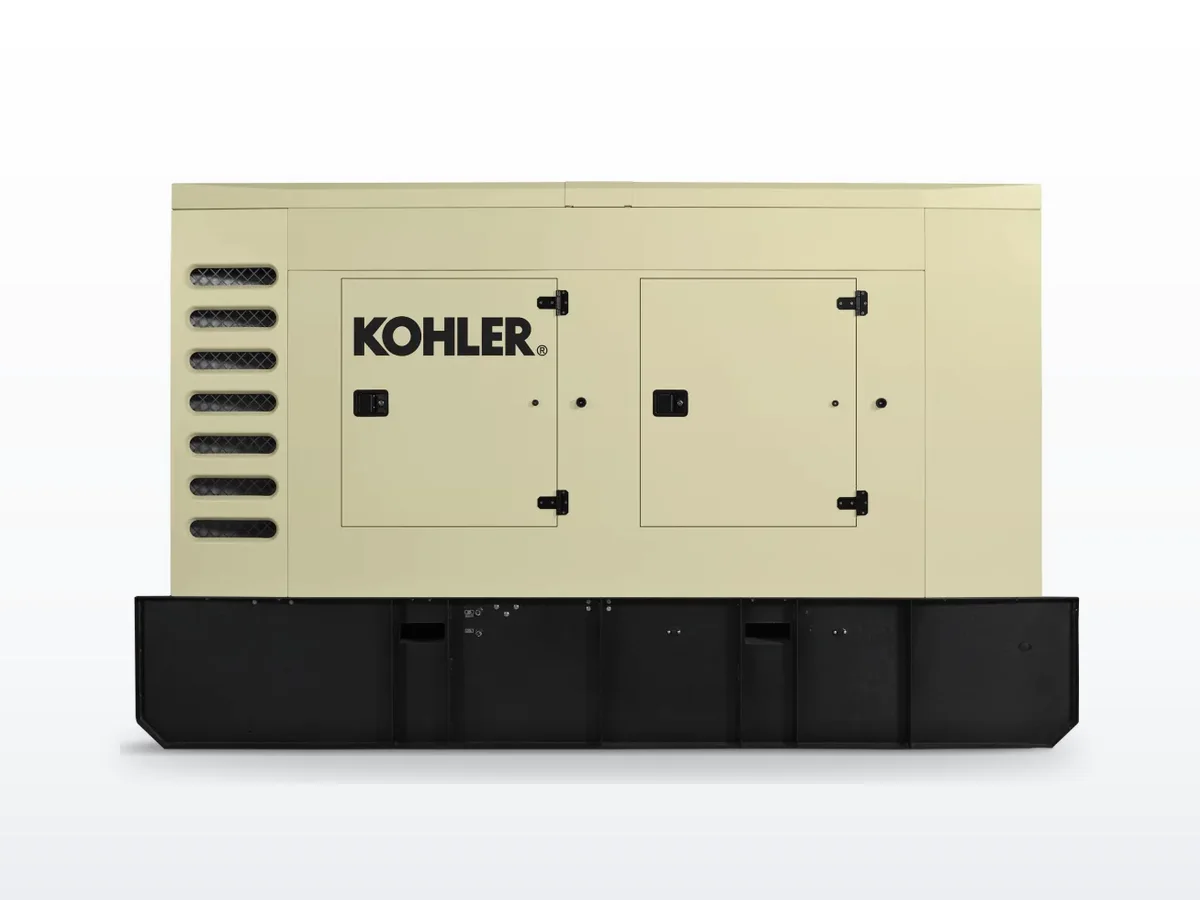

Kohler Kohler 80REOZJ4 85 kW liquid-cooled standby generator
