200 kW Tier 4 Final / Stage 5 diesel generator with Volvo Penta TAD1180VE 10.8L engine. SCR aftertreatment, DEF, Basler DGC-2020 controller. Made in USA.
The Gillette T4D-2000 is a 200-kilowatt Tier 4 Final / EU Stage V dual-certified diesel generator on Volvo's TAD1180VE — a 10.8L turbocharged inline-6 with SCR aftertreatment. Rated at 200 kW for both standby and prime. Stamford HCI434D alternator, Basler DGC-2020 controller.
The TAD1180VE's 10.8L displacement is unique to the T4D Tier 4 Final lineup. It demonstrates how Tier 4 Final engine engineering differs from Tier III: more displacement (10.8L vs. 7.0L Perkins) for the same kW output, running at lower specific loading with better fuel efficiency. The result: 11.6 gal/hr vs. 15.6 gal/hr for the Tier III SPD-2000 at the same 200 kW.
The Volvo TAD1180VE at 200 kW is well within its design envelope. We add DEF system checks to every service visit — DEF quality testing, tank level verification, and SCR catalyst performance monitoring.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
22.3 hours(0.9 days)
Fuel consumption ≈ 8.95 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Gillette T4D-2000 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
DEF system (SCR catalyst)
Derate warning, NOx fault, DEF quality alert
4,380+
moderate
Fuel quality
Injector fouling, hard starting
4,380+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Frequently Asked Questions
What engine does the T4D-2000 use?
Volvo Penta TAD1180VE — a 10.8L turbocharged inline-6. This is a displacement unique to the Tier 4 Final lineup (the Tier III SPVD series doesn't use a 10.8L). 320 bhp at standby, 16.9:1 compression. DEF consumption approximately 5.3% of diesel.
How does the T4D-2000 fuel efficiency compare to the Tier III SPD-2000?
The T4D-2000 consumes 11.6 gal/hr at 200 kW vs. the SPD-2000 at 15.6 gal/hr at 200 kW. The Tier 4 Final Volvo engine is significantly more fuel-efficient than the Tier III Perkins — a meaningful operating cost advantage that partially offsets the higher initial cost and DEF expense.
150 kW Tier 4 Final / Stage 5 diesel generator with Volvo Penta TAD881VE 7.7L engine. SCR aftertreatment, DEF system, Basler DGC-2020 controller. Made in USA.
Tier 4 Final3-phasecommercialhospital
G
Gillette
New

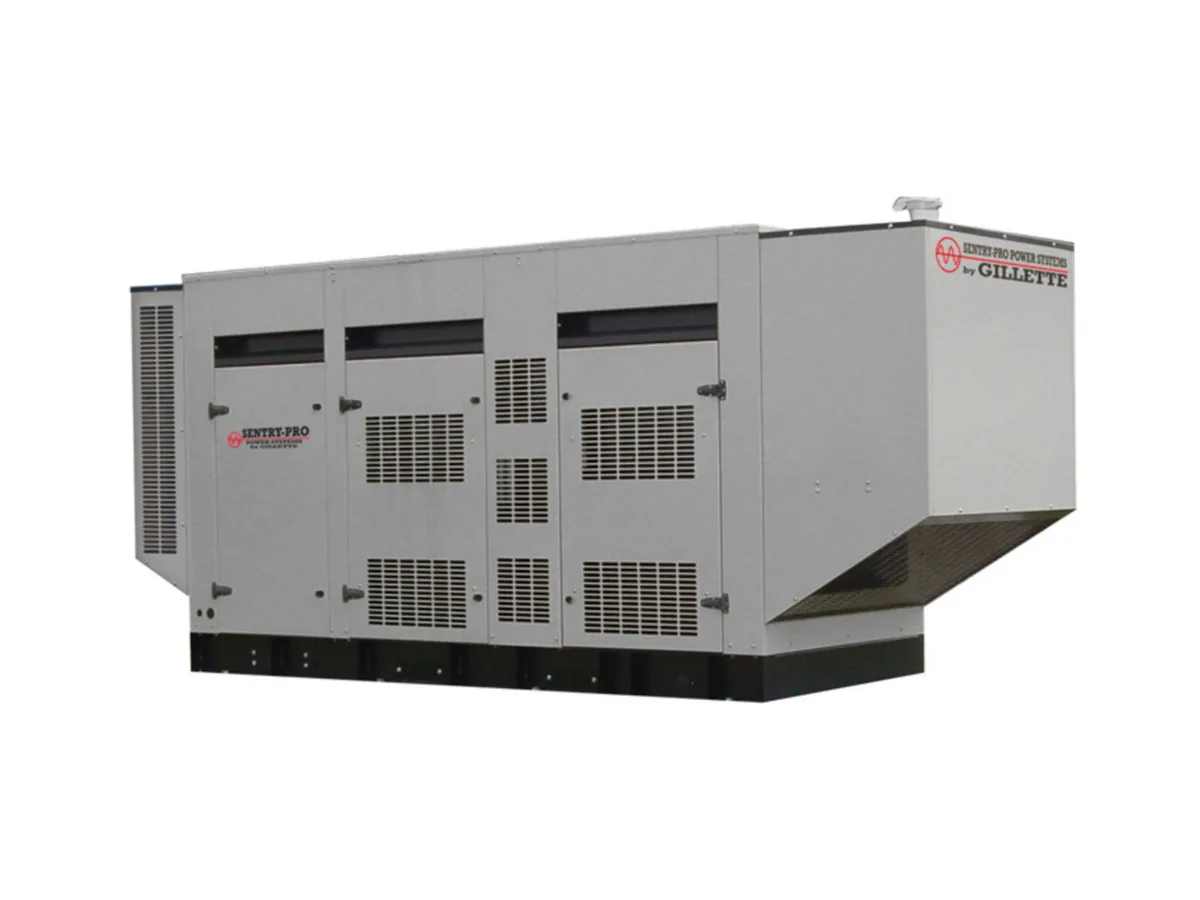

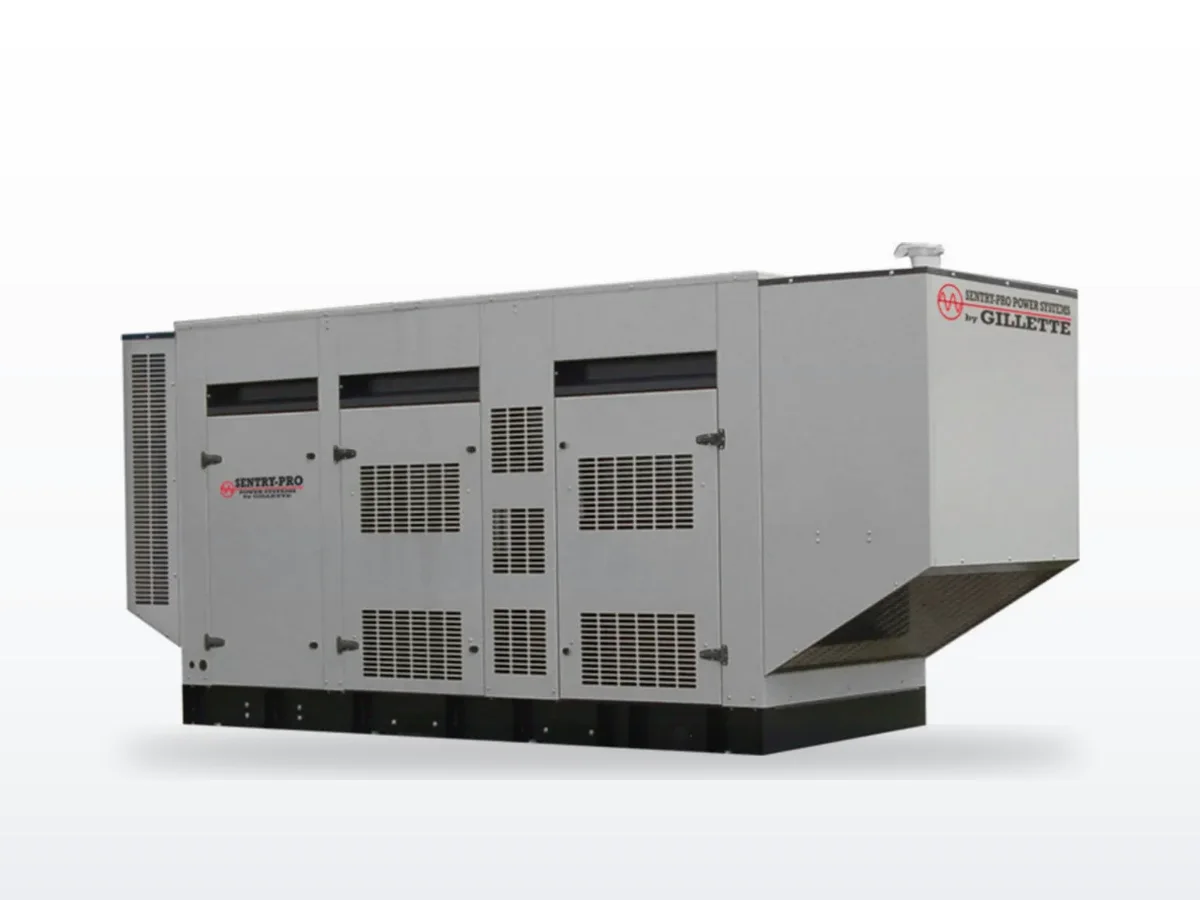

Gillette T4D-2500
250 kW standby · Diesel · Liquid-cooled
250 kW Tier 4 Final / Stage 5 diesel generator with Volvo Penta TAD1381VE 12.8L engine. SCR aftertreatment, DEF, Basler DGC-2020 controller. Made in USA.
Tier 4 Final3-phasecommercialhospital
G
Gillette
New

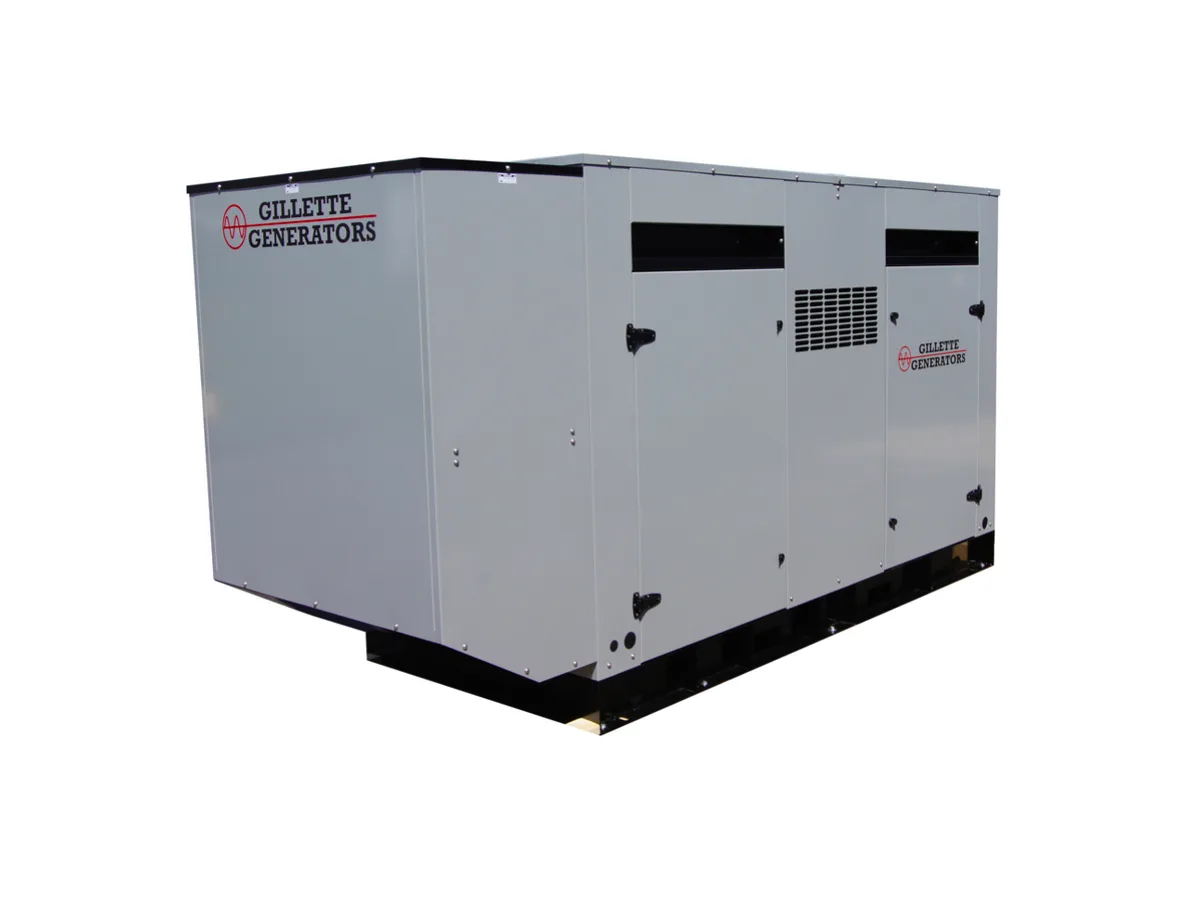

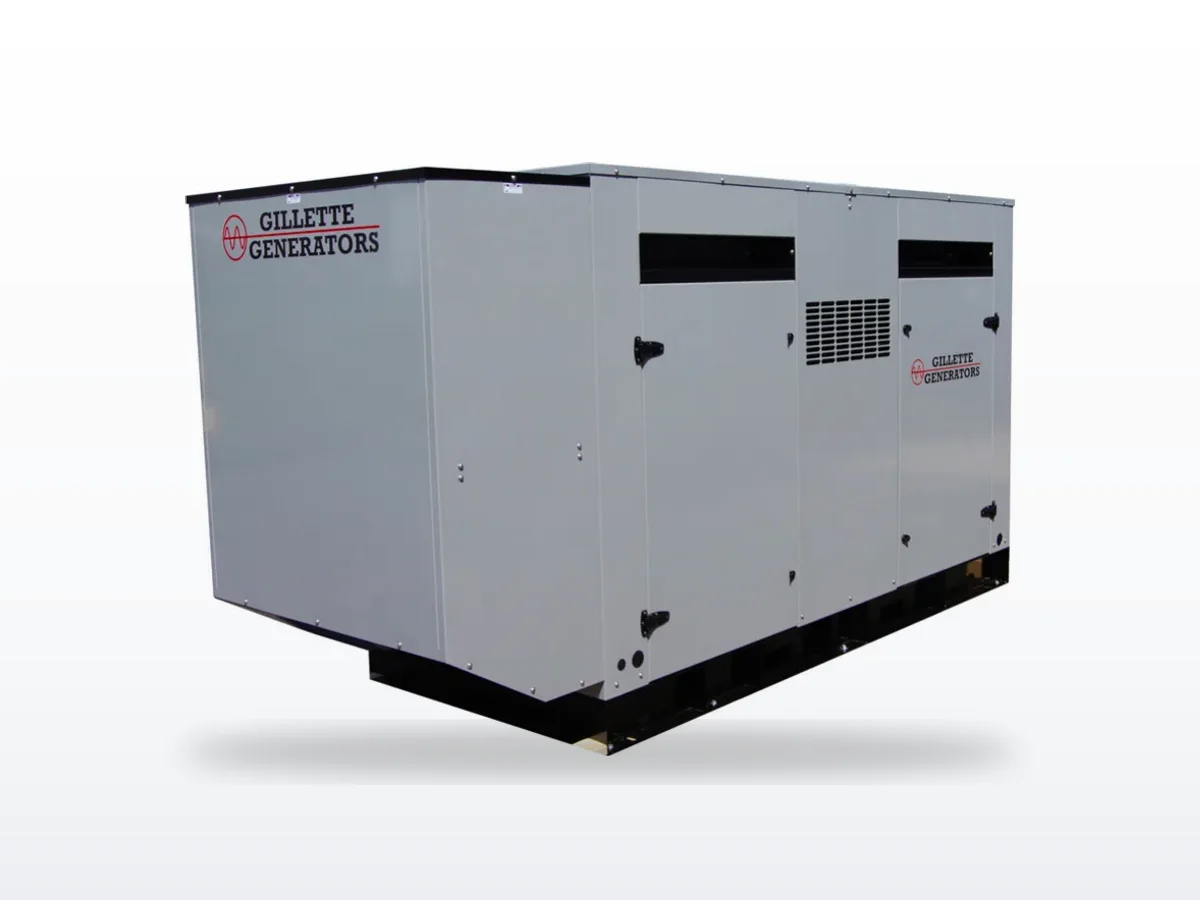

Gillette SPD-2000
