What engine does the JD150-01 use?

The John Deere 6068HF285 — a 6.8-liter, six-cylinder turbocharged and charge-air-cooled diesel from John Deere's industrial PowerTech series. It produces 237 HP at 1800 RPM for this standby application and is EPA Tier 3 certified. The 6068 is the six-cylinder companion to the four-cylinder 4045 platform, sharing the same bore and stroke dimensions (4.19 × 5.00 in), extended to six cylinders for higher displacement.

What controller does the JD150-01 use?

The DSE DCP7310 Digital Control Panel — CAN Bus J1939, digital metering, RS-485, 8 programmable contact inputs, 10 contact outputs, cULus Listed, CE Approved, and NFPA 110 Level 1 compatible.

How does the JD150-01 compare to the JD100-01 and JD200-01?

The JD150-01 steps up from the four-cylinder 4045HF285 in the JD100-01 to a six-cylinder 6068HF285, moving from a 90×44 in footprint to 110×54 in and from 2,750 lbs to 3,500 lbs OPU. Fuel consumption is 11.1 gph at full load versus 7.76 gph for the JD100-01. The JD200-01 uses the 6068HFG85 — a higher-output variant of the same six-cylinder platform — on the same 110×54 in footprint at 200 kWe.

What size building or facility does a 150 kWe generator typically cover?

A 150 kWe generator provides backup for medium-sized commercial buildings in the 10,000–30,000 sq ft range, multi-story office buildings, large retail facilities, or critical loads like data communication rooms, pump stations, or municipal facilities. For healthcare occupancies, verify AHJ requirements — some classifications require NFPA 110 Level 1 compliance with specific fuel storage and transfer provisions.

What engine does the JD150-01 use?

The John Deere 6068HF285 — a 6.8-liter, six-cylinder turbocharged and charge-air-cooled diesel from John Deere's industrial PowerTech series. It produces 237 HP at 1800 RPM for this standby application and is EPA Tier 3 certified. The 6068 is the six-cylinder companion to the four-cylinder 4045 platform, sharing the same bore and stroke dimensions (4.19 × 5.00 in), extended to six cylinders for higher displacement.

What controller does the JD150-01 use?

The DSE DCP7310 Digital Control Panel — CAN Bus J1939, digital metering, RS-485, 8 programmable contact inputs, 10 contact outputs, cULus Listed, CE Approved, and NFPA 110 Level 1 compatible.

How does the JD150-01 compare to the JD100-01 and JD200-01?

The JD150-01 steps up from the four-cylinder 4045HF285 in the JD100-01 to a six-cylinder 6068HF285, moving from a 90×44 in footprint to 110×54 in and from 2,750 lbs to 3,500 lbs OPU. Fuel consumption is 11.1 gph at full load versus 7.76 gph for the JD100-01. The JD200-01 uses the 6068HFG85 — a higher-output variant of the same six-cylinder platform — on the same 110×54 in footprint at 200 kWe.

What size building or facility does a 150 kWe generator typically cover?

A 150 kWe generator provides backup for medium-sized commercial buildings in the 10,000–30,000 sq ft range, multi-story office buildings, large retail facilities, or critical loads like data communication rooms, pump stations, or municipal facilities. For healthcare occupancies, verify AHJ requirements — some classifications require NFPA 110 Level 1 compliance with specific fuel storage and transfer provisions.

Blue Star Power Systems · Diesel Product Line (John Deere)

New

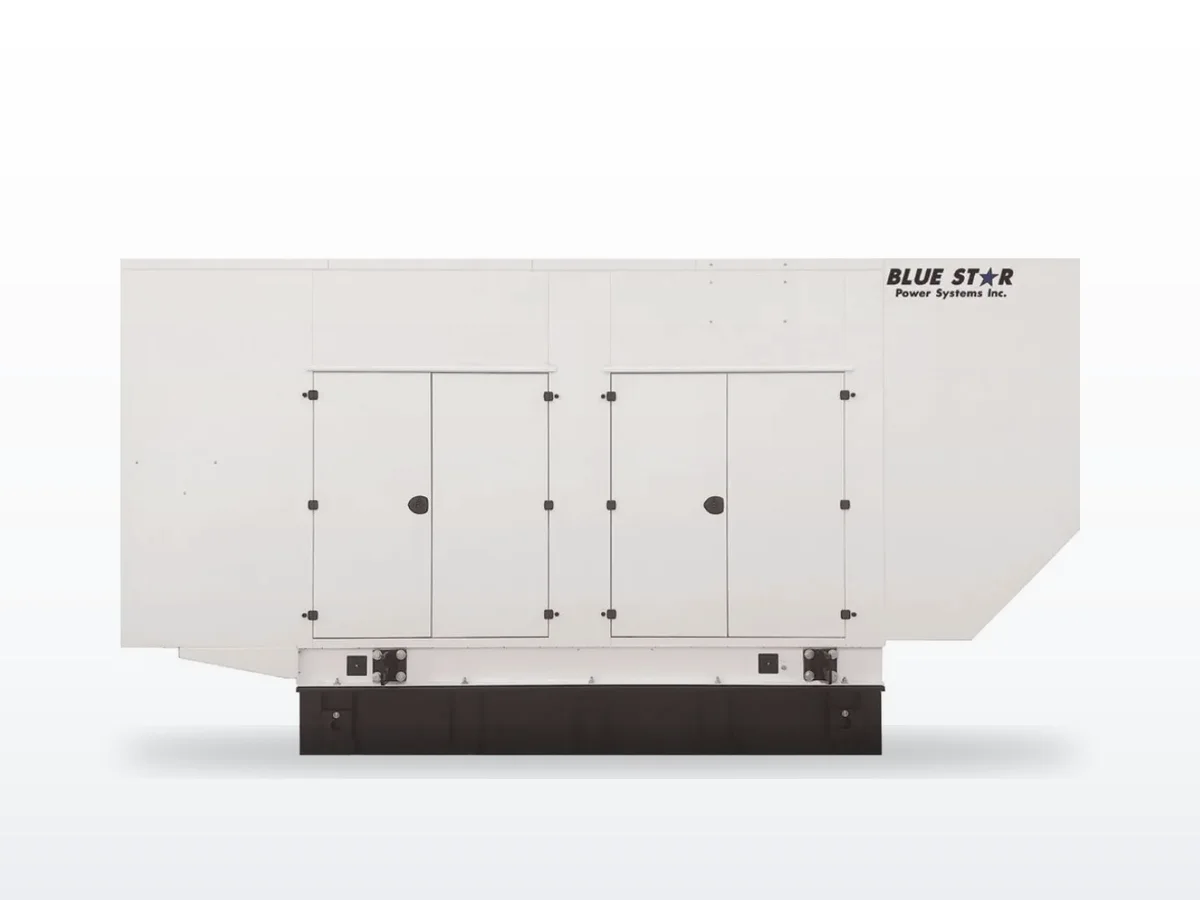

Blue Star JD150-01

Name: Blue Star JD150-01
Brand: Blue Star Power Systems
Availability: PreOrder

150 kW standby · Diesel · Liquid-cooled

150 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 6068HF285 6-cylinder engine, Stamford UCI274/UCDI274 alternator, DSE DCP7310 controller.

Blue Star JD150-01

Photo coming soon

Standby power: 150 kW
Voltage options: 120/240V, 120/208V, 277/480V, 347/600V
Frequency / Phase: 60 Hz · 1/3-phase
Engine: John Deere 6068HF285 · 6.8L
EPA / Emissions: Tier 3
Alternator: Stamford UCI274

light-commercialcommerciallight-industrialmulti-familyworshipmunicipaltelecompump-station

Overview#

The Blue Star JD150-01 is a 150-kilowatt Tier 3 diesel standby generator powered by a John Deere 6068HF285 six-cylinder engine. It marks the transition in Blue Star's John Deere lineup from the compact 4.5-liter four-cylinder platform (JD40–JD100) to the 6.8-liter six-cylinder 6068 series — doubling the cylinder count, moving to a larger 110×54 in footprint, and covering the 100–150 kWe commercial standby segment.

Blue Star Power Systems (North Mankato, Minnesota; DEUTZ AG subsidiary since 2024) assembles this unit using the John Deere 6068HF285 engine, Stamford UCI274 alternator, and DSE DCP7310 controller — all serviceable through established supply chains independent of the Blue Star dealer network.

The John Deere 6068 platform#

The 6068HF285 is a six-cylinder derivative of the same PowerTech family as the 4045 — sharing bore and stroke dimensions (4.19 × 5.00 in) but adding two cylinders for 6.8 liters of displacement. At 237 HP standby, it has substantial thermal headroom at the 150 kWe rating. The 6068 platform is broadly deployed across agriculture, construction, and industrial applications, giving it the same parts-ubiquity advantage as the smaller 4045.

When to spec the JD150-01#

100–150 kW continuous emergency loads on diesel fuel
Sites requiring more capacity than the JD100-01 and the same open-architecture serviceability
Medium commercial buildings, multi-family complexes, light-industrial facilities, and municipal infrastructure
Competitive bids against a Kohler 150REOZJ or Cummins C150D6

Our service experience#

The 6068HF285 uses the same John Deere dealer service network as the 4045 family. Jacket water heater is a 2000W 240V unit (compared to 1500W on the smaller JD models), reflecting the larger coolant volume. Service intervals follow John Deere's published 6068 industrial schedule. All three Level enclosures are available and rated for 200 MPH wind per IBC 2021.

Engineering specifications

Physical

Length: 110 in
Width: 54 in
Height: 64 in
Dry weight: 3,500 lb

Acoustic

Sound @ 7m, full load: 85 dBA
Enclosure: Open

Fuel system & runtime

Fuel use @ full load: 11.1 GPH
Fuel use @ 75% load: 8.95 GPH
Fuel use @ 50% load: 6.72 GPH

Thermal & ventilation

Heat to coolant: 324,420 BTU/hr
Heat radiated: 181,260 BTU/hr
Exhaust flow: 1,158 CFM
Exhaust temp: 981 °F
Combustion air: 448 CFM
Ventilation air: 10,683 CFM

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Request a quote

Get pricing & lead time on the Blue Star JD150-01

Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.

Request a quote →Download datasheet

Estimate runtime for the Blue Star JD150-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

23.4 hours(1.0 days)

Fuel consumption ≈ 8.56 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star JD150-01 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality / degradation	Hard starting, filter clogging, reduced power	4,380+	moderate
Turbocharger	Power loss, excessive smoke under load	12,000+	moderate
Battery	Failed to start, slow crank	8,760+	minor

Frequently Asked Questions

What engine does the JD150-01 use?: The John Deere 6068HF285 — a 6.8-liter, six-cylinder turbocharged and charge-air-cooled diesel from John Deere's industrial PowerTech series. It produces 237 HP at 1800 RPM for this standby application and is EPA Tier 3 certified. The 6068 is the six-cylinder companion to the four-cylinder 4045 platform, sharing the same bore and stroke dimensions (4.19 × 5.00 in), extended to six cylinders for higher displacement.
What controller does the JD150-01 use?: The DSE DCP7310 Digital Control Panel — CAN Bus J1939, digital metering, RS-485, 8 programmable contact inputs, 10 contact outputs, cULus Listed, CE Approved, and NFPA 110 Level 1 compatible.
How does the JD150-01 compare to the JD100-01 and JD200-01?: The JD150-01 steps up from the four-cylinder 4045HF285 in the JD100-01 to a six-cylinder 6068HF285, moving from a 90×44 in footprint to 110×54 in and from 2,750 lbs to 3,500 lbs OPU. Fuel consumption is 11.1 gph at full load versus 7.76 gph for the JD100-01. The JD200-01 uses the 6068HFG85 — a higher-output variant of the same six-cylinder platform — on the same 110×54 in footprint at 200 kWe.
What size building or facility does a 150 kWe generator typically cover?: A 150 kWe generator provides backup for medium-sized commercial buildings in the 10,000–30,000 sq ft range, multi-story office buildings, large retail facilities, or critical loads like data communication rooms, pump stations, or municipal facilities. For healthcare occupancies, verify AHJ requirements — some classifications require NFPA 110 Level 1 compliance with specific fuel storage and transfer provisions.
