Blue Star Power Systems · Diesel Product Line (John Deere)

New

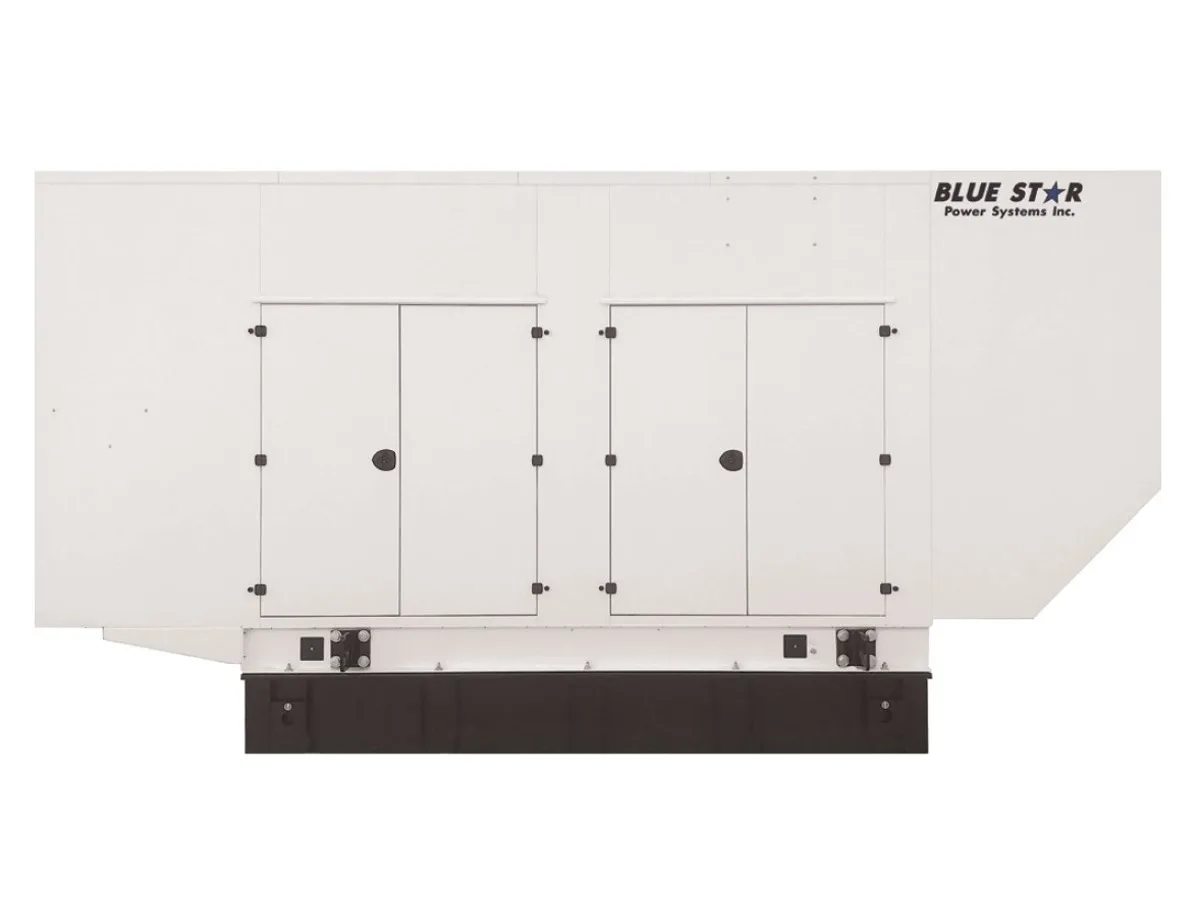

Blue Star JD200-01

Name: Blue Star JD200-01
Brand: Blue Star Power Systems
Availability: PreOrder

200 kW standby · Diesel · Liquid-cooled

200 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 6068HFG85 6-cylinder engine, Stamford S4L1S/UCDI274 alternator, DSE DCP7310 controller.

Blue Star JD200-01

Photo coming soon

Standby power: 200 kW
Voltage options: 120/240V, 120/208V, 277/480V, 347/600V
Frequency / Phase: 60 Hz · 1/3-phase
Engine: John Deere 6068HFG85 · 6.8L
EPA / Emissions: Tier 3
Alternator: Stamford S4L1S

commerciallight-industrialmulti-familymunicipaltelecompump-stationworship

Overview#

The Blue Star JD200-01 is a 200-kilowatt Tier 3 diesel standby generator powered by a John Deere 6068HFG85 six-cylinder engine. It represents the upper end of the 6.8-liter John Deere lineup within Blue Star's diesel product line — sharing a footprint with the JD150-01 but extracting 315 HP from the same basic engine family through a higher-output calibration.

Assembled in North Mankato, Minnesota by Blue Star Power Systems (DEUTZ AG subsidiary since 2024), the JD200-01 pairs the 6068HFG85 with a Stamford S4L1S alternator and DSE DCP7310 controller. At 200 kWe, it serves the upper end of medium-commercial and the lower end of large-commercial standby applications.

The John Deere 6068HFG85#

The 6068HFG85 is a higher-output variant of the 6068 series, distinguished from the HF285 by its G-suffix designation indicating a revised fuel injection calibration for higher power density. Running at 315 HP standby with a 17.0:1 compression ratio, the HFG85 delivers substantially more output than the HF285 (237 HP) while remaining on the same 6.8-liter platform. The exhaust restriction budget is specified at 40.0 in H2O — more generous than smaller models — accommodating longer exhaust system runs.

When to spec the JD200-01#

150–200 kW continuous emergency loads on diesel fuel
Commercial buildings, light-industrial facilities, multi-family complexes, and campus installations
Sites needing 200 kWe capacity within the 110×54 in footprint constraint
Competitive bids against a Kohler 200REOZJ or Cummins C200D6

Our service experience#

The 6068HFG85 is serviced through the same John Deere dealer network as the rest of the 4045 and 6068 family. At 200 kWe, fuel tank sizing becomes important for extended runtime — the 24-hour tank option holds 375 gallons at a consumption rate of 14.5 gph at full load (roughly 26 hours at full load with the standard tank). For critical applications, a 72-hour or sub-base day tank is recommended.

Engineering specifications

Physical

Length: 110 in
Width: 54 in
Height: 70 in
Dry weight: 3,925 lb

Acoustic

Sound @ 7m, full load: 86 dBA
Enclosure: Open

Fuel system & runtime

Fuel use @ full load: 14.5 GPH
Fuel use @ 75% load: 10.8 GPH
Fuel use @ 50% load: 7.65 GPH

Thermal & ventilation

Heat to coolant: 324,120 BTU/hr
Heat radiated: 239,580 BTU/hr
Exhaust flow: 1,515 CFM
Exhaust temp: 905 °F
Combustion air: 618 CFM
Ventilation air: 11,066 CFM

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Request a quote

Get pricing & lead time on the Blue Star JD200-01

Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.

Request a quote →Download datasheet

Estimate runtime for the Blue Star JD200-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

17.9 hours(0.7 days)

Fuel consumption ≈ 11.19 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star JD200-01 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality / degradation	Hard starting, filter clogging, reduced power	4,380+	moderate
Turbocharger	Power loss, excessive smoke under load	12,000+	moderate
Battery	Failed to start, slow crank	8,760+	minor

Frequently Asked Questions

What engine does the JD200-01 use?: The John Deere 6068HFG85 — a 6.8-liter, six-cylinder turbocharged and charge-air-cooled diesel rated at 315 HP at 1800 RPM for this standby application. It is a higher-output variant of the 6068 platform (versus the HF285 used in the JD150-01), tuned for the 200 kWe rating through a revised fuel system and a compression ratio of 17.0:1. EPA Tier 3 certified.
What controller does the JD200-01 use?: The DSE DCP7310 Digital Control Panel — CAN Bus J1939, digital metering, RS-485, 8 programmable contact inputs, 10 contact outputs, cULus Listed, CE Approved, NFPA 110 Level 1 compatible.
How does the JD200-01 compare to the JD150-01 and JD250-02?: The JD200-01 and JD150-01 share the same 110×54 in footprint but the JD200 is 7 in taller (70 in vs 64 in) and 425 lbs heavier (3,925 vs 3,500 lbs OPU). The engine steps up from the 6068HF285 (237 HP) to the 6068HFG85 (315 HP). The JD250-02 moves to a completely different engine — the 9.0-liter six-cylinder 6090HF484 — and a much larger 120×66 in footprint. Fuel at full load: 14.5 gph (JD200) vs 11.1 gph (JD150) vs 17.7 gph (JD250).
What is the exhaust restriction limit for the JD200-01?: The JD200-01 specifies a maximum allowable exhaust restriction of 40.0 in H2O — higher than the 30.0 in H2O limit on smaller JD models. This allows for longer exhaust runs or more complex exhaust routing, but the system designer must still account for the full restriction budget including critical-grade silencer, flex connectors, elbows, and pipe run losses.
