Blue Star Power Systems · Diesel Product Line (John Deere)
New
Blue Star JD275-02
275 kW standby · Diesel · Liquid-cooled
275 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 6090HF484 9.0L 6-cylinder engine, Stamford S4L1S alternator, DSE DCP7310 controller. Three-phase only.
The Blue Star JD275-02 is a 275-kilowatt Tier 3 diesel standby generator built around a John Deere 6090HF484 nine-liter six-cylinder engine. It is a three-phase-only unit — at this power level, single-phase configurations are not practical — and shares its physical footprint (120×66×79 in OPU) with the JD250-02, differentiating primarily through alternator selection.
Blue Star Power Systems (North Mankato, Minnesota; DEUTZ AG subsidiary since 2024) assembles this unit with a Stamford S4L1S alternator and DSE DCP7310 controller. The JD275-02 fills the gap between the 250 kWe and 300 kWe models for buyers who need more than 250 kWe but whose load analysis stops below the JD300-02's rating.
The 6090HF484 produces 422 HP at 1800 RPM — identical to its output in the JD250-02. The higher 275 kWe output is achieved through an alternator with a higher kVA rating, not additional engine power. This means the JD275-02 engine operates at effectively the same thermal load as the JD250-02, with fuel consumption increasing modestly (18.7 vs 17.7 gph at full load) due to the alternator's higher efficiency demands. The altitude deration limit is the same as the JD250-02: rated power available only up to 1,677 ft (511 m) at 50°C ambient.
The JD275-02's service requirements are identical to the JD250-02: same engine, same coolant volume (13.2 gal system coolant), same 2500W 240V jacket water heater, same oil capacity (8.20 gal). The only differentiation at service time is confirming the correct Stamford alternator model for parts ordering. John Deere 6090 service is available through the standard dealer network.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
13.9 hours(0.6 days)
Fuel consumption ≈ 14.43 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Blue Star JD275-02 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / degradation
Hard starting, filter clogging, reduced power
4,380+
moderate
Turbocharger
Power loss, excessive smoke under load
12,000+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Frequently Asked Questions
What engine does the JD275-02 use?
The John Deere 6090HF484 — a 9.0-liter, six-cylinder turbocharged and charge-air-cooled diesel rated at 422 HP at 1800 RPM. This is the same engine used in the JD250-02, with the same 16.0:1 compression ratio and identical thermal characteristics. The JD275-02 achieves the higher 275 kWe output through an alternator configuration change, not an engine change.
Why is the JD275-02 three-phase only?
At 275 kWe, single-phase output at 240V would require over 1,100 amperes — beyond the practical current rating for most single-phase alternators in this frame size. The JD275-02 is therefore offered only in three-phase configurations: 120/208V, 277/480V, and 347/600V. Buyers requiring single-phase 240V at the 250 kWe range should specify the JD250-02 instead.
What controller does the JD275-02 use?
The DSE DCP7310 Digital Control Panel — CAN Bus J1939, digital metering, RS-485, 8 programmable contact inputs, 10 contact outputs, cULus Listed, CE Approved, NFPA 110 Level 1 compatible.
How does the JD275-02 compare to the JD250-02 and JD300-02?
The JD275-02 and JD250-02 share the 6090HF484 engine and identical 120×66×79 in OPU footprint — distinguishable only by alternator selection and weight (5,475 vs 5,400 lbs). The JD300-02 moves to the 6090HFG86, a higher-output variant of the same engine, on a slightly taller skid (82 in vs 79 in) to reach 300 kWe. The JD275 and JD300 are three-phase-only; the JD250 retains a single-phase 240V option.

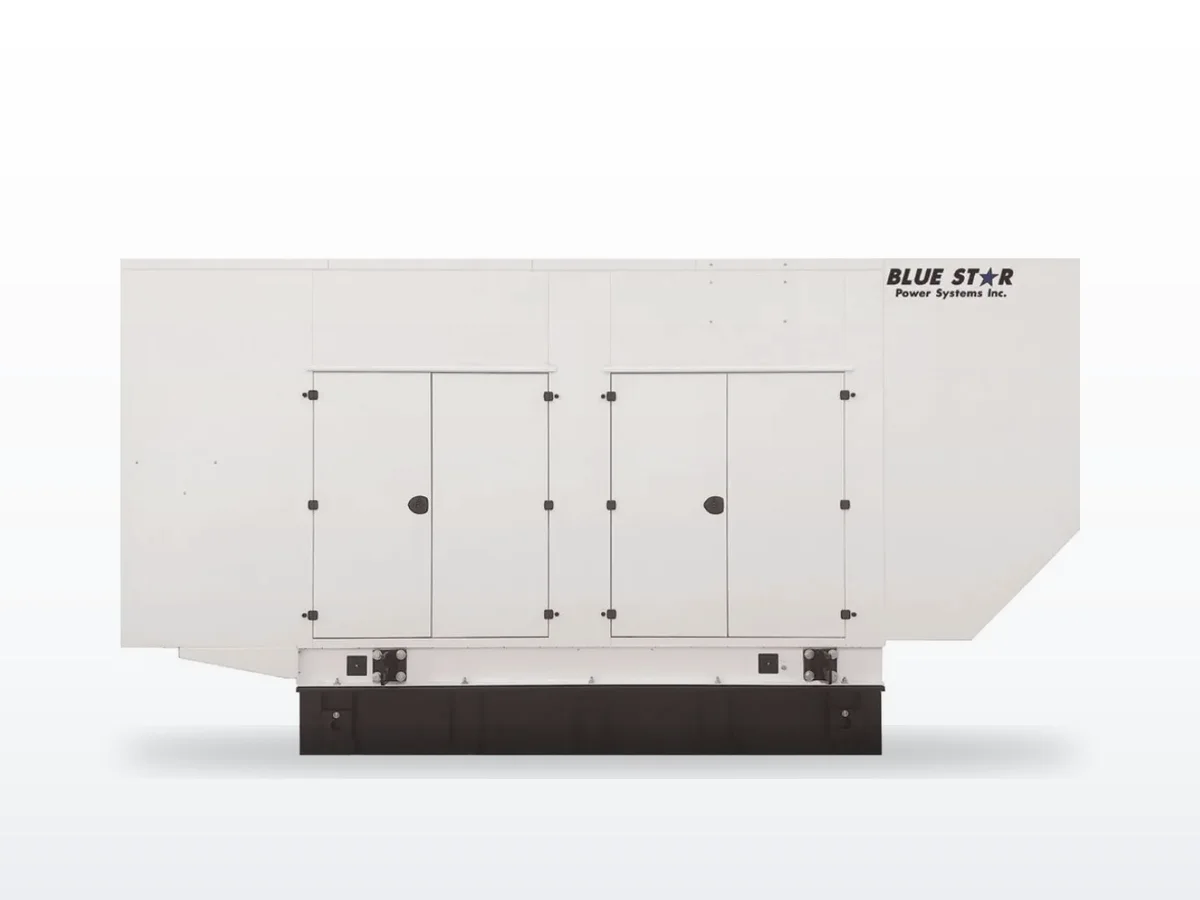

250 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 6090HF484 9.0L 6-cylinder engine, Stamford S4L1S/S4L1D alternator, DSE DCP7310 controller.
