Blue Star JD300-02
300 kW standby · Diesel · Liquid-cooled
300 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 6090HFG86 9.0L 6-cylinder engine, Stamford S4L1D alternator, DSE DCP7310 controller. Three-phase only.
The Blue Star JD300-02 is a 300-kilowatt Tier 3 diesel standby generator — the top of Blue Star's John Deere diesel product line. It is powered by a John Deere 6090HFG86, a higher-output variant of the 9.0-liter six-cylinder 6090 platform, producing 463 HP at 1800 RPM. Like the JD275-02, it is a three-phase-only unit on a 120×66 in footprint.
Assembled in North Mankato, Minnesota by Blue Star Power Systems (DEUTZ AG subsidiary since 2024), the JD300-02 pairs the 6090HFG86 with a Stamford S4L1D alternator and DSE DCP7310 controller. At 300 kWe it sits at the upper boundary of the John Deere lineup, with Volvo Penta–powered models (VD series) continuing above it.
The 6090HFG86 is a purpose-built high-output generator engine — the G suffix in John Deere nomenclature denotes a generator-optimized calibration — producing 463 HP at 1800 RPM within the EPA Tier 3 stationary emergency certification. Its exhaust temperature (927°F / 497°C) runs cooler than the smaller 6090HF484 (1,180°F) despite higher output, indicating efficient combustion at this calibration point. The altitude rating improves to 2,500 ft (762 m) at 50°C, a meaningful advantage over the lower-rated JD250/JD275 for higher-elevation sites.
The JD300-02's 78.0 GPM water pump flow and 19,014 CFM ventilation airflow requirement make equipment room sizing a first-order engineering concern. At 5,800 lbs OPU, the structural pad must be designed for this weight class. Fuel consumption at full load (21.2 gph) means a 24-hour fuel tank holds roughly 25 hours of runtime — plan fuel logistics accordingly for extended outages.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
12.2 hours(0.5 days)
Fuel consumption ≈ 16.35 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Blue Star JD300-02 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / degradation
Hard starting, filter clogging, reduced power
4,380+
moderate
Turbocharger
Power loss, excessive smoke under load
12,000+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Frequently Asked Questions
What engine does the JD300-02 use?
The John Deere 6090HFG86 — a 9.0-liter, six-cylinder turbocharged and charge-air-cooled diesel rated at 463 HP at 1800 RPM for this standby application. It is a higher-output variant of the 6090 platform (versus the HF484 used in the JD250-02 and JD275-02), distinguished by its G-suffix designation indicating a revised fuel system calibration and 16.0:1 compression ratio for maximum output within the Tier 3 certification envelope.
What controller does the JD300-02 use?
The DSE DCP7310 Digital Control Panel — CAN Bus J1939, digital metering, RS-485, 8 programmable contact inputs, 10 contact outputs, cULus Listed, CE Approved, NFPA 110 Level 1 compatible.
How does the JD300-02 compare to the JD275-02?
The JD300-02 uses the 6090HFG86 (463 HP) versus the JD275-02's 6090HF484 (422 HP) — a different engine calibration for 25 kWe more output. The OPU footprint is the same 120×66 in but taller (82 in vs 79 in) and heavier (5,800 vs 5,475 lbs). Fuel at full load is 21.2 gph vs 18.7 gph. The altitude deration limit improves slightly to 2,500 ft (762 m) vs 1,677 ft (511 m) for the JD275-02.
What is the ventilation requirement for an indoor JD300-02 installation?
The JD300-02 requires 19,014 CFM of radiator cooling airflow and 936 CFM combustion air. Heat radiated to the equipment room is 359,820 BTU/hr, and the coolant circuit rejects 389,340 BTU/hr through the unit-mounted radiator. At this power level, the room thermal load is substantial — mechanical engineers designing the ventilation system should model both the sensible heat gain and the combustion air makeup requirements carefully.
275 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 6090HF484 9.0L 6-cylinder engine, Stamford S4L1S alternator, DSE DCP7310 controller. Three-phase only.
Tier 33-phasecommerciallight-industrial
B
Blue Star Power Systems
New

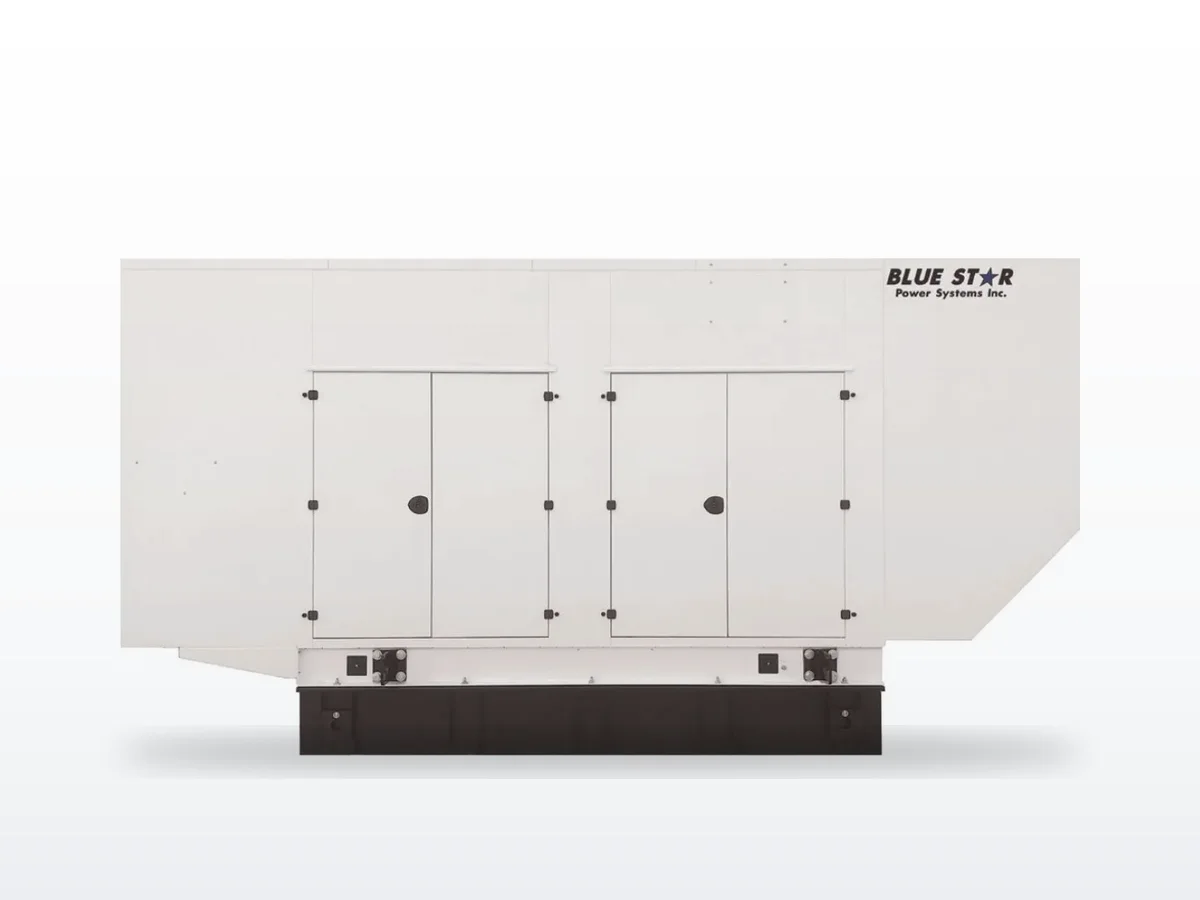

Blue Star PD300-01
