What is the standby rating of the Kohler KD3500?

Per the Kohler spec sheet, the KD3500 is rated at 3500 kW / 4375 kVA standby and 3180 kW / 3975 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.

Is the Kohler KD3500 EPA Tier 4 certified?

No. The KD3500 is EPA certified for stationary emergency use. Tier 4 Final variants are available in separate KD Series models designated with a -4 suffix.

What alternator type does the KD3500 use?

The KD3500 uses a brushless, permanent-magnet pilot exciter alternator with two-thirds pitch windings and skewed stator for superior voltage waveform quality — Kohler's standard for the larger KD Series industrial diesel platform.

Kohler · KD Series (Industrial Diesel)

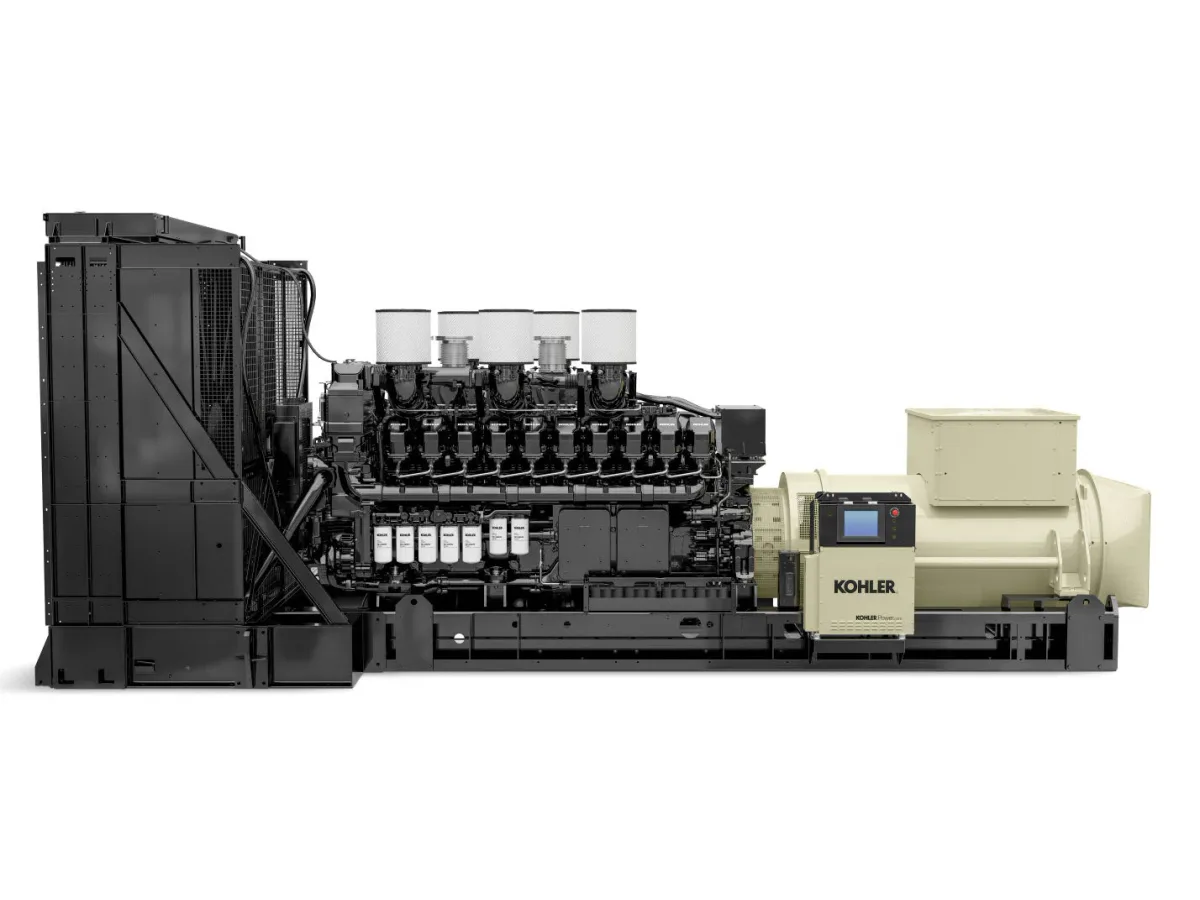

Kohler KD3500

3500 kW standby / 3180 kW prime · Diesel · Liquid-cooled

3500 kW diesel industrial standby generator. Near-top-of-line KD Series platform for data centers, healthcare, and mission-critical infrastructure.

Standby power: 3500 kW / 3180 kW prime
Voltage options: 277/480V
Frequency / Phase: 60 Hz · 3-phase
Engine: Kohler KD103V20 · 103L
EPA / Emissions: Tier 2
Alternator: Kohler KH10171TO4D

Data Centers Healthcare Manufacturing Commercial Government

Configure & Quote Download spec sheet

Overview#

The Kohler KD3500 is a 3500-kilowatt diesel industrial standby generator from Kohler's KD Series platform. At 3.5 MW, it is the second-largest unit in the KD lineup, designed for the most demanding data center campuses, large hospital systems, and heavy industrial complexes. The alternator features two-thirds pitch windings and a skewed stator for superior voltage waveform quality. The KD Series uses Kohler-designed engines and permanent-magnet pilot exciter alternators.

KD Series platform#

The KD Series is Kohler's large industrial diesel generator line, covering 800 to 4000 kW. Designed for mission-critical facilities, every KD Series unit carries UL 2200 listing and meets NFPA 110 Level 1 requirements when equipped with the necessary accessories. The upper-range KD models feature two-thirds pitch windings and skewed stators for clean voltage output.

Our service experience#

OnPoint Generators provides installation, maintenance, and emergency service for Kohler KD Series generators throughout Northern California. Our technicians are experienced with large diesel platforms in the multi-megawatt class, including load bank testing, fuel system maintenance, and cooling system service for high-capacity industrial units.

Engineering specifications

Acoustic

Sound @ 7m, full load: 99 dBA
Enclosure: Open

Fuel system & runtime

Fuel use @ full load: 241.8 GPH
Fuel use @ 75% load: 198.8 GPH
Fuel use @ 50% load: 137.2 GPH

Photos

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Kohler KD3500

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Kohler KD3500

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

1.1 hours(0.0 days)

Fuel consumption ≈ 186.53 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Kohler KD3500 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality / degradation	Injector fouling, hard starting, black smoke under load	4,380+	moderate
Turbocharger	Power loss, excessive exhaust smoke, oil at turbo seals	15,000+	moderate
Cooling system (hoses / thermostat)	Overtemperature fault, coolant loss, high EGT	10,000+	moderate
Battery (starting)	Slow crank, failed exercise, low voltage alarm	8,760+	minor

Frequently Asked Questions

What is the standby rating of the Kohler KD3500?: Per the Kohler spec sheet, the KD3500 is rated at 3500 kW / 4375 kVA standby and 3180 kW / 3975 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.
Is the Kohler KD3500 EPA Tier 4 certified?: No. The KD3500 is EPA certified for stationary emergency use. Tier 4 Final variants are available in separate KD Series models designated with a -4 suffix.
What alternator type does the KD3500 use?: The KD3500 uses a brushless, permanent-magnet pilot exciter alternator with two-thirds pitch windings and skewed stator for superior voltage waveform quality — Kohler's standard for the larger KD Series industrial diesel platform.

Compatible equipment

Transfer switches

More in the KD Series (Industrial Diesel)

Kohler-engineered megawatt-class diesel gensets from 900 to 4000 kW for mission-critical facilities.

View all 18 models in this series →

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohler generators →

Similar models

Kohler

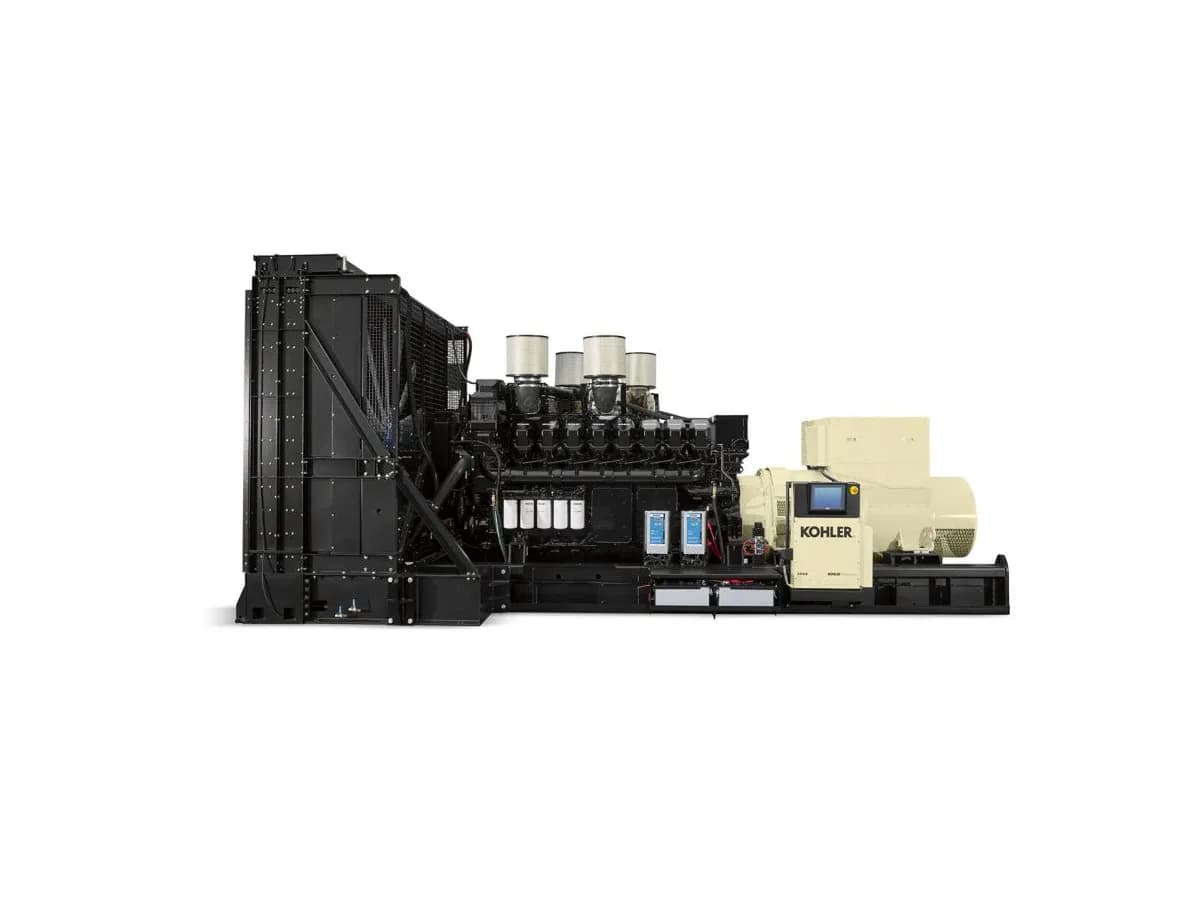

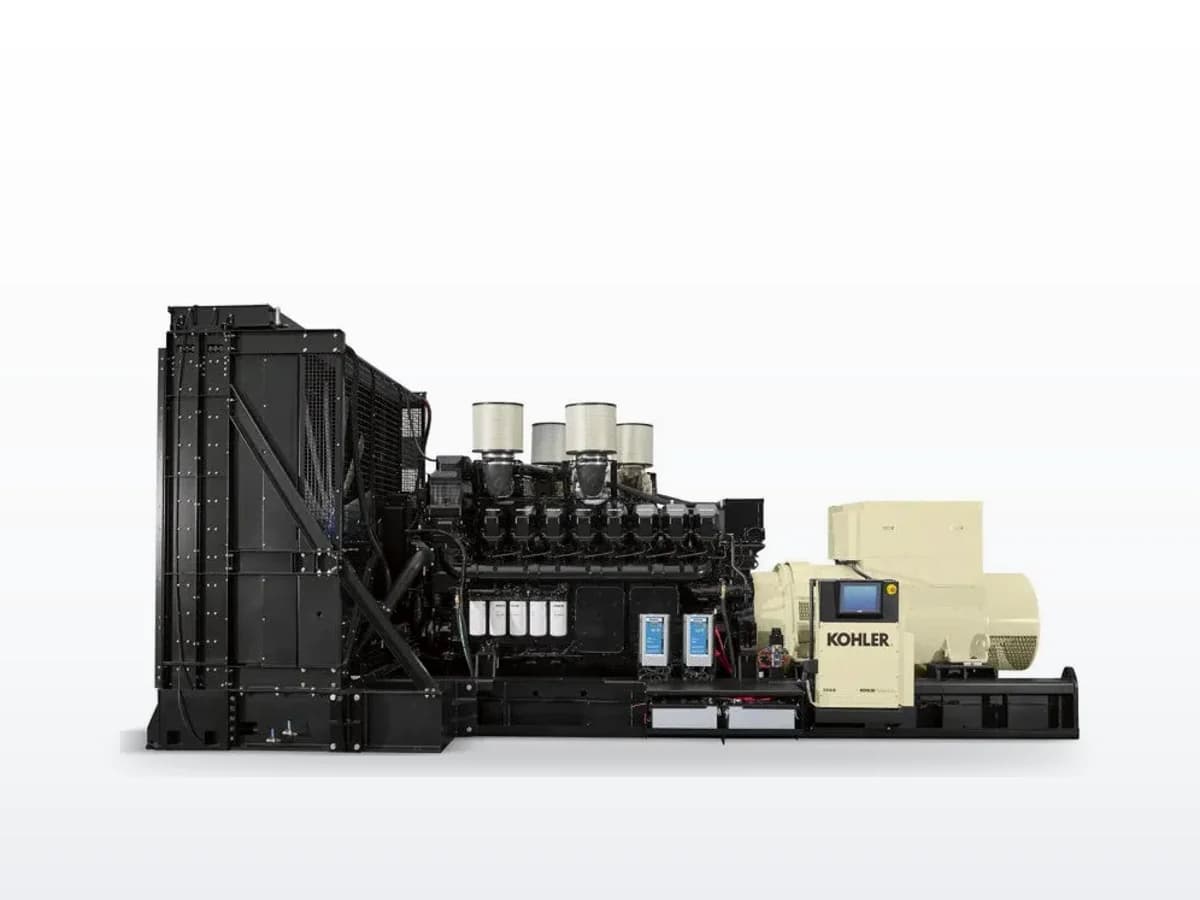

Kohler KD3250

3250 kW KD Series -- Kohler KD83V16 engine, skewed stator for sub-3% THD. Purpose-built for multi-MW mission-critical paralleling.

3.3 MW standby · Diesel · Liquid-cooled

3250 kW industrial standby for Tier IV data centers, large hospitals, and campus microgrids. NFPA 110 Level 1, UL 2200 listed.

3250 kW diesel industrial standby generator. Upper-range KD Series platform for data centers, healthcare, and mission-critical infrastructure.

Tier 23-phasedata-centerhealthcare

Kohler

Kohler KD4000

4000 kW KD Series -- Kohler KD103V20 engine, skewed stator for sub-3% THD. Purpose-built for multi-MW mission-critical paralleling.

4 MW standby · Diesel · Liquid-cooled

4000 kW industrial standby for Tier IV data centers, large hospitals, and campus microgrids. NFPA 110 Level 1, UL 2200 listed.

4000 kW diesel industrial standby generator. Flagship KD Series platform — the largest single-engine generator in Kohler's industrial lineup.

Tier 23-phasedata-centerhealthcare

Kohler

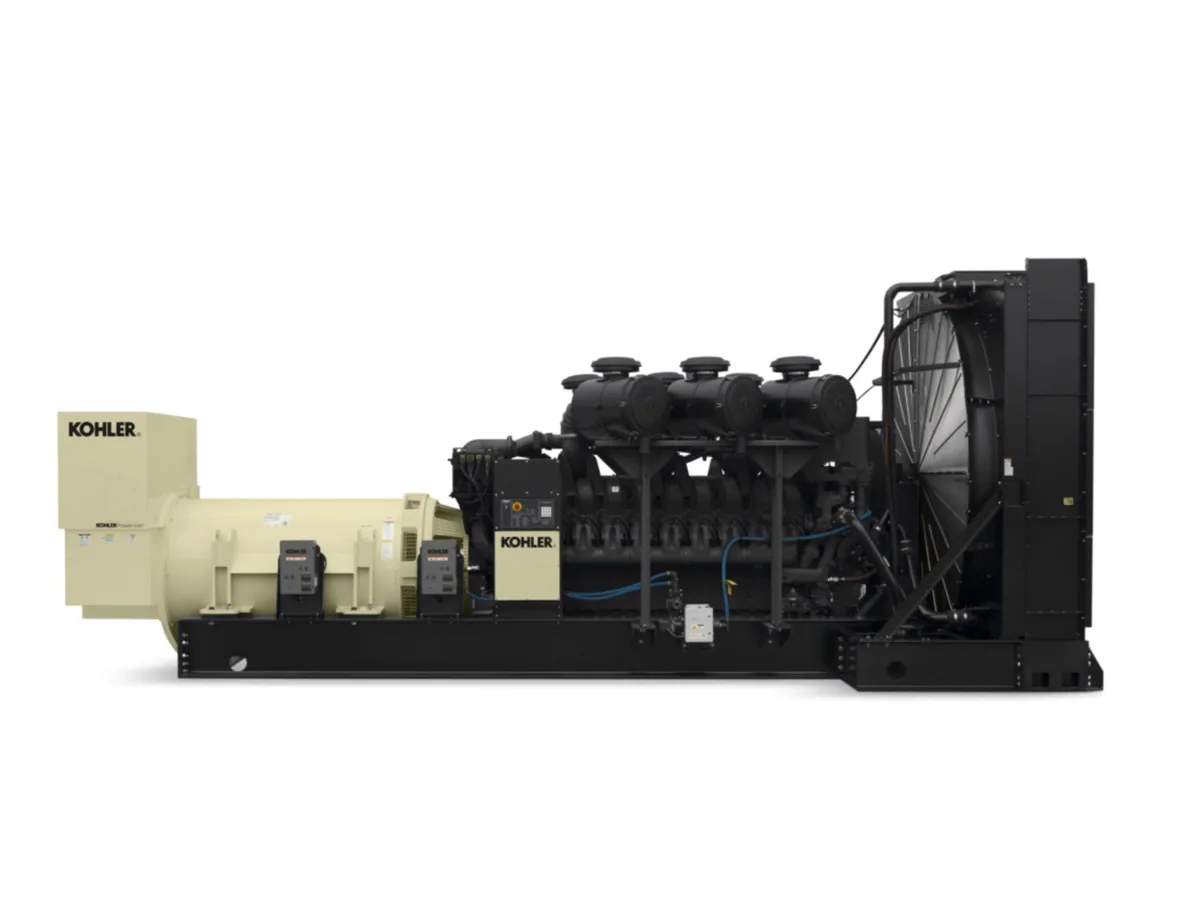

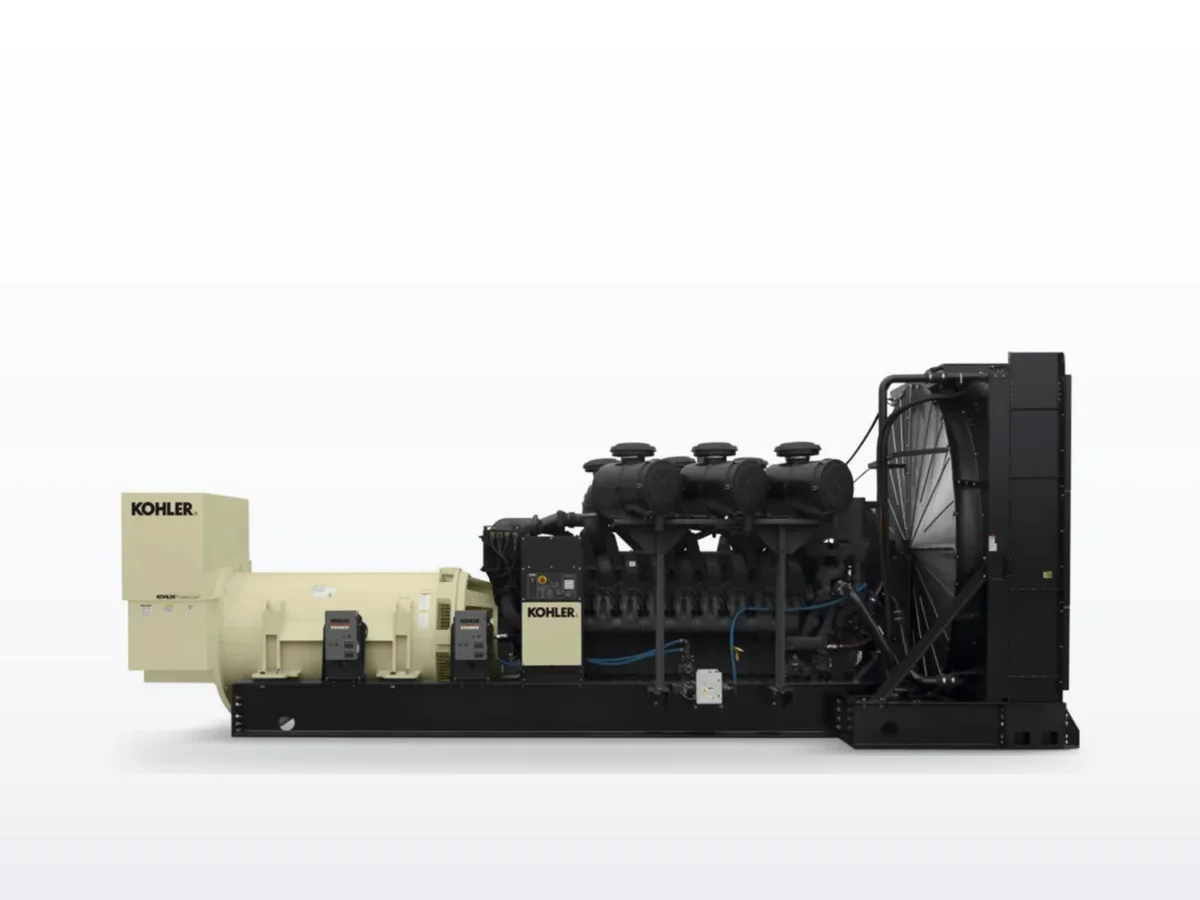

Kohler 2500REOZDC
