Overview#

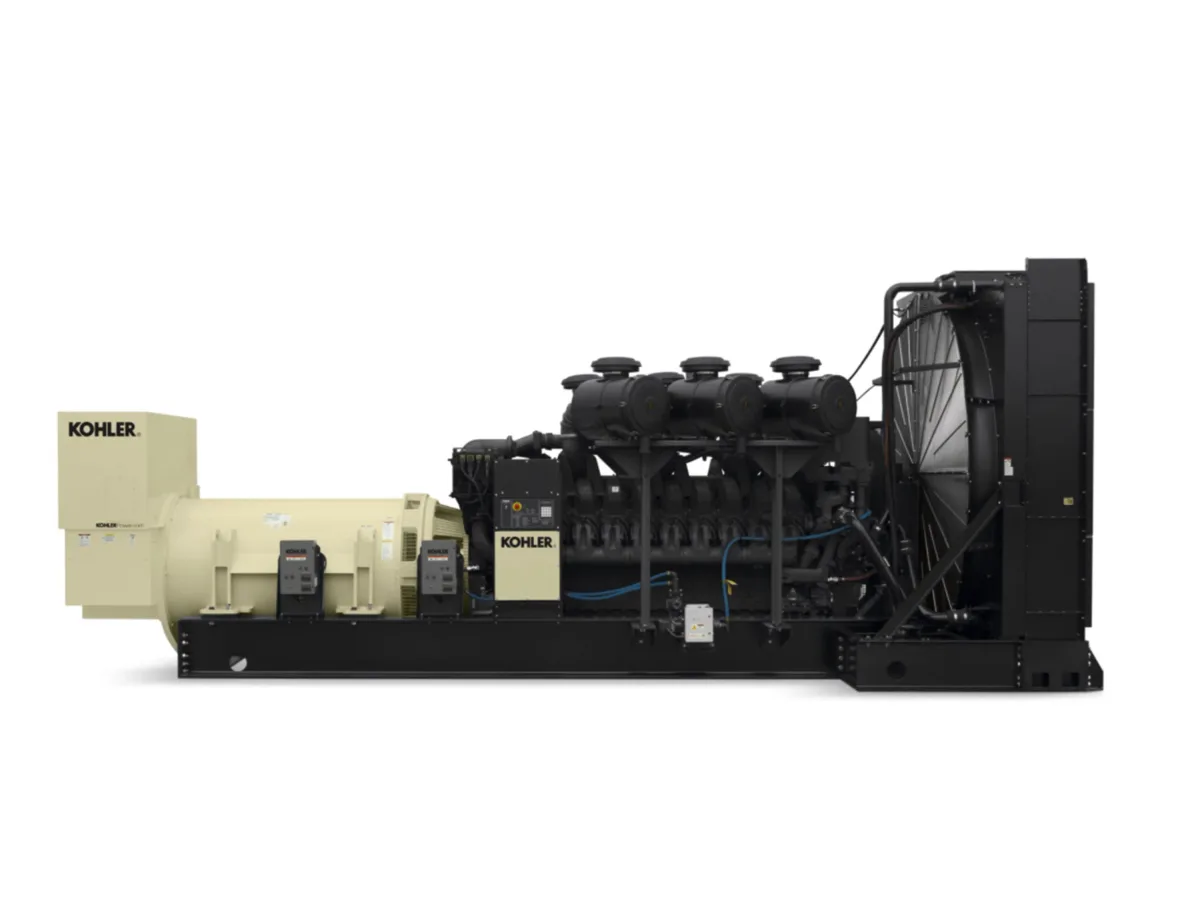

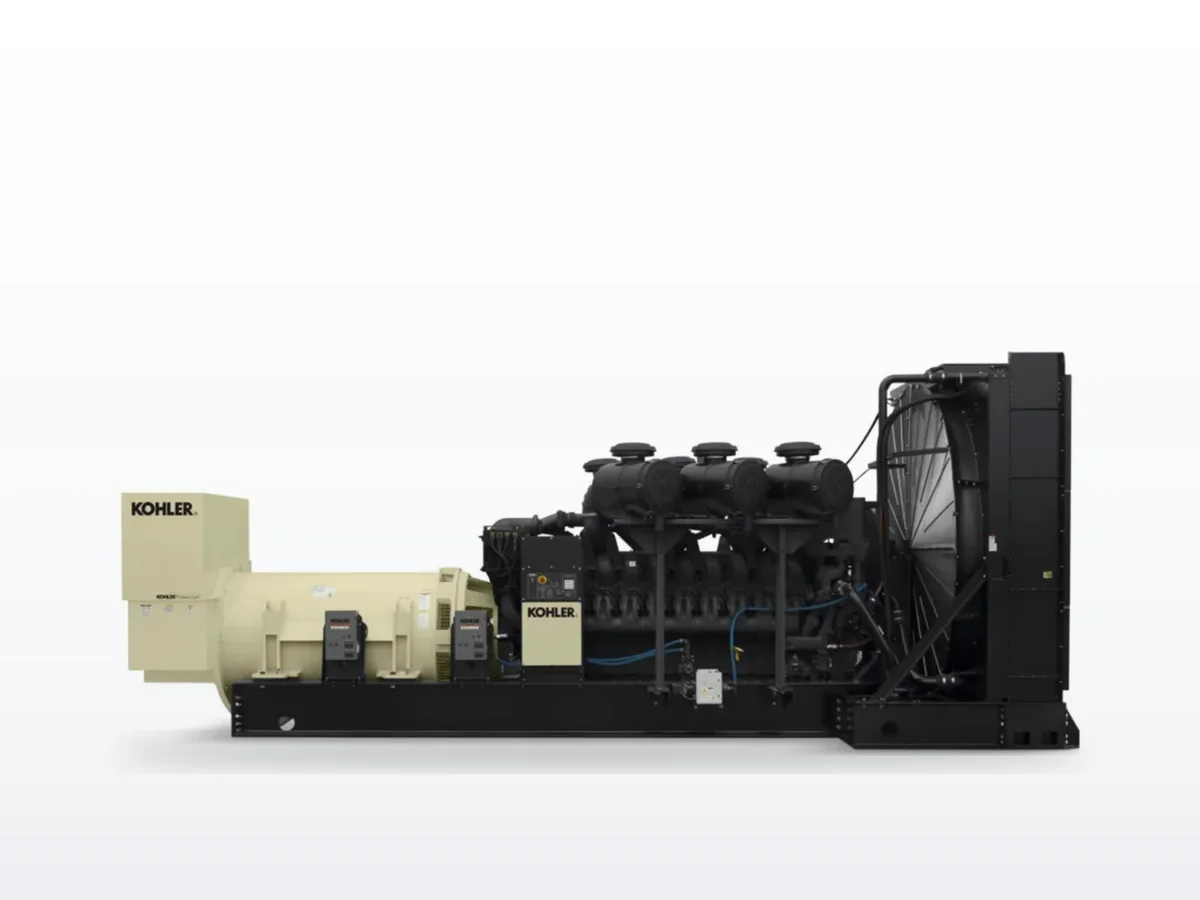

The Kohler 2500REOZDC is a 2,500-kilowatt diesel generator powered by a Detroit Diesel/MTU 16V4000G83L engine at 1800 RPM. At 2.5 MW, this is one of Kohler's largest single-unit industrial diesel gensets — a V16, 76.3-liter turbocharged and intercooled engine producing up to 2,740 kW (3,675 HP) maximum shaft power. Applications are exclusively mission-critical: hyperscale data centers, major hospital campuses, wastewater treatment facilities, and utility substation backup.
The 10M-series alternators available on the 2500REOZDC cover a wide voltage range from 480V through 13.8kV, making it suitable for medium-voltage distribution infrastructure without a step-up transformer. The brushless permanent-magnet pilot exciter provides excellent load acceptance with 0.25% voltage regulation and 300% sustained short-circuit current for up to 10 seconds. Peak motor starting kVA ranges from 5,250 to 7,100 kVA depending on alternator configuration, enabling it to start very large motor loads in one step.
The standard radiator is rated for 40°C (104°F) ambient; a high-ambient radiator option extends capability to 50°C (122°F). Radiator dimensions for the 40°C unit are 287.1" x 109.2" x 123.5" with a wet weight of approximately 50,800 lb. The Decision-Maker 550 controller and optional DM6000 paralleling controller allow up to 8 units to be synchronized on an isolated bus for N+1 redundancy schemes common in large data center designs.
Specifications#
| Spec | Value |
|---|---|
| Standby Power | 2,500 kW |
| Voltage | 277/480V, 347/600V, 2400/4160V, 7200/12470V, 7620/13200V, 7970/13800V |
| Frequency | 60 Hz |
| Engine | Detroit Diesel/MTU 16V4000G83L |
| Cylinders | 16V |
| Displacement | 76.3 L (4,656 cu. in.) |
| Aspiration | Turbocharged, Intercooled |
| Emissions | EPA Tier 2 (stationary emergency) |
| RPM | 1800 |
| Max. engine output | 2,740 kW (3,675 HP) |
| Fuel | #2 Diesel |
| Cooling | Liquid (unit-mounted radiator) |
| Fuel consumption — 100% load | 183.7 gph (standby) |
| Fuel consumption — 75% load | 135.9 gph (standby) |
| Radiator system capacity | 189 gal (40°C unit) |
| Dimensions — 40°C radiator (L x W x H) | 287.1" x 109.2" x 123.5" |
| Wet weight — 40°C radiator | approx. 50,800 lb. |
| Controller | Decision-Maker 550 (standard); DM6000 (paralleling option) |
Service & Maintenance#
Kohler's published maintenance schedule for the 2500REOZDC / Detroit Diesel/MTU 16V4000G83L engine:
| Service | Interval |
|---|---|
| Oil and filter change | Every 500 hours or 12 months |
| Fuel filter replacement | Every 500 hours |
| Air filter inspection/replacement | Every 1,000 hours |
| Coolant flush | Every 6,000 hours or 5 years |
| Load bank test | Every 12 months (NFPA 110 requirement) |
| Major overhaul | Every 30,000 hours |
The MTU 16V4000G83L uses four spin-on oil filters and a water-cooled oil cooler; total engine oil capacity at initial fill is 300 liters (317 quarts). The starting system is dual 24V with four 1,150 CCA batteries each. Fuel delivery requires a 20mm (0.79") supply line and a 1,200 Lph (317 gph) maximum flow rate — the fuel infrastructure design for this unit is a significant engineering task separate from the generator itself.
Radiator system capacity is 717 liters (189 gallons) at 40°C rating. Coolant maintenance at the 6,000-hour / 5-year interval is critical on this engine given the water-cooled charge cooler system.
Common Failure Modes#
The MTU 16V4000G83L's high-pressure common-rail injection system is the primary source of service-significant faults. Rough running, injector fault codes, and black smoke at around 8,000 hours are the typical presentation. Given the 16-cylinder configuration, injector replacement is a major service event requiring specialized tooling and pre-tested replacement units — plan for a multi-day service window and a load bank to verify output after completion.
Turbocharger degradation (power loss, elevated exhaust temperature) is expected at 15,000+ hours. The 16V4000 has four turbochargers; the failure pattern is typically sequential rather than simultaneous, which means a partial power loss rather than full shutdown. The charge air cooling system is also a wear item — reduced output and intake temperature alarms at around 12,000 hours indicate charge cooler fouling or coolant circuit issues.
Battery failures on the 24V dual-start system require attention. All four batteries should be load-tested at each annual service.
Our service experience#
OnPoint Generators provides installation, maintenance, load bank testing, and emergency service for Kohler industrial generators throughout Northern California and the Central Valley. Units in the 2500 kW class require specialized capabilities: medium-voltage switch gear coordination, large-capacity load banks (minimum 2 MW), and factory-trained technicians certified on the MTU 16V4000 platform. We work closely with the regional Rehlko distribution network for factory-level parts and technical support for this model class. Contact us directly for site assessments and maintenance contract discussions for 1 MW+ installations.
FAQ#
What engine powers the Kohler 2500REOZDC?#
The 2500REOZDC uses a Detroit Diesel/MTU 16V4000G83L — a 16-cylinder V-configuration, 76.3-liter turbocharged and intercooled engine running at 1800 RPM, rated to 2,740 kW (3,675 HP) maximum shaft output.
What is the standby power rating of the 2500REOZDC?#
The 2500REOZDC is rated at 2,500 kW (3,125 kVA) standby at 0.8 power factor across all standard voltage configurations. All ratings are per Kohler spec sheet G5-405.
What voltage options are available for the 2500REOZDC?#
The 2500REOZDC is available in 480V, 600V, 4,160V, 12,470V, 13,200V, and 13,800V configurations. Medium-voltage alternators (4,160V and above) allow direct connection to medium-voltage distribution systems without a step-up transformer, which is preferred for large campus and data center designs.
