What is the standby rating of the Kohler KD2500?

Per the Kohler spec sheet, the KD2500 is rated at 2500 kW / 3125 kVA standby and 2270 kW / 2837 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.

Is the Kohler KD2500 EPA Tier 4 certified?

No. The KD2500 is EPA certified for stationary emergency use. For Tier 4 Final compliance, see the KD2500-4 model which carries dual emergency and non-emergency certification.

What alternator type does the KD2500 use?

The KD2500 uses a brushless, permanent-magnet pilot exciter alternator — Kohler's standard for the KD Series large industrial diesel platform.

Kohler · KD Series (Industrial Diesel)

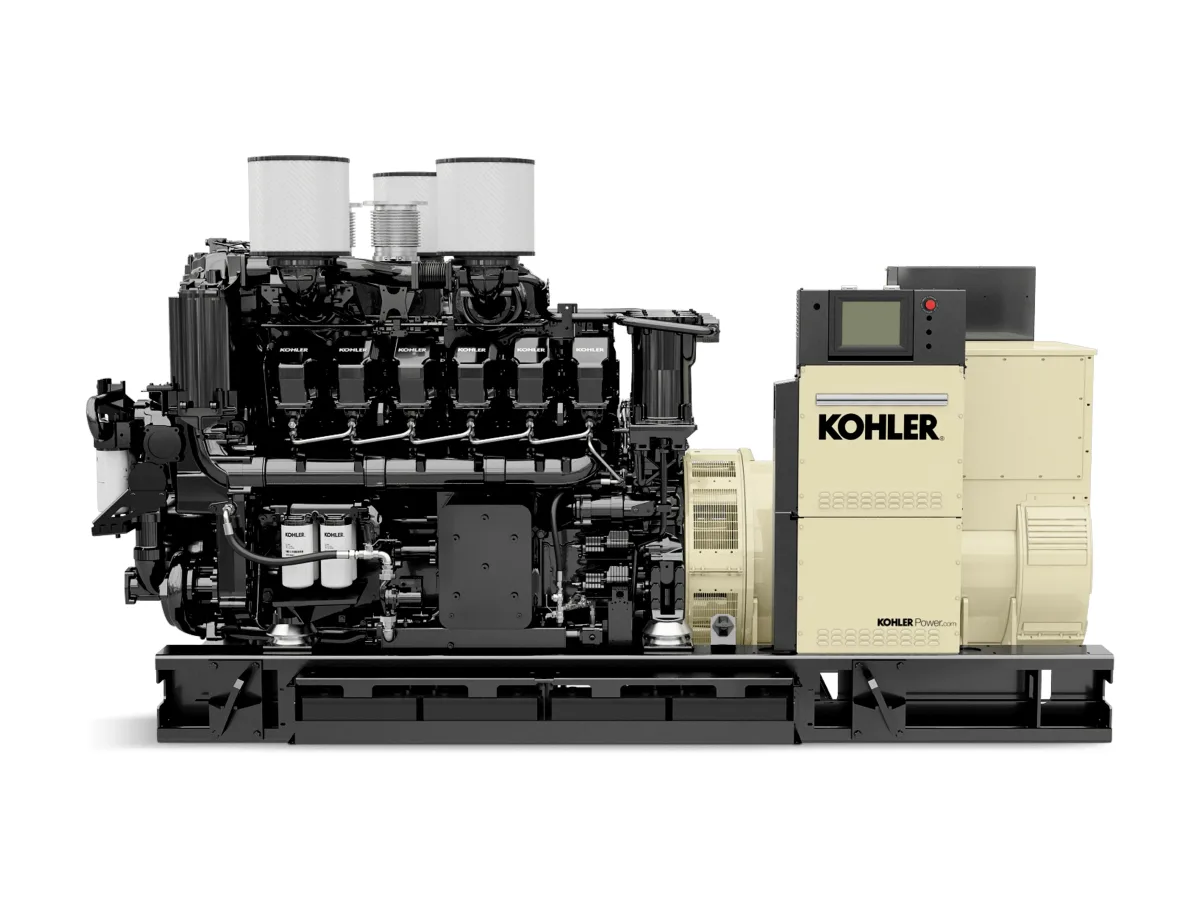

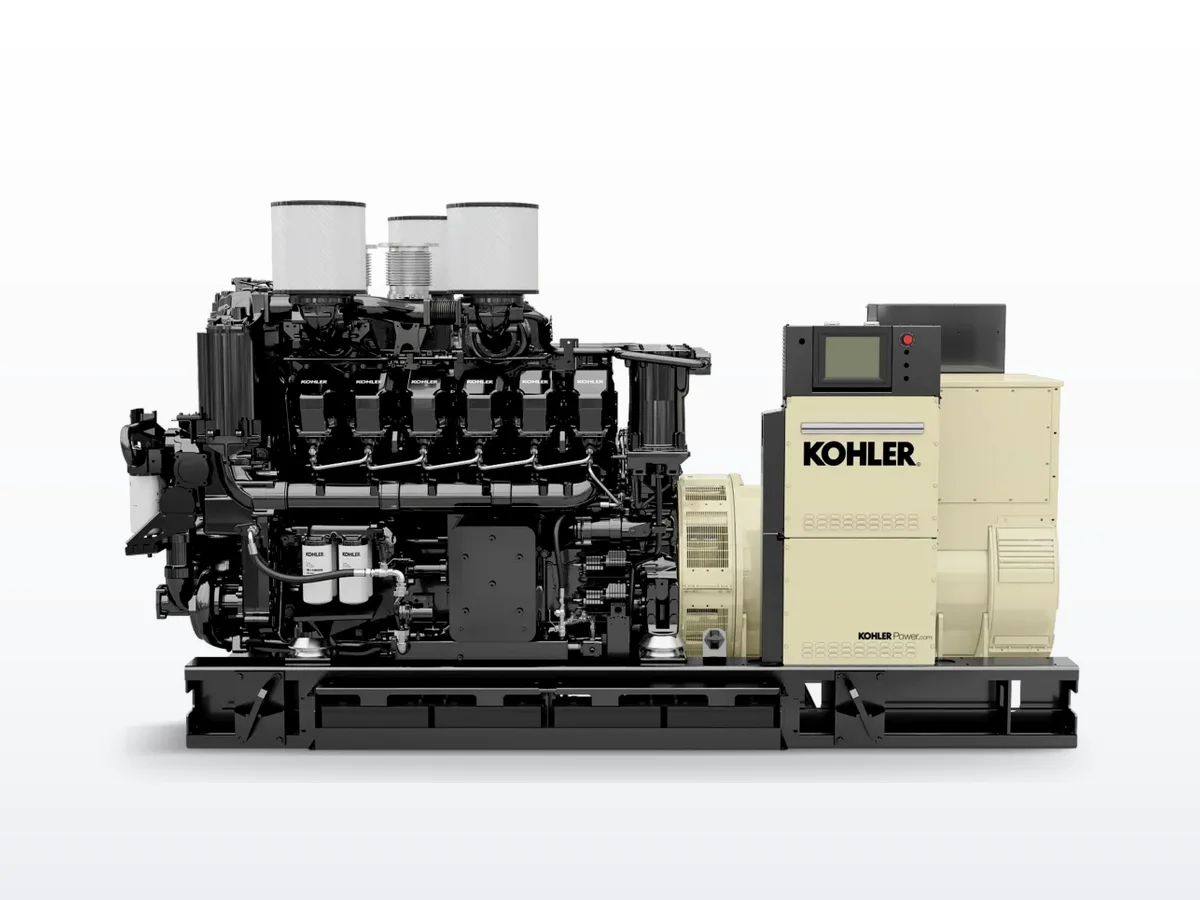

Kohler KD2500

2500 kW standby / 2270 kW prime · Diesel · Liquid-cooled

2500 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and heavy industrial facilities requiring 2+ MW backup.

Standby power: 2500 kW / 2270 kW prime
Voltage options: 277/480V
Frequency / Phase: 60 Hz · 3-phase
Engine: Kohler KD62V12 · 62L
EPA / Emissions: Tier 2
Alternator: Kohler KH08430TO4D

Data Centers Healthcare Manufacturing Commercial Government

Configure & Quote Download spec sheet

Overview#

The Kohler KD2500 is a 2500-kilowatt diesel industrial standby generator from Kohler's KD Series platform. At over 2.5 MW, it is designed for large-scale data centers, major hospital systems, and heavy industrial campuses requiring substantial emergency backup capacity. The KD Series uses Kohler-designed engines and permanent-magnet pilot exciter alternators, with sound aluminum enclosures rated for 186 mph wind loads.

KD Series platform#

The KD Series is Kohler's large industrial diesel generator line, covering 800 to 4000 kW. Designed for mission-critical facilities, every KD Series unit carries UL 2200 listing and meets NFPA 110 Level 1 requirements when equipped with the necessary accessories. The larger KD models use sound aluminum enclosures with 186 mph wind load ratings.

Our service experience#

OnPoint Generators provides installation, maintenance, and emergency service for Kohler KD Series generators throughout Northern California. Our technicians are experienced with large diesel platforms in the multi-megawatt class, including load bank testing, fuel system maintenance, and cooling system service for high-capacity industrial units.

Engineering specifications

Acoustic

Sound @ 7m, full load: 101 dBA

Fuel system & runtime

Fuel use @ full load: 172 GPH
Fuel use @ 75% load: 151 GPH
Fuel use @ 50% load: 102.8 GPH

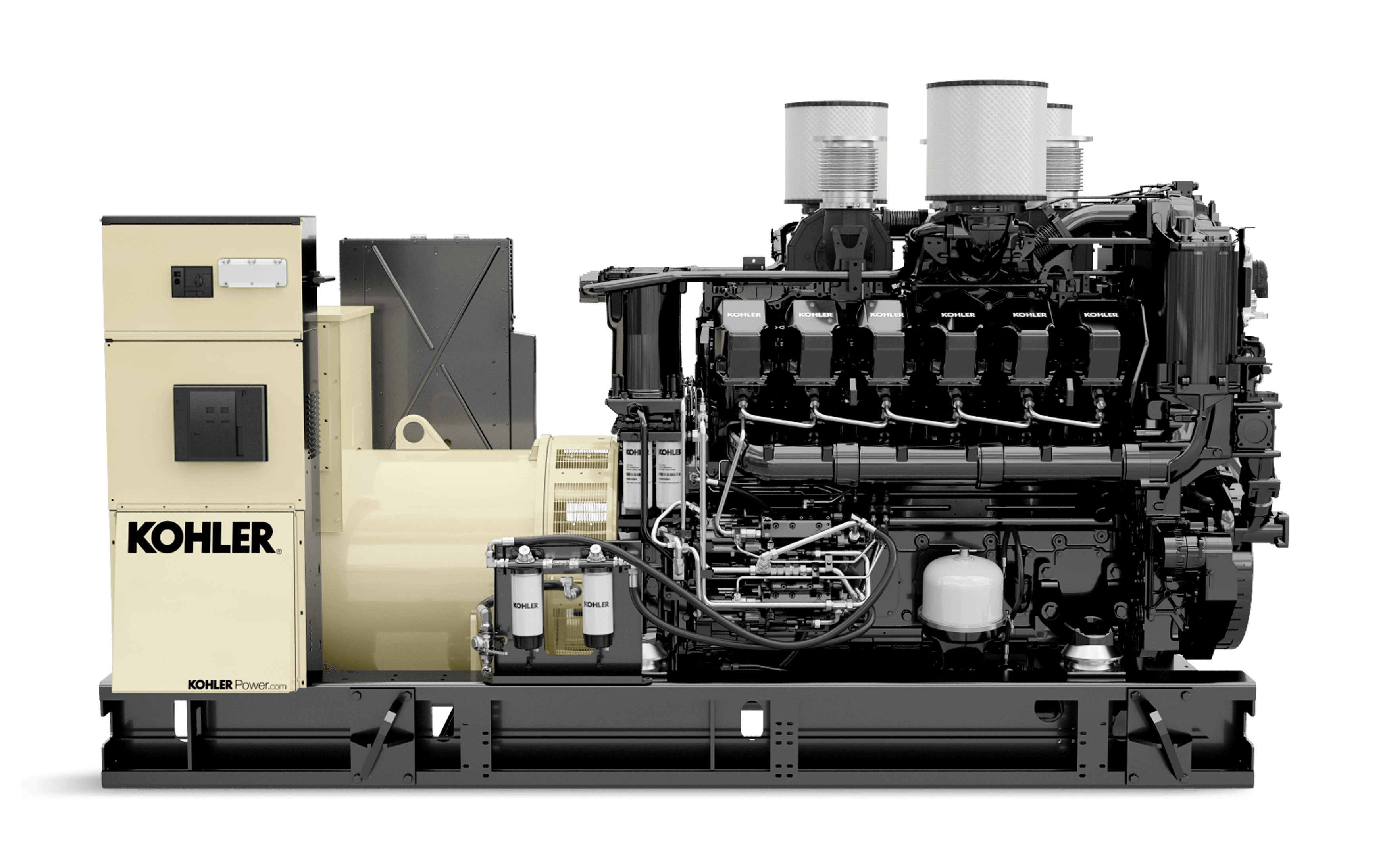

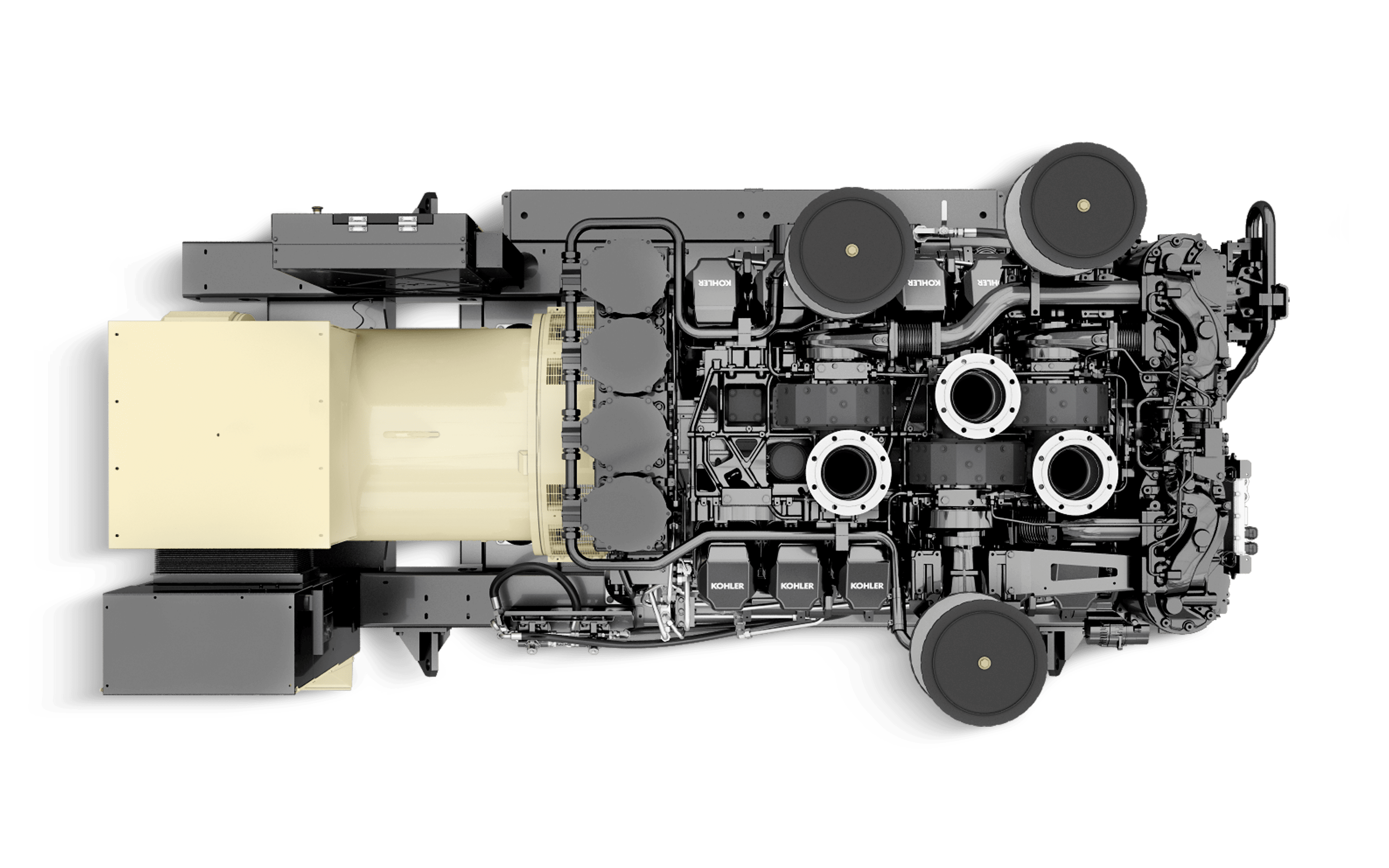

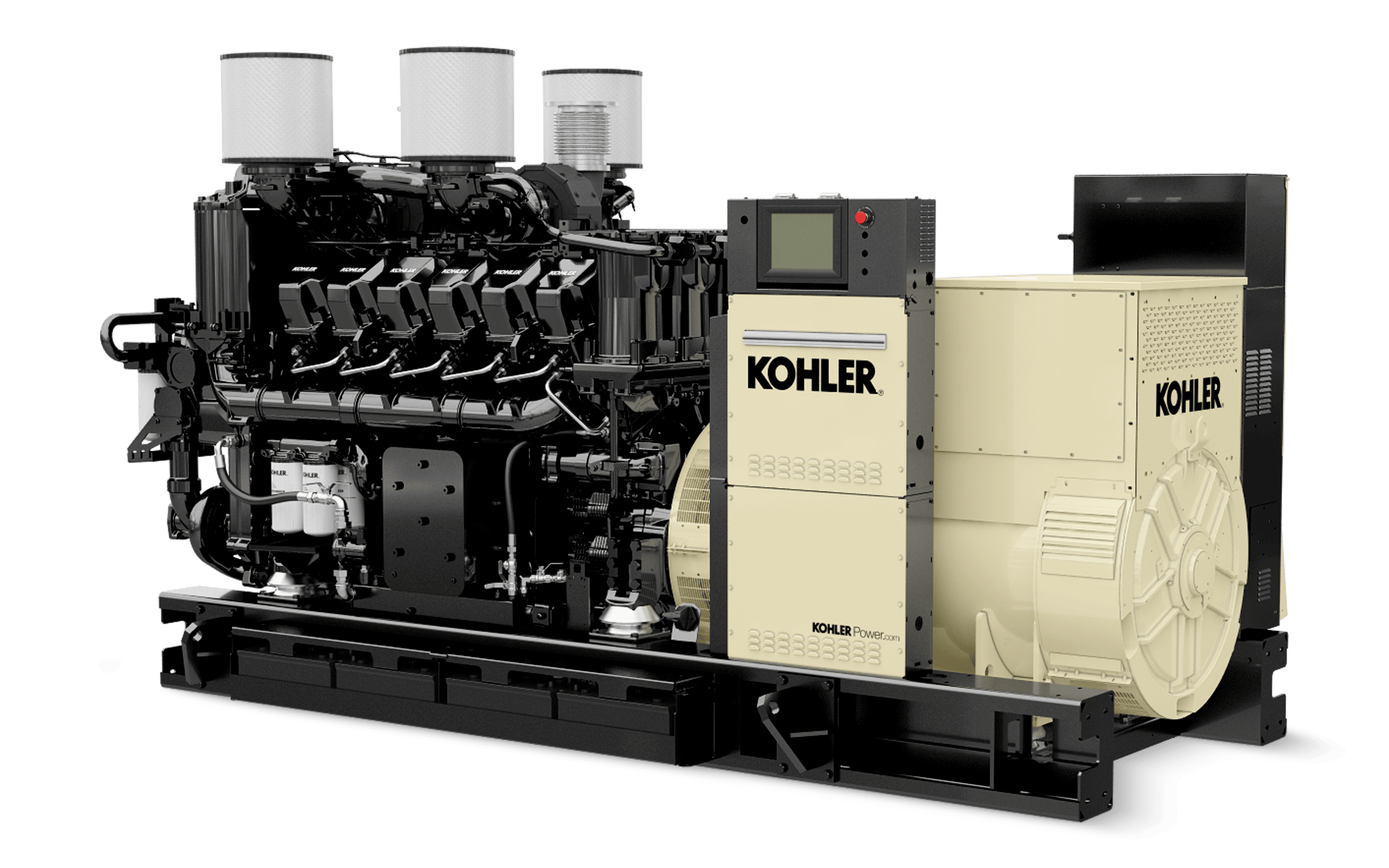

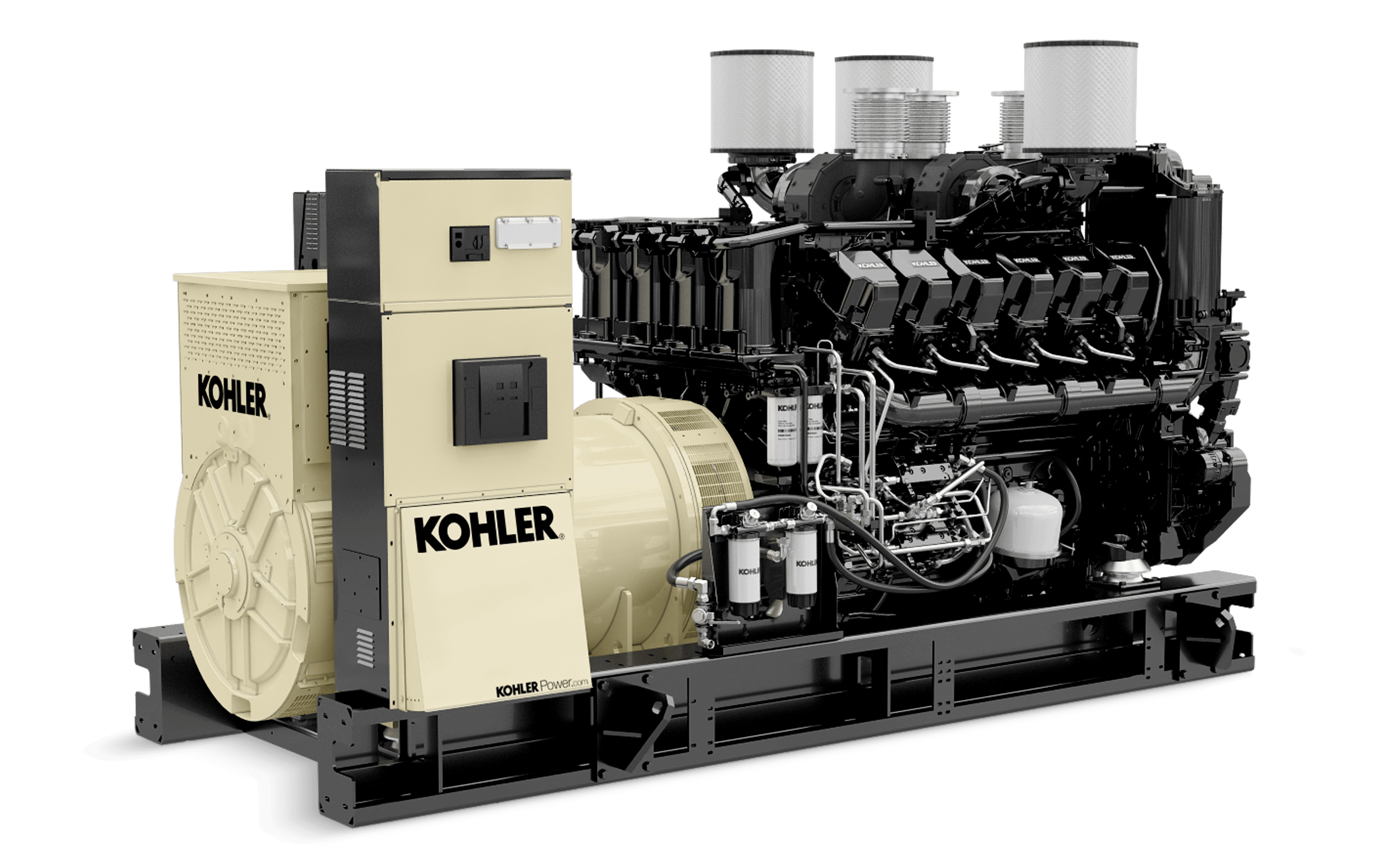

Photos

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Kohler KD2500

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Kohler KD2500

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

1.5 hours(0.1 days)

Fuel consumption ≈ 132.69 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Kohler KD2500 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality / degradation	Injector fouling, hard starting, black smoke under load	4,380+	moderate
Turbocharger	Power loss, excessive exhaust smoke, oil at turbo seals	15,000+	moderate
Cooling system (hoses / thermostat)	Overtemperature fault, coolant loss, high EGT	10,000+	moderate
Battery (starting)	Slow crank, failed exercise, low voltage alarm	8,760+	minor

Frequently Asked Questions

What is the standby rating of the Kohler KD2500?: Per the Kohler spec sheet, the KD2500 is rated at 2500 kW / 3125 kVA standby and 2270 kW / 2837 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.
Is the Kohler KD2500 EPA Tier 4 certified?: No. The KD2500 is EPA certified for stationary emergency use. For Tier 4 Final compliance, see the KD2500-4 model which carries dual emergency and non-emergency certification.
What alternator type does the KD2500 use?: The KD2500 uses a brushless, permanent-magnet pilot exciter alternator — Kohler's standard for the KD Series large industrial diesel platform.

Compatible equipment

Engine

Kohler KD62V12Engines

Transfer switches

More in the KD Series (Industrial Diesel)

Kohler-engineered megawatt-class diesel gensets from 900 to 4000 kW for mission-critical facilities.

View all 18 models in this series →

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohler generators →

Similar models

Kohler

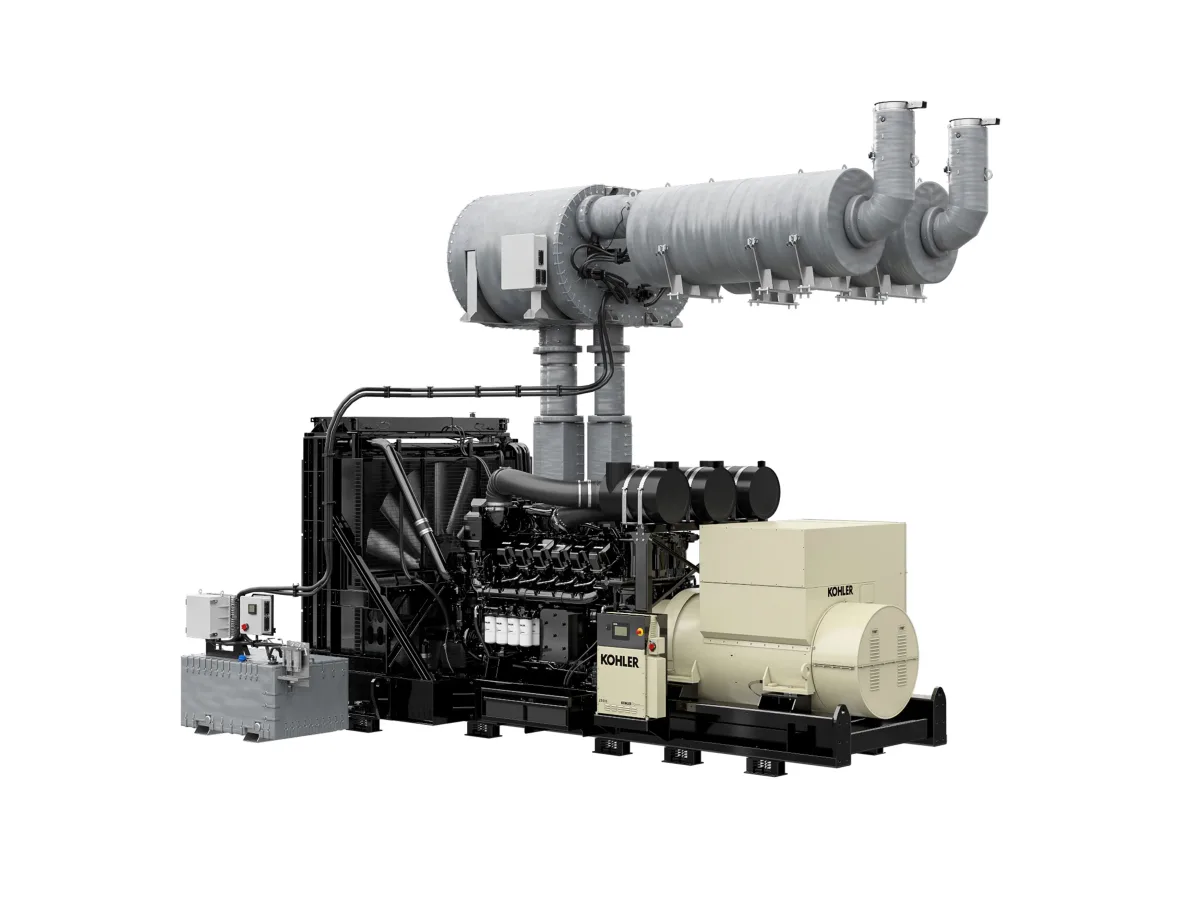

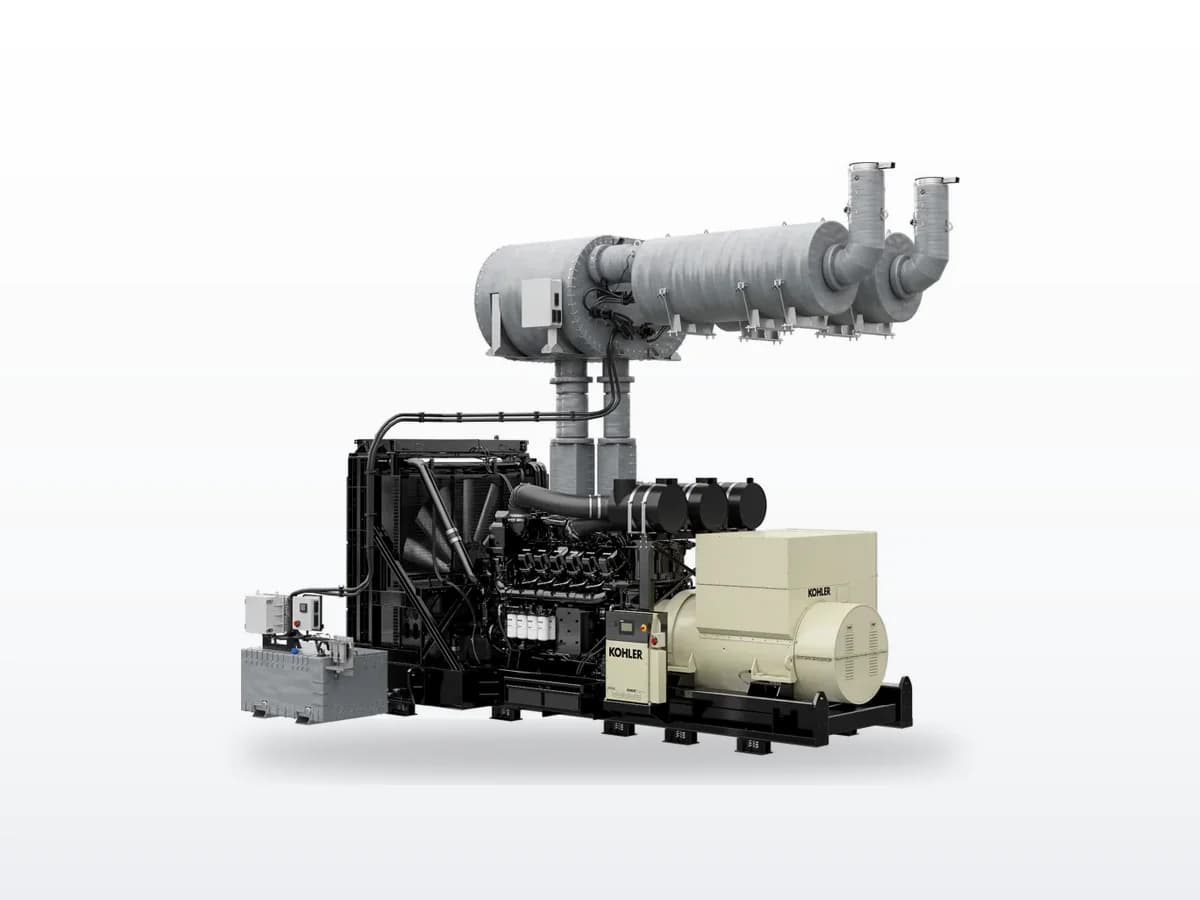

Kohler KD2500-4

2500 kW KD Series -- Kohler KD62V12 with sub-3% THD and PM pilot exciter. Hurricane-rated enclosures available.

2.5 MW standby · Diesel · Liquid-cooled

2500 kW industrial standby for data centers, hospitals, and critical infrastructure requiring multi-MW backup with NFPA 110 Level 1.

2500 kW EPA Tier 4 Final diesel industrial standby generator. Dual-certified (emergency and non-emergency) for mission-critical and prime power applications.

Tier 4 Final3-phasedata-centerhealthcare

Kohler

Kohler KD2250

2250 kW KD Series -- Kohler KD62V12 with sub-3% THD and PM pilot exciter. Hurricane-rated enclosures available.

2.3 MW standby · Diesel · Liquid-cooled

2250 kW industrial standby for data centers, hospitals, and critical infrastructure requiring multi-MW backup with NFPA 110 Level 1.

2250 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and mission-critical facilities approaching 2 MW.

Tier 23-phasedata-centerhealthcare

Kohler

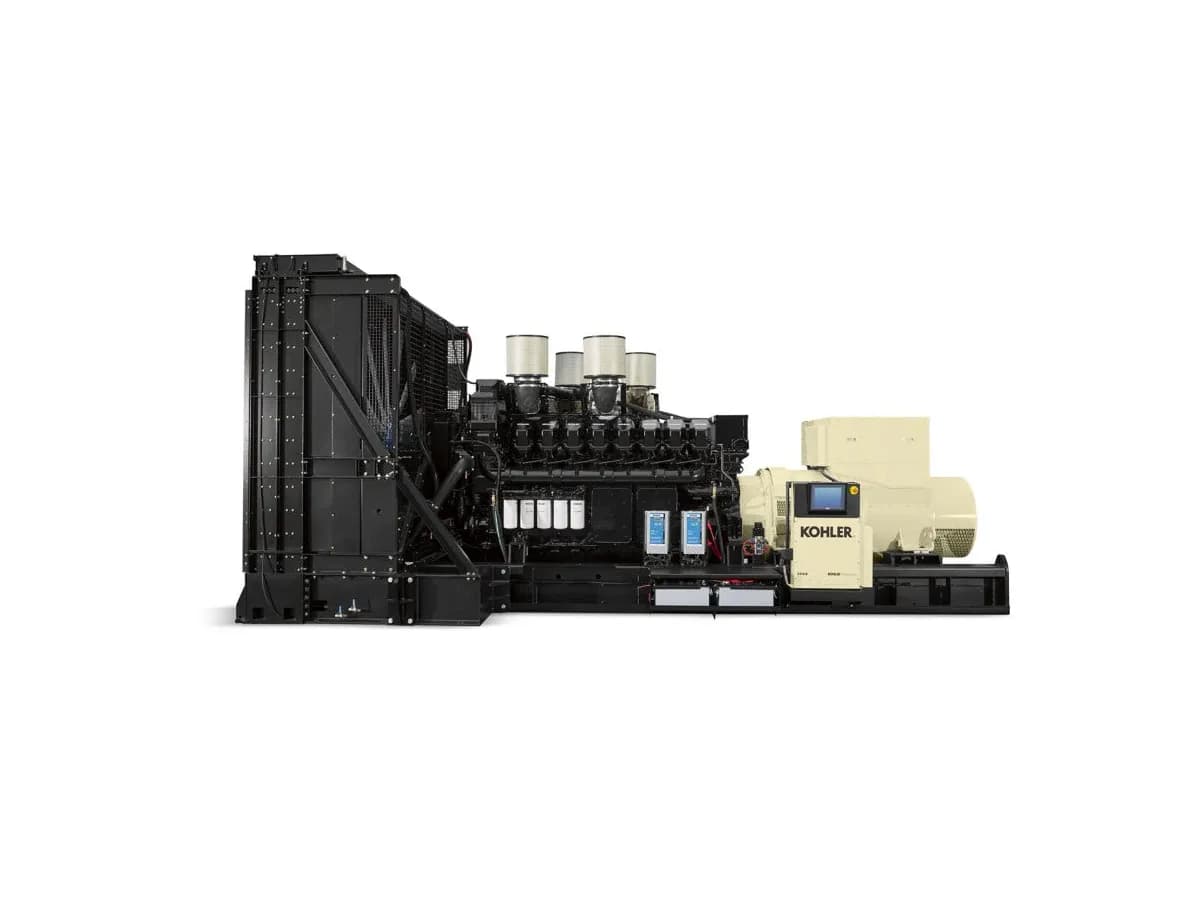

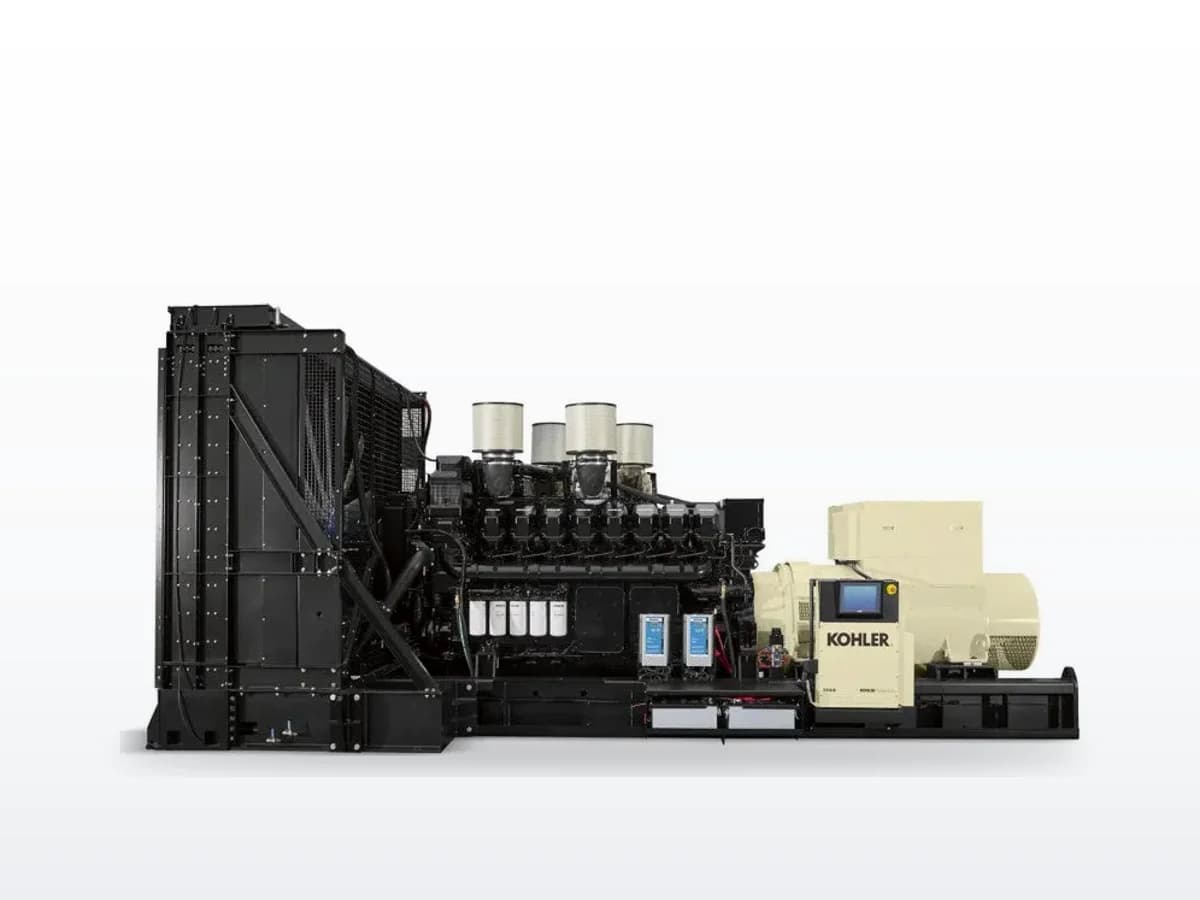

Kohler KD2800

2800 kW KD Series -- Kohler KD83V16 with sub-3% THD and PM pilot exciter. Hurricane-rated enclosures available.

2.8 MW standby · Diesel · Liquid-cooled

2800 kW industrial standby for data centers, hospitals, and critical infrastructure requiring multi-MW backup with NFPA 110 Level 1.

2800 kW diesel industrial standby generator. Upper-range KD Series platform for data centers, healthcare, and mission-critical infrastructure.

Tier 23-phasedata-centerhealthcare
