Kohler · KD Series (Industrial Diesel)

Kohler KD2250

2250 kW standby / 2040 kW prime · Diesel · Liquid-cooled

2250 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and mission-critical facilities approaching 2 MW.

Kohler Kohler KD2250 generator — specifications and details
Standby power
2250 kW / 2040 kW prime
Voltage options
277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Kohler KD62V12 · 62L
EPA / Emissions
Tier 2
Alternator
Kohler KH08100TO4D
Data CentersHealthcareManufacturingCommercialGovernment
Configure & QuoteDownload spec sheet

Overview#

The Kohler KD2250 is a 2250-kilowatt diesel industrial standby generator from Kohler's KD Series platform. Approaching the 2 MW mark, it is purpose-built for large-scale data centers, major hospital systems, and heavy industrial campuses. The KD Series uses Kohler-designed engines and permanent-magnet pilot exciter alternators, with sound aluminum enclosures rated for 186 mph wind loads.

KD Series platform#

The KD Series is Kohler's large industrial diesel generator line, covering 800 to 4000 kW. Designed for mission-critical facilities, every KD Series unit carries UL 2200 listing and meets NFPA 110 Level 1 requirements when equipped with the necessary accessories. The larger KD models use sound aluminum enclosures with 186 mph wind load ratings.

Our service experience#

OnPoint Generators provides installation, maintenance, and emergency service for Kohler KD Series generators throughout Northern California. Our technicians are experienced with large diesel platforms in the multi-megawatt class, including load bank testing, fuel system maintenance, and cooling system service for high-capacity industrial units.

Engineering specifications

Acoustic

Sound @ 7m, full load
101 dBA

Fuel system & runtime

Fuel use @ full load
167.1 GPH
Fuel use @ 75% load
136.9 GPH
Fuel use @ 50% load
95.2 GPH

Photos

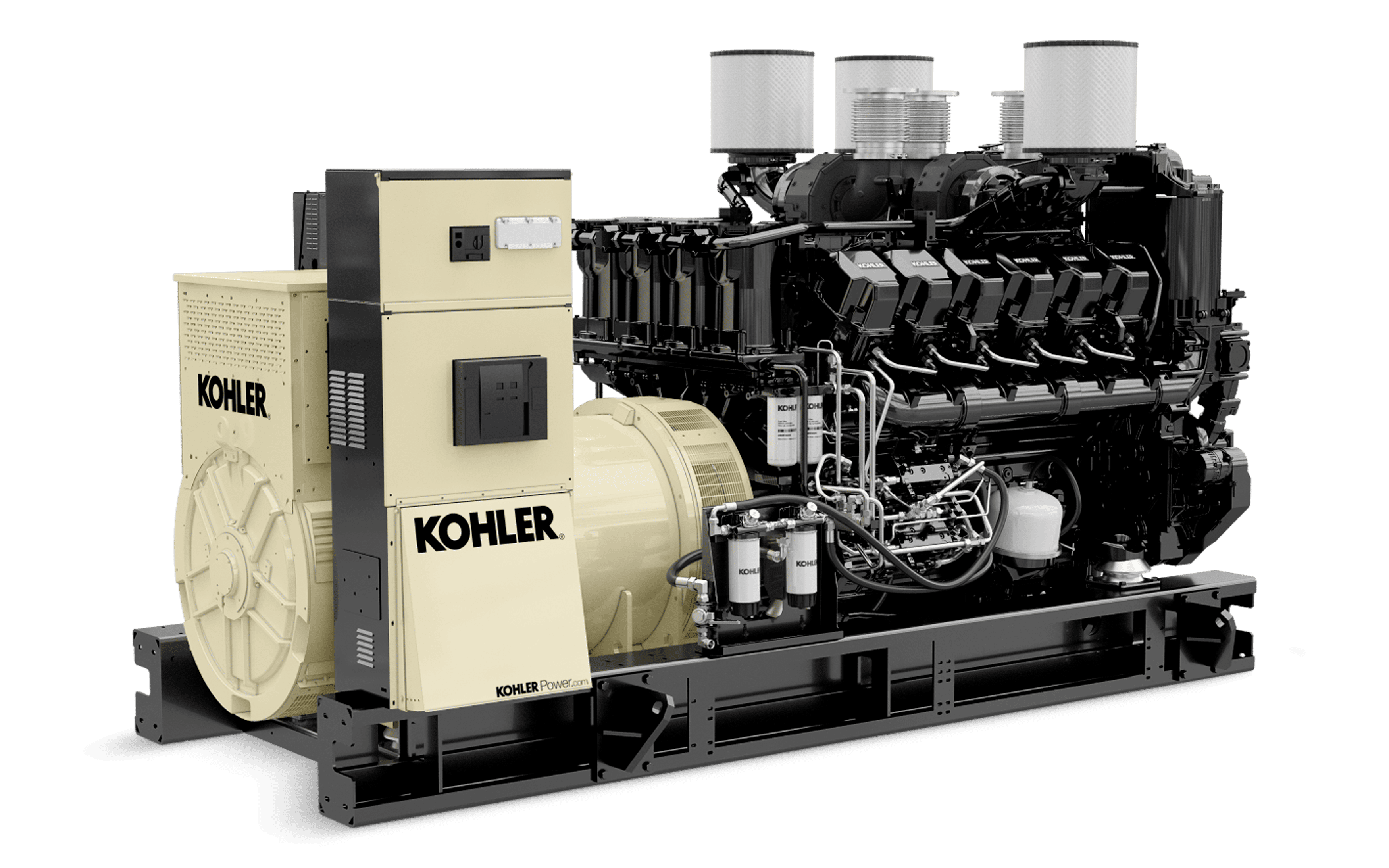

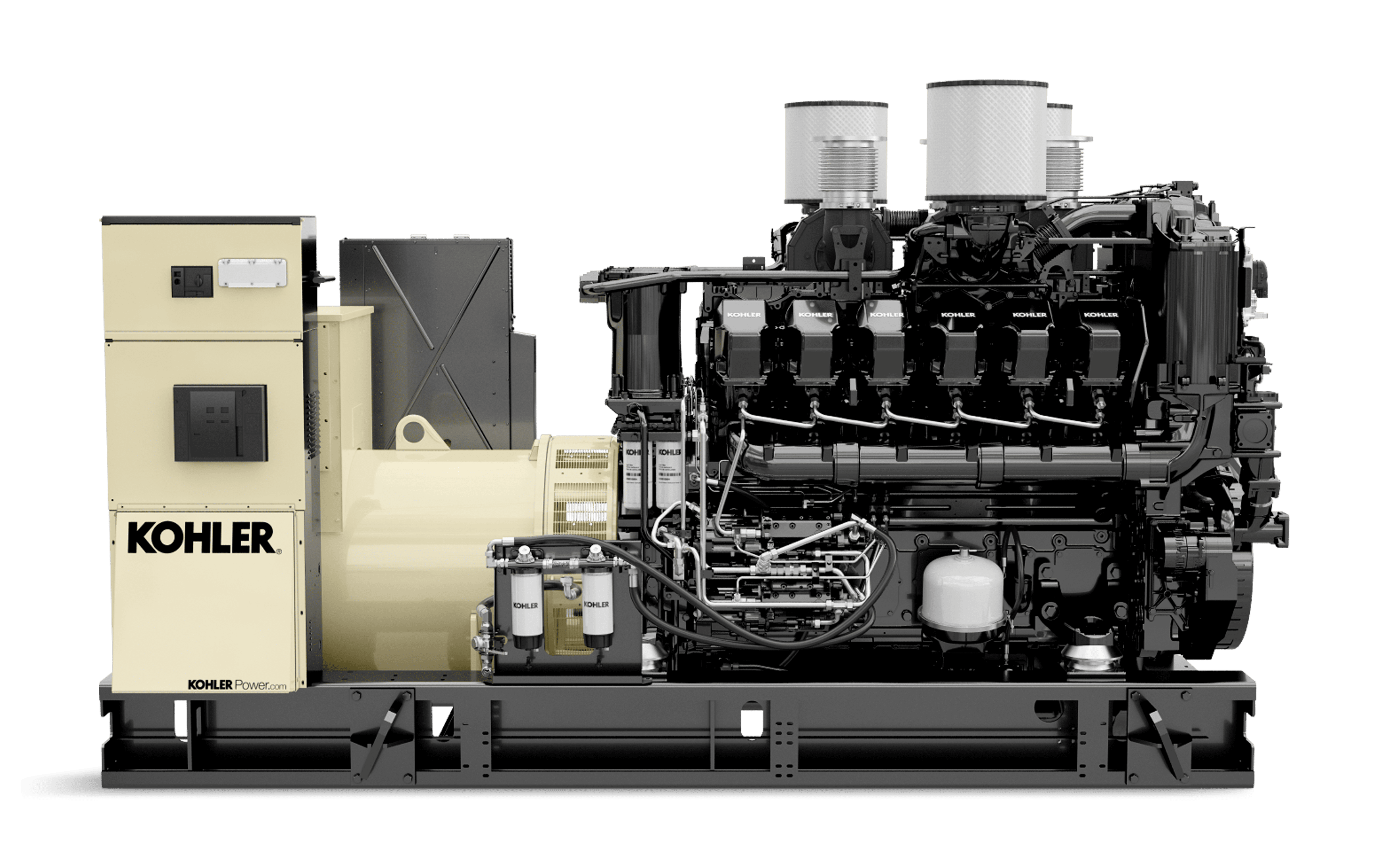

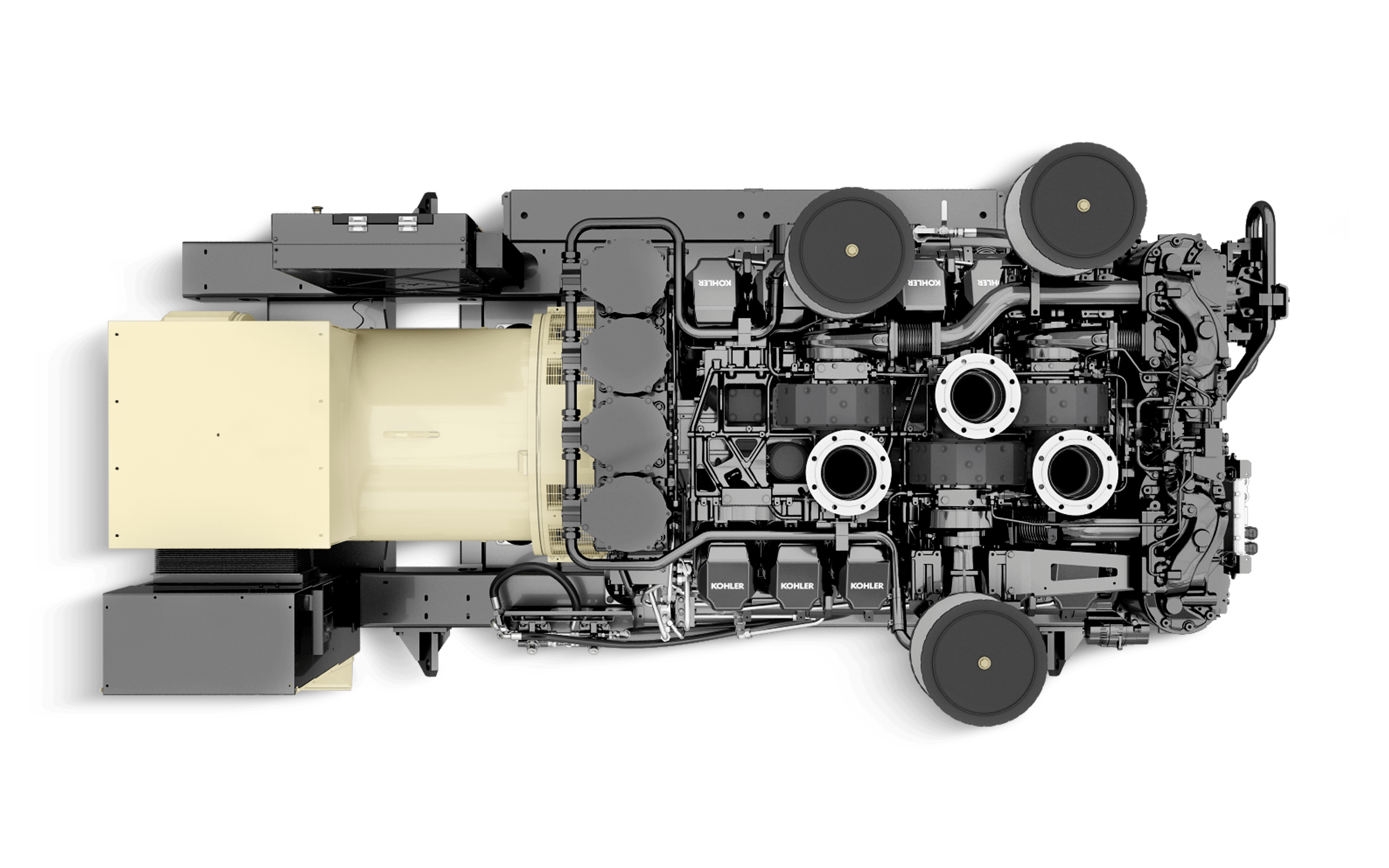

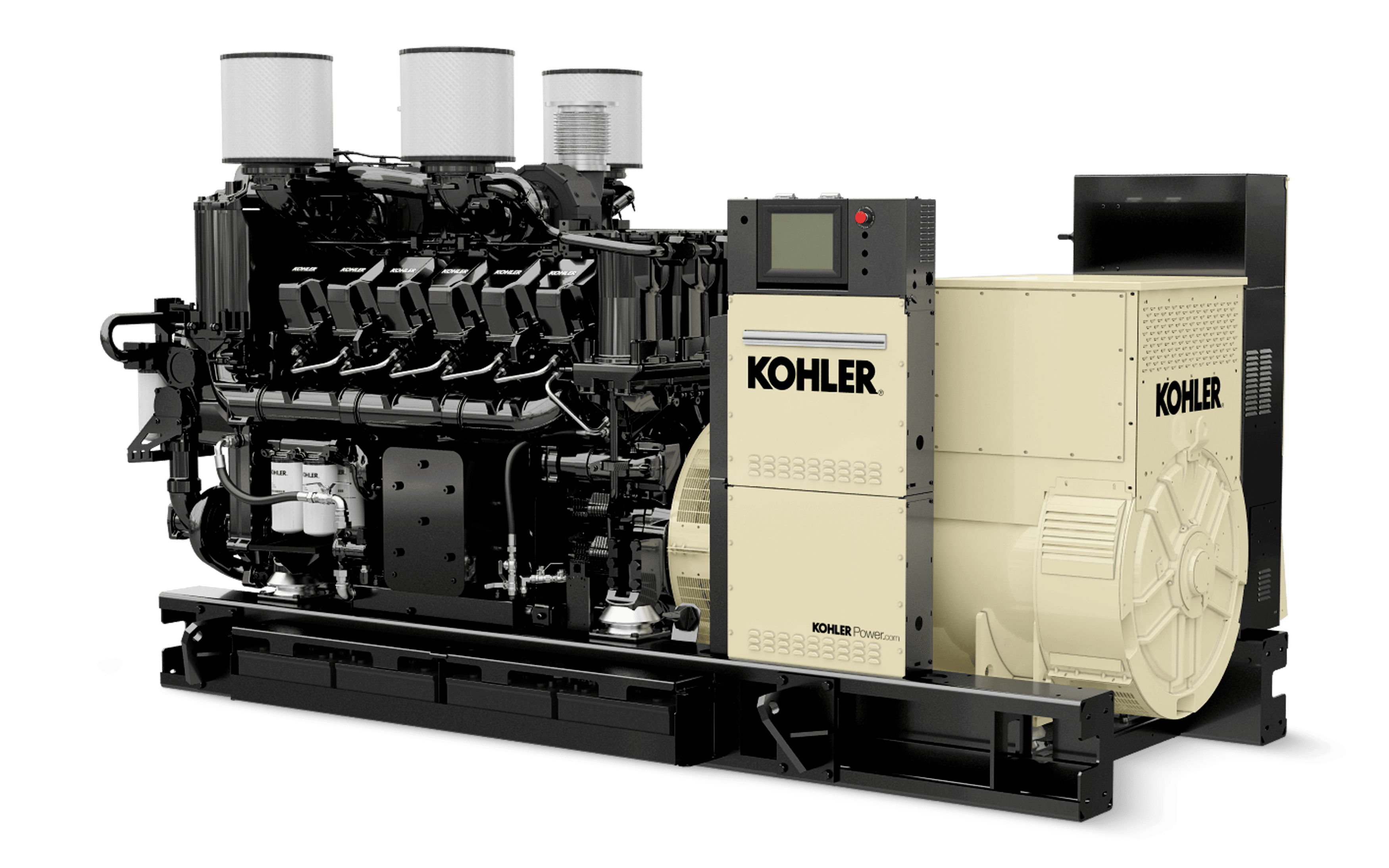

Kohler KD2250 — product photo

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler KD2250

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Kohler KD2250

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

1.6 hours(0.1 days)

Fuel consumption ≈ 128.91 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Kohler KD2250 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Fuel quality / degradationInjector fouling, hard starting, black smoke under load4,380+moderate
TurbochargerPower loss, excessive exhaust smoke, oil at turbo seals15,000+moderate
Cooling system (hoses / thermostat)Overtemperature fault, coolant loss, high EGT10,000+moderate
Battery (starting)Slow crank, failed exercise, low voltage alarm8,760+minor

Frequently Asked Questions

What is the standby rating of the Kohler KD2250?
Per the Kohler spec sheet, the KD2250 is rated at 2250 kW / 2810 kVA standby and 2040 kW / 2550 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.
Is the Kohler KD2250 EPA Tier 4 certified?
No. The KD2250 is EPA certified for stationary emergency use. Tier 4 Final variants are available in separate KD Series models designated with a -4 suffix.
What alternator type does the KD2250 use?
The KD2250 uses a brushless, permanent-magnet pilot exciter alternator — Kohler's standard for the KD Series large industrial diesel platform.

Compatible equipment

Transfer switches

More in the KD Series (Industrial Diesel)

Kohler-engineered megawatt-class diesel gensets from 900 to 4000 kW for mission-critical facilities.

View all 18models in this series →

Similar models

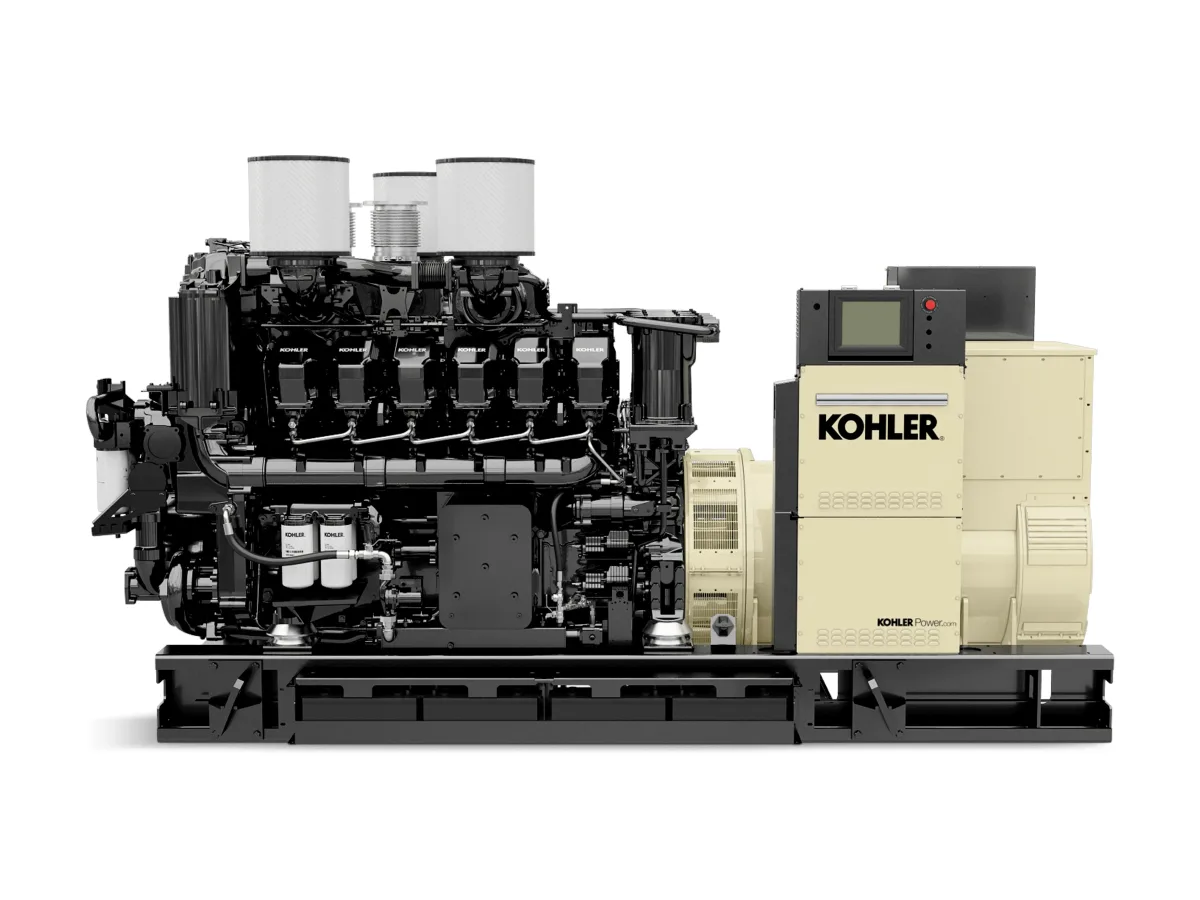

Kohler Kohler KD2000 2 MW liquid-cooled standby generator

Kohler

Kohler KD2000

2000 kW KD Series -- Kohler KD62V12 with sub-3% THD and PM pilot exciter. Hurricane-rated enclosures available.

2 MW standby · Diesel · Liquid-cooled

2000 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and mission-critical infrastructure requiring multi-megawatt backup.

Tier 23-phasedata-centerhealthcare

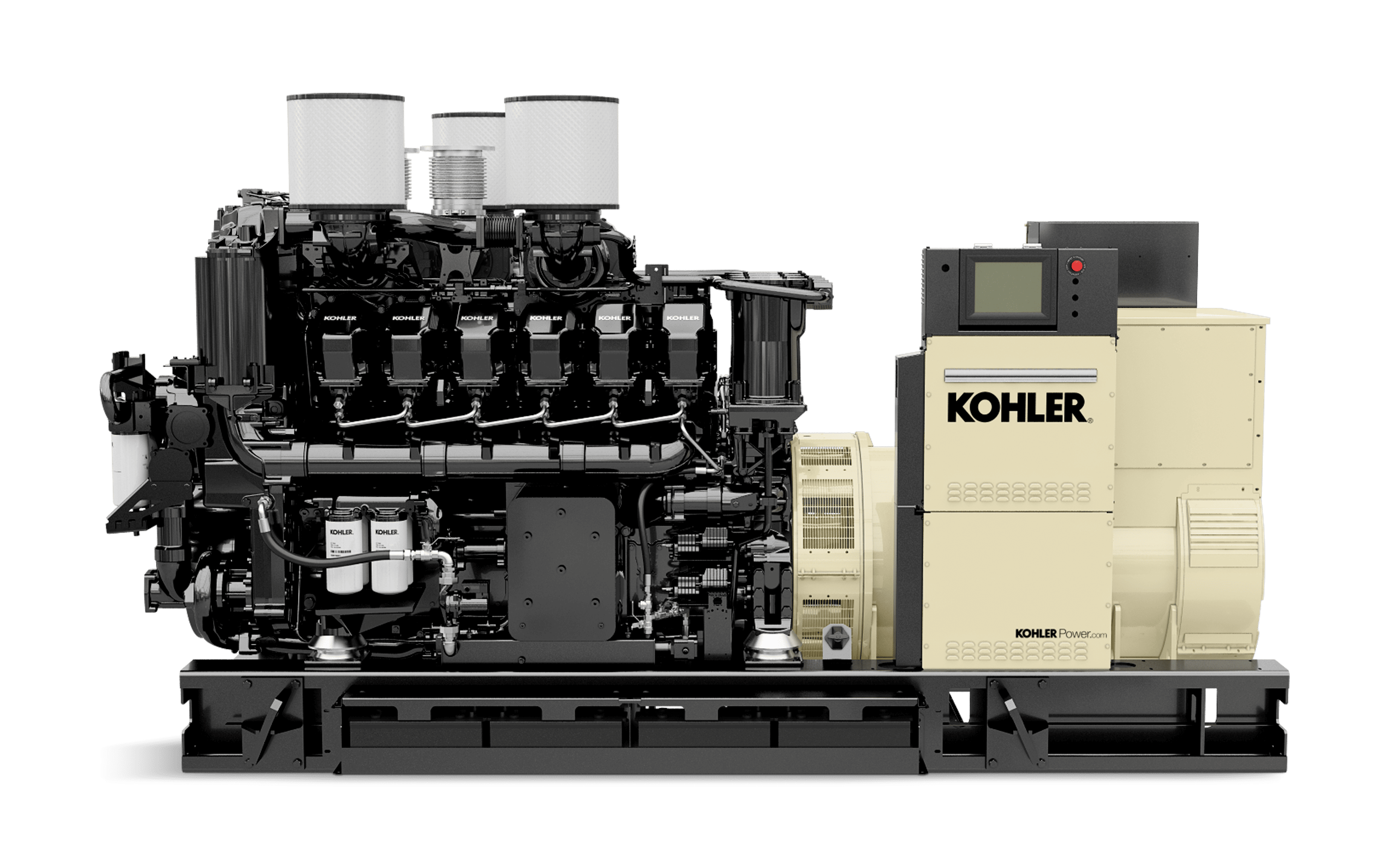

Kohler Kohler KD2500 2.5 MW liquid-cooled standby generator

Kohler

Kohler KD2500

2500 kW KD Series -- Kohler KD62V12 with sub-3% THD and PM pilot exciter. Hurricane-rated enclosures available.

2.5 MW standby · Diesel · Liquid-cooled

2500 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and heavy industrial facilities requiring 2+ MW backup.

Tier 23-phasedata-centerhealthcare

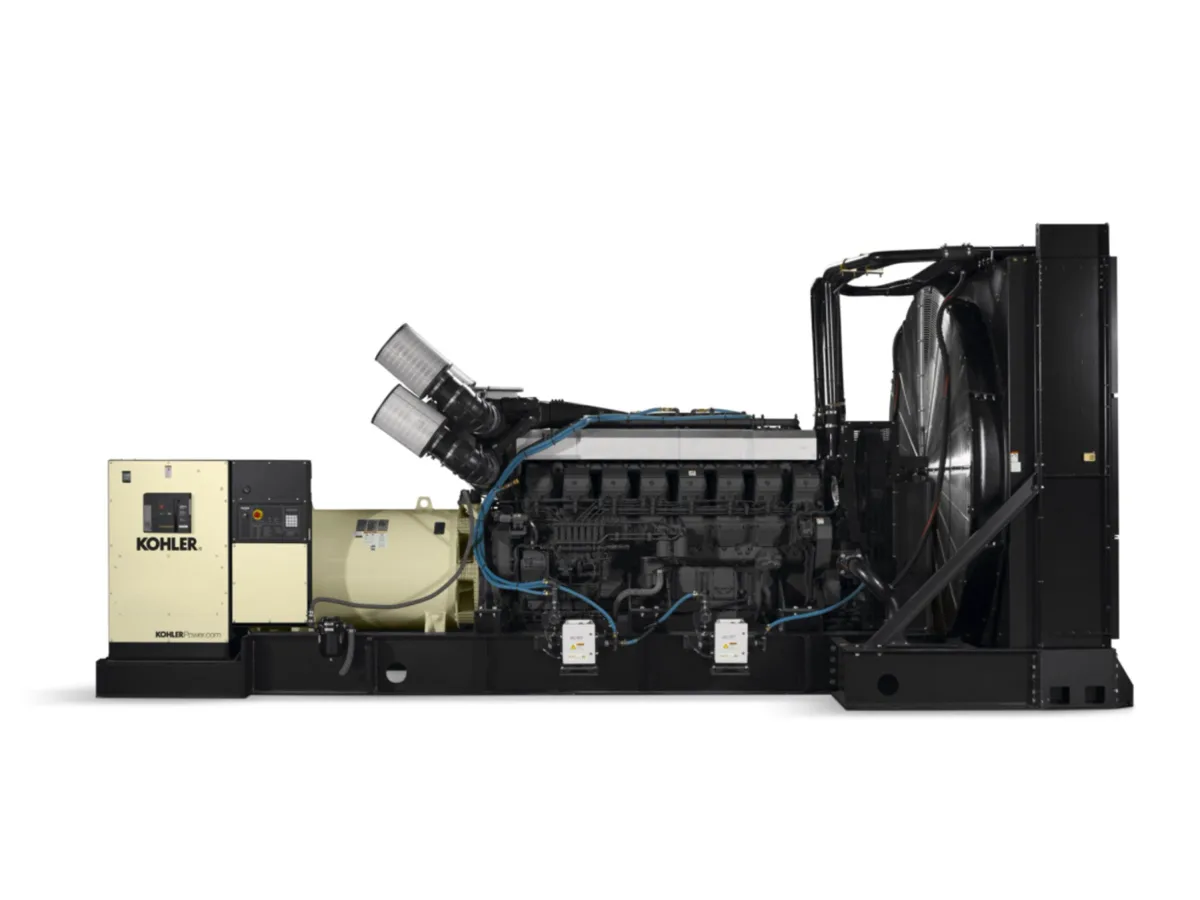

Kohler Kohler 2000REOZMD 2 MW liquid-cooled standby generator
