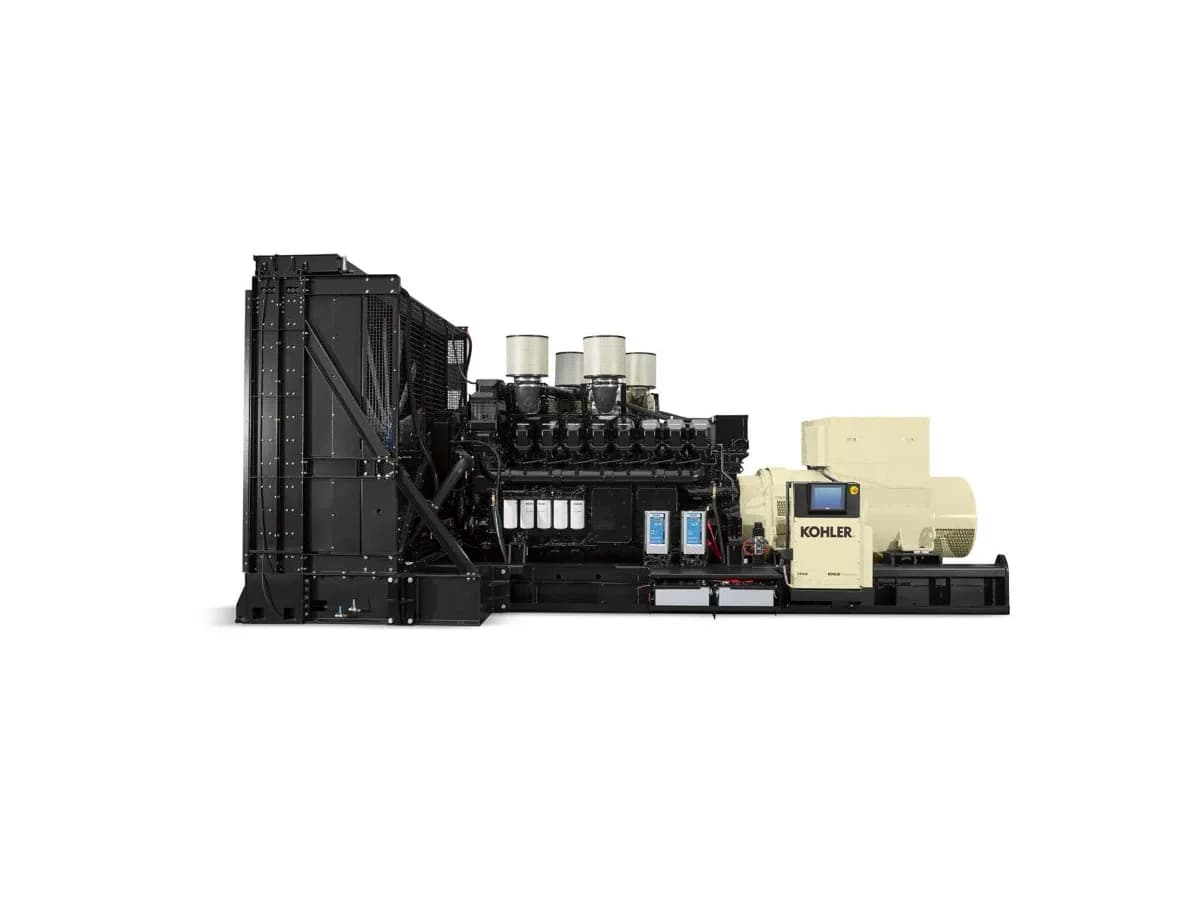

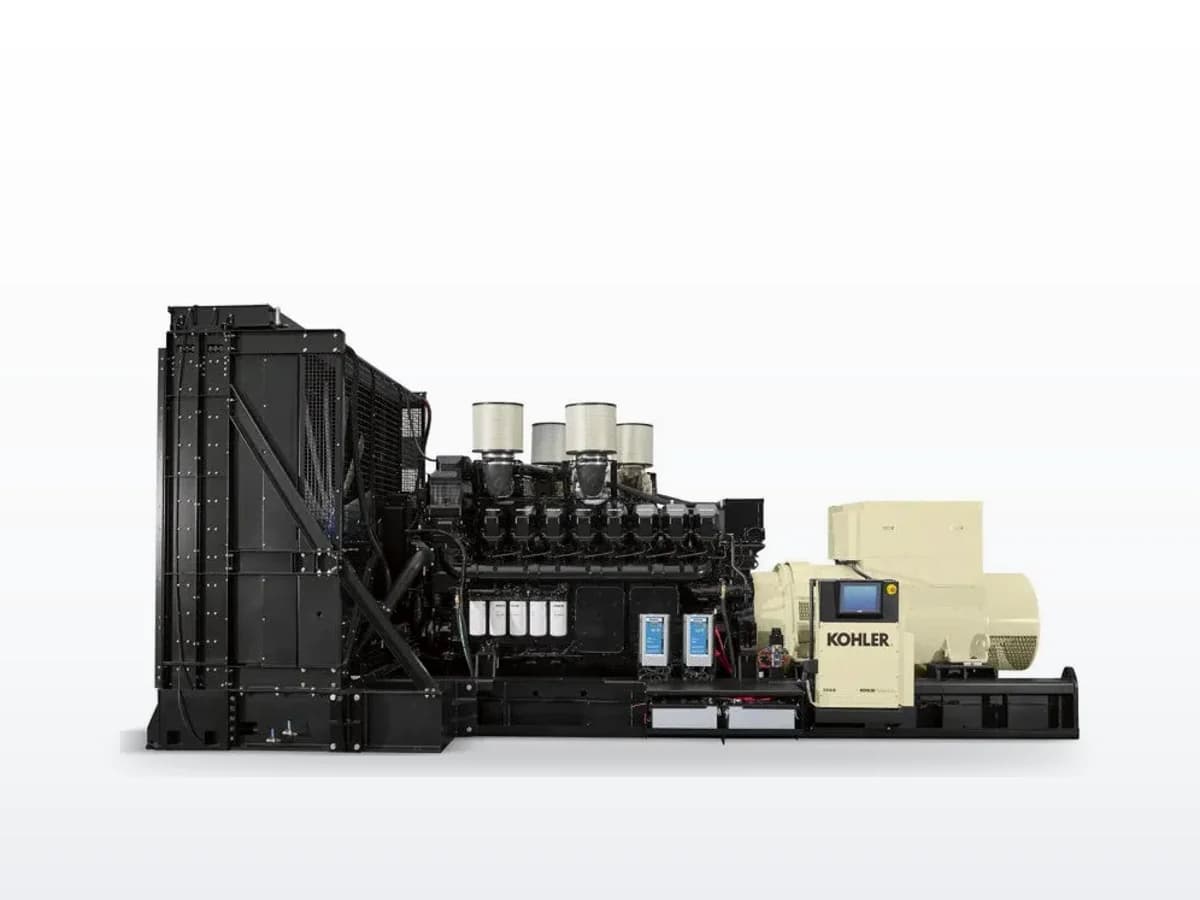

The Kohler KD3250 is a 3250-kilowatt diesel industrial standby generator from Kohler's KD Series platform. At 3 MW, it is designed for the largest data center campuses, major hospital systems, and heavy industrial complexes. The alternator features two-thirds pitch windings and a skewed stator for superior voltage waveform quality. The KD Series uses Kohler-designed engines and permanent-magnet pilot exciter alternators.
The KD Series is Kohler's large industrial diesel generator line, covering 800 to 4000 kW. Designed for mission-critical facilities, every KD Series unit carries UL 2200 listing and meets NFPA 110 Level 1 requirements when equipped with the necessary accessories. The upper-range KD models feature two-thirds pitch windings and skewed stators for clean voltage output.
OnPoint Generators provides installation, maintenance, and emergency service for Kohler KD Series generators throughout Northern California. Our technicians are experienced with large diesel platforms in the multi-megawatt class, including load bank testing, fuel system maintenance, and cooling system service for high-capacity industrial units.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
1.2 hours(0.0 days)
Fuel consumption ≈ 167.09 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Kohler KD3250 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / degradation
Injector fouling, hard starting, black smoke under load
4,380+
moderate
Turbocharger
Power loss, excessive exhaust smoke, oil at turbo seals
15,000+
moderate
Cooling system (hoses / thermostat)
Overtemperature fault, coolant loss, high EGT
10,000+
moderate
Battery (starting)
Slow crank, failed exercise, low voltage alarm
8,760+
minor
Frequently Asked Questions
What is the standby rating of the Kohler KD3250?
Per the Kohler spec sheet, the KD3250 is rated at 3250 kW / 4060 kVA standby and 2950 kW / 3687 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.
Is the Kohler KD3250 EPA Tier 4 certified?
No. The KD3250 is EPA certified for stationary emergency use. For Tier 4 Final compliance, see the KD3250-4 model which carries dual emergency and non-emergency certification.
What alternator type does the KD3250 use?
The KD3250 uses a brushless, permanent-magnet pilot exciter alternator with two-thirds pitch windings and skewed stator for superior voltage waveform quality — Kohler's standard for the larger KD Series industrial diesel platform.
Similar models
Kohler
New

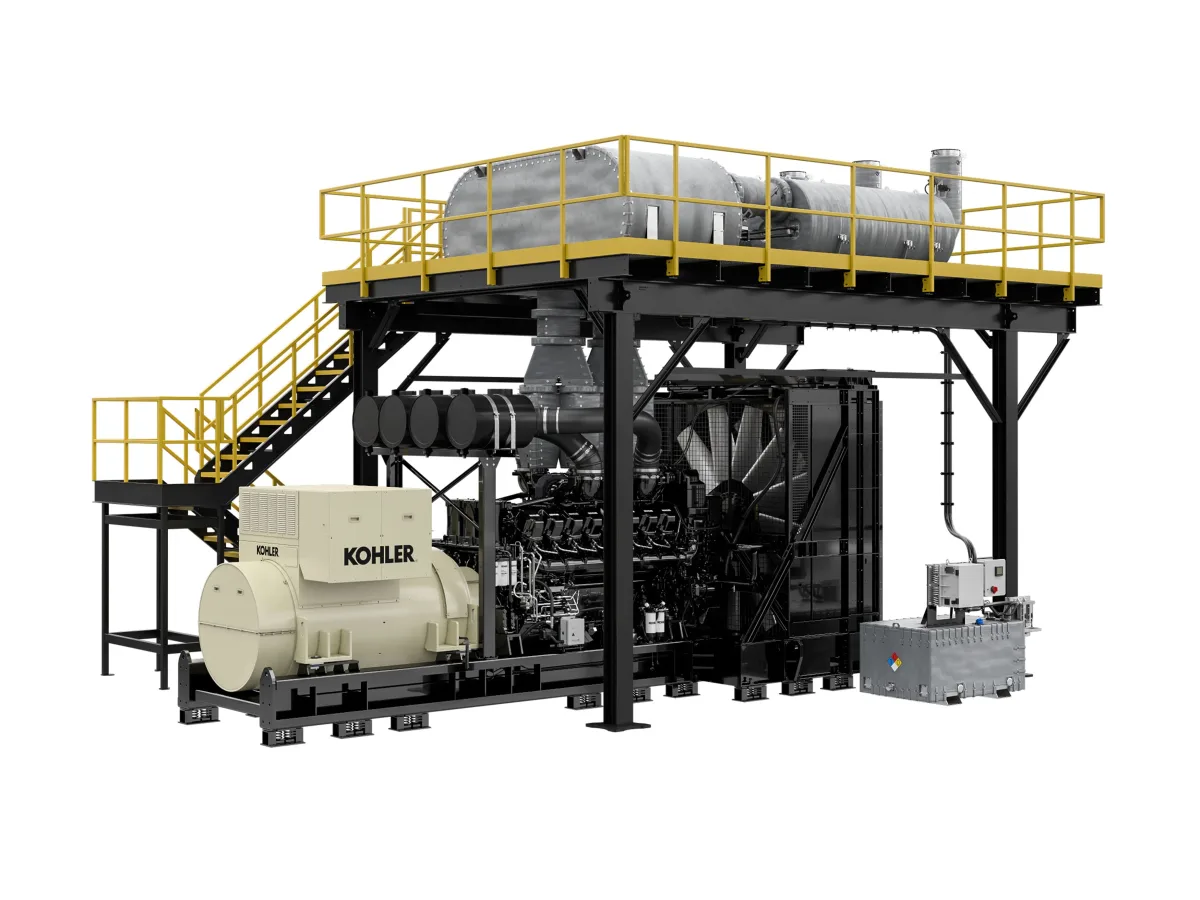

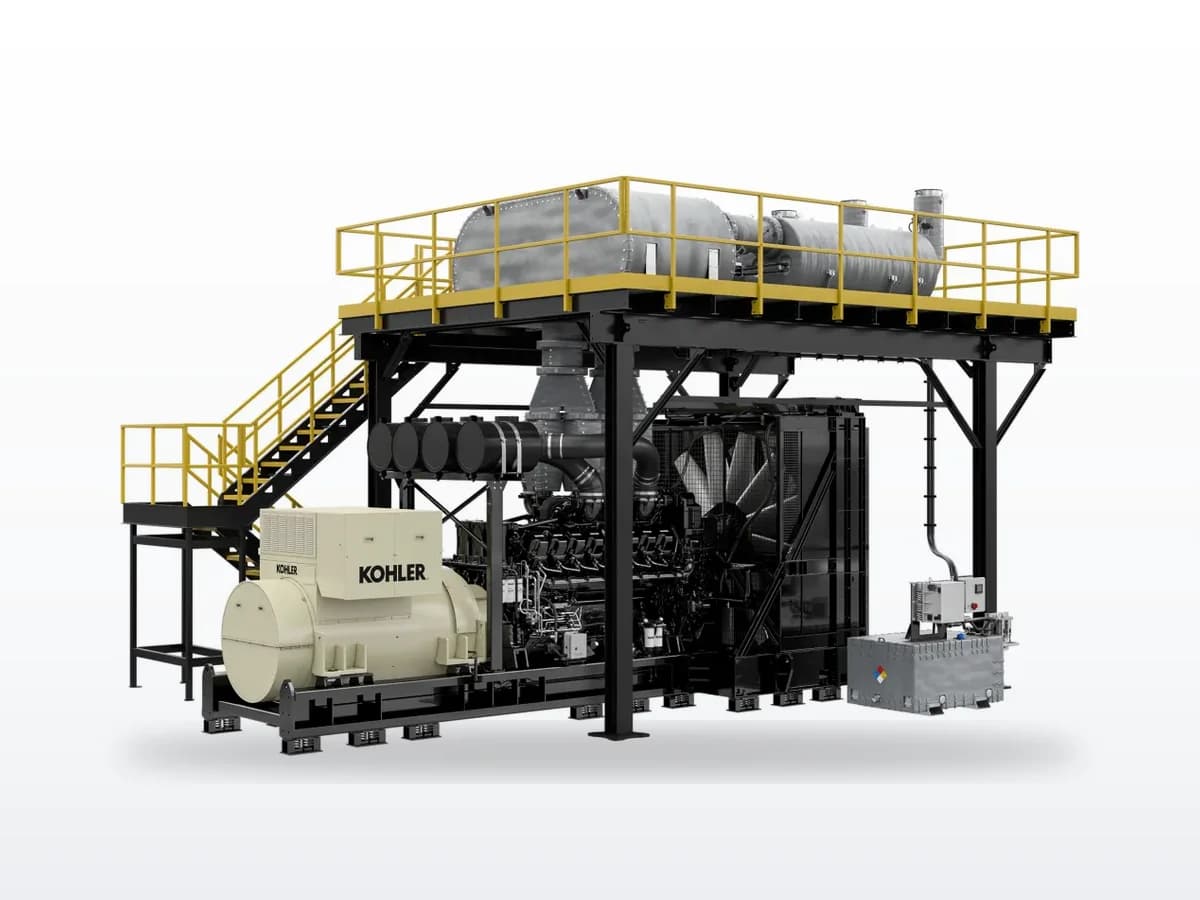

Kohler KD3250-4
3.3 MW standby · Diesel · Liquid-cooled
3250 kW EPA Tier 4 Final diesel industrial standby generator. Dual-certified (emergency and non-emergency) for mission-critical and prime power applications.
Tier 4 Final3-phasedata-centerhealthcare
Kohler
New
Kohler KD3000
3 MW standby · Diesel · Liquid-cooled
3000 kW diesel industrial standby generator. Upper-range KD Series platform for data centers, healthcare, and mission-critical infrastructure.
Tier 23-phasedata-centerhealthcare
Kohler
New

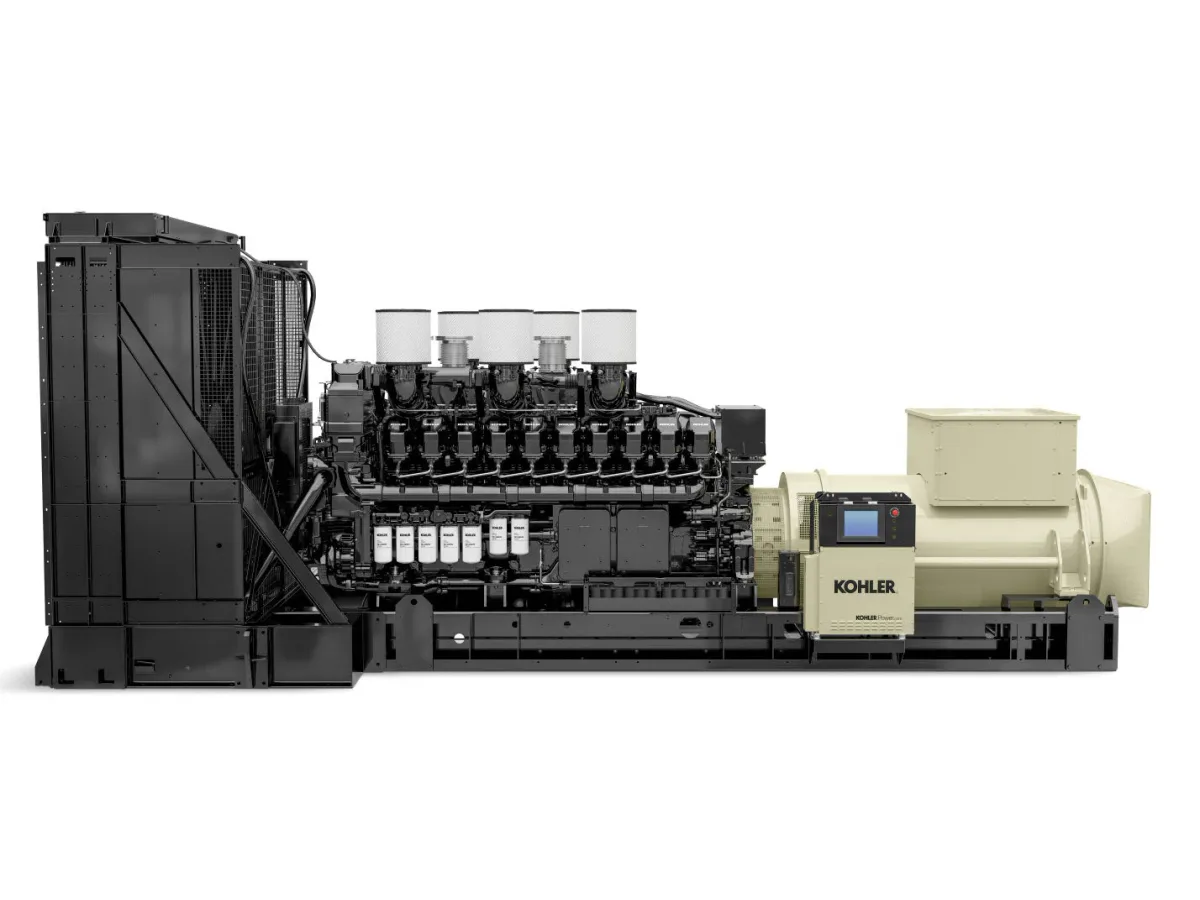

Kohler KD3500
