What is the standby rating of the Kohler KD1250-4?

Per the Kohler spec sheet, the KD1250-4 is rated at 1250 kW / 1562 kVA standby and 1130 kW / 1412 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.

Is the Kohler KD1250-4 EPA Tier 4 certified?

Yes. The KD1250-4 is EPA Tier 4 Final certified with dual certification for both stationary emergency and stationary non-emergency applications, making it suitable for prime power duty where air quality regulations require Tier 4 compliance.

What alternator type does the KD1250-4 use?

The KD1250-4 uses a brushless, permanent-magnet pilot exciter alternator — Kohler's standard for the KD Series large industrial diesel platform.

Kohler · KD Series (Industrial Diesel)

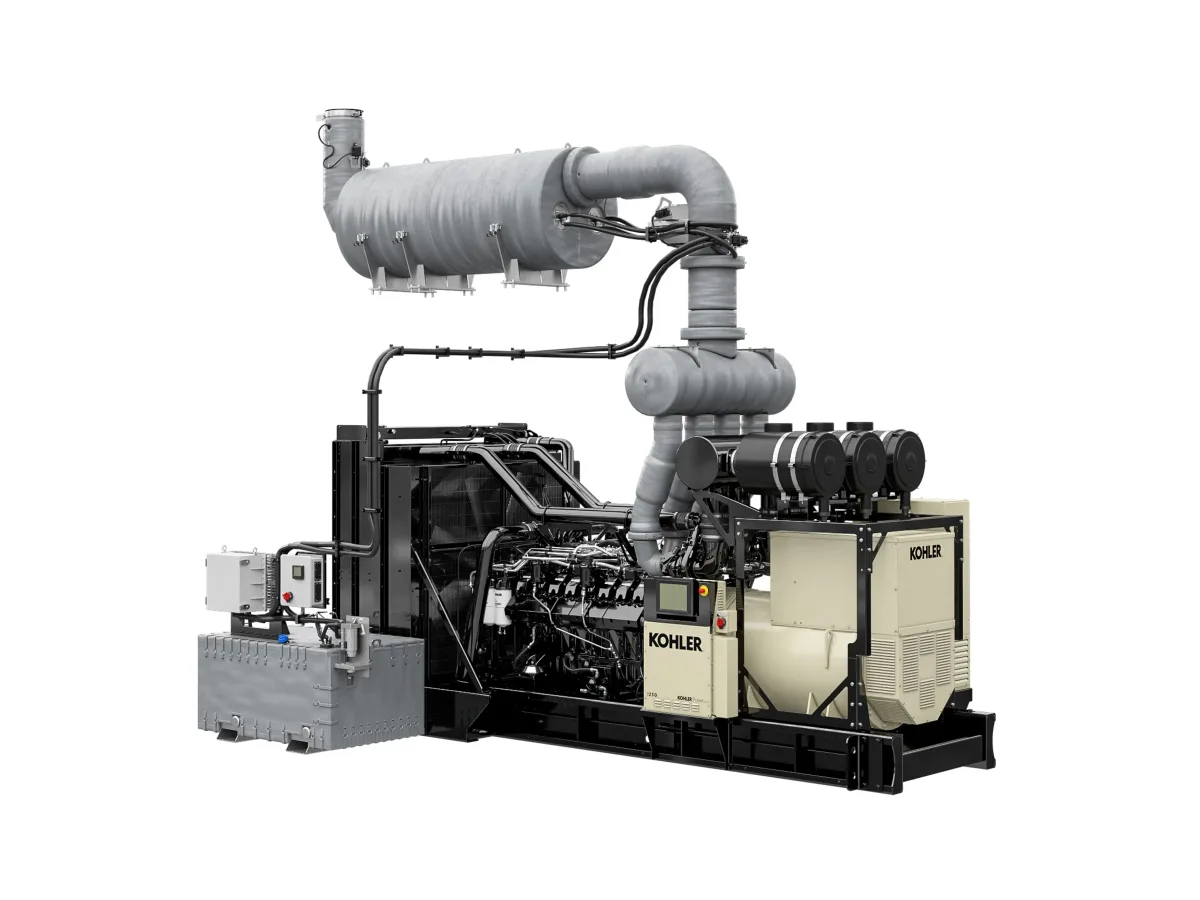

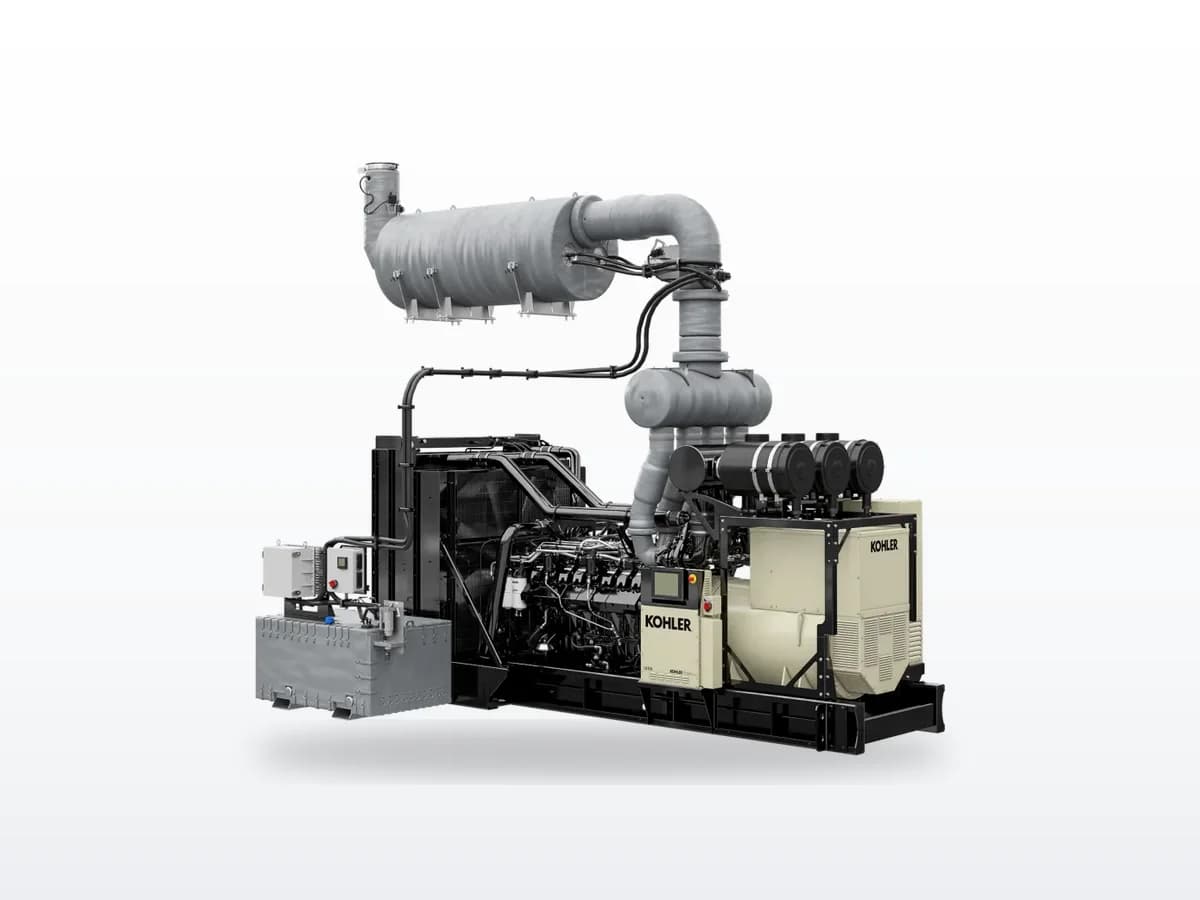

Kohler KD1250-4

1250 kW standby / 1130 kW prime · Diesel · Liquid-cooled

1250 kW EPA Tier 4 Final diesel industrial standby generator. Dual-certified (emergency and non-emergency) for mission-critical and prime power applications.

Standby power: 1250 kW / 1130 kW prime
Voltage options: 277/480V
Frequency / Phase: 60 Hz · 3-phase
Engine: Kohler KD36V16 · 36L
EPA / Emissions: Tier 4 Final
Alternator: Kohler KH05520TO4D

Data Centers Healthcare Manufacturing Commercial Government

Overview#

The Kohler KD1250-4 is a 1250-kilowatt EPA Tier 4 Final diesel industrial generator from Kohler's KD Series platform. The -4 designation indicates Tier 4 Final emissions compliance with dual certification for both emergency standby and non-emergency (prime power) applications. This makes the KD1250-4 suitable for installations where air quality district rules require Tier 4 compliance or where continuous/prime duty is needed. The KD Series uses Kohler-designed engines and permanent-magnet pilot exciter alternators.

KD Series platform#

The KD Series is Kohler's large industrial diesel generator line, covering 800 to 4000 kW. Designed for mission-critical facilities, every KD Series unit carries UL 2200 listing and meets NFPA 110 Level 1 requirements when equipped with the necessary accessories. Hurricane-rated enclosures with 186 mph wind load ratings are available across the platform.

Our service experience#

OnPoint Generators provides installation, maintenance, and emergency service for Kohler KD Series generators throughout Northern California. Tier 4 Final units require additional aftertreatment system maintenance, including DEF management and DPF regeneration monitoring, which our technicians handle as part of comprehensive PM programs.

Engineering specifications

Acoustic

Sound @ 7m, full load: 97 dBA
Enclosure: Open

Fuel system & runtime

Fuel use @ full load: 88.2 GPH
Fuel use @ 75% load: 65.2 GPH
Fuel use @ 50% load: 44.1 GPH

Photos

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Kohler KD1250-4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Kohler KD1250-4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

2.9 hours(0.1 days)

Fuel consumption ≈ 68.04 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Kohler KD1250-4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
DPF (Diesel Particulate Filter)	Regen warning, back-pressure fault, power derate	4,380+	moderate
DEF system (SCR catalyst)	Derate warning, NOx fault, DEF quality alert	4,380+	moderate
Fuel quality / degradation	Injector fouling, hard starting, black smoke under load	4,380+	moderate
Turbocharger	Power loss, excessive exhaust smoke, oil at turbo seals	15,000+	moderate
Cooling system (hoses / thermostat)	Overtemperature fault, coolant loss, high EGT	10,000+	moderate
Battery (starting)	Slow crank, failed exercise, low voltage alarm	8,760+	minor

Frequently Asked Questions

What is the standby rating of the Kohler KD1250-4?: Per the Kohler spec sheet, the KD1250-4 is rated at 1250 kW / 1562 kVA standby and 1130 kW / 1412 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.
Is the Kohler KD1250-4 EPA Tier 4 certified?: Yes. The KD1250-4 is EPA Tier 4 Final certified with dual certification for both stationary emergency and stationary non-emergency applications, making it suitable for prime power duty where air quality regulations require Tier 4 compliance.
What alternator type does the KD1250-4 use?: The KD1250-4 uses a brushless, permanent-magnet pilot exciter alternator — Kohler's standard for the KD Series large industrial diesel platform.

Compatible equipment

Transfer switches

More in the KD Series (Industrial Diesel)

Kohler-engineered megawatt-class diesel gensets from 900 to 4000 kW for mission-critical facilities.

View all 18models in this series →

Similar models

Kohler

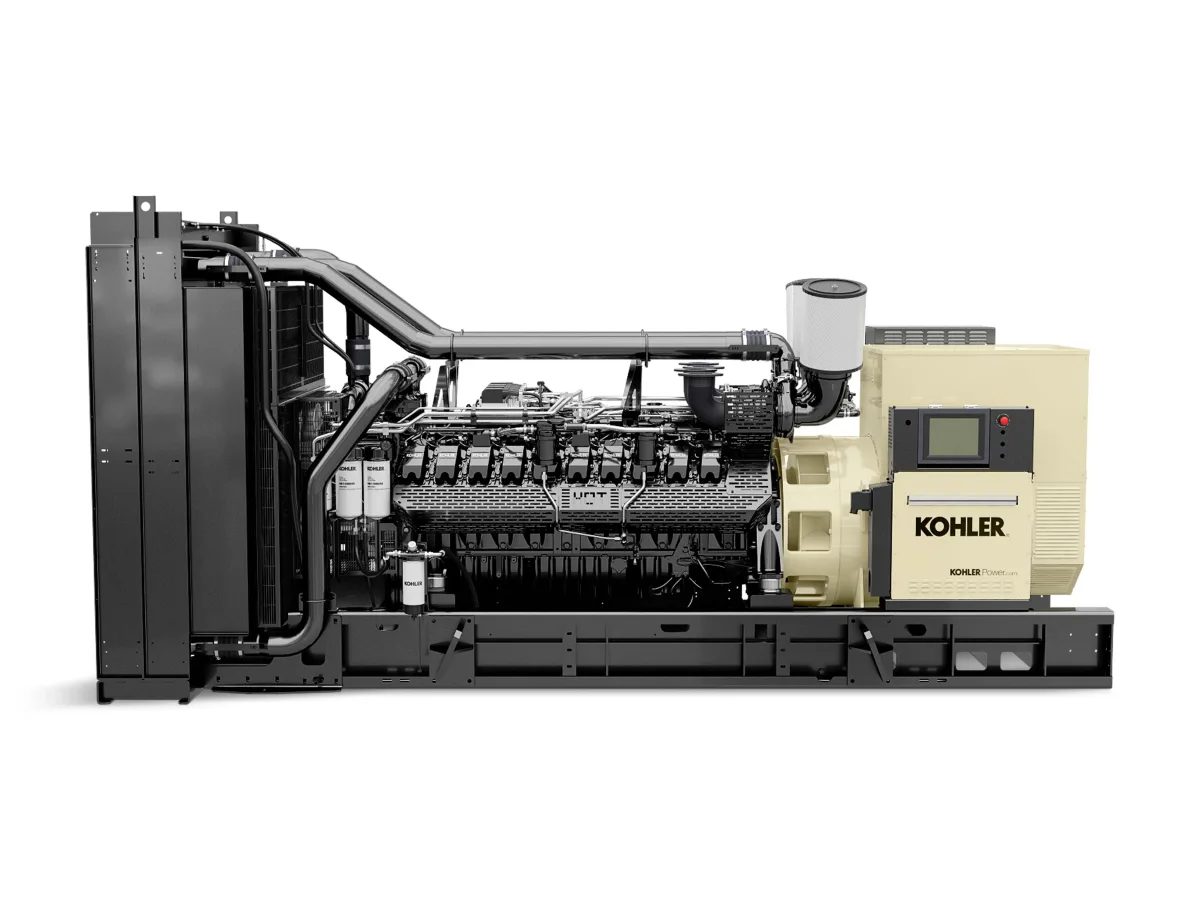

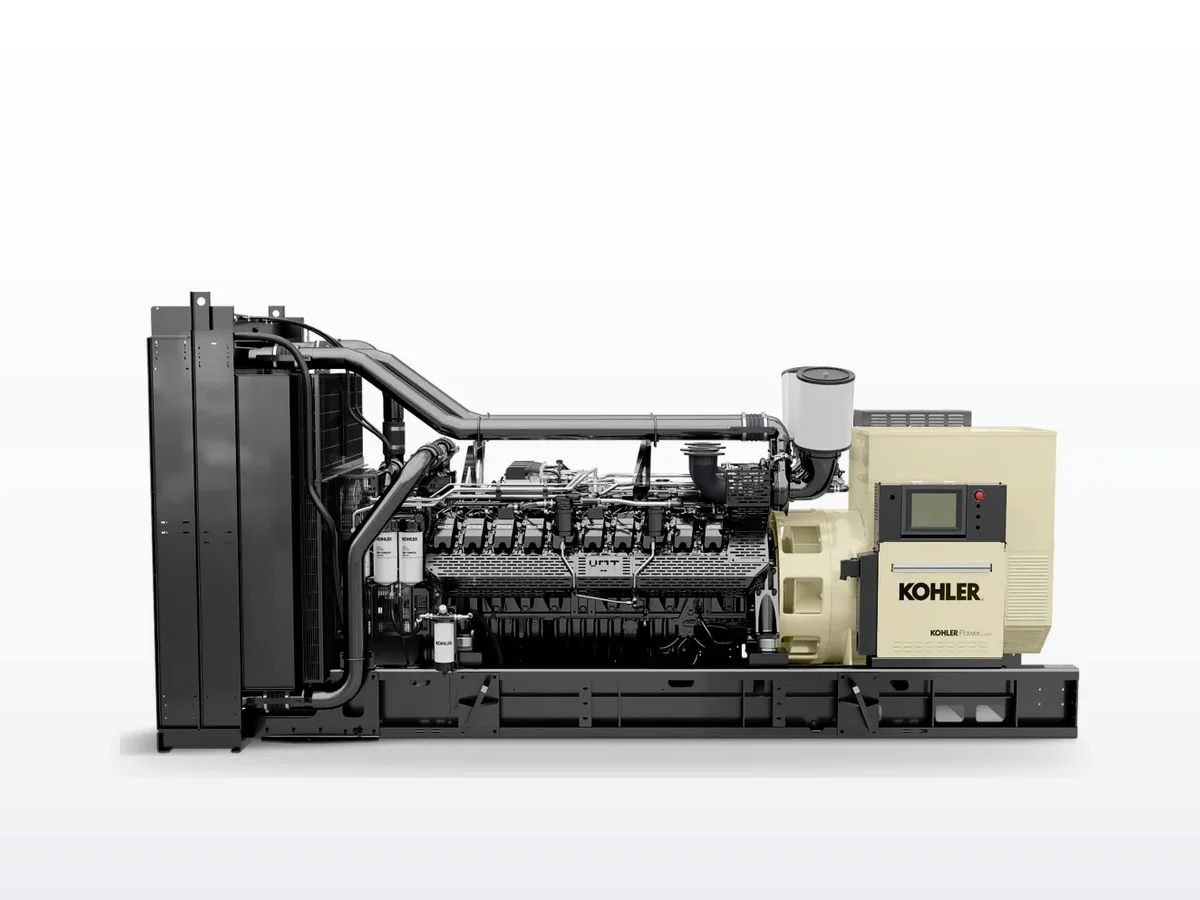

Kohler KD1250-A

Megawatt-class KD at 1250 kW -- Kohler KD36V16, sub-3% THD, Decision-Maker 6000 paralleling controller.

1.3 MW standby · Diesel · Liquid-cooled

1250 kW industrial standby for data centers, hospitals, and large commercial campuses. NFPA 110 Level 1, UL 2200 listed.

1250 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and large commercial facilities.

Tier 23-phasedata-centerhealthcare

Kohler

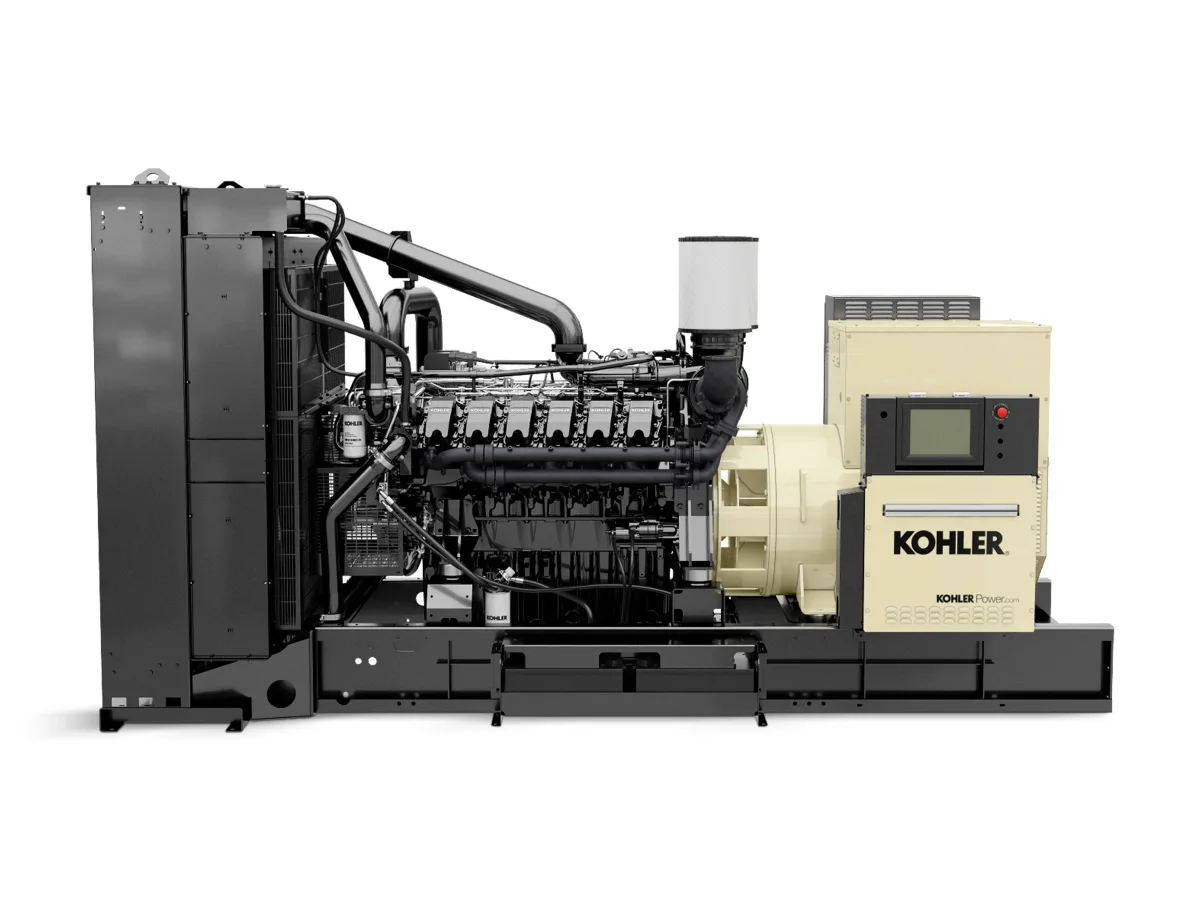

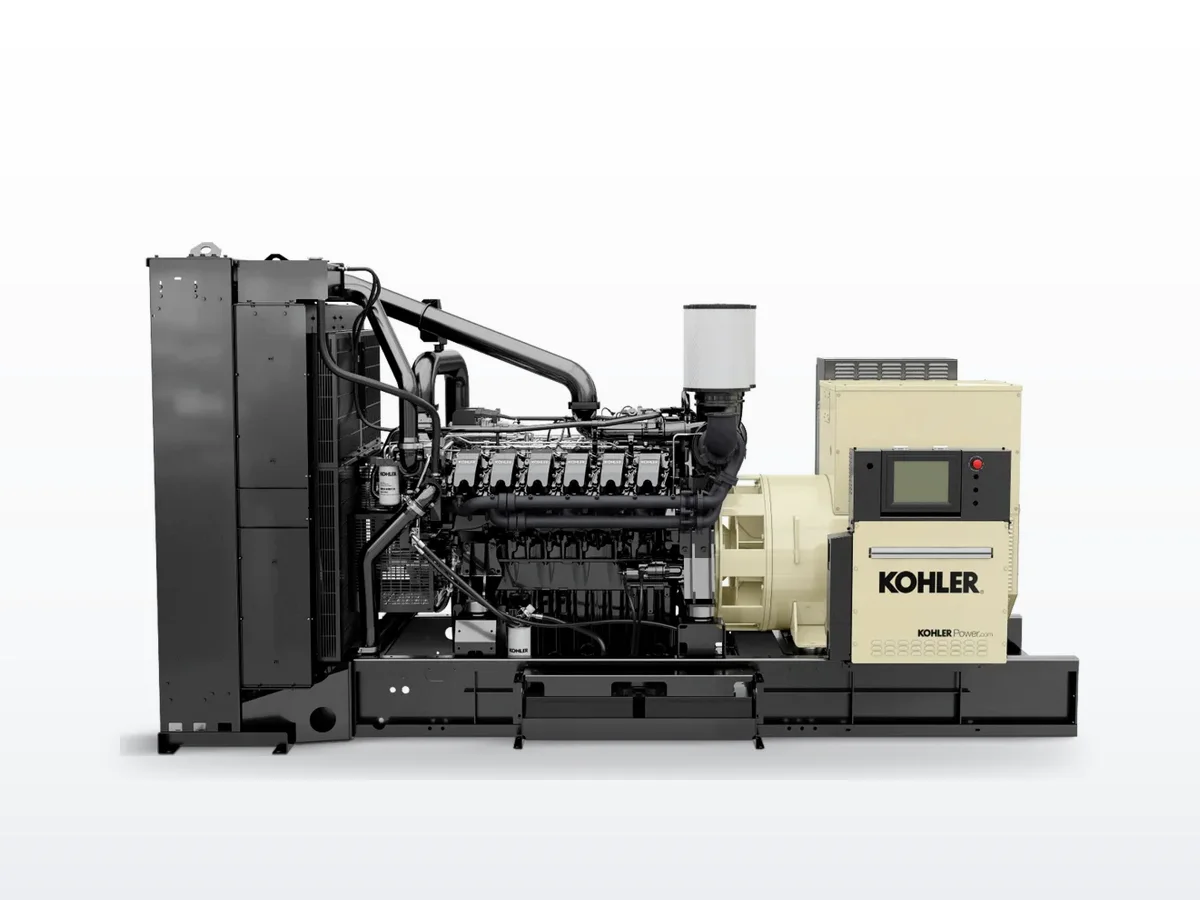

Kohler KD1000
