Overview#

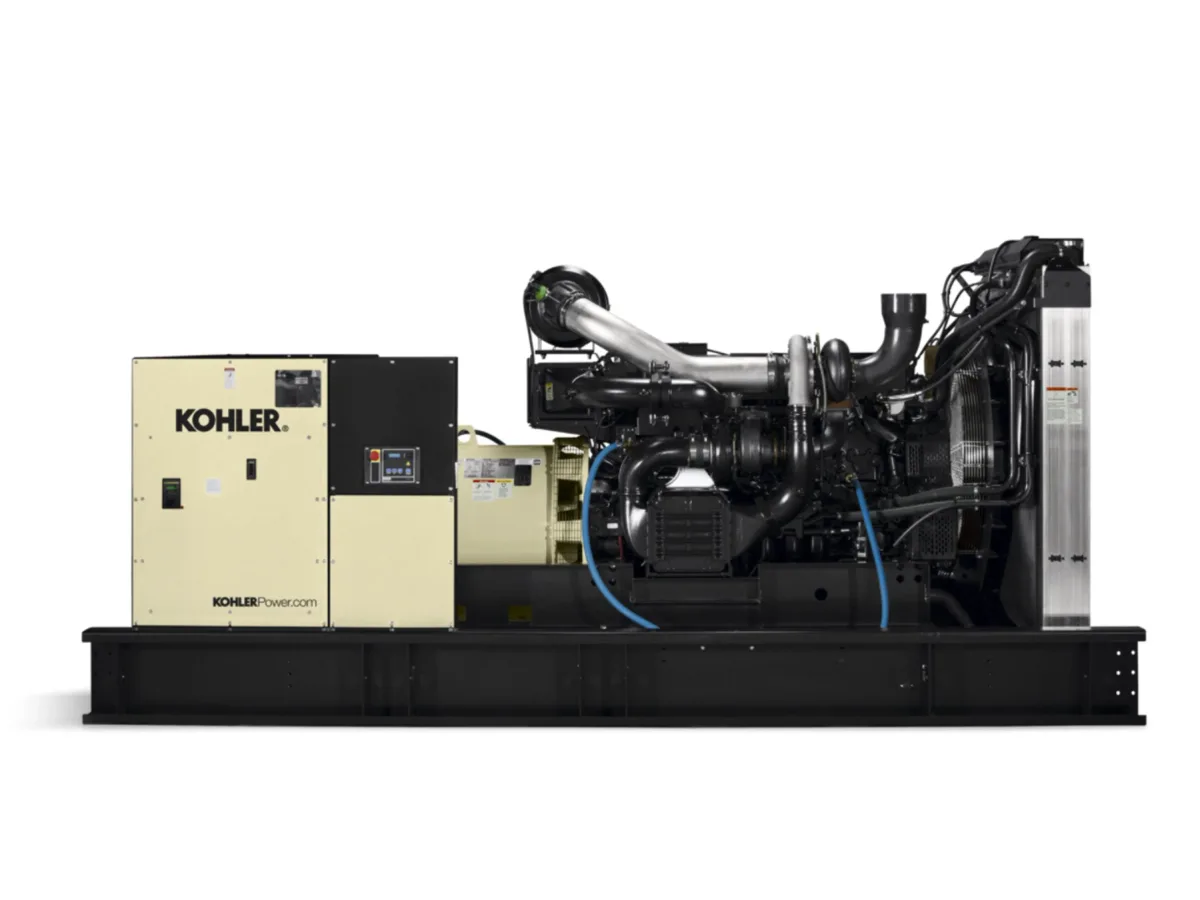

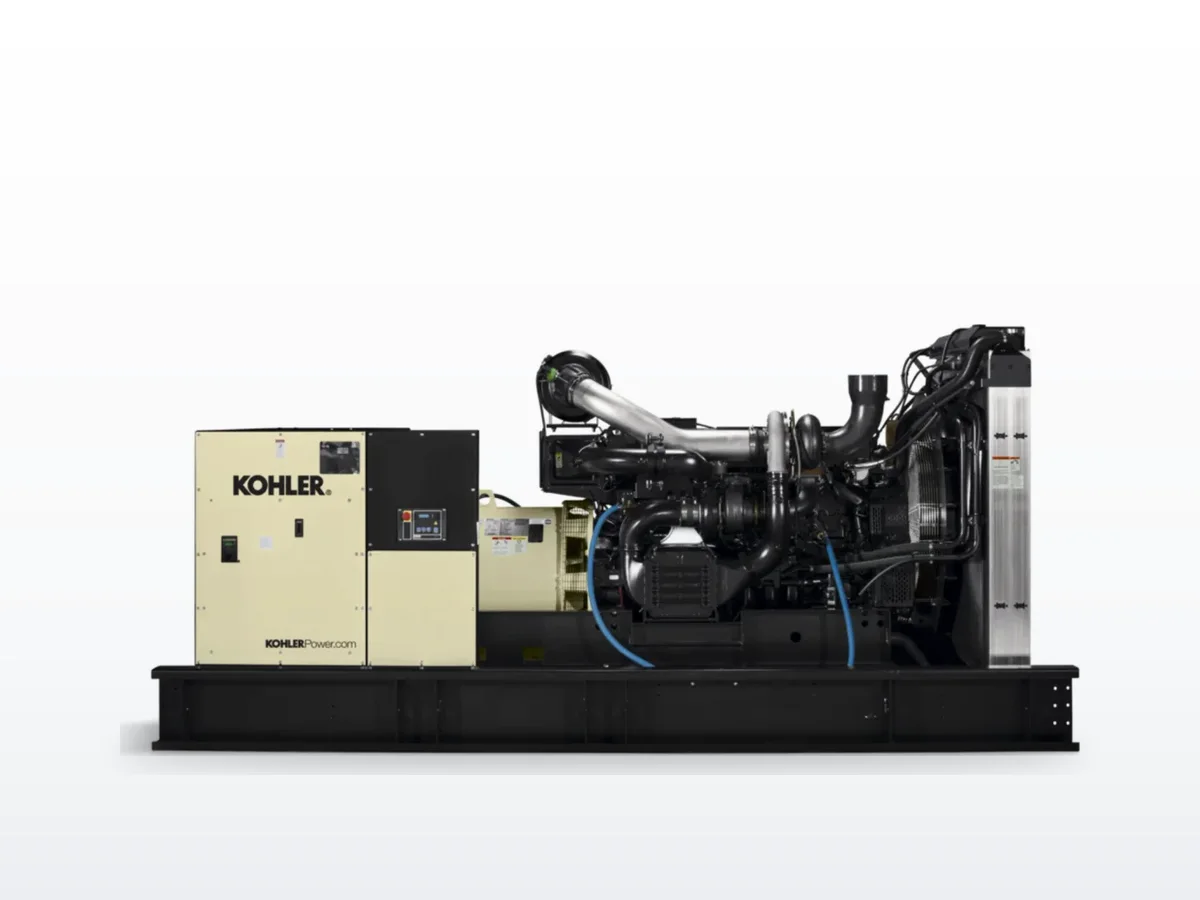

The Kohler 600REOZVB is a 600-kilowatt standby (555 kW prime) diesel generator powered by a Volvo TWD1643GE (or TWD1644GE) — a 16.12 L turbocharged charge-air-cooled inline-6 at 1800 RPM. It is the top of Kohler's 6-cylinder REOZVB series, delivering the highest output achievable with this engine configuration before stepping up to the multi-cylinder Mitsubishi-powered REOZMD class.
The 600REOZVB serves large commercial and industrial standby applications: regional hospitals and medical campuses, Tier II/III data centers, large hotel complexes, and manufacturing facilities that cannot tolerate power interruptions. The unit is EPA Tier 2 certified for stationary emergency applications and is UL 2200 listed, meeting NFPA 110 Level 1 requirements when properly accessorized.
Like the 550REOZVB, the 600REOZVB is approved for HVO/Renewable Diesel fuels. The availability of two distinct Volvo engine variants (TWD1643GE and TWD1644GE) allows for different generator set specifications tailored to specific installation requirements.
Specifications#
| Spec | Value |
|---|---|
| Standby Power | 600 kW |
| Prime Power | 555 kW |
| Voltage (primary) | 277/480V three-phase |
| Frequency | 60 Hz |
| Engine | Volvo TWD1643GE |
| Engine type | 4-cycle turbocharged, charge air-cooled |
| Cylinders | 6 inline |
| Displacement | 16.12 L (984 cu. in.) |
| Compression ratio | 16.5:1 |
| Rated RPM | 1800 |
| Alternator | Kohler 5M4030 |
| Fuel | Diesel (#2 / HVO / RD) |
| Cooling | Liquid (radiator) |
| Emissions tier | EPA Tier 2 stationary emergency |
| Fuel consumption (100% standby load) | 42.7 gph |
| Fuel consumption (75% standby load) | 31.1 gph |
| Overall dimensions | 166.5" x 72" x 78.1" |
Service & Maintenance#
| Service | Interval |
|---|---|
| Oil change | Every 500 hours or 12 months |
| Fuel filter replacement | Every 500 hours |
| Air filter replacement | Every 1,000 hours |
| Coolant flush | Every 6,000 hours or 5 years |
| Load bank test | Annually (NFPA 110 requirement) |
| Major overhaul | Every 20,000 hours |
The Volvo TWD1643GE uses three cartridge oil filters and a water-cooled oil cooling system. Oil pan capacity is 42.0 L (44.4 qt) dry, 48.1 L (50.8 qt) with filter. Jacket water capacity is 33 L (8.7 gal); radiator system total capacity is 166 L (43.9 gal).
Common Failure Modes#
Fuel quality and degradation is the leading service issue at this power class. Long-term diesel storage in day tanks without treatment leads to microbial contamination, filter clogging, and injector fouling — typically around 4,380 hours. Quarterly fuel polishing is standard protocol for mission-critical accounts.
Turbocharger wear manifests around 12,000 hours on the TWD1643GE platform. The 600REOZVB dissipates more heat than the 550REOZVB (fan motor rated at 30 kW vs. 19 kW), so thermal management of the turbocharger is important for installations in high-ambient environments.
Charge air cooler degradation presents as reduced output and elevated intake temperatures around 10,000 hours. The TWD1643GE uses a water-cooled charge air cooler with a dedicated 150 gpm charge cooler water circuit — this circuit must be maintained separately from the engine jacket water system.
Starting battery degradation presents as slow crank or failed exercise tests, typically at around 8,760 hours. The 600REOZVB requires two 925 CCA 12V batteries in a 24V configuration with 80A charging alternator.
Our service experience#
OnPoint Generators provides installation, maintenance, load bank testing, and emergency service for Kohler industrial generators throughout Northern California and the Central Valley. The 600REOZVB is one of the highest-output units in the single-engine 6-cylinder class, and we service these at data center and hospital campuses where any downtime is operationally unacceptable. We structure accounts in this power class around quarterly fuel management, annual NFPA 110 Level 1 inspections, and full-load bank tests.
FAQ#
Q: What engine powers the Kohler 600REOZVB? A: The 600REOZVB uses a Volvo TWD1643GE (or TWD1644GE) — a 16.12 L, 6-cylinder turbocharged charge-air-cooled diesel at 1800 RPM, EPA Tier 2 certified for stationary emergency standby.
Q: What is the standby power rating of the 600REOZVB? A: 600 kW standby and 555 kW prime at 0.8 power factor per Kohler spec sheet G5-396.
Q: What is the difference between the 550REOZVB and 600REOZVB? A: Both use the same 16.12 L Volvo platform, but the 600REOZVB uses a higher-output engine tune (TWD1643GE vs. TAD1642GE-B), delivers 50 kW more standby capacity, and requires a larger radiator system. The 600REOZVB also has a separate water-cooled charge air circuit not present on the 550.
Q: Does OnPoint service the Kohler 600REOZVB? A: Yes. OnPoint Generators provides maintenance, repair, and load bank testing for Kohler REOZVB diesel generators throughout Northern California, including the 600 kW class.
