Hipower Systems · HYW Series (Compact Diesel)

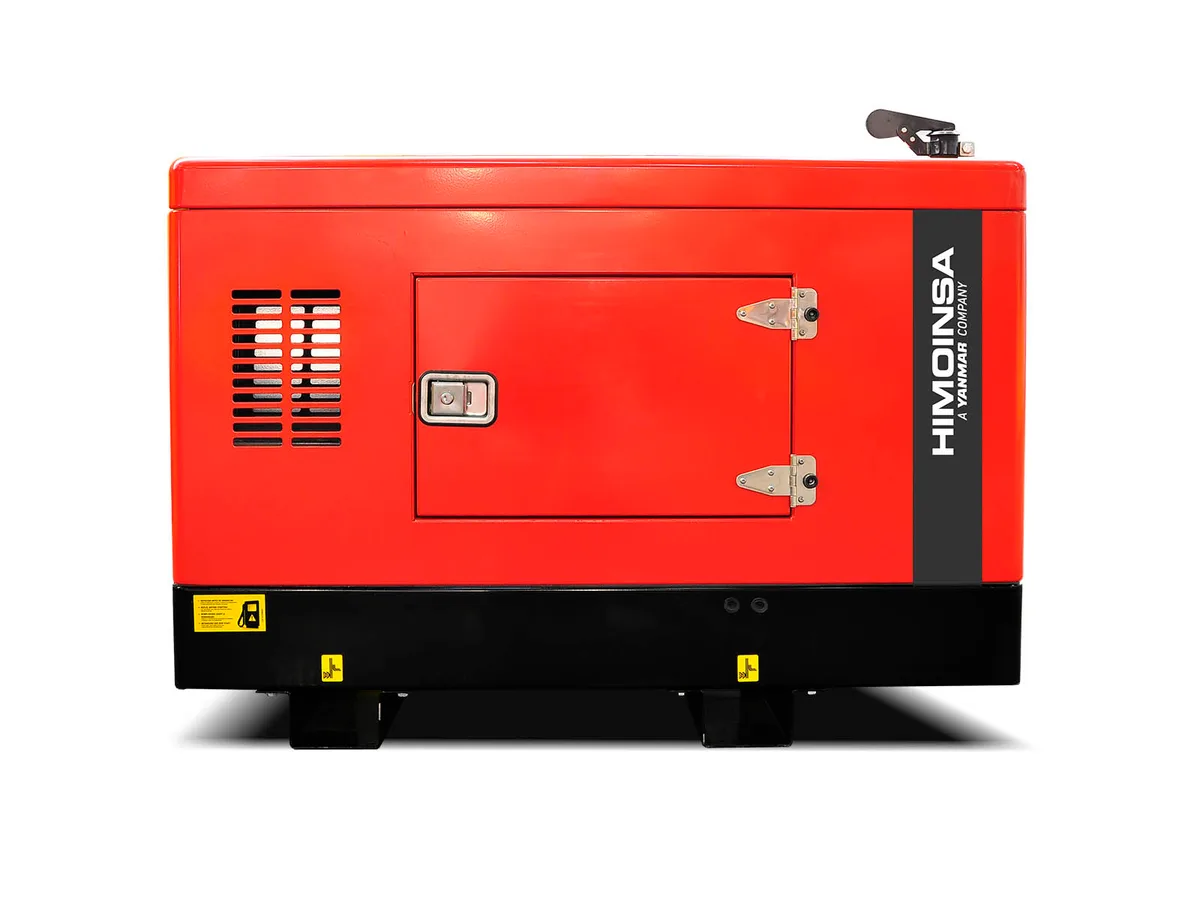

Hipower HYW-45

43.8 kW standby / 39.9 kW prime · Diesel · Liquid-cooled

43.8 kW standby diesel generator set. Yanmar 4TNV98T ZGGEH engine, Stamford PI 144 K alternator. EPA Tier 4i.

Hipower Systems Hipower HYW-45 generator — specifications and details
Standby power
43.8 kW / 39.9 kW prime
Voltage options
120/208V, 120/240V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Yanmar 4TNV98T ZGGEH · 3.3L
EPA / Emissions
Tier 4 Interim
Alternator
Stamford PI 144 K

Overview#

The Hipower HYW-45 is a 43.8 kW (54.75 kVA) standby diesel generator set at 277/480V three-phase, from the HYW Yanmar series. It uses a Yanmar 4TNV98T ZGGEH engine and a Stamford PI 144 K alternator. The engine is EPA certified Tier 4i. The datasheet lists a prime rating of 39.9 kW (49.88 kVA) at 277/480V. The standard arrangement is an open skid, and a sound attenuated canopy is listed as an option.

Yanmar Engine#

The 4TNV98T ZGGEH is a Yanmar four-cylinder in-line industrial four-stroke diesel with direct injection and turbocharged aspiration. Displacement is 202.5 cu in (3.319 liters), the crankshaft speed is 1,800 rpm, and cooling is liquid. The datasheet lists a nominal power of 60.7 hp. The datasheet lists a 12 volt starting motor and alternator.

Power Ratings and Voltages#

Ratings are 60 Hz, power factor 0.8, as printed on the datasheet:

  • 120/240V single-phase: not available (N/A) for this model.
  • 120/208V three-phase: 42.5 kW (53.13 kVA) standby, 39.7 kW (49.63 kVA) prime.
  • 120/240V Delta three-phase: 42.5 kW (53.13 kVA) standby, 39.7 kW (49.63 kVA) prime.
  • 277/480V three-phase: 43.8 kW (54.75 kVA) standby, 39.9 kW (49.88 kVA) prime.
  • 347/600V three-phase: 42.4 kW (53.0 kVA) standby, 38.8 kW (48.5 kVA) prime. The 600 volt configuration is not available as a UL2200 certified generator set.

Our Service Experience#

OnPoint Generators services HYW-45 installations across the Bay Area commercial market.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Hipower HYW-45

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Hipower HYW-45

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

84.6 hours(3.5 days)

Fuel consumption ≈ 2.37 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the standby power output of the HYW-45?
The HYW-45 is rated 43.8 kW (54.75 kVA) standby at 277/480V three-phase, 42.5 kW (53.13 kVA) at 120/208V and 120/240V Delta three-phase, and 42.4 kW (53.0 kVA) at 347/600V three-phase. 120/240V single-phase is not available for this model.
What Yanmar engine powers the HYW-45?
The HYW-45 uses a Yanmar 4TNV98T ZGGEH, a four-cylinder in-line four-stroke diesel with direct injection and turbocharged aspiration. Displacement is 202.5 cu in (3.319 liters) and the crankshaft speed is 1,800 rpm. The engine is EPA certified Tier 4i. The datasheet lists a nominal power of 60.7 hp.
How much fuel does the HYW-45 burn?
The datasheet lists standby fuel consumption of 3.39 US gal/h at 100% load, 2.55 at 75%, 1.81 at 50% and 1.36 at 25%. Prime fuel consumption is 3.05, 2.29, 1.72 and 1.29 US gal/h at the same loads. The fuel tank data lists 26.4 US gallons.
What are the dimensions, weight and sound level of the HYW-45?
The enclosed set measures 82.6 x 38.4 x 49.2 in (2098 x 975 x 1250 mm) L x W x H and weighs 2,315 lb (1050.1 kg) without fuel tank, with a sound level of 63 dBA at 23 ft (7 m). The open set measures 65.6 x 31.9 x 47.0 in (1666 x 810 x 1194 mm) and weighs 1,353 lb (613.7 kg) without fuel tank. Measurements are approximate and for estimation purposes only.
Does the HYW-45 meet NFPA 110 Level 1?
The datasheet states that the base set meets NFPA 110, Level 1, when accessorized with the required equipment and installed per NFPA standards. It also states the generator set is CSA certified and meets ISO 8528-5.

More in the HYW Series (Compact Diesel)

18 to 45 kW Yanmar diesel in a weatherproof outdoor enclosure — permanent pad-mount standby for small commercial installations.

Similar models

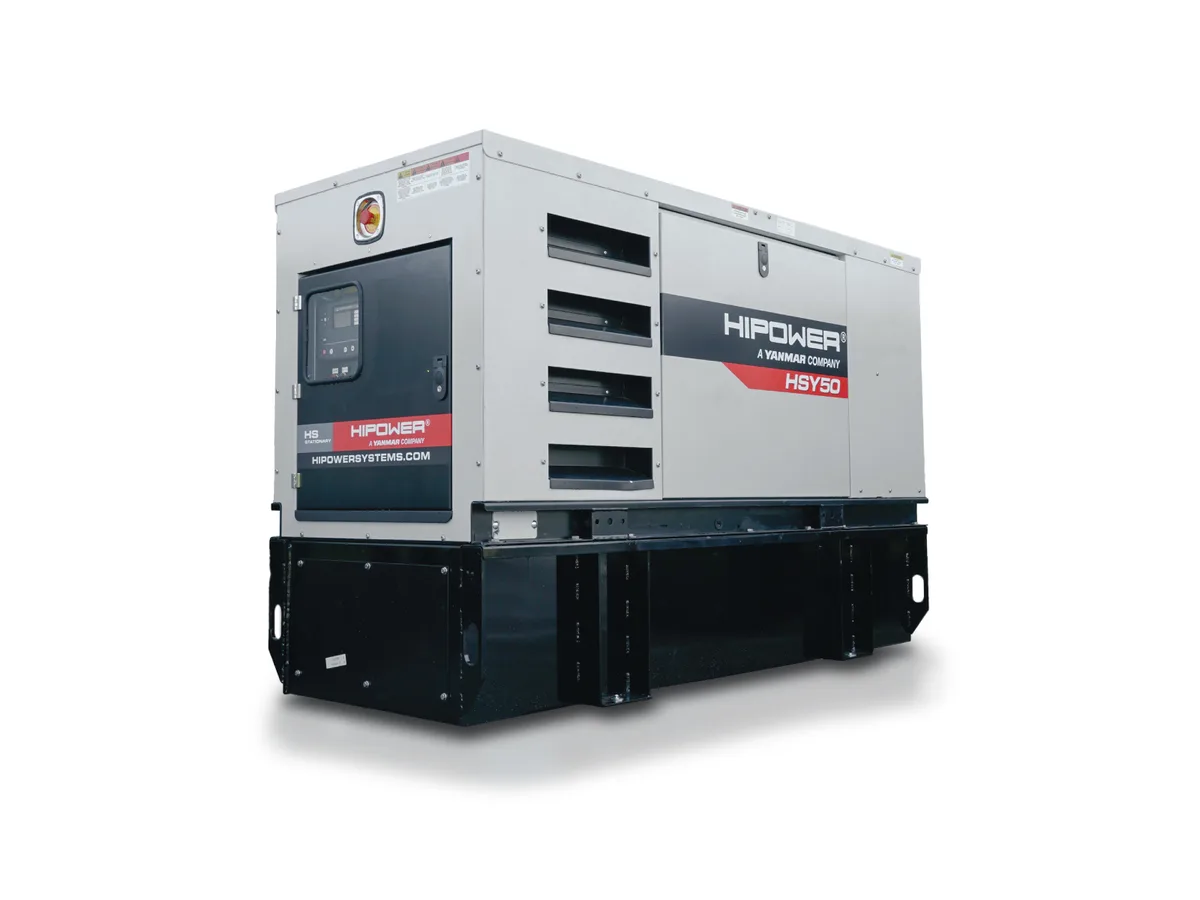

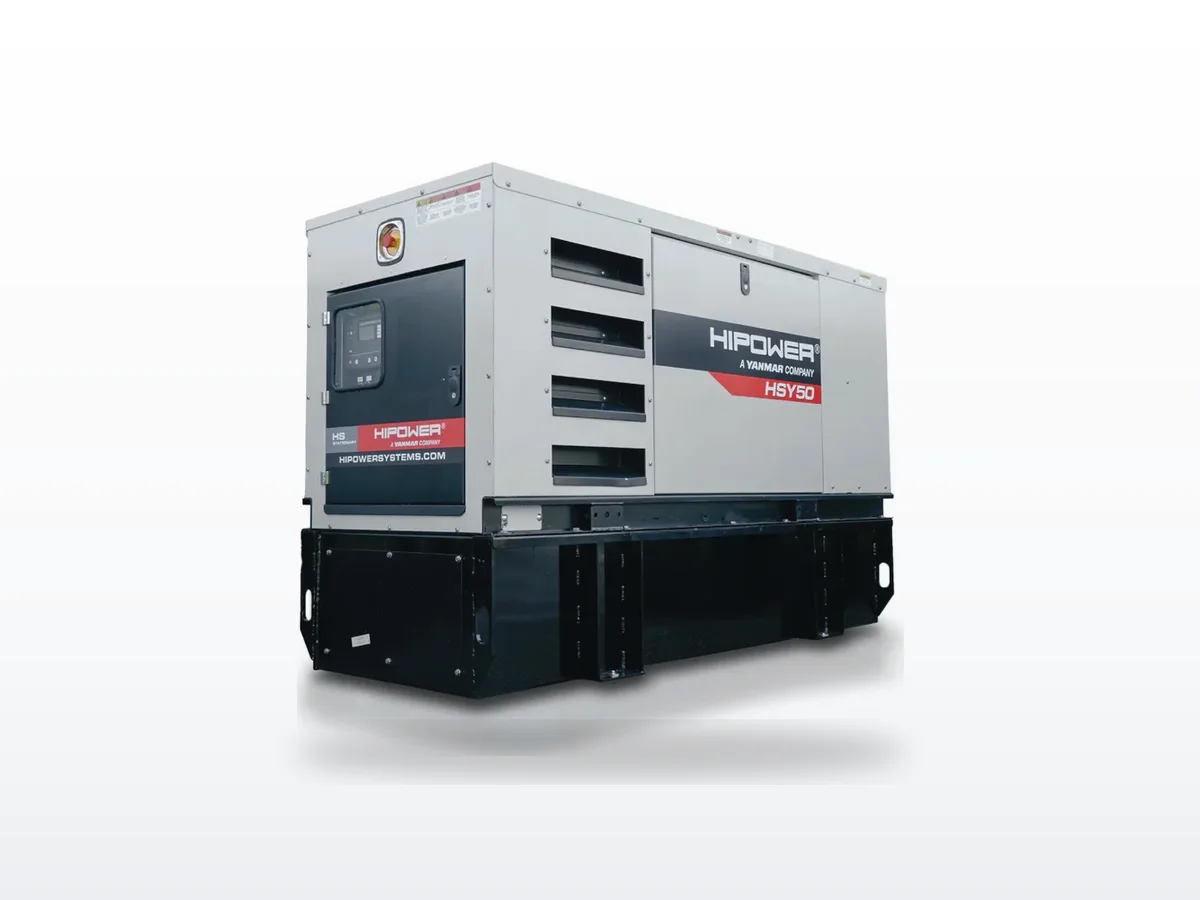

Hipower Systems Hipower HSY-50 45.4 kW liquid-cooled standby generator

Hipower Systems

Hipower HSY-50

45.4 kW standby · Diesel · Liquid-cooled

45 kW Yanmar diesel standby generator. Top of the HSY Series for commercial and light-industrial standby.

3-phaseresidential-standbylight-commercial

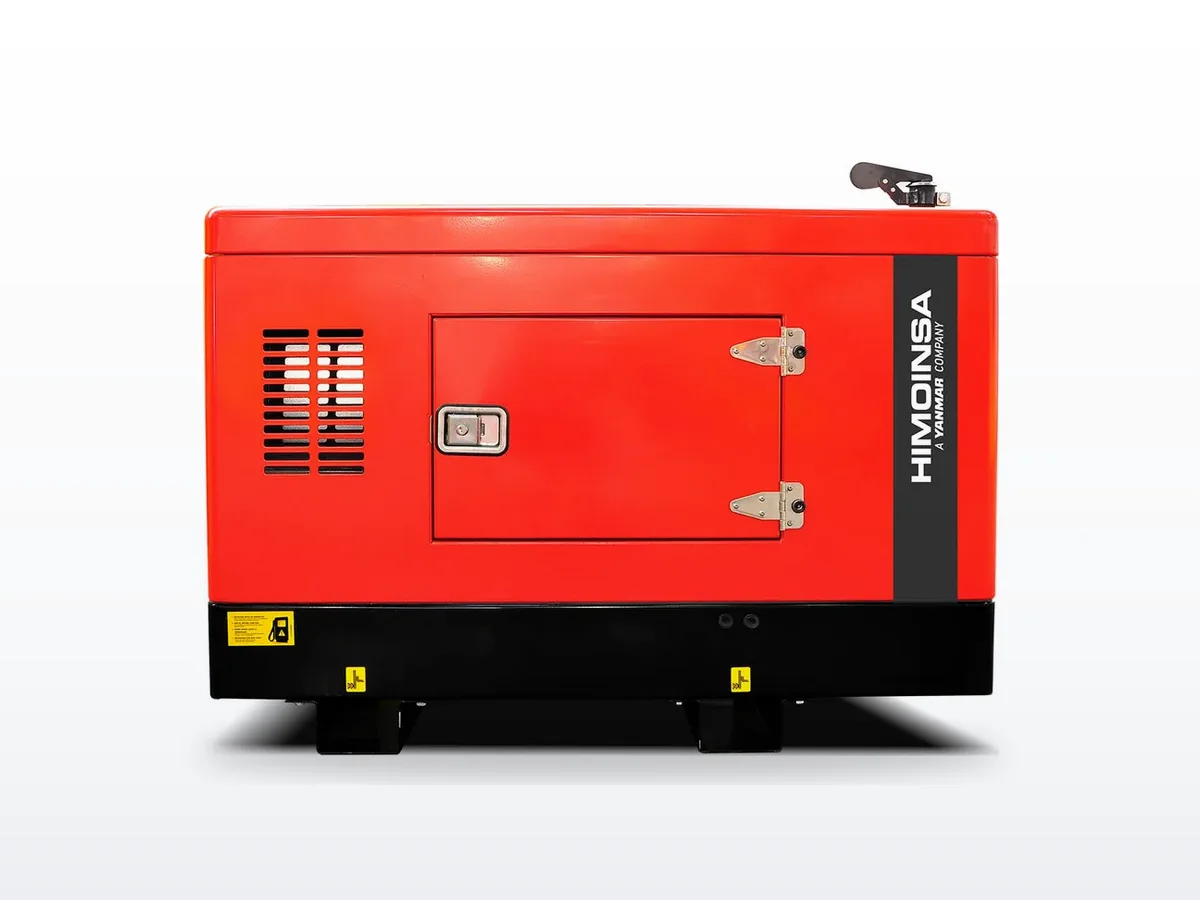

Hipower Systems Hipower HYW-35 35.5 kW liquid-cooled standby generator

Hipower Systems

Hipower HYW-35

35.5 kW standby · Diesel · Liquid-cooled

35.5 kW standby diesel generator set. Yanmar 4TNV98 ZGGEH engine, Stamford alternator. EPA Tier 4i.

Tier 4 Interim3-phasecommercial-standbylight-commercial

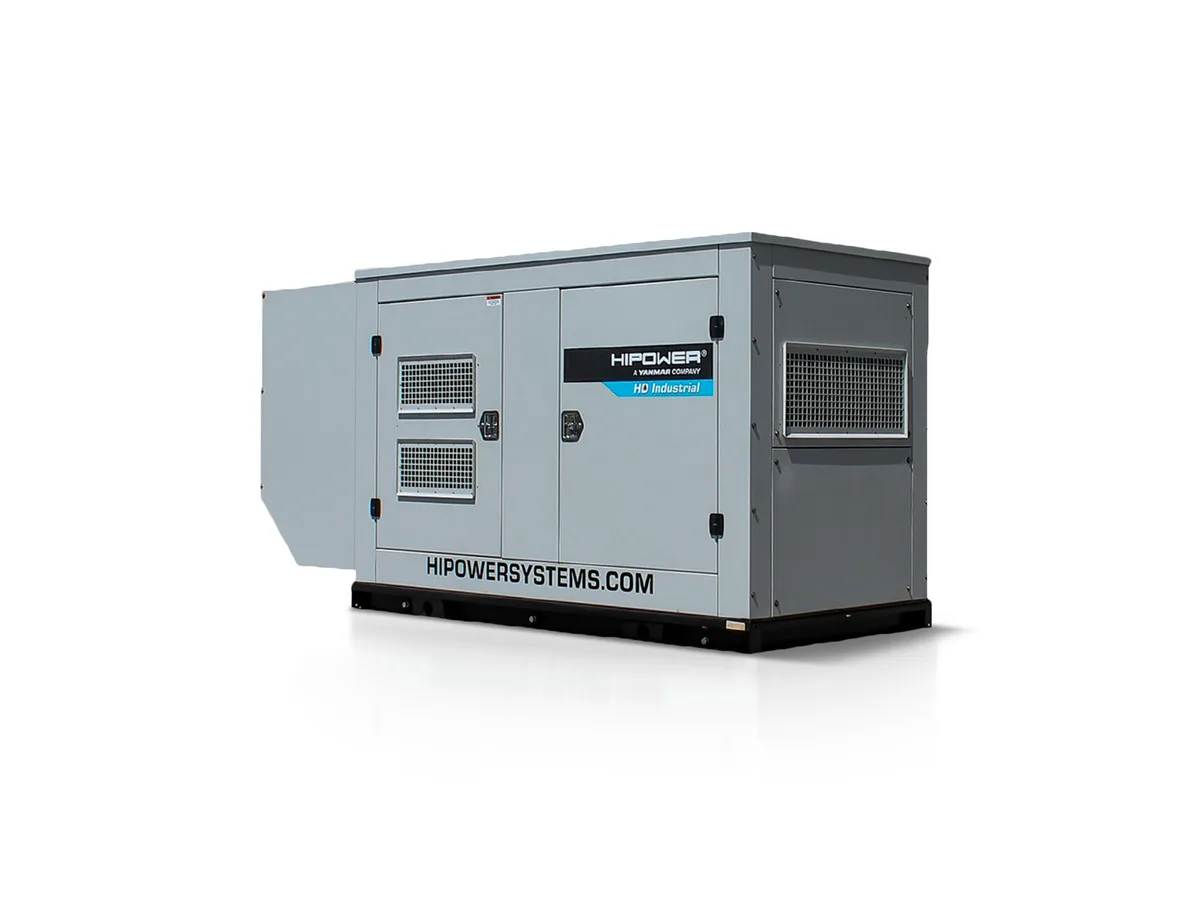

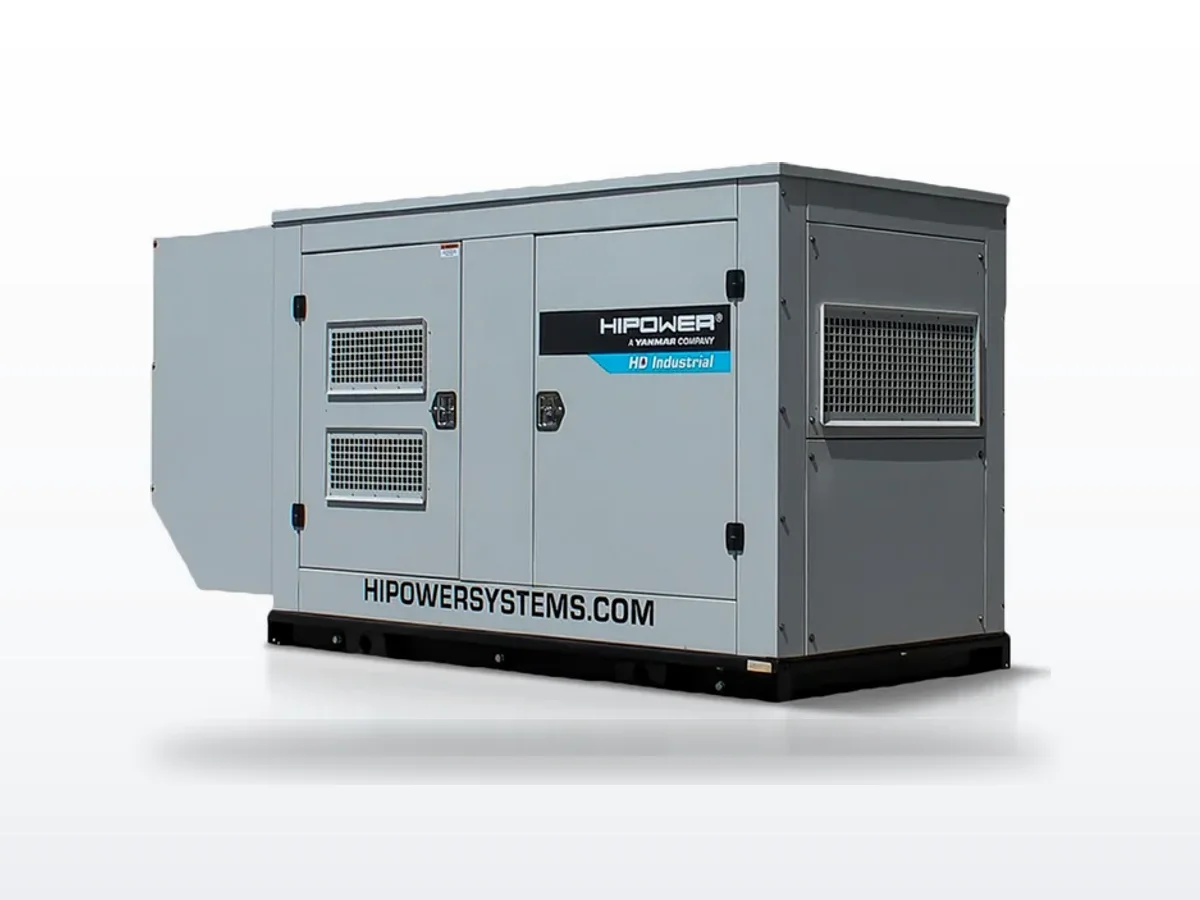

Hipower Systems Hipower HNI-40 40 kW liquid-cooled standby generator
