Hipower Systems · HSY Series (Standby Yanmar Diesel)

Hipower HSY-50

45.4 kW standby · Diesel · Liquid-cooled

45 kW Yanmar diesel standby generator. Top of the HSY Series for commercial and light-industrial standby.

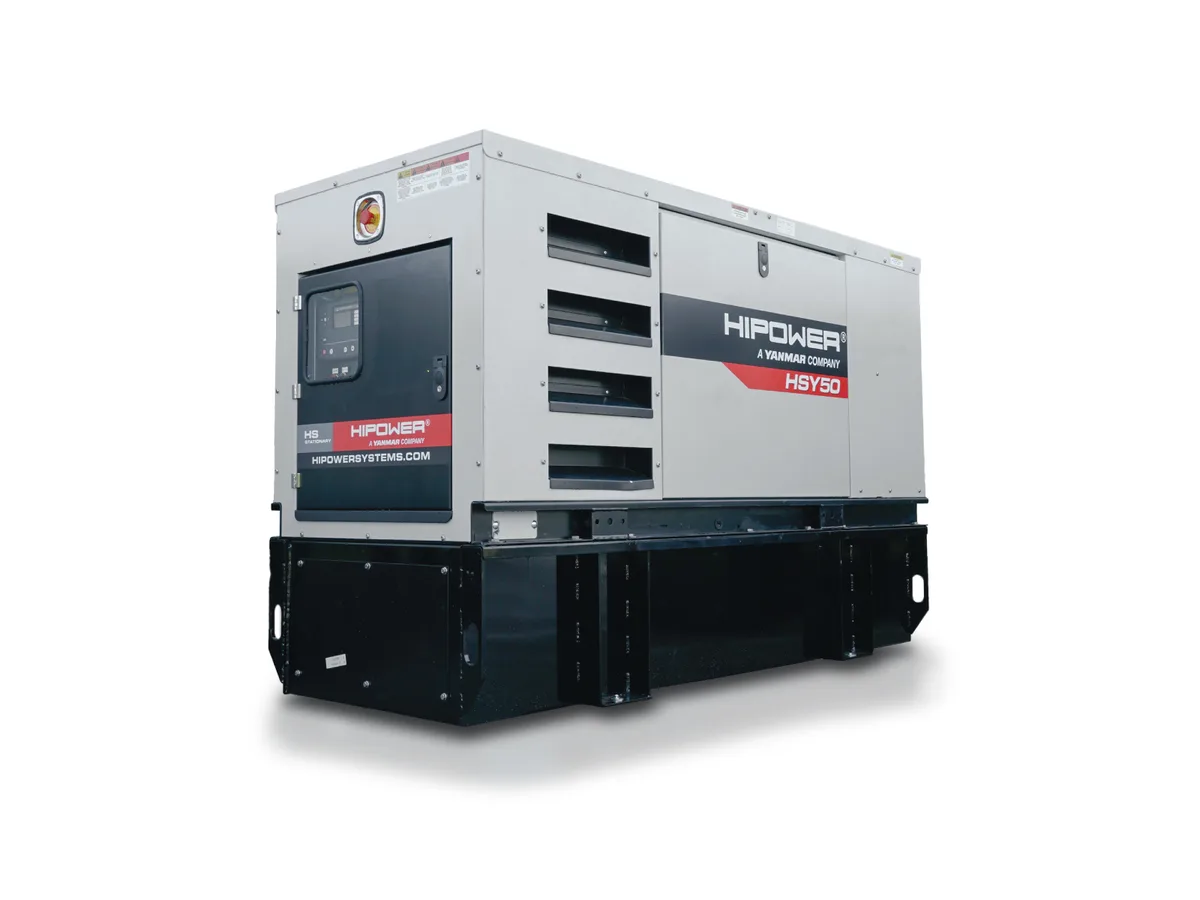

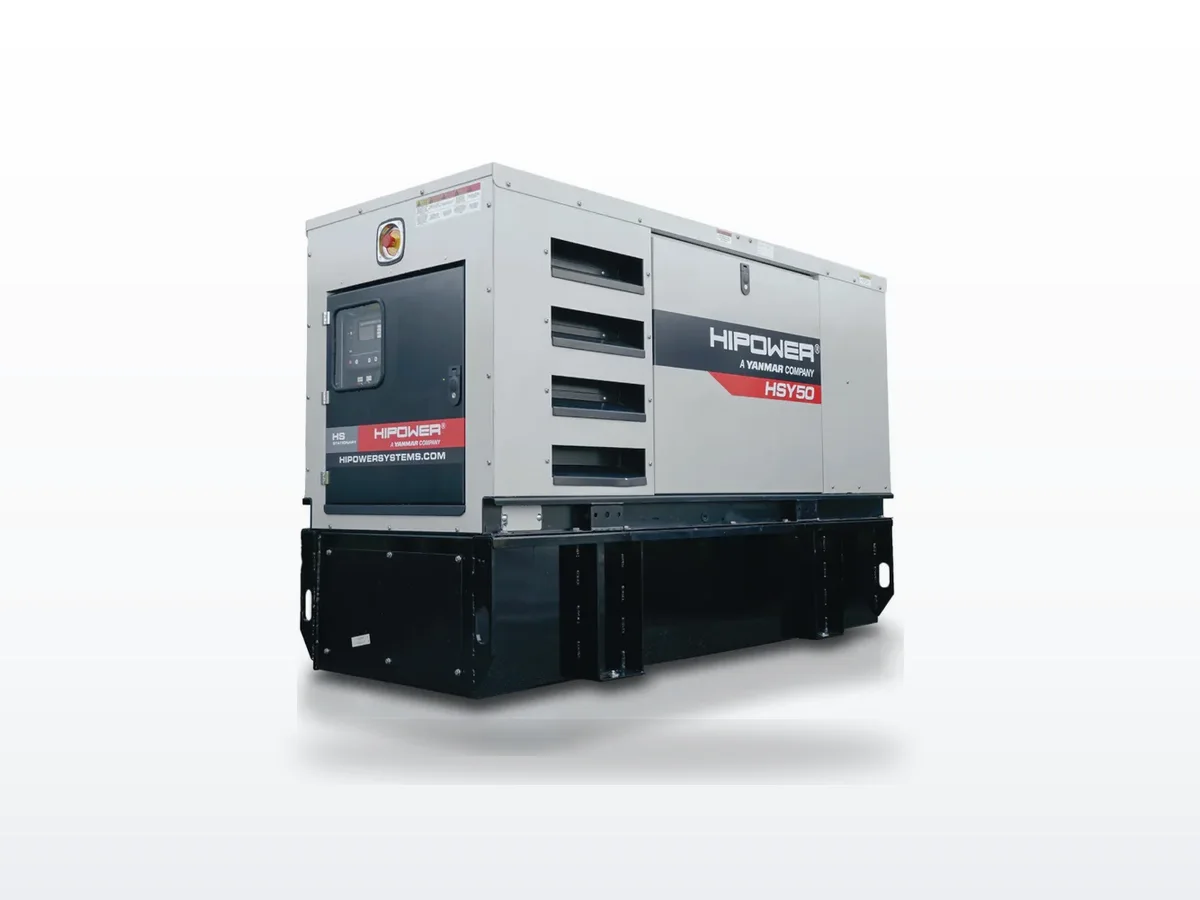

Hipower Systems Hipower HSY-50 generator — specifications and details
Standby power
45.4 kW
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Yanmar 4TNV98TZGGEH · 3.3L
Alternator
Stamford S1L2-Y1

Overview#

The Hipower HSY-50 is a 45 kW diesel standby generator — the top-output model in the HSY Series — powered by a Yanmar 4TNV98TZGGEH four-cylinder turbocharged diesel engine with 3.3 liters of displacement. At 45 kW the HSY-50 bridges the HSY compact series and the larger HDI industrial line, making it suitable for mid-size commercial buildings, light-industrial operations, telecommunications facilities, and multi-tenant retail centers where three-phase 277/480V power is required.

Yanmar Reliability#

The 4TNV98 is the flagship of Yanmar's compact industrial diesel family, built to the same Japanese precision manufacturing standards as Yanmar's marine and construction equipment engines. Liquid cooling and turbocharged induction deliver the power density needed at 45 kW from a compact 3.3-liter block while maintaining reliability in standby duty. Yanmar of America provides nationwide dealer support for parts and technical service.

Right-Sized for Small Commercial#

Forty-five kW is the practical ceiling of the HSY Series and corresponds to a common commercial critical-load profile: a 36–42 kW essential panel in a mid-size medical building, a light-industrial facility with motor loads, or a telecommunications hub with UPS systems and HVAC. Correct sizing at 75–85% load factor optimizes combustion efficiency and fuel consumption while keeping the engine in the operating range that minimizes wet-stacking risk. A properly specified HSY-50 will outperform an oversized 75–100 kW unit running at 30–40% load on every metric that matters for long-term operating cost.

Service and Maintenance#

Battery float charging is non-negotiable — generator starting batteries must be maintained at full charge at all times. Exercise runs under load at minimum 30% rated output are strongly recommended by Yanmar for any standby application.

Our Service Experience#

OnPoint Generators services the 45–50 kW Yanmar diesel class throughout the Bay Area commercial market. At 45 kW, our clients include medical facilities, data and telecommunications infrastructure, and light-industrial operators for whom an outage means lost production or regulatory compliance exposure. We provide full commissioning load bank tests on the HSY-50 to verify actual connected load and confirm the generator is operating in its efficient range. For clients at this power level, we also discuss paralleling options for redundancy — the HSY-50's compact footprint makes it a viable building block in N+1 configurations.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Hipower HSY-50

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Hipower HSY-50

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

81.6 hours(3.4 days)

Fuel consumption ≈ 2.45 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the standby power output of the HSY-50?
The HSY-50 delivers 45 kW standby power — the top-output model in the HSY Series. Available in 120/240V single-phase, 120/208V three-phase, and 277/480V three-phase configurations. It bridges the HSY compact series and the larger HDI industrial line.
What Yanmar engine powers the HSY-50?
The HSY-50 uses the Yanmar 4TNV98 flagship compact industrial diesel — a four-cylinder turbocharged engine built to the same Japanese precision manufacturing standards as Yanmar's marine and construction equipment engines.
What mid-size commercial applications fit the HSY-50?
Forty-five kW covers a 36–42 kW essential panel in a mid-size medical building, a light-industrial facility with motor loads, or a telecommunications hub with UPS systems and HVAC. It is commonly specified for multi-tenant retail centers, auto service facilities, and commercial food service operations where three-phase 277/480V standby is required.
Can the HSY-50 be used in an N+1 paralleling configuration?
Yes. The HSY-50's compact footprint makes it a viable building block in N+1 configurations. For clients at this power level, OnPoint discusses paralleling options for redundancy as part of the design consultation — two HSY-50 units in parallel provide 90 kW of redundant standby coverage in a compact installation footprint.
Why is 45 kW described as the practical ceiling of the HSY Series?
The 45 kW HSY-50 is the top of Hipower's Yanmar compact standby line. Above this output level, Hipower's HDI heavy-duty industrial series provides the next step up. The HSY Series is optimized for commercial standby applications where Yanmar's compact diesel platform offers the best combination of reliability, serviceability, and operating cost in the 10–45 kW range.

More in the HSY Series (Standby Yanmar Diesel)

9 to 45 kW Yanmar diesel standby — liquid-cooled compact generators for residential and light-commercial installations where space is premium.

Similar models

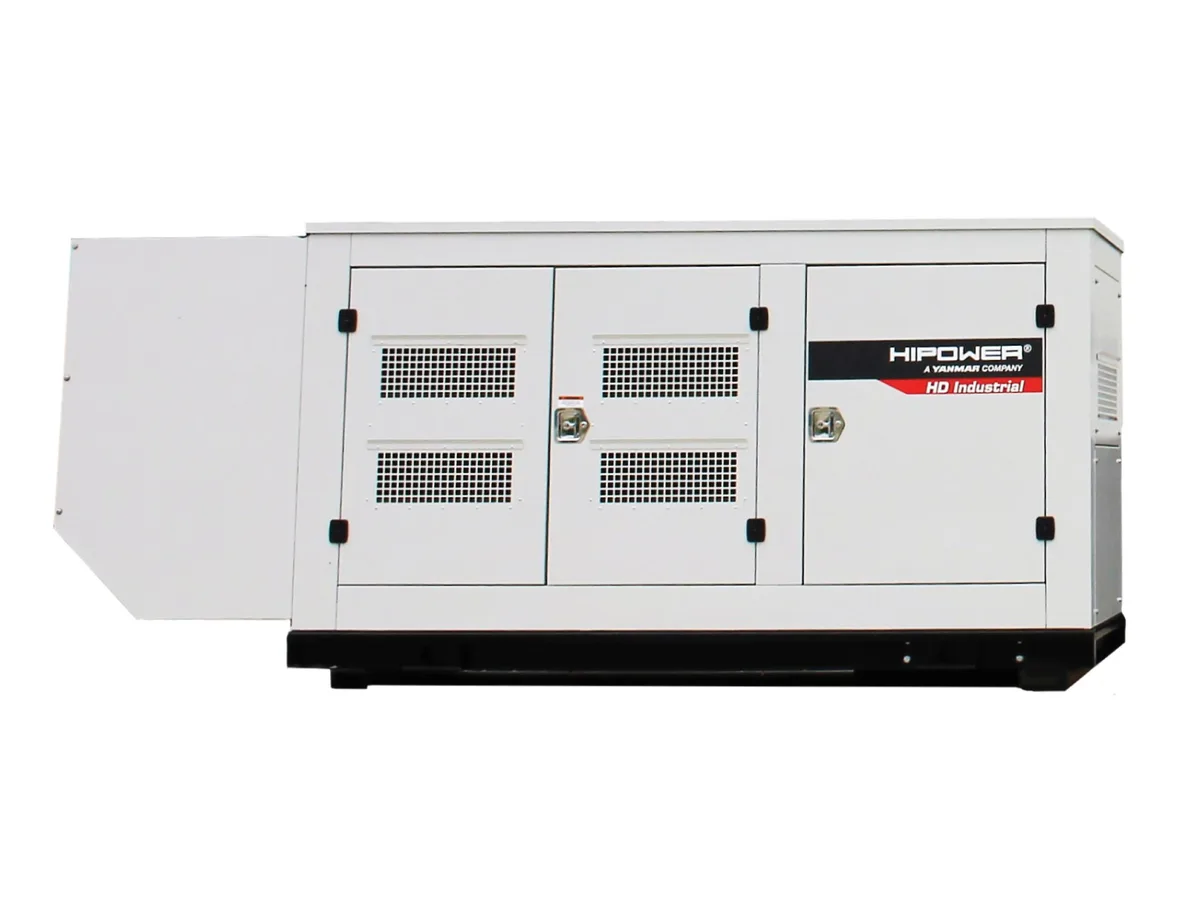

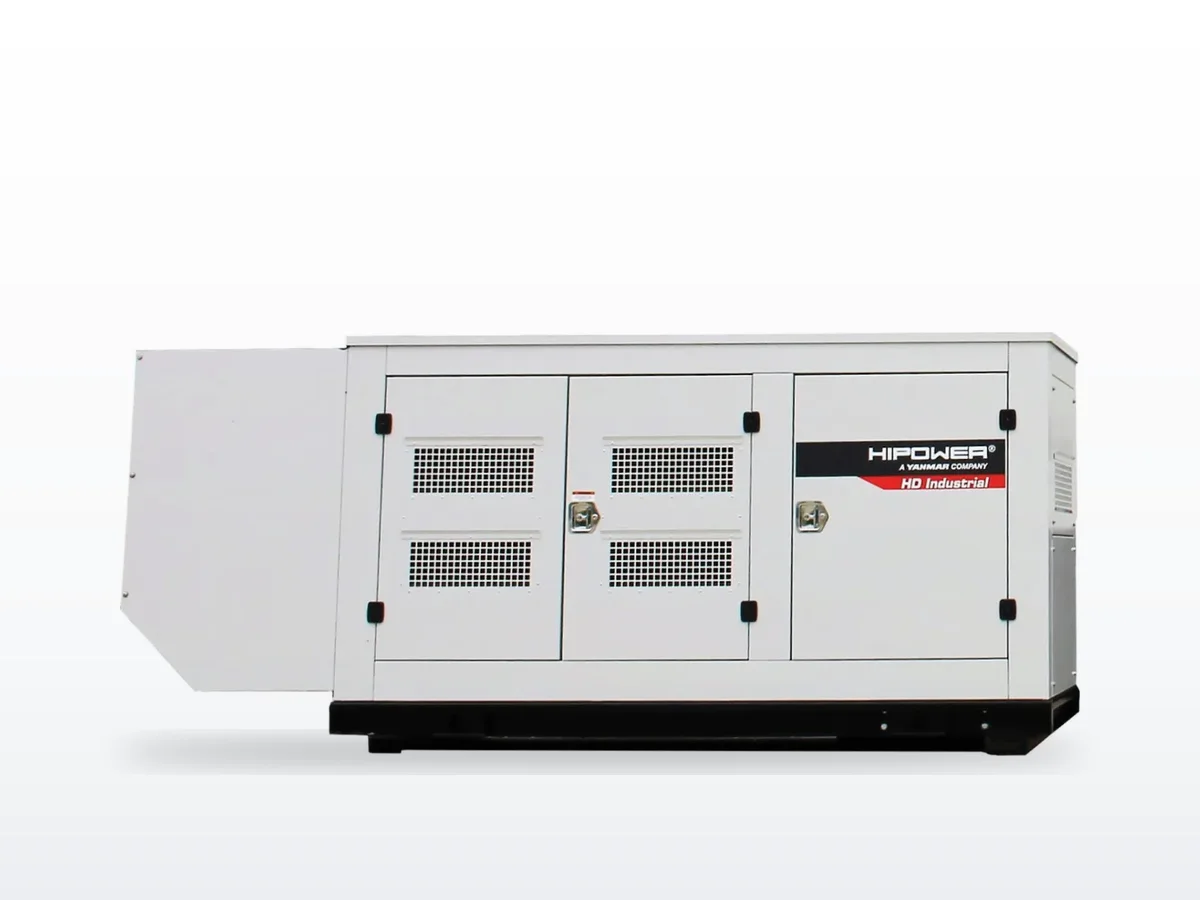

Hipower Systems Hipower HJW-55 55 kW liquid-cooled standby generator

Hipower Systems

Hipower HJW-55

55 kW standby · Diesel · Liquid-cooled

55 kW diesel standby generator. John Deere 4045TF280-63 engine, Stamford UCI 224 alternator. EPA Tier 3.

Tier 33-phasecommercial-standbylight-commercial

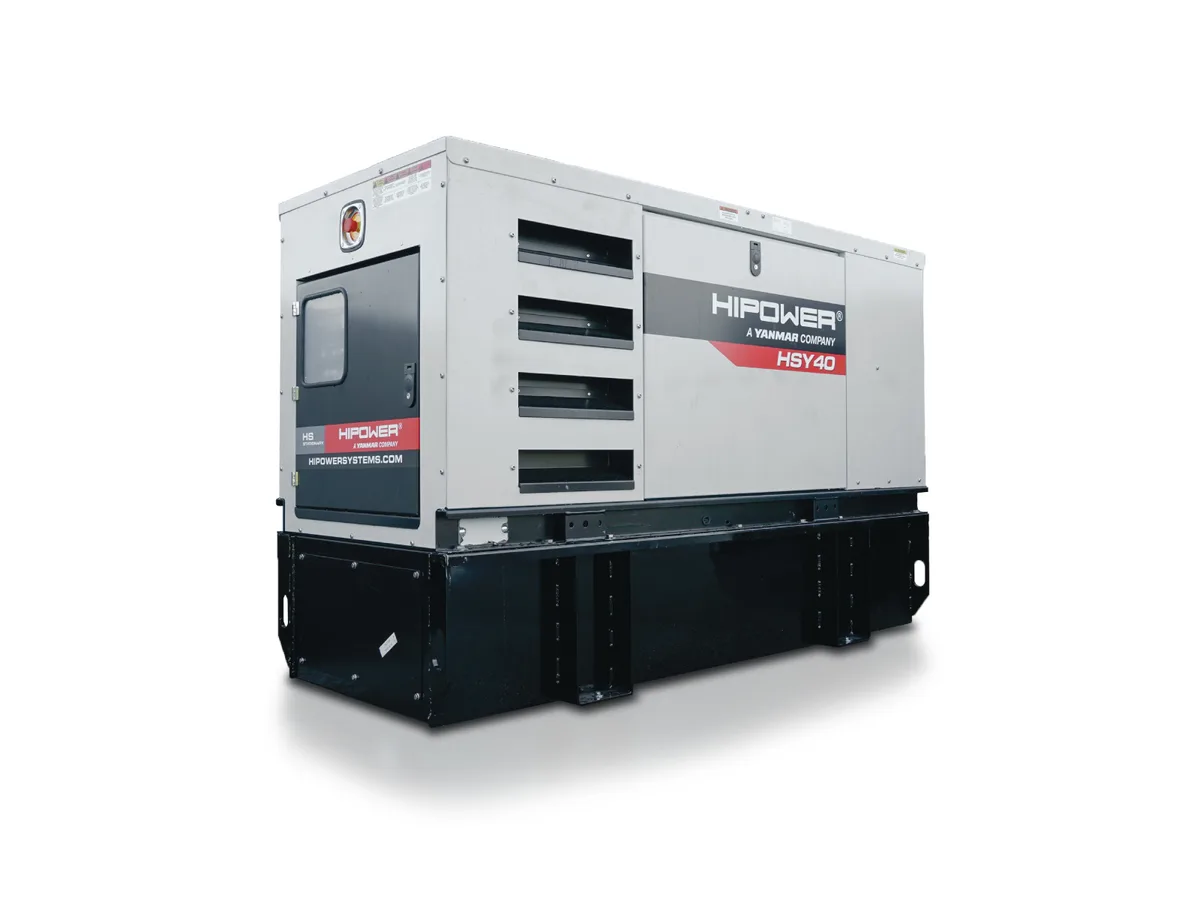

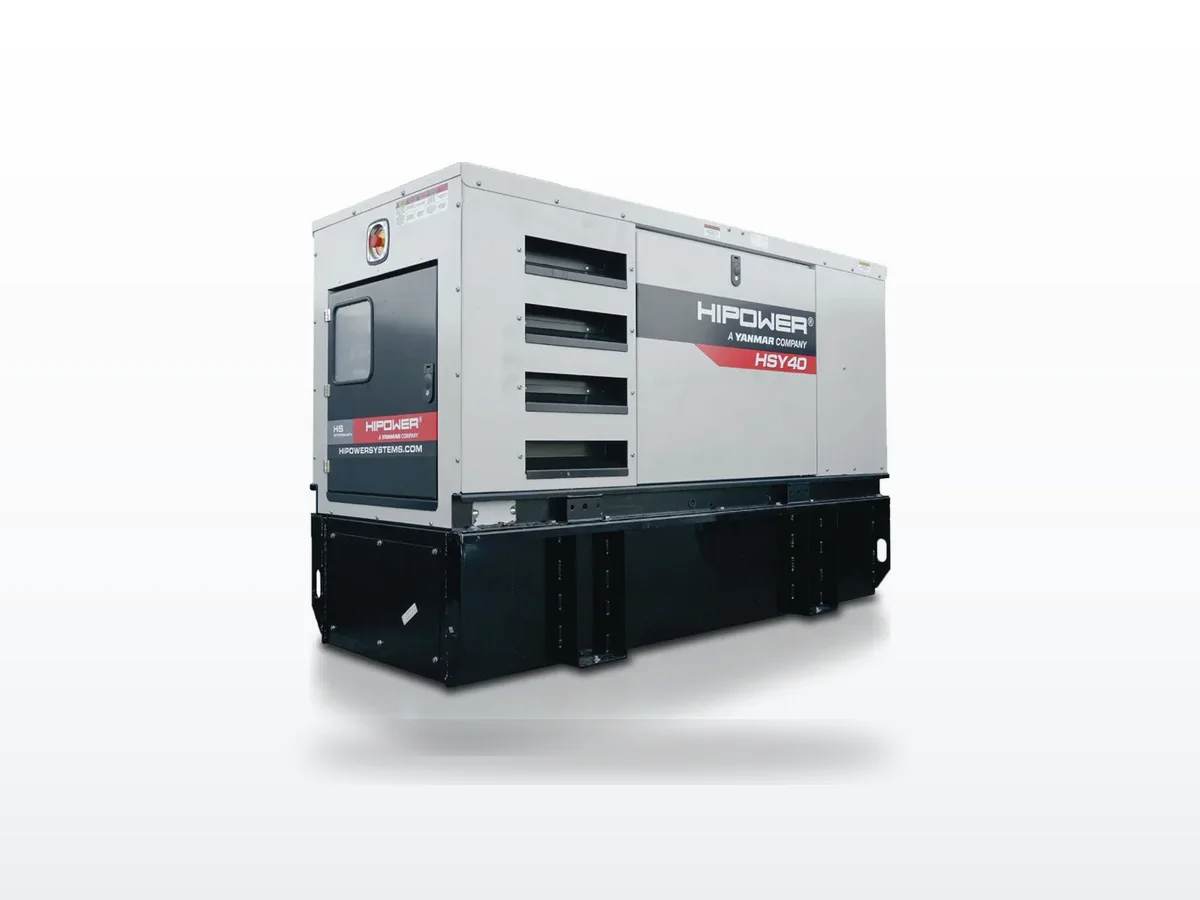

Hipower Systems Hipower HSY-40 36.8 kW liquid-cooled standby generator
