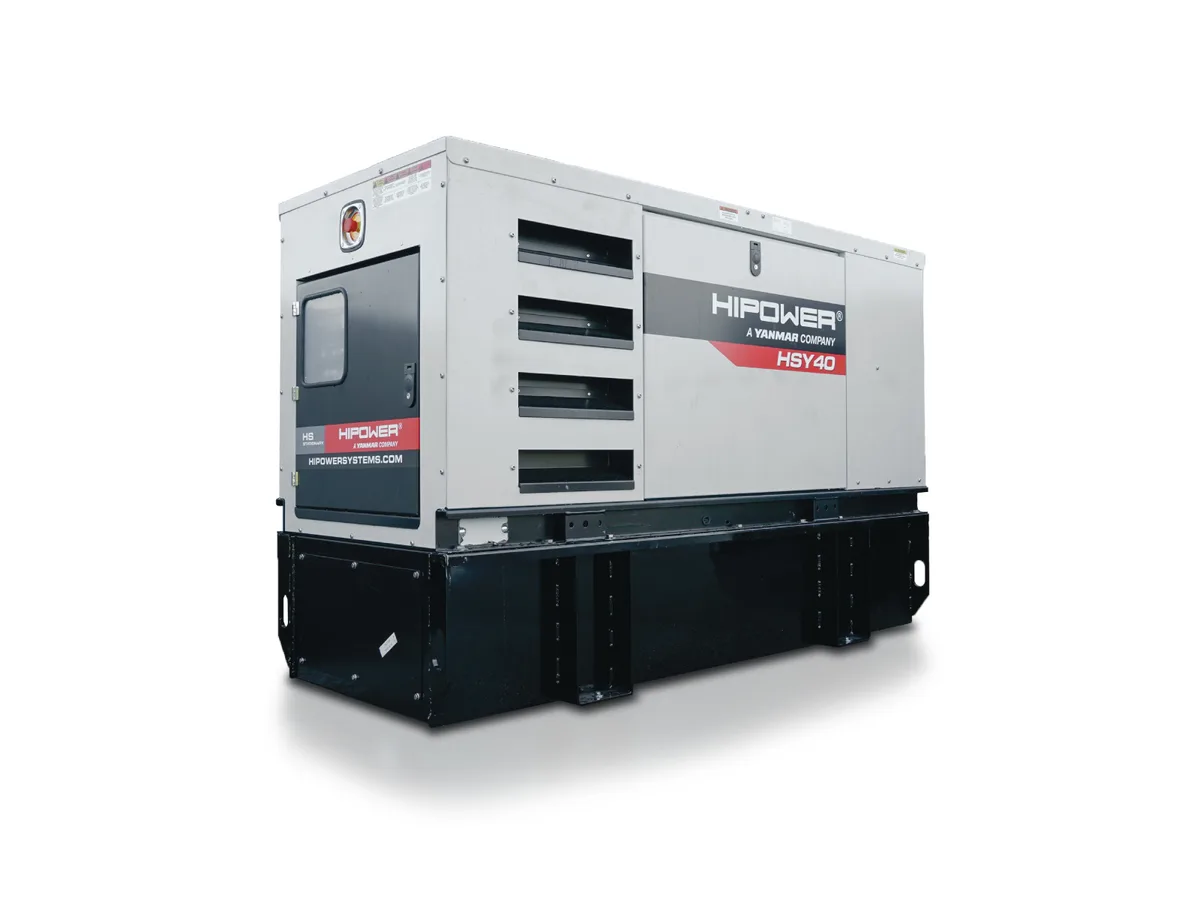

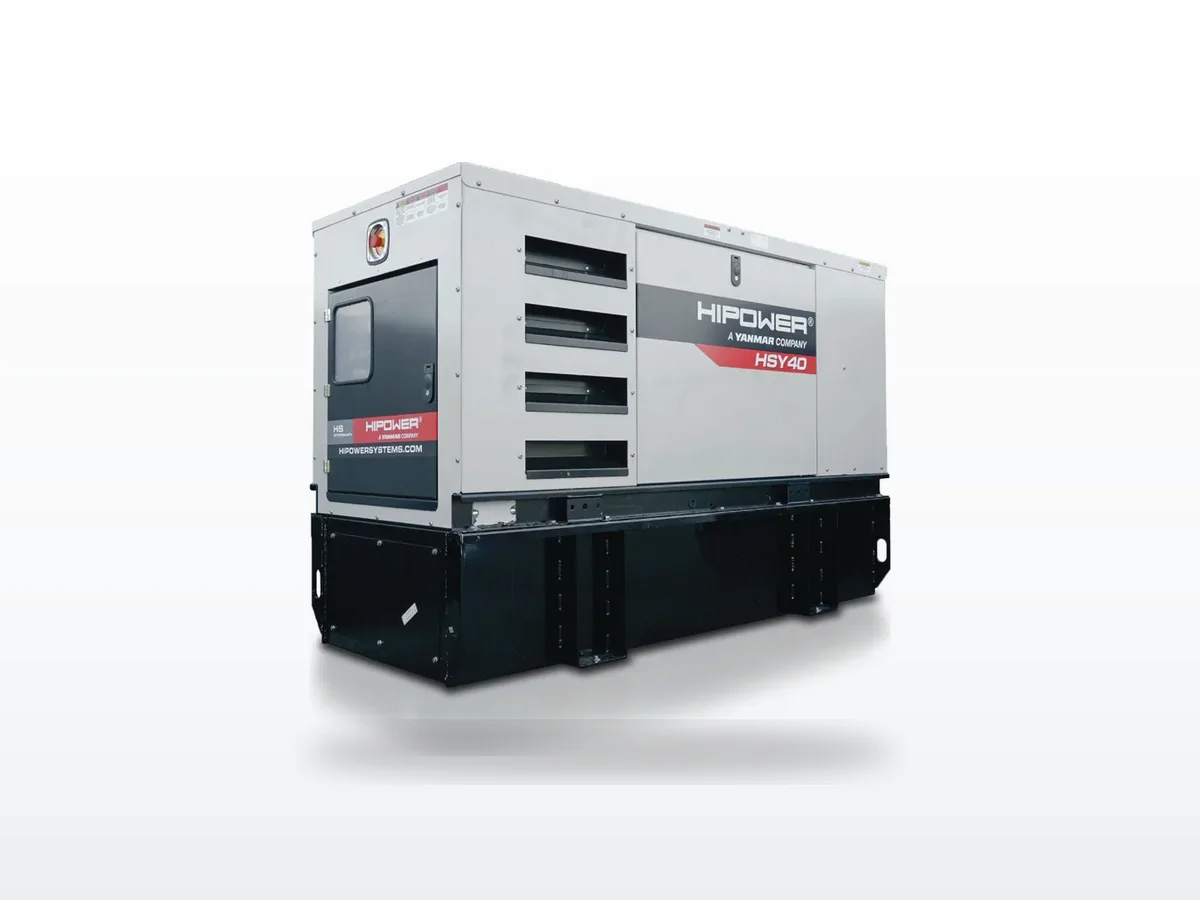

Hipower Systems · HSY Series (Standby Yanmar Diesel)

Hipower HSY-40

36.8 kW standby · Diesel · Liquid-cooled

37 kW Yanmar diesel standby generator. Three-phase capability for mid-size commercial standby.

Hipower Systems Hipower HSY-40 generator — specifications and details
Standby power
36.8 kW
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Yanmar 4TNV98ZGGEH · 4.1L
Alternator
Stamford VITA01

Overview#

The Hipower HSY-40 is a 37 kW diesel standby generator in the HSY Series, powered by a Yanmar 4TNV98ZGGEH four-cylinder diesel engine with 4.1 liters of displacement. At 37 kW it covers mid-size commercial applications — large medical offices, multi-suite commercial buildings, small manufacturing facilities, and light industrial controls — where three-phase 277/480V power is required and continuous uptime is business-critical.

Yanmar Reliability#

The four-cylinder, liquid-cooled, naturally aspirated configuration provides robust thermal stability and eliminates the turbocharger as a failure point. Yanmar of America maintains nationwide parts distribution and dealer coverage for this engine family.

Right-Sized for Small Commercial#

The 37 kW output is particularly well matched to commercial occupancies in the 28–33 kW critical load range — a load profile common in medical-office buildings, specialty food production, and light-manufacturing cells. Running a diesel generator at 75–85% of rated capacity optimizes fuel consumption and minimizes the wet-stacking risk that afflicts generators chronically operated at light loads. OnPoint's pre-installation load surveys routinely find that clients with 37 kW critical loads are being quoted 60–80 kW machines; the HSY-40 provides the correct answer at lower capital and operating cost.

Service and Maintenance#

Battery float charging prevents the most common no-start cause for standby generators. Exercise under load — at minimum 30% rated output — flushes the fuel system, exercises the transfer switch, and provides a real-world readiness check.

Our Service Experience#

OnPoint Generators services the 37–40 kW Yanmar diesel class throughout the greater Bay Area, including commercial accounts from San Jose to San Francisco. At this power level, our clients frequently include medical office buildings, specialty manufacturers, and light-industrial facilities where three-phase power reliability is operationally critical.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Hipower HSY-40

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Hipower HSY-40

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

100.6 hours(4.2 days)

Fuel consumption ≈ 1.99 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the standby power output of the HSY-40?
The HSY-40 delivers 37 kW standby power. Available in 120/240V single-phase, 120/208V three-phase, and 277/480V three-phase configurations, suitable for large medical offices, multi-suite commercial buildings, small manufacturing facilities, and light industrial controls where continuous uptime is business-critical.
What Yanmar engine powers the HSY-40?
The HSY-40 uses a Yanmar 4TNV98-family four-cylinder naturally aspirated diesel with approximately 4.1 liters of displacement — one of Yanmar's most widely deployed industrial diesel platforms.
What commercial load profile matches the HSY-40?
The 37 kW output is well matched to commercial occupancies in the 28–33 kW critical load range — a profile common in medical-office buildings, specialty food production, and light-manufacturing cells. Running the engine at 75–85% of rated capacity optimizes fuel consumption and minimizes wet-stacking risk.
Why does OnPoint recommend the HSY-40 when clients are being quoted larger machines?
OnPoint's load surveys routinely find clients with 37 kW critical loads being quoted 60–80 kW machines by other suppliers. The HSY-40 provides the correct technical answer at lower capital and operating cost. An engine running at 75–85% rated load is healthier and more fuel-efficient than a 60 kW unit running at 40% load.
What types of Bay Area commercial clients does OnPoint serve with the HSY-40?
Medical office buildings, specialty manufacturers, and light-industrial facilities throughout the greater Bay Area from San Jose to San Francisco.

More in the HSY Series (Standby Yanmar Diesel)

9 to 45 kW Yanmar diesel standby — liquid-cooled compact generators for residential and light-commercial installations where space is premium.

Similar models

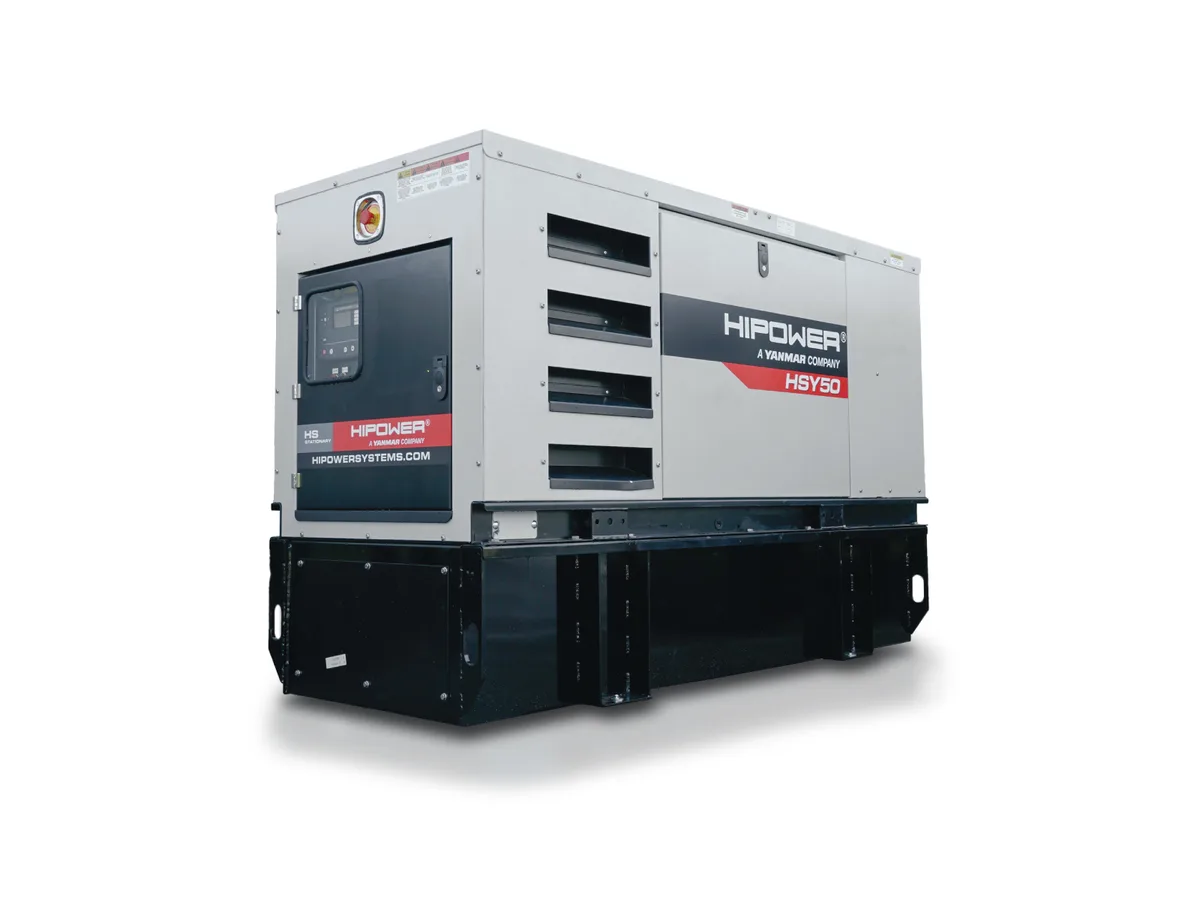

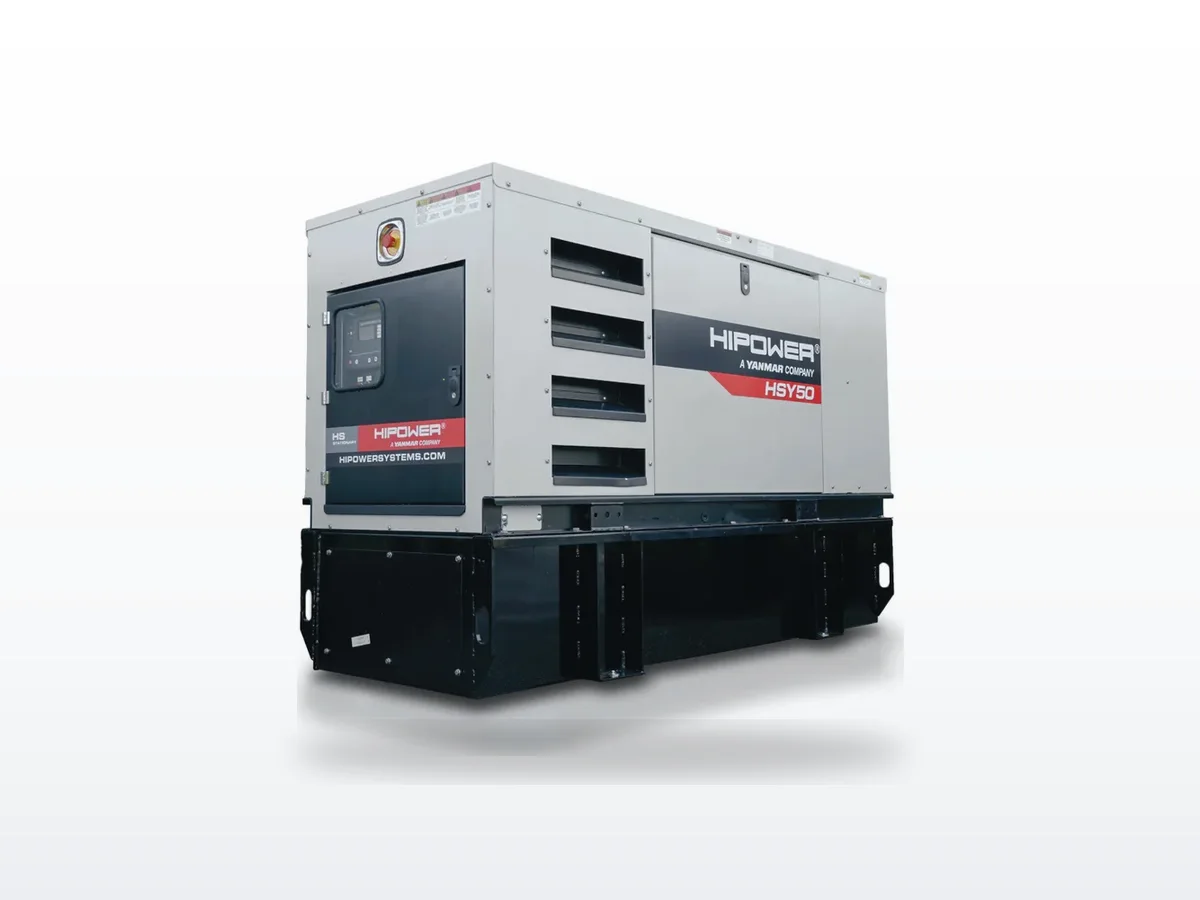

Hipower Systems Hipower HSY-50 45.4 kW liquid-cooled standby generator

Hipower Systems

Hipower HSY-50

45.4 kW standby · Diesel · Liquid-cooled

45 kW Yanmar diesel standby generator. Top of the HSY Series for commercial and light-industrial standby.

3-phaseresidential-standbylight-commercial

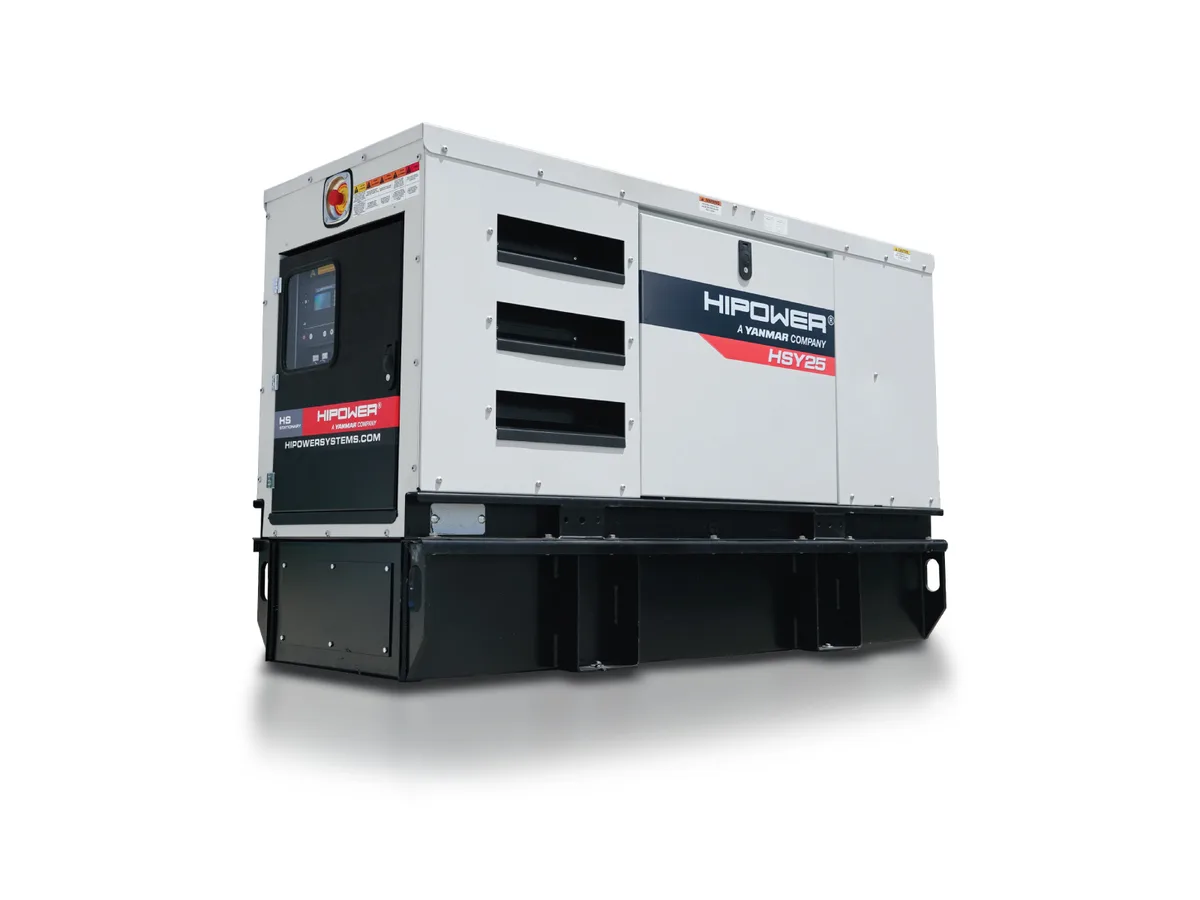

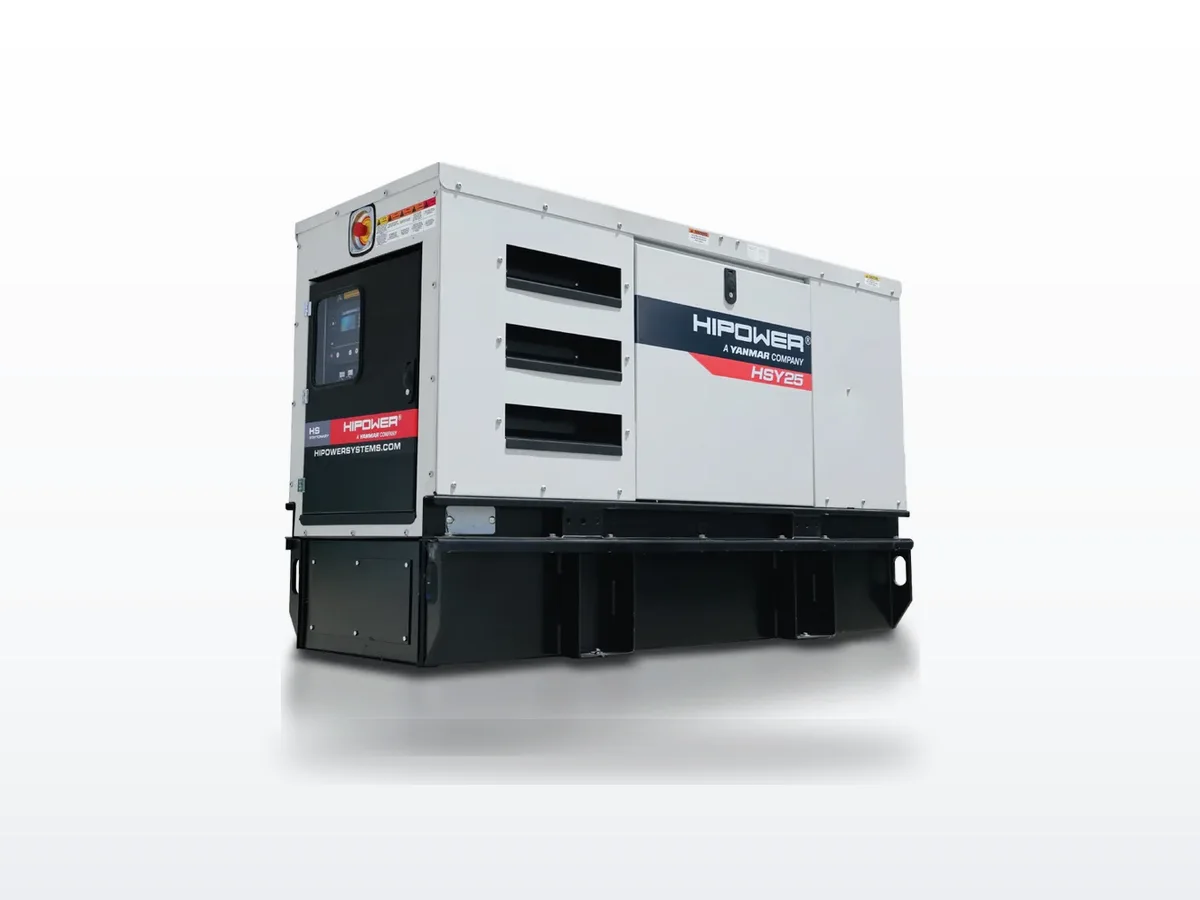

Hipower Systems Hipower HSY-25 23.3 kW liquid-cooled standby generator
