Hipower Systems · HSY Series (Standby Yanmar Diesel)

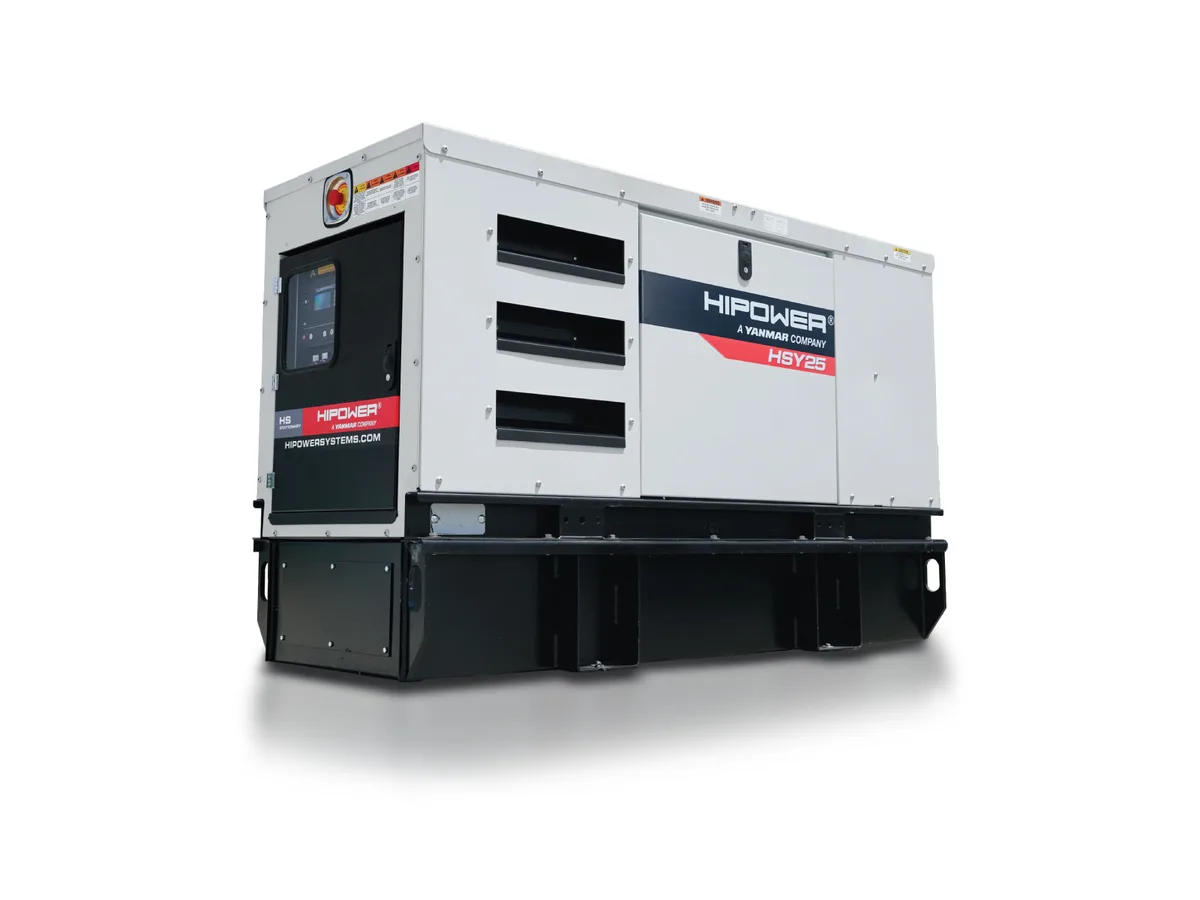

Hipower HSY-25

23.3 kW standby · Diesel · Liquid-cooled

23 kW Yanmar diesel standby generator. Single and three-phase for small commercial standby applications.

Hipower Systems Hipower HSY-25 generator — specifications and details
Standby power
23.3 kW
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Yanmar 4TNV84TBGGEHE
Alternator
Stamford VITA01

Overview#

The Hipower HSY-25 is a 23 kW diesel standby generator in the HSY Series, powered by a Yanmar 4TNV84TBGGEHE four-cylinder diesel engine. The 23 kW rating covers the essential load requirements of small commercial occupancies that need three-phase power — light manufacturing, small commercial kitchens, or professional office suites with server infrastructure. Available in both single-phase 120/240V and three-phase 120/208V / 277/480V configurations.

Yanmar Reliability#

The four-cylinder Yanmar engines in the 4TNV84 class bring the same industrial pedigree found in Yanmar's construction and agricultural equipment lines. Liquid cooling provides stable operating temperatures across a wide ambient range, and naturally aspirated induction eliminates the turbocharger maintenance point that is a common failure mode in smaller turbocharged diesel generators. Yanmar's Japanese manufacturing standards and domestic US service infrastructure support a long service life with predictable maintenance costs.

Right-Sized for Small Commercial#

At 23 kW, the HSY-25 is the upper end of the HSY Series' small-output range, and it occupies an important segment: large enough to support three-phase small commercial loads, compact enough to fit in mechanical rooms that cannot accommodate a 40–50 kW unit. For small clinics, dental practices, small manufacturing cells, and specialty retail, a correctly specified 23 kW diesel will outperform an oversized 40 kW machine running at 20% load — both in cost and engine health.

Service and Maintenance#

Battery float charging is essential — the starting battery is the most common cause of no-start failures in well-maintained standby generators.

Our Service Experience#

OnPoint Generators installs and maintains Yanmar diesel generators in the 20–25 kW class across commercial accounts in the Bay Area. In this power band, our pre-installation load analysis frequently saves clients from paying for a larger generator than their critical load justifies. We also perform commissioning-phase load bank tests to confirm actual connected load and verify that the engine is running at a healthy operating percentage. Right-sizing is among the highest-value services we provide in this class.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Hipower HSY-25

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Hipower HSY-25

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

159.0 hours(6.6 days)

Fuel consumption ≈ 1.26 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the standby power output of the HSY-25 and what voltage configurations are available?
The HSY-25 delivers 23 kW standby power. Available in 120/240V single-phase, 120/208V three-phase, and 277/480V three-phase configurations — covering both single-phase small commercial loads and three-phase loads for light manufacturing, professional offices, and small commercial kitchens.
What Yanmar engine powers the HSY-25?
The HSY-25 uses a Yanmar 4TNV84-family four-cylinder naturally aspirated liquid-cooled diesel engine. Moving to four cylinders at this output class provides smoother operation and improved power delivery compared to three-cylinder units. The naturally aspirated configuration eliminates the turbocharger as a maintenance point.
Why is 23 kW described as the upper end of the HSY compact range?
At 23 kW, the HSY-25 is large enough to support three-phase small commercial loads while remaining compact enough to fit in mechanical rooms that cannot accommodate 40–50 kW industrial generators. It bridges the entry small-commercial segment and the mid-size commercial generator market.
What commercial standby applications fit the HSY-25 in the Bay Area?
Light manufacturing with three-phase motor loads, small commercial kitchens, professional office suites with server infrastructure, and small clinics or dental practices in the 18–21 kW critical load range. Three-phase 277/480V capability makes it versatile across commercial occupancy types.
Does OnPoint perform load analysis before recommending the HSY-25?
Yes. OnPoint's pre-installation load analysis frequently saves Bay Area commercial clients from paying for generators larger than their critical load justifies. If your surveyed load is in the 18–21 kW range, we will document why the HSY-25 is correct rather than recommending a 40 kW machine. We follow up with commissioning-phase load bank testing to verify actual connected load.

More in the HSY Series (Standby Yanmar Diesel)

9 to 45 kW Yanmar diesel standby — liquid-cooled compact generators for residential and light-commercial installations where space is premium.

Similar models

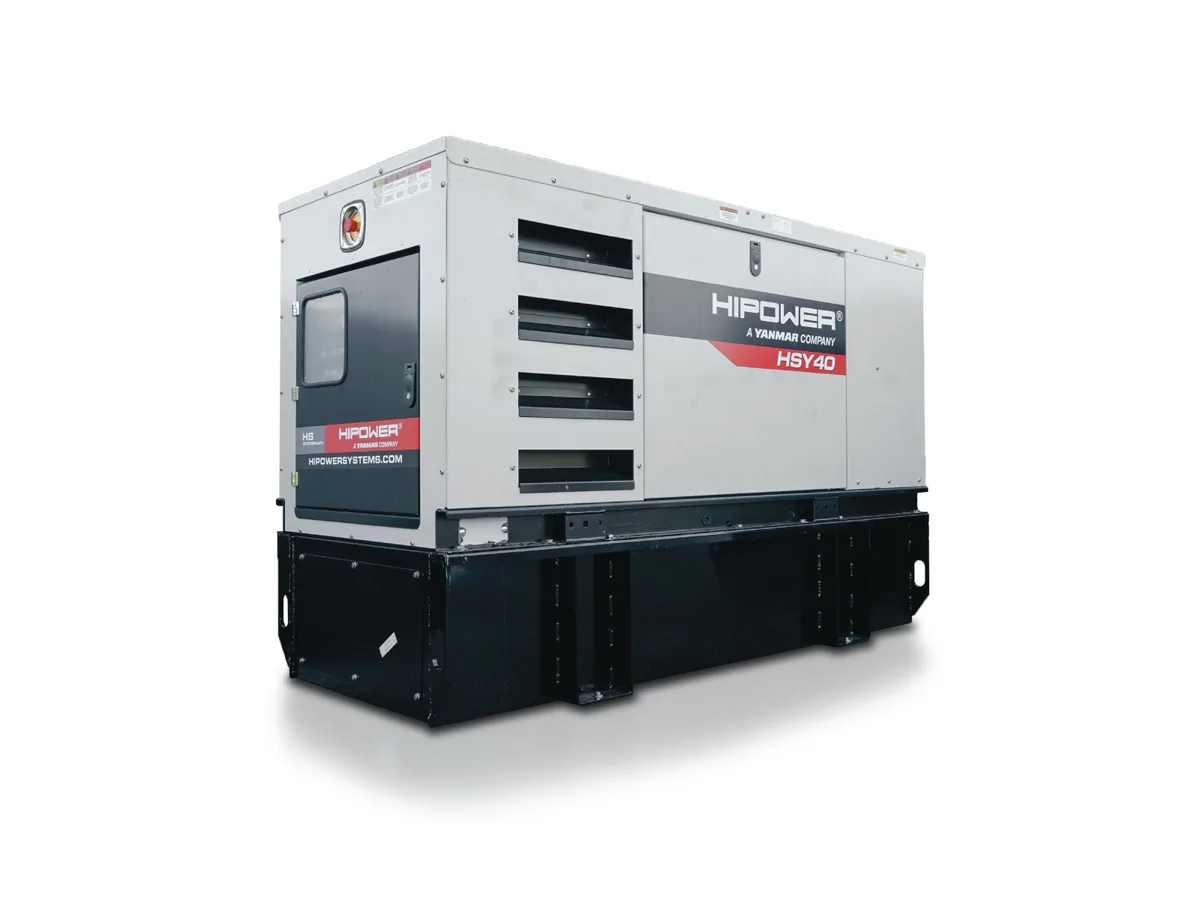

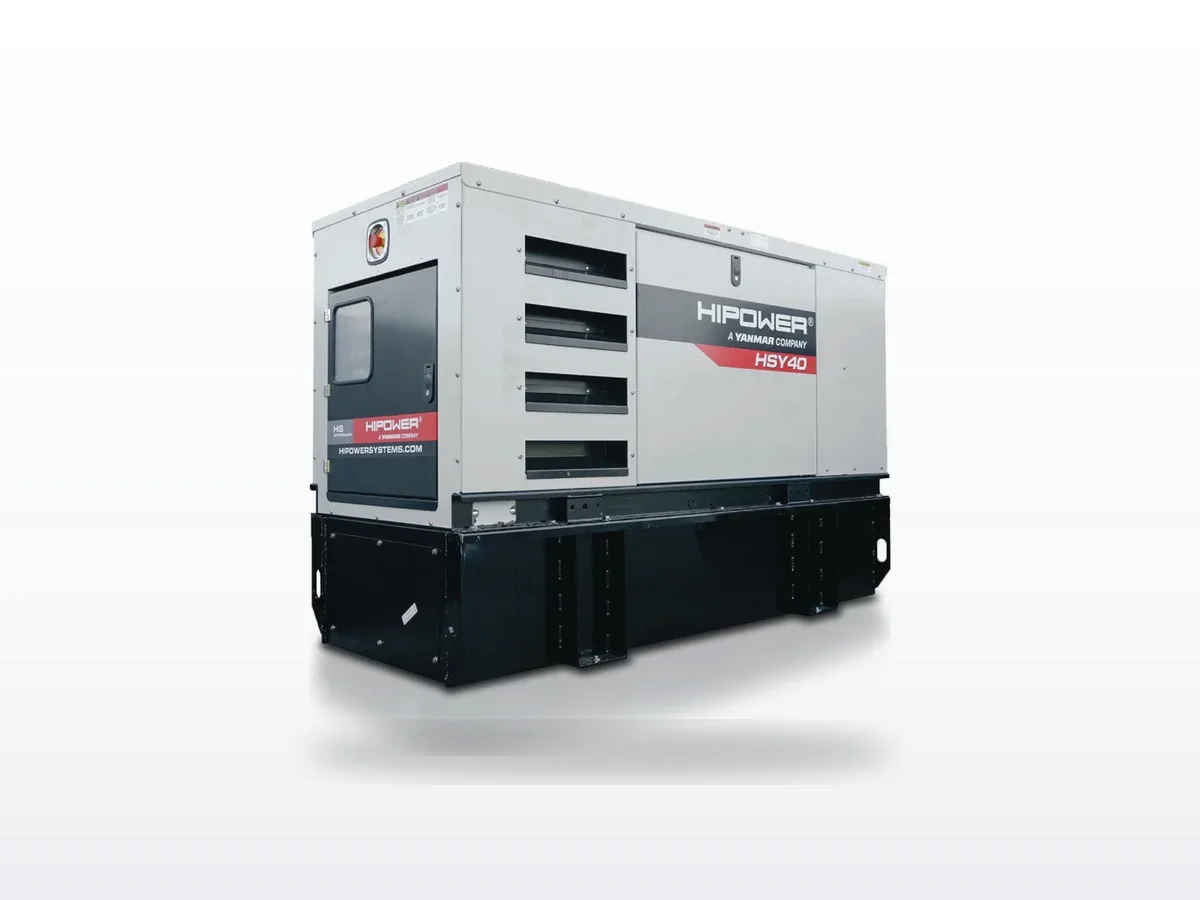

Hipower Systems Hipower HSY-40 36.8 kW liquid-cooled standby generator

Hipower Systems

Hipower HSY-40

36.8 kW standby · Diesel · Liquid-cooled

37 kW Yanmar diesel standby generator. Three-phase capability for mid-size commercial standby.

3-phaseresidential-standbylight-commercial

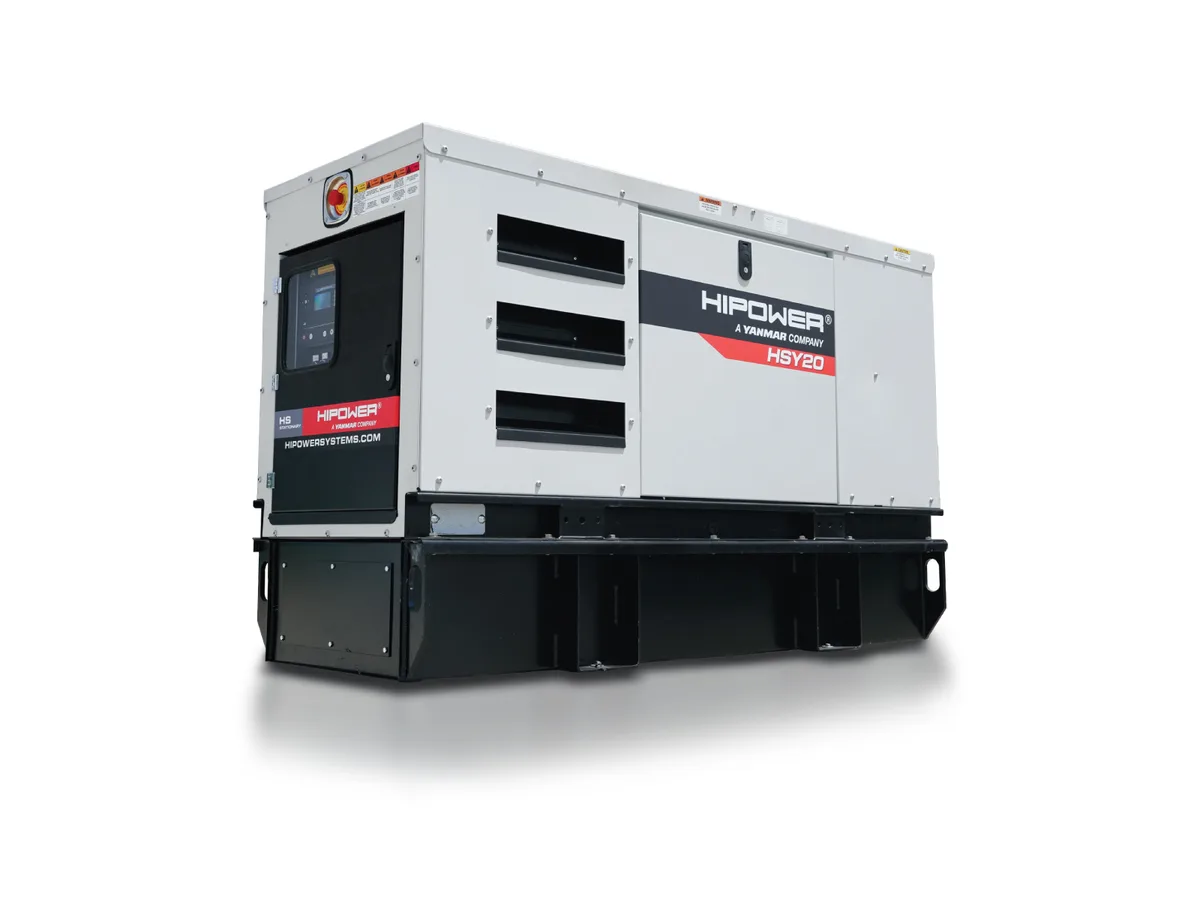

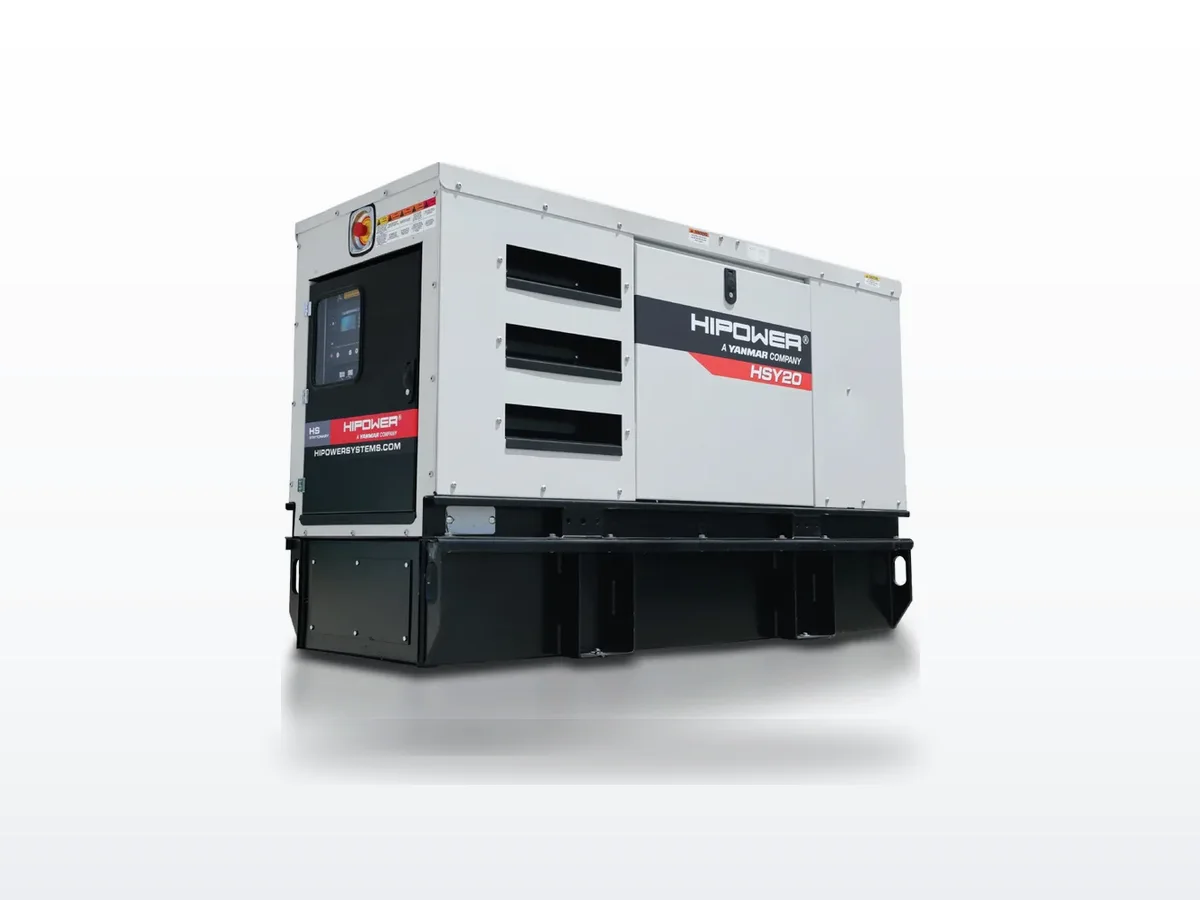

Hipower Systems Hipower HSY-20 19.1 kW liquid-cooled standby generator

Hipower Systems

Hipower HSY-20

19.1 kW standby · Diesel · Liquid-cooled

19 kW Yanmar diesel standby generator. Suitable for small clinics, restaurants, and light commercial standby.

3-phaseresidential-standbylight-commercial

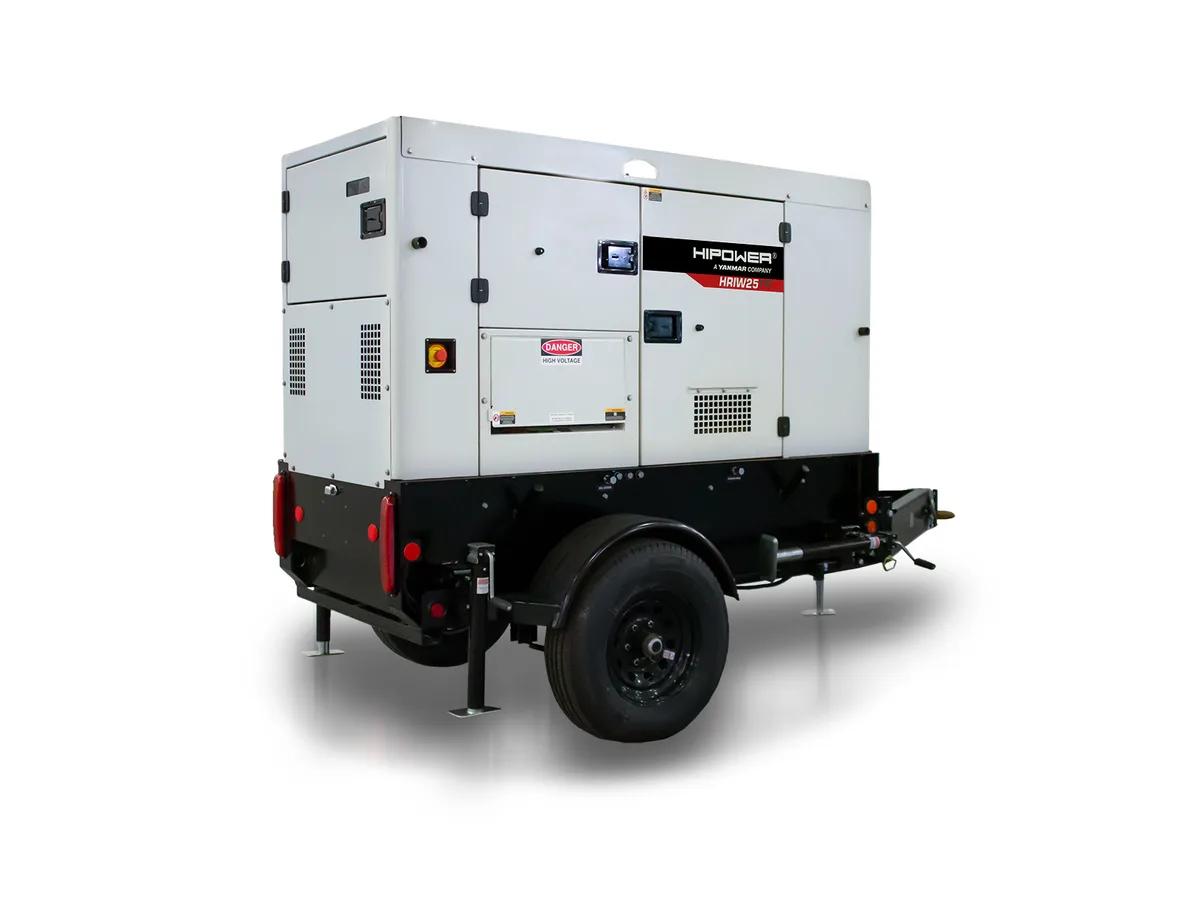

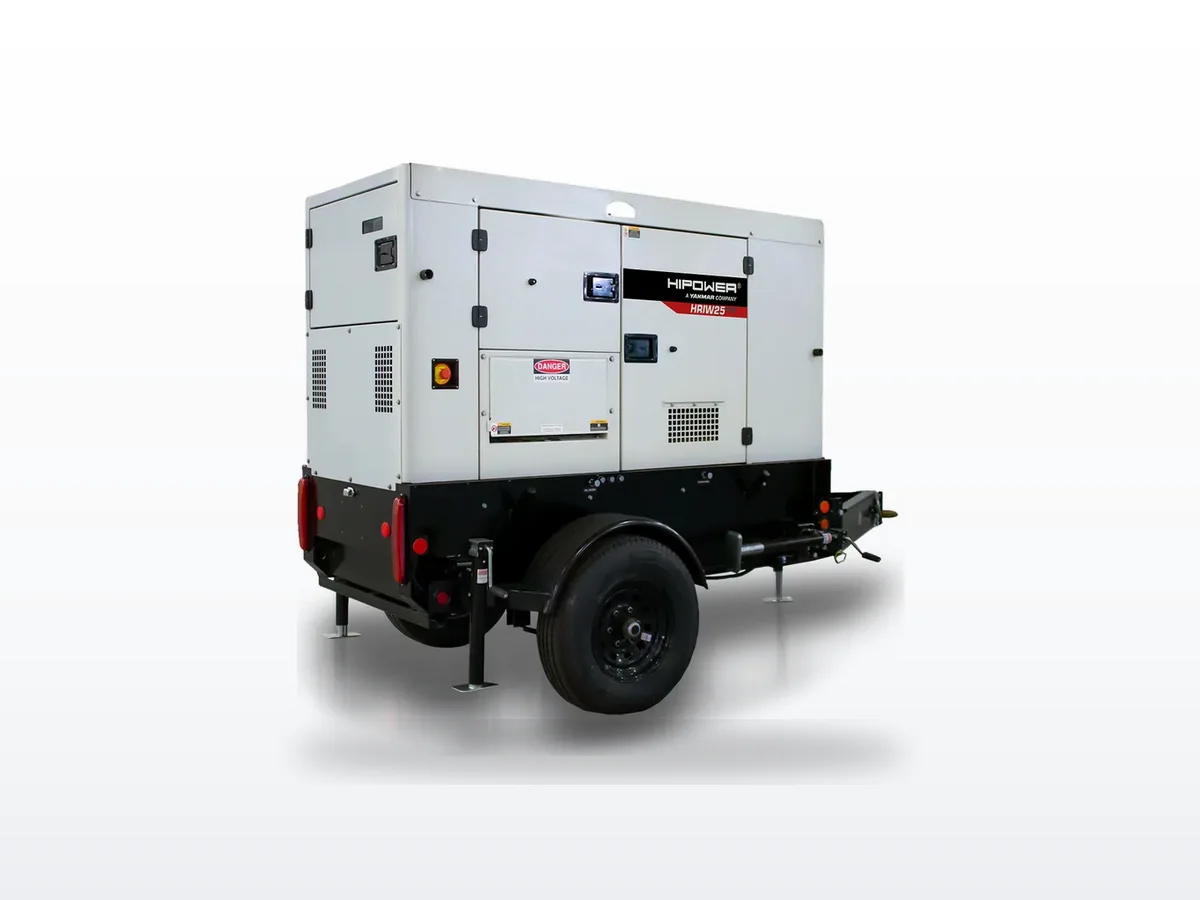

Hipower Systems Hipower HRIW-25 22 kW liquid-cooled standby generator
