Hipower Systems · HRIW Mobile Series

Hipower HRIW-25

22 kW standby / 20 kW prime · Diesel · Liquid-cooled

22 kW standby (20 kW prime) rental diesel generator set. Isuzu 4LE2T engine, Stamford PI 144 F alternator. EPA Tier 4 Final.

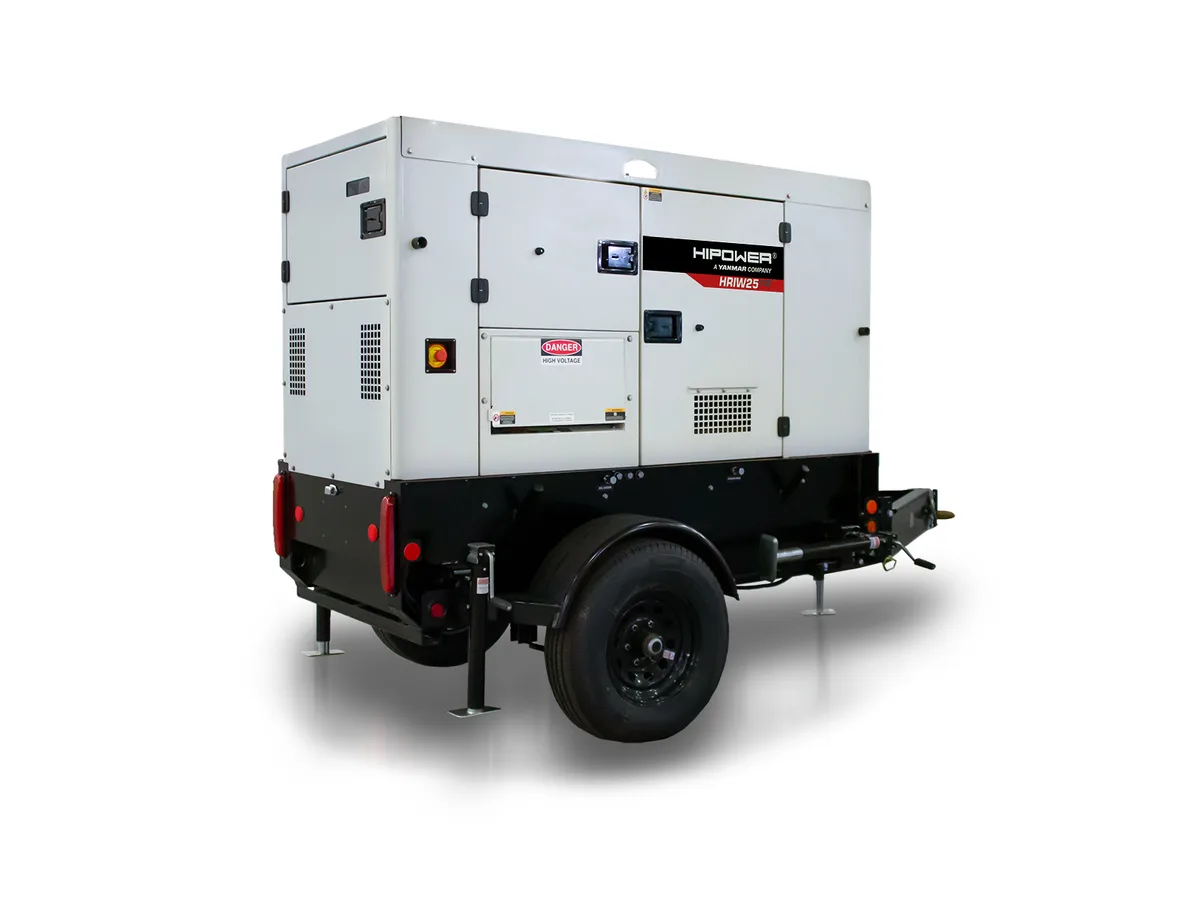

Hipower Systems Hipower HRIW-25 generator — specifications and details
Standby power
22 kW / 20 kW prime
Voltage options
120/240V, 120/208V, 139/240V, 277/480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Isuzu 4LE2T · 2.2L
EPA / Emissions
Tier 4 Final
Alternator
Stamford PI 144 F with EBS

Overview#

The Hipower HRIW-25 T4F is a 25 kW, 60 Hz rental diesel generator set. The datasheet lists 22.0 kW (28.0 kVA) standby and 20 kW (25.0 kVA) prime at 120/208V, 139/240V and 277/480V three-phase, power factor 0.8. The engine is an Isuzu 4LE2T that the datasheet lists as EPA Tier 4 Final.

Power Ratings and Voltages#

Ratings are 60 Hz, as printed on the datasheet:

  • 120/240V single-phase: prime 14.4 kW (14.4 kVA), 60 A; standby 15.9 kW (15.9 kVA), 66 A; power factor 1.0.
  • 120/208V three-phase: prime 20 kW (25.0 kVA), 69 A; standby 22.0 kW (28.0 kVA), 76 A; power factor 0.8.
  • 139/240V three-phase: prime 20 kW (25.0 kVA), 60 A; standby 22.0 kW (28.0 kVA), 66 A; power factor 0.8.
  • 277/480V three-phase: prime 20 kW (25.0 kVA), 30 A; standby 22.0 kW (28.0 kVA), 33 A; power factor 0.8.
  • 347/600V three-phase: not available (N/A) for this model.

Engine Platform#

The engine is an Isuzu 4LE2T with 4 cylinders in-line. It is a 4-stroke diesel with direct injection and turbocharged aspiration. Cooling is liquid. Displacement is 133 cu in (2.2 liters) at a crankshaft speed of 1,800 rpm. The datasheet lists EPA certified Tier 4 Final and a nominal power of 40.2 hp. The alternator is a Stamford PI 144 F with EBS.

Prime fuel consumption on the datasheet is 0.9 US gal/h (3.38 L/h) at 75% load, 0.6 US gal/h (2.25 L/h) at 50% load and 0.3 US gal/h (1.12 L/h) at 25% load.

Built for Rental Deployment#

Features printed on the datasheet:

  • Enclosure: fully sound attenuated, fabricated in 11-gauge steel, with wide steel lockable access doors.
  • Fuel tank: steel base welded sub-base tank with 110% containment capability. The base option is 82.5 gallons with a run time of 39.3 hours.
  • Voltage selector switch: three-position, manual and lockable, for switching between 120/240V single phase and 120/208V and 277/480V three-phase.
  • Controls: digital control panel with manual and automatic start and stop features.
  • Enclosed set size: 88.4 in long, 37.3 in wide and 62.0 in high. The datasheet states that all measurements are approximate.

Service & Maintenance#

Pre-deployment inspection checklist:

  1. Check Isuzu engine oil level and color
  2. Drain fuel filter water separator
  3. Test starting battery voltage under load
  4. Lock enclosure latches and verify door seal condition
  5. Run at light load for 5 minutes before dispatch

Our Service Experience#

OnPoint Generators maintains HRIW-25 units in our Northern California rental fleet.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Ready to order this model?

Configure your Hipower HRIW-25

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Hipower HRIW-25

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

168.4 hours(7.0 days)

Fuel consumption ≈ 1.19 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the standby output of the HRIW-25 and what voltage options are available?
The datasheet lists 22.0 kW (28.0 kVA) standby and 20 kW (25.0 kVA) prime at 120/208V, 139/240V and 277/480V three-phase, power factor 0.8. At 120/240V single-phase it lists 15.9 kW standby and 14.4 kW prime, power factor 1.0. The 347/600V rating is N/A.
What engine does the HRIW-25 use?
The datasheet lists an Isuzu 4LE2T: 4 cylinders in-line, 4-stroke diesel with direct injection and turbocharged aspiration. Displacement is 133 cu in (2.2 liters) at 1,800 rpm. It lists EPA certified Tier 4 Final and a nominal power of 40.2 hp.
What fuel tank does the HRIW-25 have?
The datasheet lists a base option fuel tank of 82.5 gallons with a run time of 39.3 hours.

Compatible equipment

More in the HRIW Mobile Series

22 to 110 kW Isuzu diesel trailer generators.

Similar models

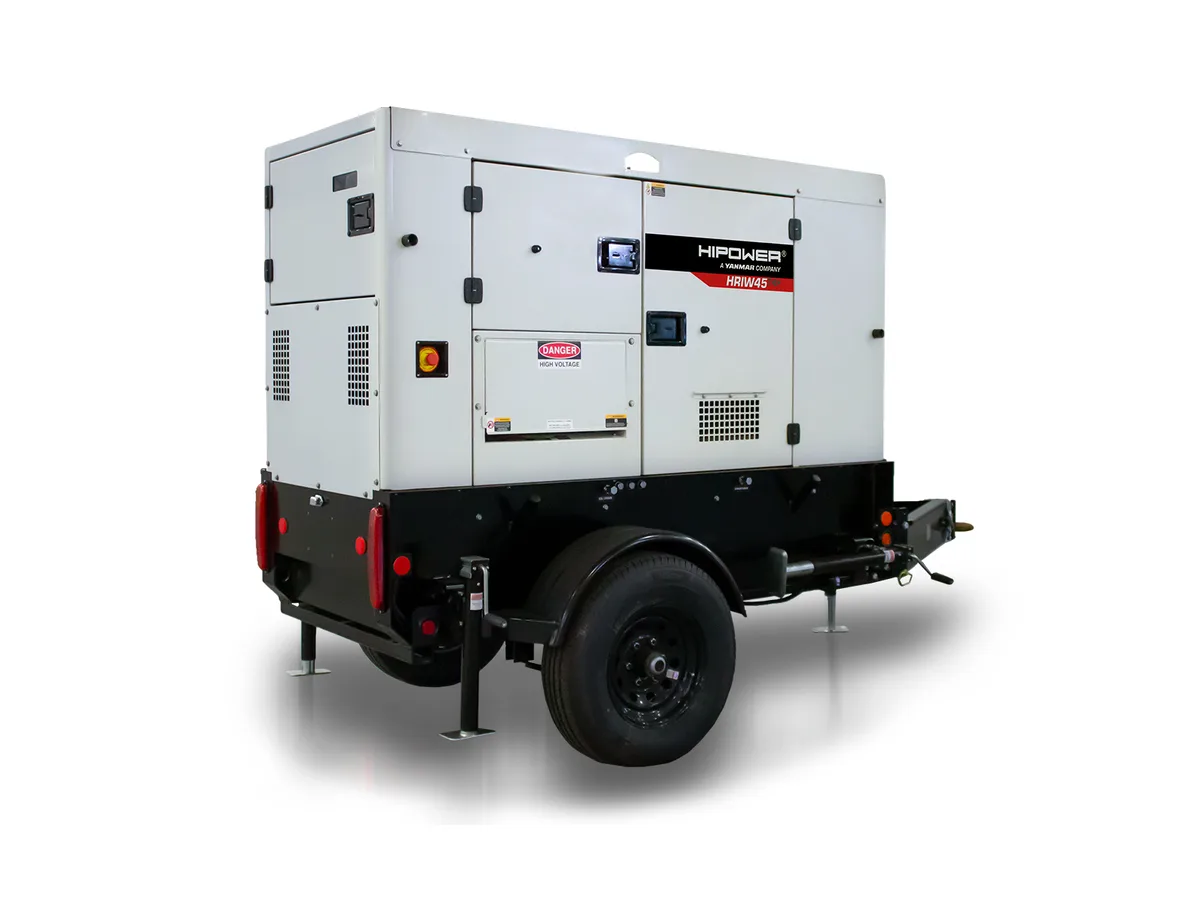

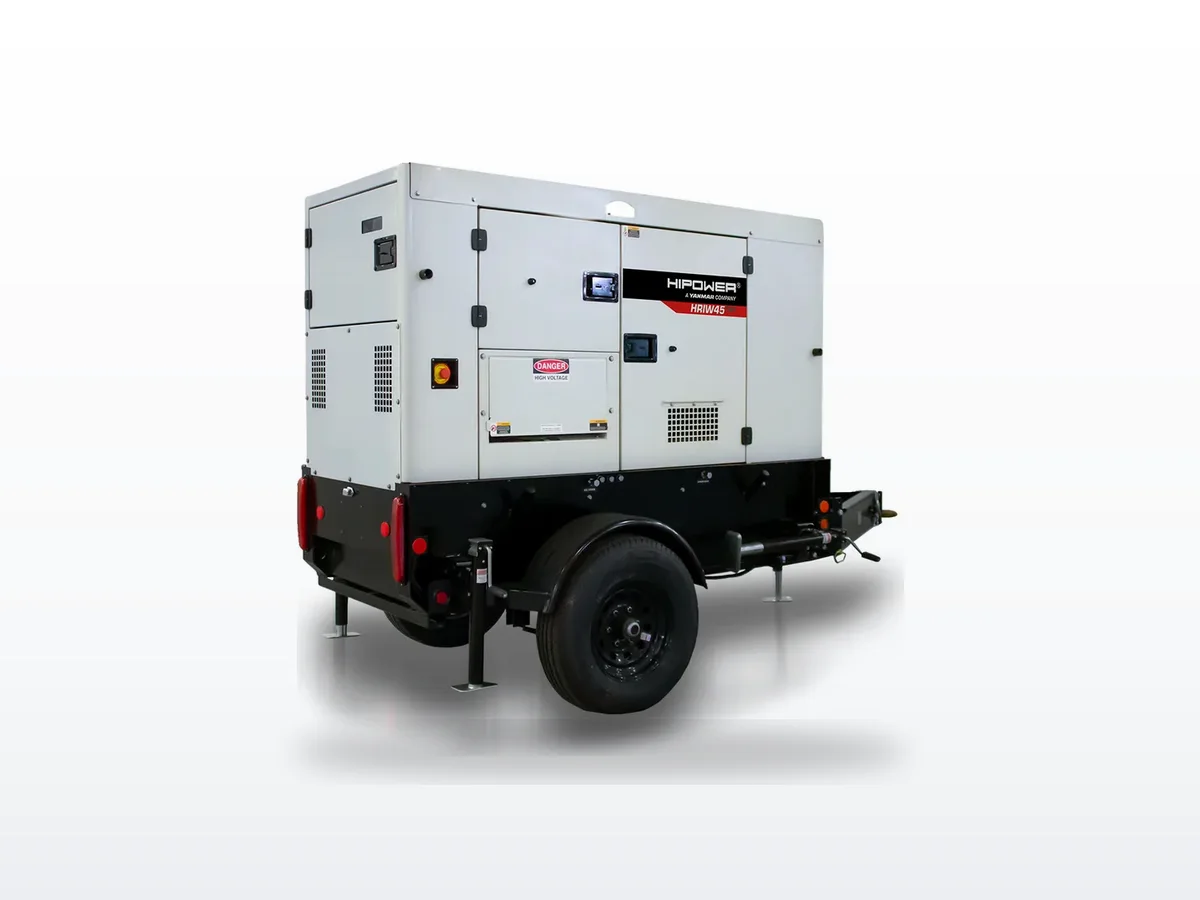

Hipower Systems Hipower HRIW-45 40 kW liquid-cooled standby generator
