Hipower Systems · HRIW Mobile Series

Hipower HRIW-45

40 kW standby / 36 kW prime · Diesel · Liquid-cooled

45 kVA (40 kW standby) mobile diesel generator with Isuzu engine. Tier 4 Final. Trailer-mounted rental unit for construction and outdoor events.

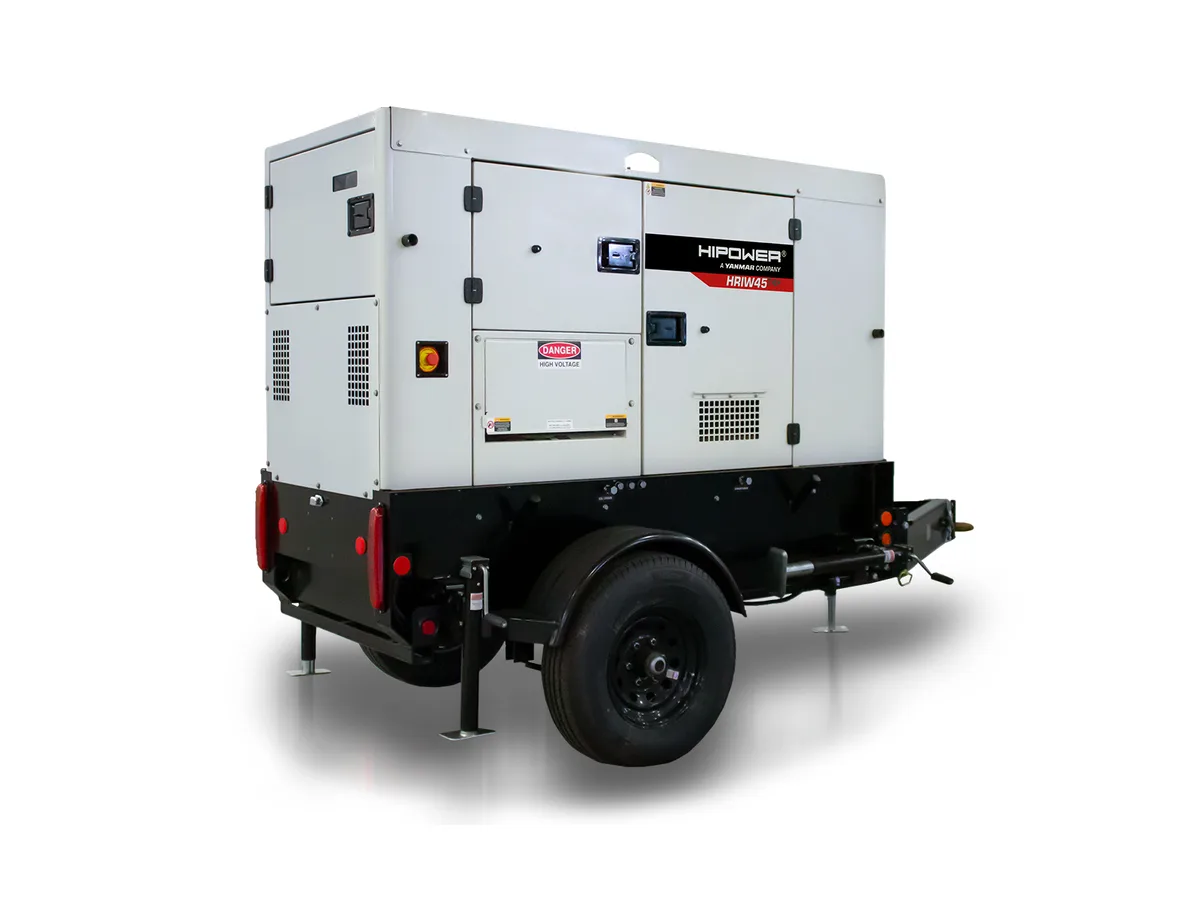

Hipower Systems Hipower HRIW-45 generator — specifications and details
Standby power
40 kW / 36 kW prime
Voltage options
120/240V, 208V, 480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Isuzu 4LE2X
EPA / Emissions
Tier 4 Final
Alternator
Stamford UCI224D

Overview#

The Hipower HRIW-45 T4F is a 45 kVA (40 kW standby / 36 kW prime) trailer-mounted mobile diesel generator powered by an Isuzu diesel engine. Part of the HRIW Isuzu-powered rental mobile series, the HRIW-45 targets construction sites, outdoor event productions, and rental fleet operators that need more capacity than the entry-level 25 kVA unit without stepping up to a heavier trailer. EPA Tier 4 Final certified for California job site deployment.

The HRIW-45 provides multi-voltage output — 120/240V single-phase, 208V and 480V three-phase — making it adaptable to a wide range of temporary power requirements. The Isuzu engine platform is among the most serviced in North America, with a dense parts and dealer network throughout Northern California.

Engine Platform#

The HRIW-45 uses an Isuzu diesel engine from the industrial 4-cylinder lineup — a liquid-cooled, turbocharged unit engineered for 1,800 RPM continuous duty in generator applications. Dealer coverage spans the Bay Area, Sacramento Valley, Central Valley, and North Coast, making same-day parts available in most Northern California markets.

The Isuzu engine at this size class is compact and lightweight — keeping trailer weight manageable for towing with a standard pickup truck, which matters for rental operators dispatching units to tight urban job sites where large tow vehicles are impractical.

Built for Rental Deployment#

The HRIW-45 is designed as an integrated factory trailer unit. Key rental-ready features:

  • DOT-compliant trailer with marker and brake lighting for legal highway towing
  • Multi-voltage output panel for single-phase and three-phase 480V connections
  • Lockable weatherproof enclosure rated for outdoor storage and transport in Northern California weather conditions
  • Integral fuel tank supporting extended shift operation without mid-day refueling
  • EPA Tier 4 Final compliance for unrestricted California CARB job site use

The 40 kW class is commonly deployed for: construction site trailers and offices, outdoor stage power for small concerts and festivals, temporary power during meter disconnects for residential renovation, and backup power for small retail locations during utility maintenance outages.

Service & Maintenance#

Pre-deployment inspection checklist:

  1. Check Isuzu engine oil level and condition
  2. Load-test starting battery (float voltage is not sufficient)
  3. Grease trailer coupler ball socket; inspect safety chains
  4. Verify all running lights functional
  5. Confirm enclosure door latches secure and seals intact
  6. Run at 25% load for 5–10 minutes before dispatch confirmation

Our Service Experience#

OnPoint Generators deploys HRIW-45 units throughout the Bay Area and Northern California for construction contractors, event production companies, and property managers needing compact, easily moved temporary power. Isuzu's parts availability through regional dealers keeps our rental fleet uptime high — most common wear items are stocked locally. Our technicians service Isuzu engines and Stamford alternators in-house, supporting fast turn between rental cycles.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Ready to order this model?

Configure your Hipower HRIW-45

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Hipower HRIW-45

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

92.6 hours(3.9 days)

Fuel consumption ≈ 2.16 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the standby power output of the HRIW-45?
The HRIW-45 delivers 40 kW (45 kVA) standby and 36 kW prime, with multi-voltage output including 120/240V single-phase, 208V three-phase, and 480V three-phase — covering a broad range of temporary power connections on commercial construction and outdoor event sites.
What makes the Isuzu engine in the HRIW-45 well-suited for rental fleet use?
Isuzu industrial diesel engines have a strong reputation in the rental generator market for low fuel consumption, reliable cold starting, and service intervals appropriate for high-cycle rental operation. Isuzu dealer coverage spans the Bay Area, Sacramento Valley, Central Valley, and North Coast — meaning most common parts are available same-day in Northern California markets.
Can the HRIW-45 be towed by a standard pickup truck?
Yes. The Isuzu engine at this output class is compact and lightweight, keeping trailer weight within the towing capacity of a standard full-size pickup truck — an important practical advantage for rental operators dispatching units to urban Bay Area job sites where large commercial tow vehicles are impractical.
Is the HRIW-45 California CARB compliant?
Yes. The HRIW-45 T4F is EPA Tier 4 Final certified, meeting CARB requirements for unrestricted job site use throughout California without variance permits.
What are typical deployment scenarios for the HRIW-45?
At 40 kW, the HRIW-45 is commonly deployed for construction site trailers and offices, outdoor stage power for small concerts and festivals, temporary power during meter disconnects for residential renovation, and backup power for small retail locations during utility maintenance outages.

Compatible equipment

More in the HRIW Mobile Series

22 to 110 kW Isuzu diesel trailer generators — Tier 4 Final compact trailers for California job sites, towable by standard pickup.

Similar models

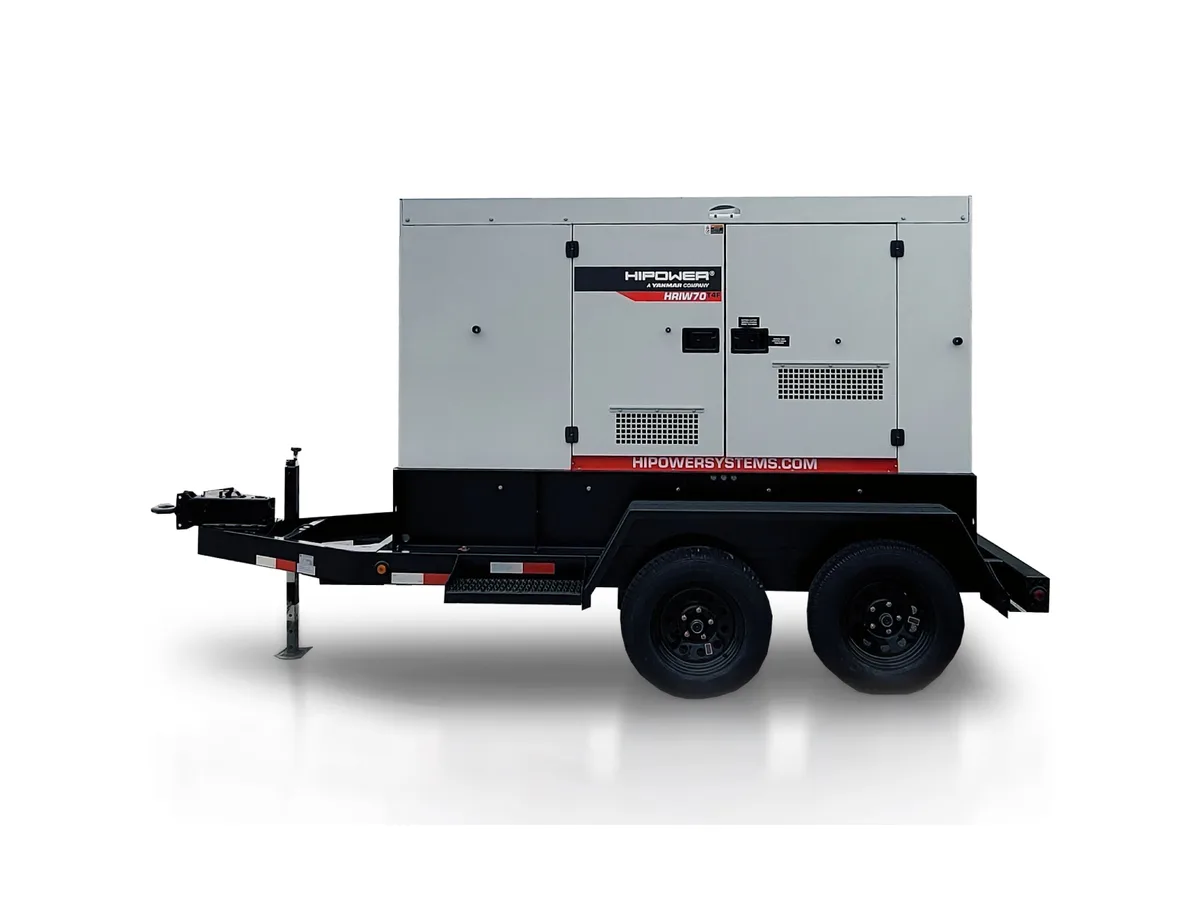

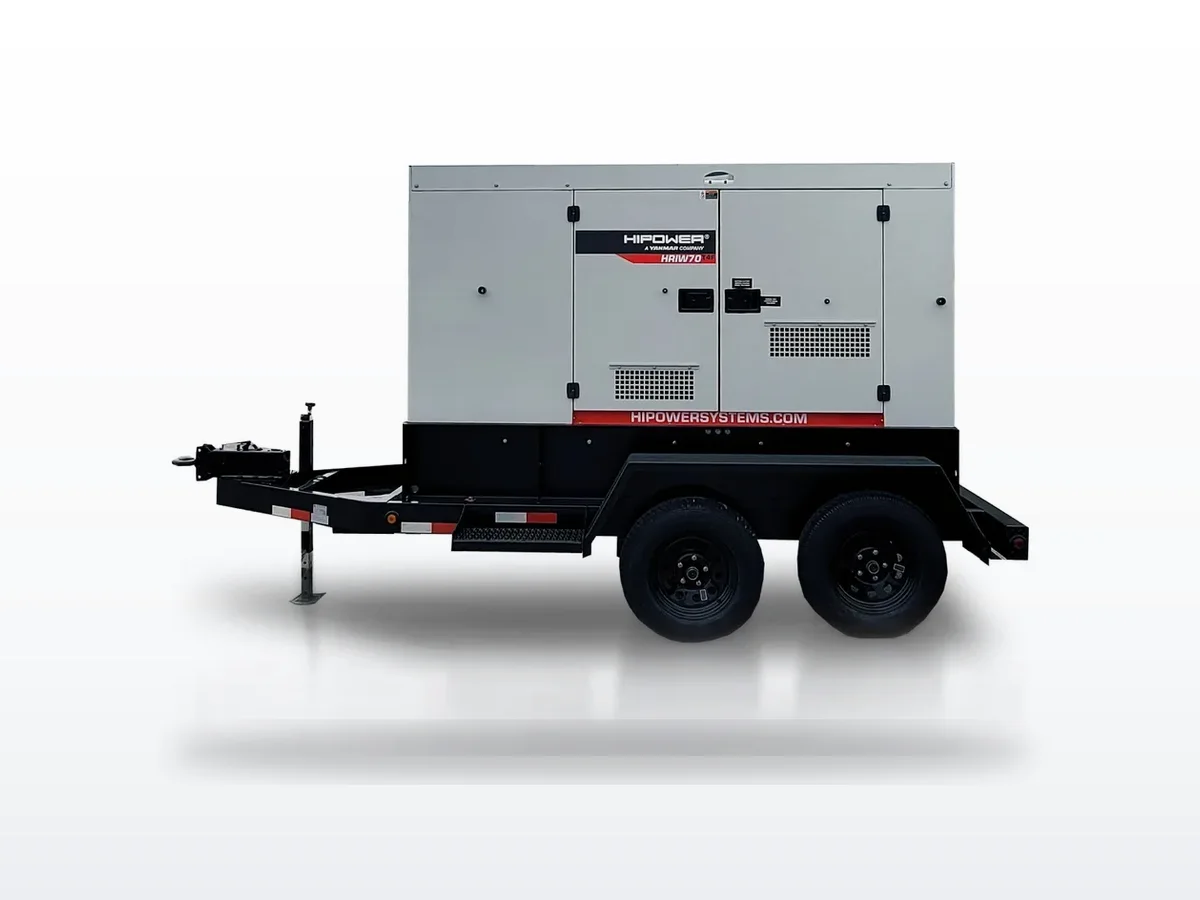

Hipower Systems Hipower HRIW-70 62 kW liquid-cooled standby generator

Hipower Systems

Hipower HRIW-70

Top-of-range compact Isuzu trailer generator — 62 kW standby, Tier 4 Final, California rental ready.

62 kW standby · Diesel · Liquid-cooled

70 kVA (62 kW standby) mobile diesel generator with Isuzu engine. Tier 4 Final. Top of the compact HRIW mobile rental series.

Tier 4 Final3-phaseconstructionrental-fleet

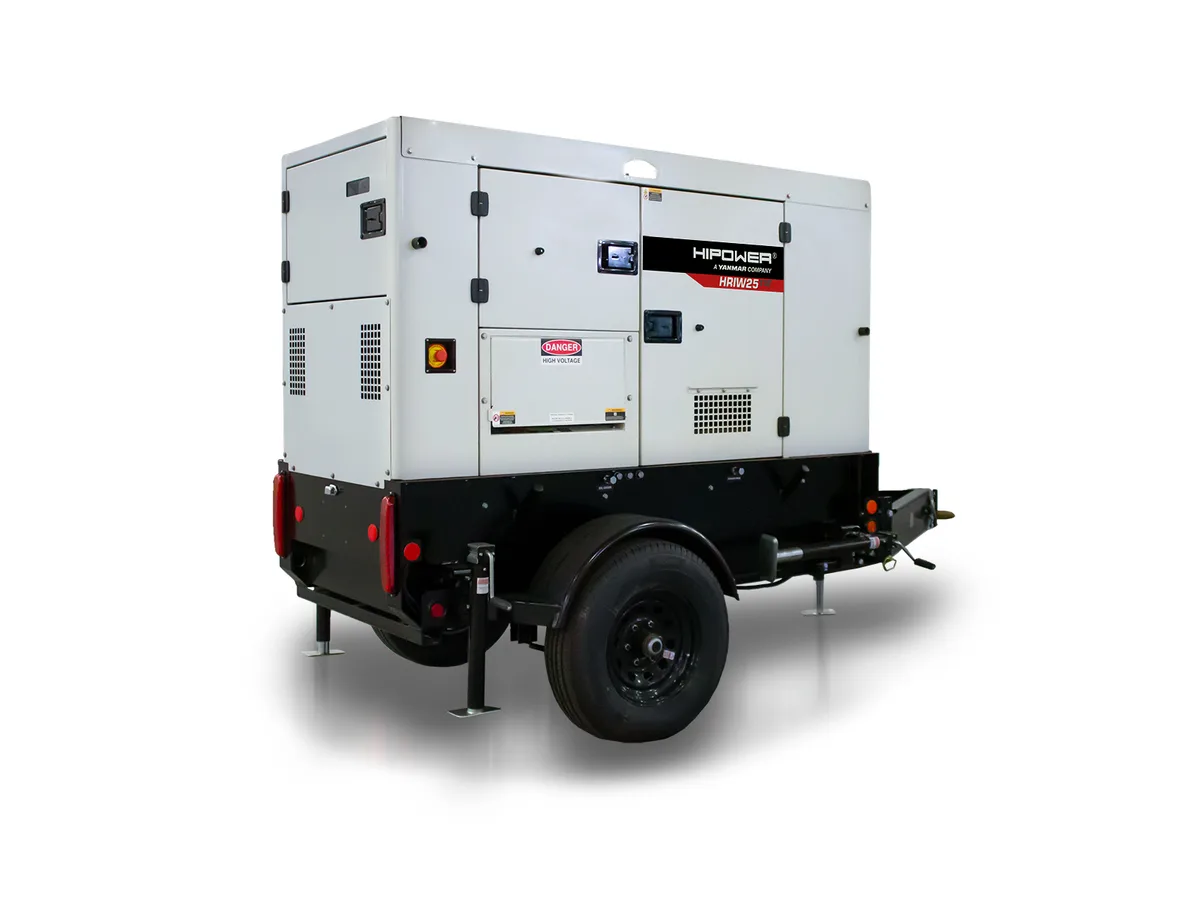

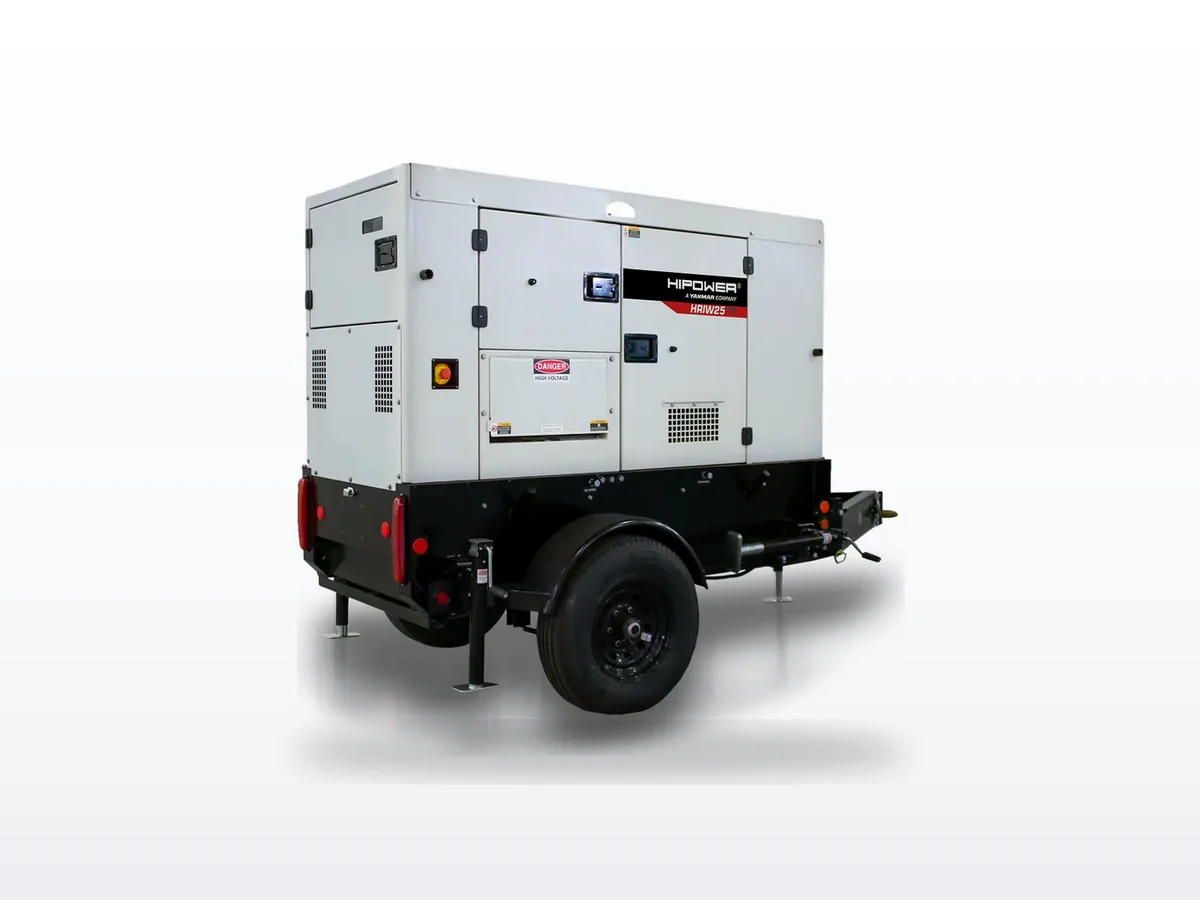

Hipower Systems Hipower HRIW-25 22 kW liquid-cooled standby generator
