Overview#

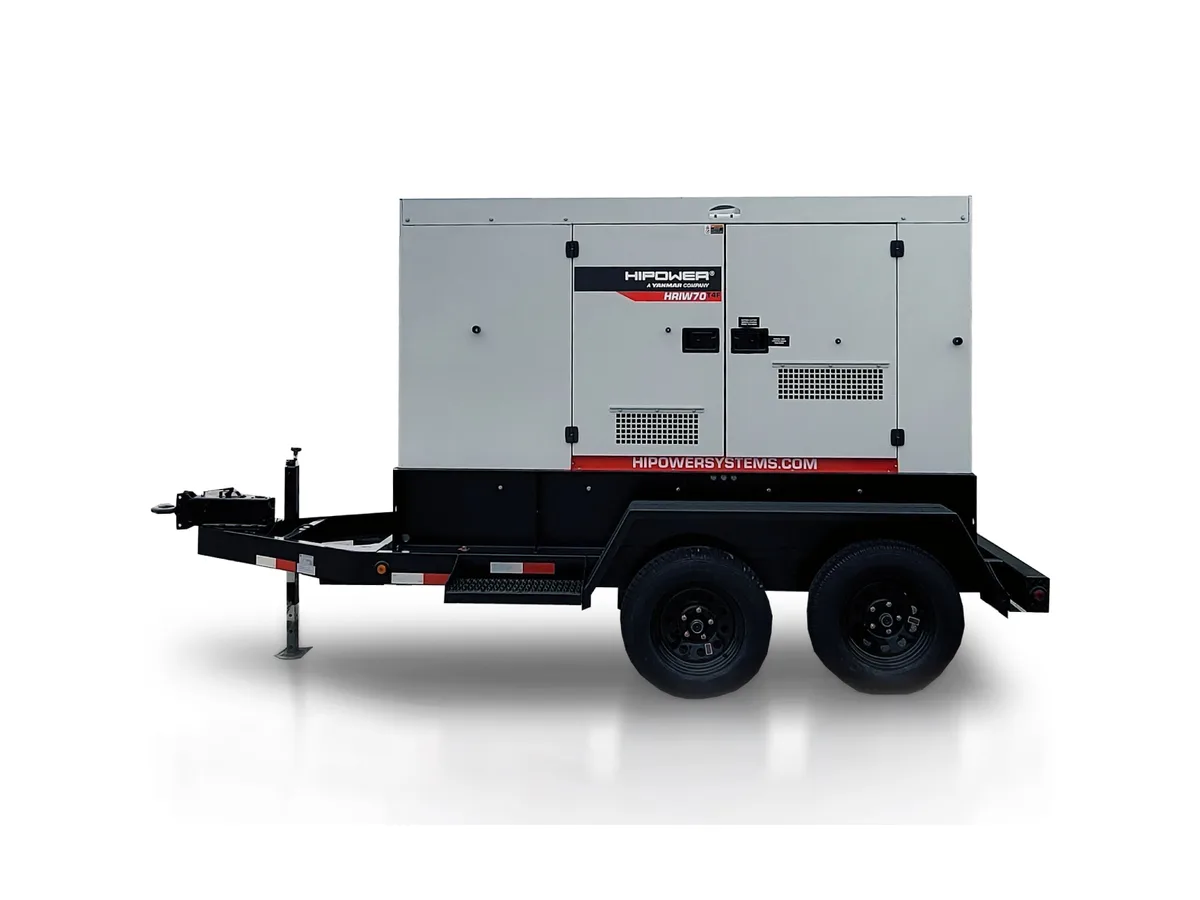

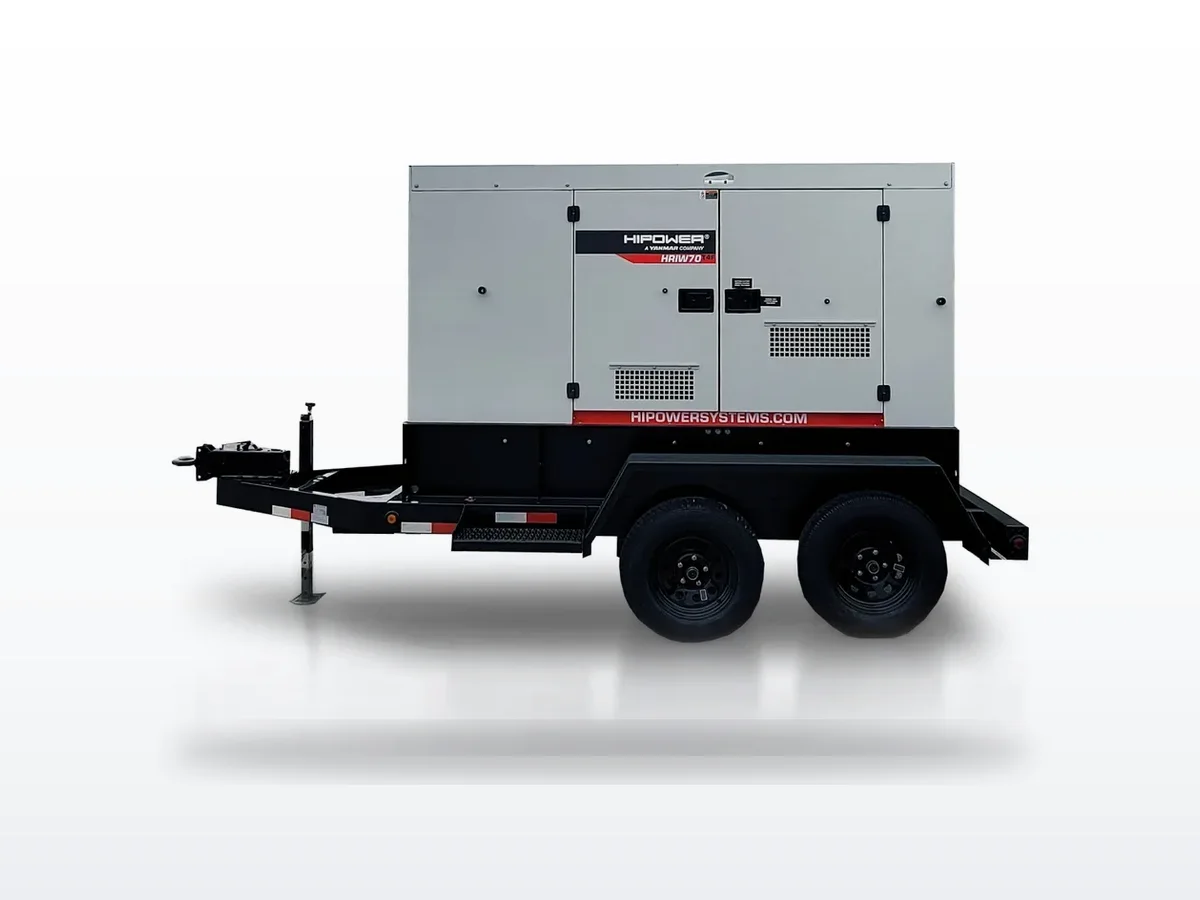

The Hipower HRIW-70 T4F is a 70 kVA (62 kW standby / 56 kW prime) trailer-mounted mobile diesel generator and the largest unit in Hipower's compact HRIW Isuzu-powered mobile series. It bridges the gap between the light compact units and the heavier FPT-powered HRFW series — delivering meaningful construction-grade capacity in a trailer that can still be towed by a standard full-size pickup truck. EPA Tier 4 Final certified for California job site use.
Manufactured at Hipower's Olathe, Kansas facility, the HRIW-70 produces three-phase 480V output alongside single-phase and 208V options, covering the full range of temporary power connections found on commercial construction and light industrial sites. The Isuzu diesel engine platform provides reliable operation with parts and service support available throughout Northern California.
Engine Platform#
The HRIW-70 uses an Isuzu diesel engine from the 4-cylinder industrial lineup — a liquid-cooled turbocharged unit sized for the 62 kW output class. At this rating, the Isuzu engine operates well within its design envelope at 1,800 RPM, contributing to long service life in the high-cycle rental environment. Isuzu's engine dealer network covers every major Northern California market — Bay Area, Sacramento, Fresno, Stockton, Redding — making parts sourcing straightforward for fleet operators and independent rental companies alike.
The Isuzu platform at this displacement class is a workhorse in generator applications globally, with decades of field reliability data from construction, industrial, and telecommunications backup installations. Rental technicians familiar with Isuzu engines will find the HRIW-70 maintenance straightforward.
Built for Rental Deployment#
At 62 kW standby, the HRIW-70 is the largest trailer generator that most rental operators can dispatch with a standard pickup truck — a practical advantage for urban Bay Area job sites with limited staging area. Key features:
- DOT-compliant trailer with surge brakes and full highway lighting for legal road towing
- Multi-voltage output panel — 120/240V single-phase, 208V and 480V three-phase — for broad site compatibility
- Lockable weatherproof enclosure suitable for outdoor storage between rental cycles
- Integral fuel tank for full-shift operation without refueling
- EPA Tier 4 Final compliance — approved for California CARB regulated job sites without permits or variances
Common deployments at this size class include: full power for large residential renovation projects during panel upgrades, temporary three-phase service for commercial tenant improvements, outdoor festival stages with full lighting and audio, and backup power for medical office buildings during utility maintenance.
Service & Maintenance#
Rental fleet intervals are set tighter than OEM stationary schedules to account for the variable fuel quality, outdoor storage, and transport vibration inherent in rental deployment:
- Oil and oil filter: Every 250 hours or 6 months, whichever comes first
- Fuel filter: Every 250 hours — water contamination from portable fueling is the most common cause of fuel system service calls on rental units
- Air filter: Every 500 hours or at restriction indicator
- Major overhaul inspection: At 15,000 hours
Pre-deployment inspection checklist:
- Verify Isuzu oil level — top off if below full mark
- Drain fuel filter water separator; confirm no discoloration
- Load-test starting battery at actual cranking amperage
- Grease trailer coupler and ball hitch; check safety chains and breakaway cable
- Test all DOT lighting — running, brake, and turn
- Confirm enclosure latches lock; check door seals for cracking
- Run at 25% load minimum 10 minutes; verify no fault codes before dispatch
Our Service Experience#
OnPoint Generators deploys HRIW-70 units across the Bay Area and Central Valley for construction contractors, event production firms, and property managers requiring 60–70 kW of portable diesel power. Isuzu dealer coverage throughout NorCal keeps emergency parts lead times short — in most cases same-day or next-morning. Our service team handles Isuzu engine maintenance and Stamford alternator service in-house, supporting rapid turnaround between rental cycles.
