Overview#

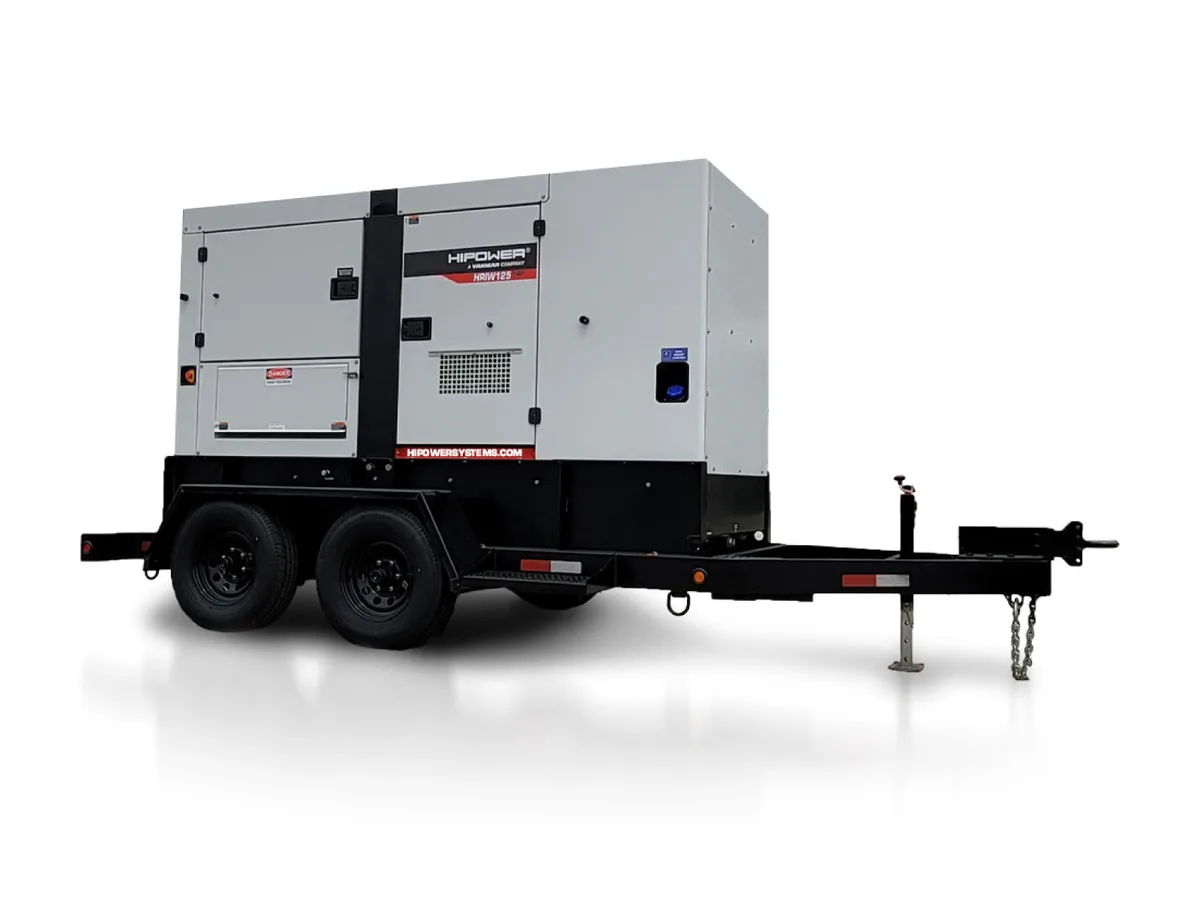

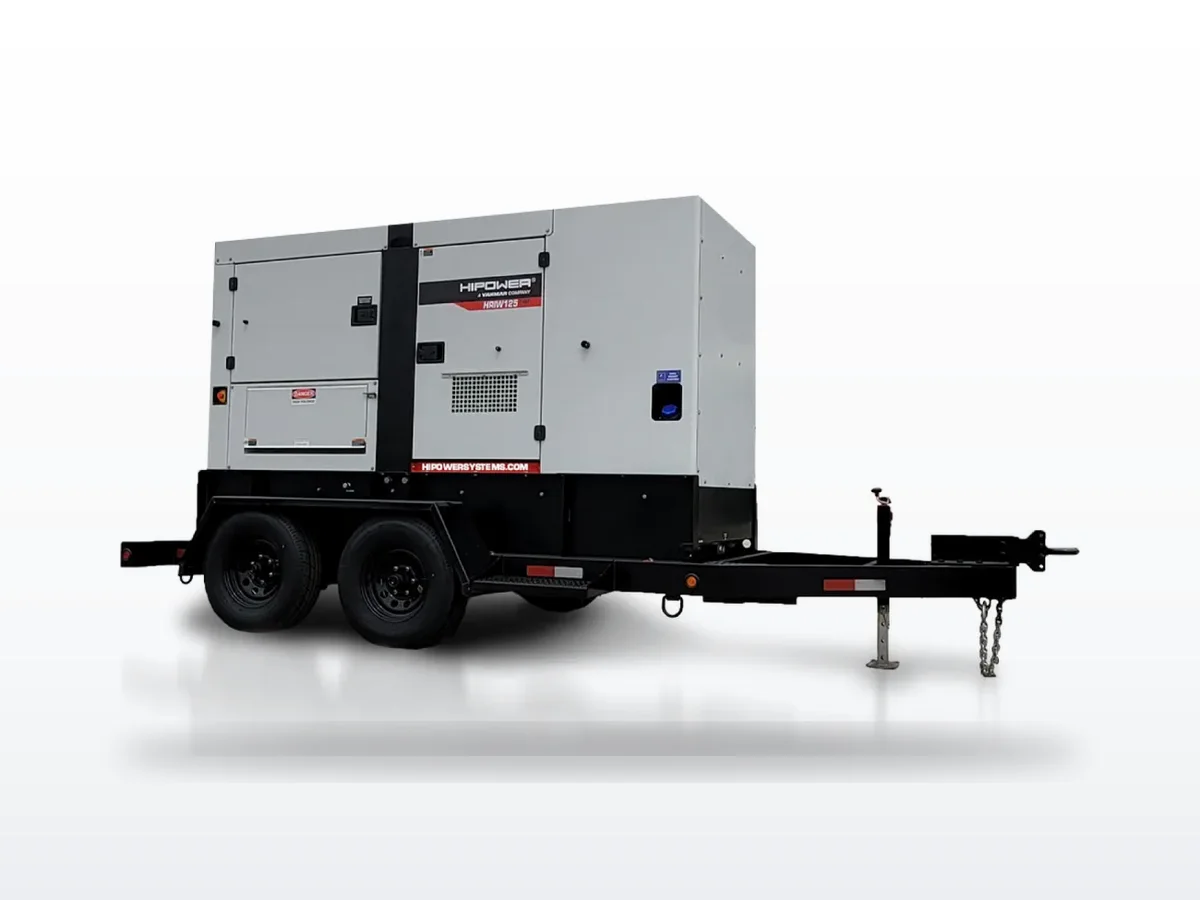

The Hipower HRIW-125 T4F is a 125 kVA (110 kW standby / 100 kW prime) trailer-mounted mobile diesel generator powered by an Isuzu 4HK1 series diesel engine — a 5.2-liter four-cylinder turbocharged unit well established in heavy construction equipment and generator applications across North America. The HRIW-125 is the top-rated unit in the HRIW Isuzu-powered mobile series, delivering substantial construction-grade power in a trailer-mobile format. EPA Tier 4 Final certified for California job site deployment.
Manufactured at Hipower's Olathe, Kansas facility, the HRIW-125 provides 277/480V three-phase output alongside 120/240V single-phase and 208V options, covering the full range of commercial and light-industrial temporary power needs. The Isuzu 4HK1 family is the same engine series used in the ECHO class of Hipower generators and is widely recognized for reliability in high-utilization rental environments.
Engine Platform#
The Isuzu 4HK1 is a 5.2-liter inline four-cylinder turbocharged diesel used across a wide range of heavy equipment — Hitachi and John Deere excavators, Isuzu NPR/NQR medium-duty trucks, and generator sets from multiple OEMs. This ubiquity is a significant advantage for rental operators: the 4HK1 is one of the best-supported diesel engines in the heavy equipment parts ecosystem. Authorized Isuzu service dealers are located throughout the Bay Area, Sacramento, Fresno, Stockton, and Redding — with broad parts availability for oil filters, fuel filters, injectors, and turbocharger components.
At 1,800 RPM in a generator application, the 4HK1 runs conservatively within its rated power envelope, supporting long engine life and predictable service intervals. The engine's established service history across construction equipment and trucks means most diesel technicians in Northern California have hands-on familiarity with its maintenance requirements.
Built for Rental Deployment#
The HRIW-125 trailer package combines the Isuzu 4HK1 engine's reliability with the rental-optimized enclosure and power panel design of the HRIW series:
- DOT-compliant trailer with surge brakes for highway towing behind a heavy-duty pickup or light commercial vehicle
- Multi-voltage output panel — 120/240V single-phase, 208V three-phase, and 277/480V three-phase — for broad compatibility with temporary power distribution equipment
- Lockable weatherproof enclosure protecting engine, alternator, and controls during outdoor storage and inter-site transport
- Integral fuel tank supporting full-shift operation
- EPA Tier 4 Final compliance for legal California CARB job site use — no variance permits required
The 110 kW class is a high-utilization rental size in the Bay Area construction market — large enough for full temporary service to a commercial tenant improvement project or hospital wing renovation, while still trailer-mobile for repositioning across a phased construction site.
Service & Maintenance#
The 4HK1 engine's established maintenance schedule is well-understood by fleet operators. Rental intervals are set tighter than OEM stationary schedules:
- Oil and oil filter: Every 250 hours or 6 months, whichever comes first
- Fuel filter: Every 250 hours — field fueling with portable tanks introduces water and particulate contamination that clogs fuel systems prematurely
- Air filter: Every 500 hours or when restriction indicator trips
- Major overhaul inspection: At 15,000 hours
Pre-deployment inspection checklist:
- Check Isuzu 4HK1 oil level; inspect for coolant contamination (milky appearance)
- Drain water separator; replace fuel filter at 250-hour mark
- Load-test starting battery — 4HK1 starting draw is higher than smaller Isuzu units
- Inspect and grease trailer coupler; check safety chain hardware
- Verify all DOT lighting operational
- Confirm all enclosure latches lock; inspect weatherstripping
- Run at 50% load for 15 minutes before dispatch — verify stable voltage and no fault codes
Our Service Experience#
OnPoint Generators deploys HRIW-125 units throughout the Bay Area and Northern California for commercial construction contractors, industrial maintenance operations, and large outdoor event productions requiring 100–110 kW of portable diesel power. The Isuzu 4HK1's widespread use in construction equipment means our technicians — and Isuzu-authorized dealers across NorCal — are well-equipped to support fast field service. We stock common 4HK1 wear items in-house to minimize rental downtime between deployment cycles.
