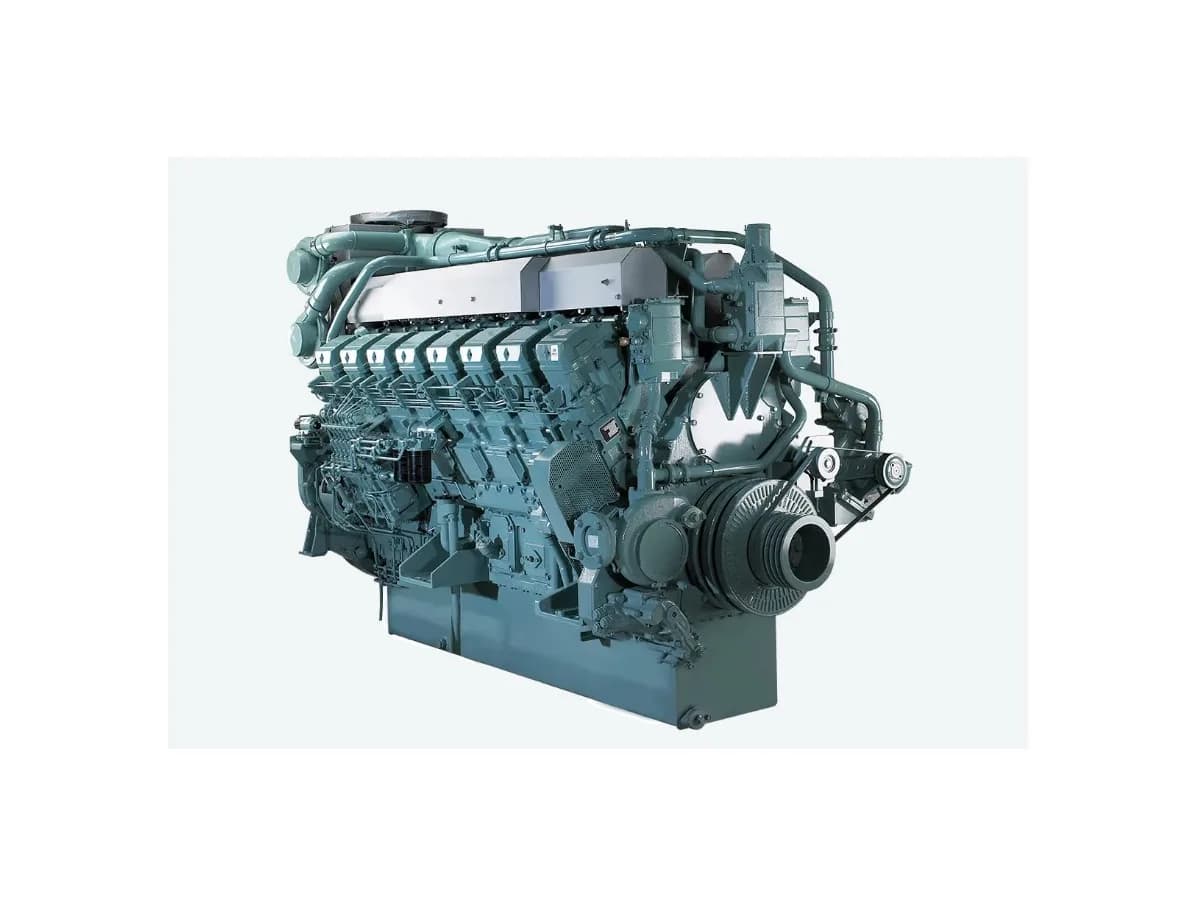

The Gillette SPMI-2M is a 2,000-kilowatt (2 MW) stationary diesel standby generator — Gillette's largest unit across all fuel types. It uses the Mitsubishi S16R V16 at the same 65.37L displacement as the SPMI-1.5M but in a high-output calibration producing 2,923 bhp. Stamford AVK S7L1DG alternator with PMG excitation, DSE 7420 MKII with UL 6200.
At 2 MW, this is the upper boundary of single-engine standby generators: large data centers, major hospital complexes, and industrial facilities where a single generator provides building-wide backup or serves as a paralleling module.
Same footprint, same engine block, 33% more output through lower compression and higher boost. For data centers specifying N+1 paralleled generator systems, the SPMI-2M provides the maximum single-unit capacity, reducing the total number of units required.
The SPMI-2M is a critical infrastructure asset. We service units at this scale under formal maintenance contracts with defined SLAs: semi-annual full-load testing, quarterly fuel system service, monthly exercising, and 24/7 remote monitoring. Fuel quality management at 155 gal/hr consumption requires professional fuel testing and polishing — this is not a DIY maintenance item. The V16 with 16-cylinder dual injection requires multi-day service windows for comprehensive fuel system maintenance.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
1.7 hours(0.1 days)
Fuel consumption ≈ 119.57 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Gillette SPMI-2M under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Turbocharger(s)
Major power loss at full output
12,000+
severe
Fuel system (dual Mitsubishi PS8)
Injector fouling, unbalanced cylinder output
10,000+
severe
PMG excitation system
Voltage regulation failure under load
20,000+
severe
Frequently Asked Questions
Is the SPMI-2M the same engine as the SPMI-1.5M?
Yes — both use the Mitsubishi S16R V16 at 65.37L. The SPMI-2M uses the Y2PTAW2-1 high-output variant (14.0:1 compression) vs. the Y2PTAW-1 (14.5:1 compression) in the SPMI-1.5M. The lower compression ratio with higher boost produces 2,923 bhp vs. 2,346 bhp — 500 kW more output from the same displacement.
What is the fuel consumption at 2 MW?
155 gal/hr at full load. At 75%: 115 gal/hr. At 50%: 79.2 gal/hr. A 10,000-gallon tank at 75% load provides approximately 87 hours of runtime. Most data center specifications require 48-72 hours of on-site fuel autonomy at N+1.
Is the SPMI-2M the largest generator Gillette makes?
Yes — the SPMI-2M at 2,000 kW (2 MW) is Gillette's largest standby generator across all fuel types. It represents the maximum output of the Mitsubishi S16R V16 platform. Larger installations require paralleling multiple units.
How does this compare to Caterpillar or Cummins at 2 MW?
The SPMI-2M competes with Cat's 3516C and Cummins' QSK60 at similar output. Gillette's advantage: open-architecture components (DSE controller, Stamford alternator) with no proprietary dealer dependency. Caterpillar and Cummins have stronger local service networks for 2 MW class units.

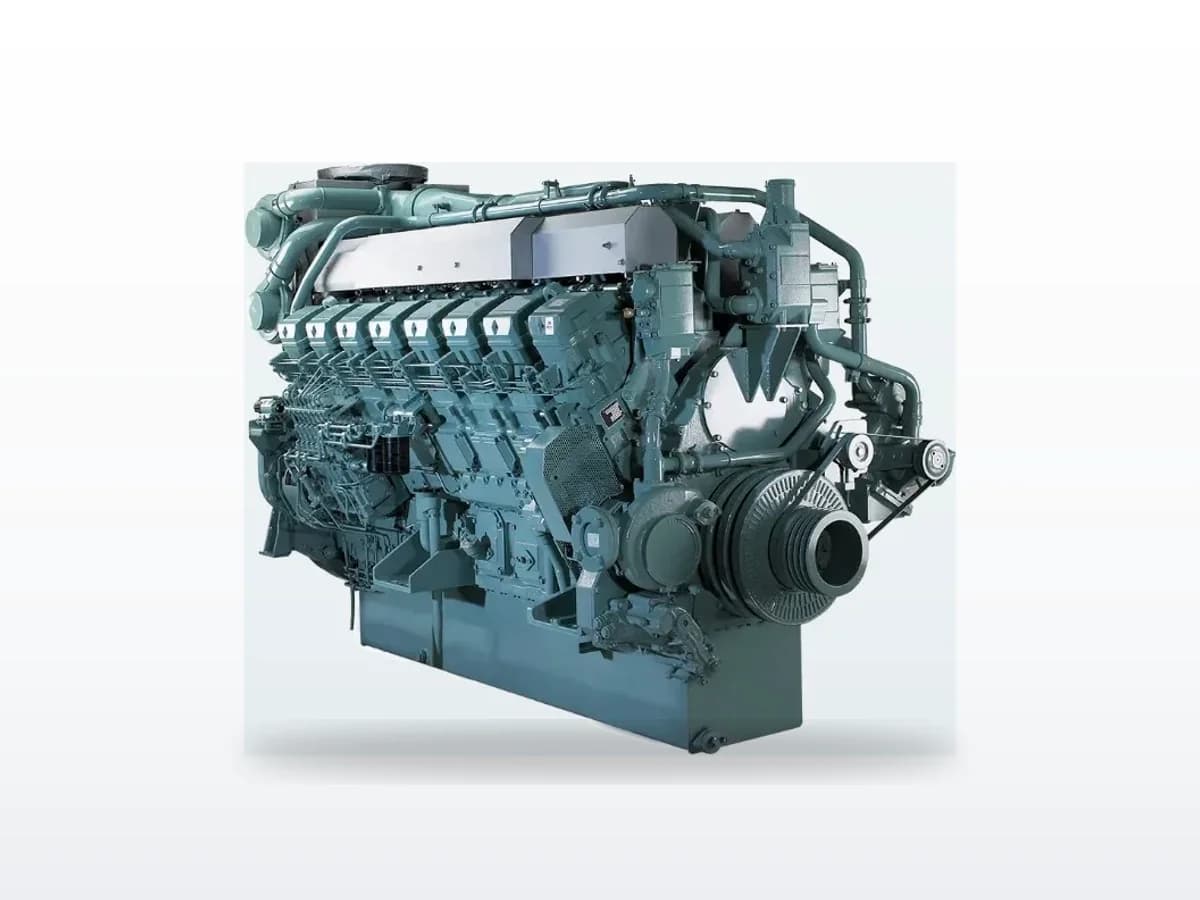

1,500 kW stationary diesel standby generator with Mitsubishi S16R V16 engine. 65.37L displacement, Stamford AVK S7L1D alternator, PMG excitation. Made in USA.
Tier 23-phasedata-centerhospital
Kohler
New

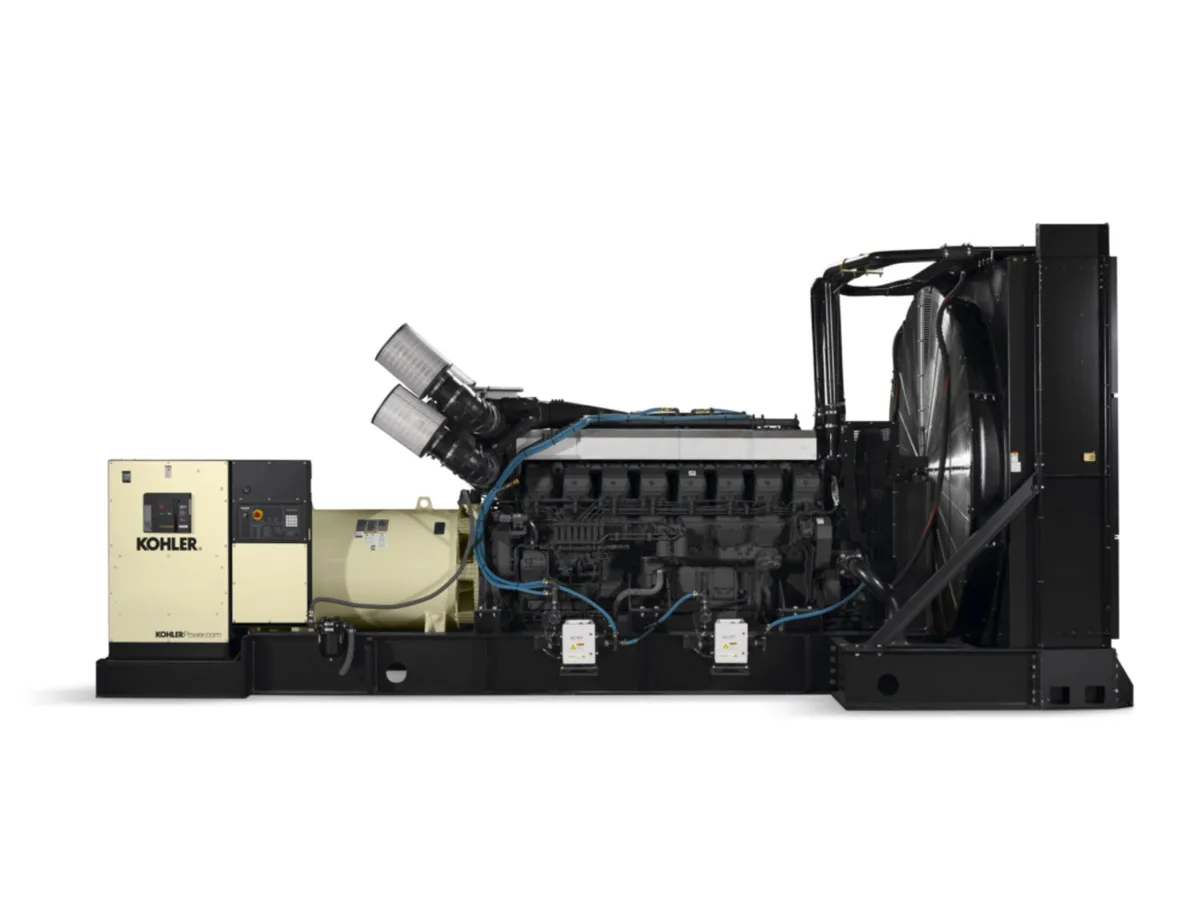

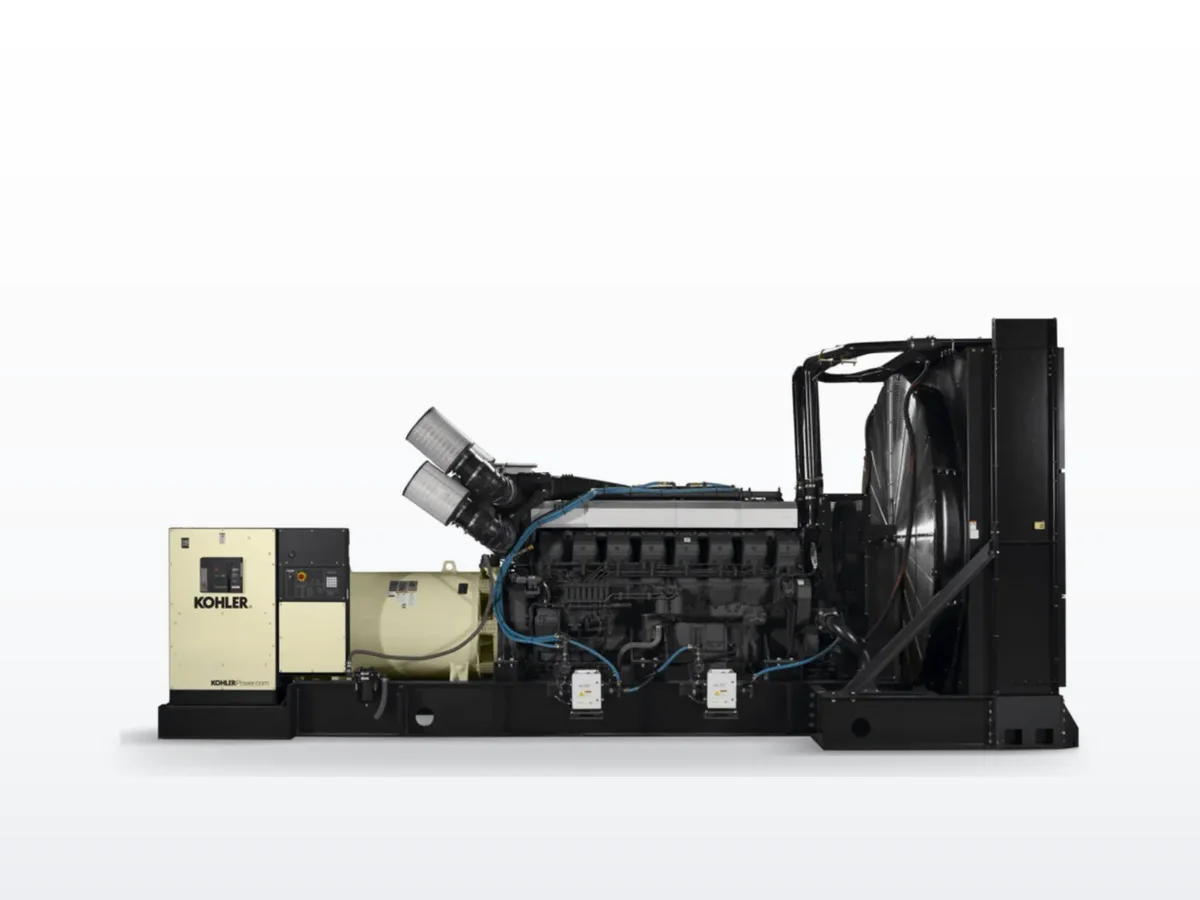

Kohler 2000REOZMD
2 MW standby · Diesel · Liquid-cooled
2000 kW diesel industrial generator powered by Mitsubishi. Mission-critical standby for data centers, hospitals, and large commercial facilities.
Tier 23-phasedata-centerhealthcare
B
Blue Star Power Systems
New
Blue Star MD2000-01
2 MW standby · Diesel · Liquid-cooled
2000 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Mitsubishi S16R-Y2PTAW2-1 65.4L V16 engine, Stamford S7L1D alternator, DSE DCP7310 controller. Three-phase, 208–4160V.
Tier 23-phaseindustrialmunicipal
C
Cummins
New
Cummins QSK60
2 MW standby · Diesel · Liquid-cooled
2000 kW diesel standby generator. The data center industry standard — V-16, 60.2L, Tier 2. Cummins' flagship for mission-critical power.
Tier 23-phasedata-centerhospital
Kohler
New

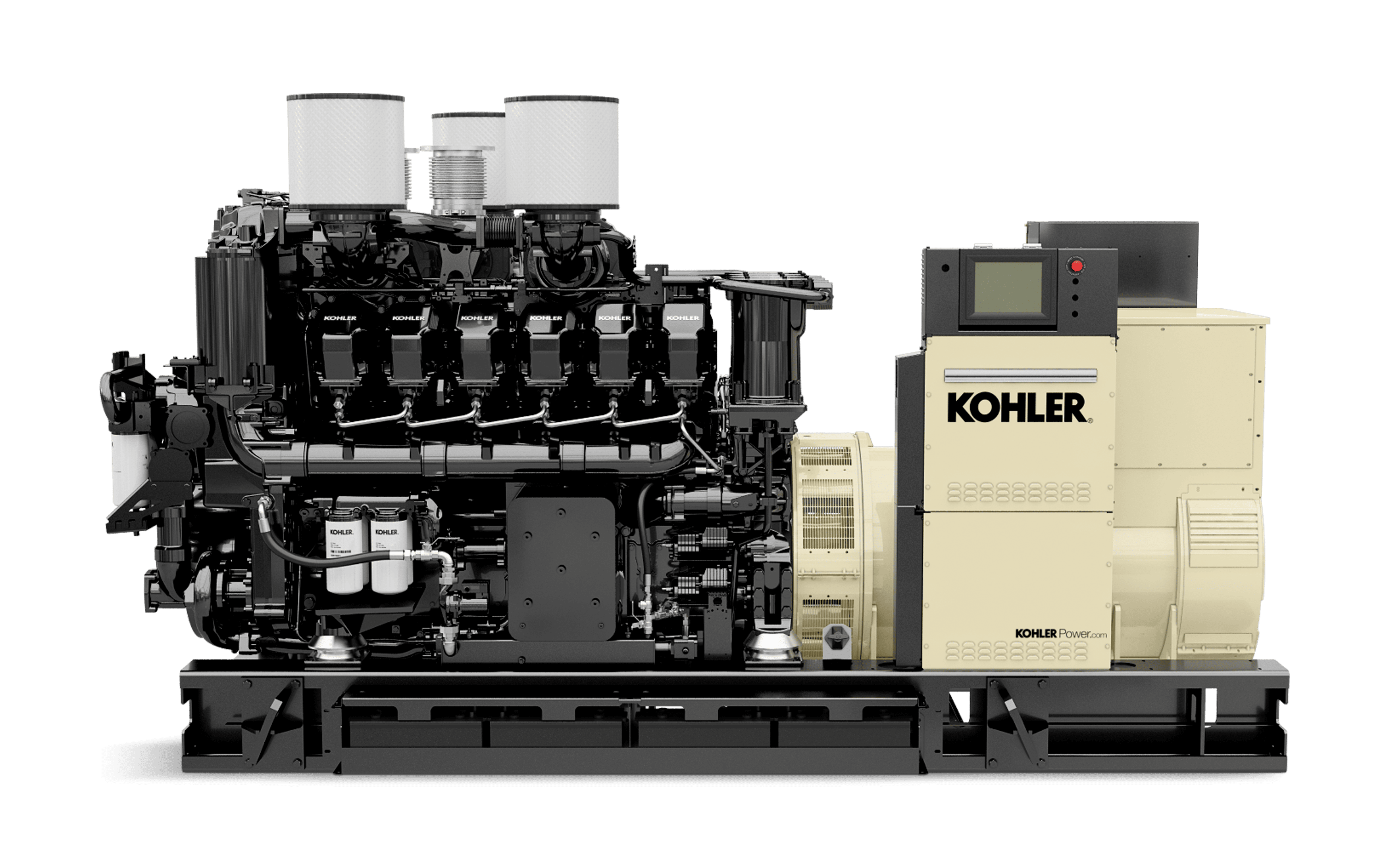

Kohler KD2000
