The Gillette SPJD-1000 is a 100-kilowatt stationary diesel standby generator on John Deere's 4045HF285 turbocharged 4.5L inline-4. It uses the same engine family as the 60 kW SPJD-600 but adds charge air cooling for 67% more output from the same displacement. Stamford UCI274D alternator, DSE 7420 MKII controller.
This is the same John Deere 4045 platform that powers Kohler's REOZ generators at similar kW ratings — the most widely deployed diesel engine in the 60-100 kW commercial generator market.
John Deere 4045 commonality — the industry's most familiar diesel platform#
The John Deere 4045 family is arguably the most common diesel engine in the 60-125 kW standby generator market. We service this same engine across:
Kohler REOZ series — the largest single deployment of JD 4045 in generators
Gillette SPJD series — open-architecture alternative to Kohler
Blue Star JD series — another assembler using the same platform
Various other OEMs who package JD 4045 into generator sets
This means parts are universally available, any diesel technician knows the engine, and service procedures transfer across brands. For fleet operators, this platform commonality reduces training and inventory costs.
Standard air intake heaters — a practical advantage#
John Deere includes 12V DC air intake heaters as standard on the 4045HF285 — not an option, not an accessory. For installations in Northern California foothills, mountain communities, and other locations with winter morning temperatures below 40°F, this provides more reliable cold starts without requiring a supplemental cold-weather package. The DSE 7420 MKII monitors intake heater operation as part of its pre-crank sequence.
The John Deere 4045 at 100 kW is the diesel engine we service most frequently in our territory — we encounter it across multiple generator brands. The Stanadyne rotary fuel injection is forgiving and reliable when fuel quality is maintained. We recommend annual fuel tank cleaning and fuel polishing for standby units, quarterly battery load testing, and 500-hour oil service intervals. The DSE 7420 MKII controller's 250-event log is invaluable for diagnosing intermittent start failures during outage post-mortems.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
32.8 hours(1.4 days)
Fuel consumption ≈ 6.09 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Gillette SPJD-1000 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / tank contamination
Hard starting, filter clogging, injector fouling
4,380+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Coolant hoses
Slow coolant loss, weeping at clamps
8,000+
minor
Frequently Asked Questions
How does the SPJD-1000 relate to the SPJD-600?
Both use John Deere's 4045 engine family (4.5L inline-4). The SPJD-600 uses the 4045T (turbocharged only) at 60 kW. The SPJD-1000 uses the 4045HF285 (turbocharged with charge air cooling) at 100 kW — same displacement, 67% more output through intercooling. This is the same relationship as the Perkins SPD-600/SPD-1000 pairing.
Is this the same John Deere 4045 platform used in Kohler generators?
Yes — the John Deere 4045 family powers Kohler's REOZ series at similar kW ratings. The SPJD-1000 uses the same engine family, meaning parts availability, service documentation, and technician familiarity transfer directly from Kohler REOZ experience. In our territory, this is the most widely deployed diesel engine platform at 60-100 kW.
What does '12 VDC air intake heaters (standard)' mean?
John Deere includes electric air intake heaters as standard equipment on the 4045HF285 — they preheat intake air during cold-start conditions to improve compression ignition. This is a useful feature for Northern California foothill and mountain installations where winter morning temperatures can be low.
How does the SPJD-1000 compare to the SPD-1000 (Perkins)?
The SPJD-1000 (JD 4045HF285, 4.5L) and SPD-1000 (Perkins 1104D-E44TAG2, 4.4L) are close competitors at 100 kW. Weight: SPJD is lighter (2,424 vs 2,330 lbs). Fuel: SPJD uses 7.9 gal/hr vs 7.56 gal/hr (Perkins slightly more efficient). The main differentiator is dealer network — John Deere has stronger coverage in agricultural and construction markets.

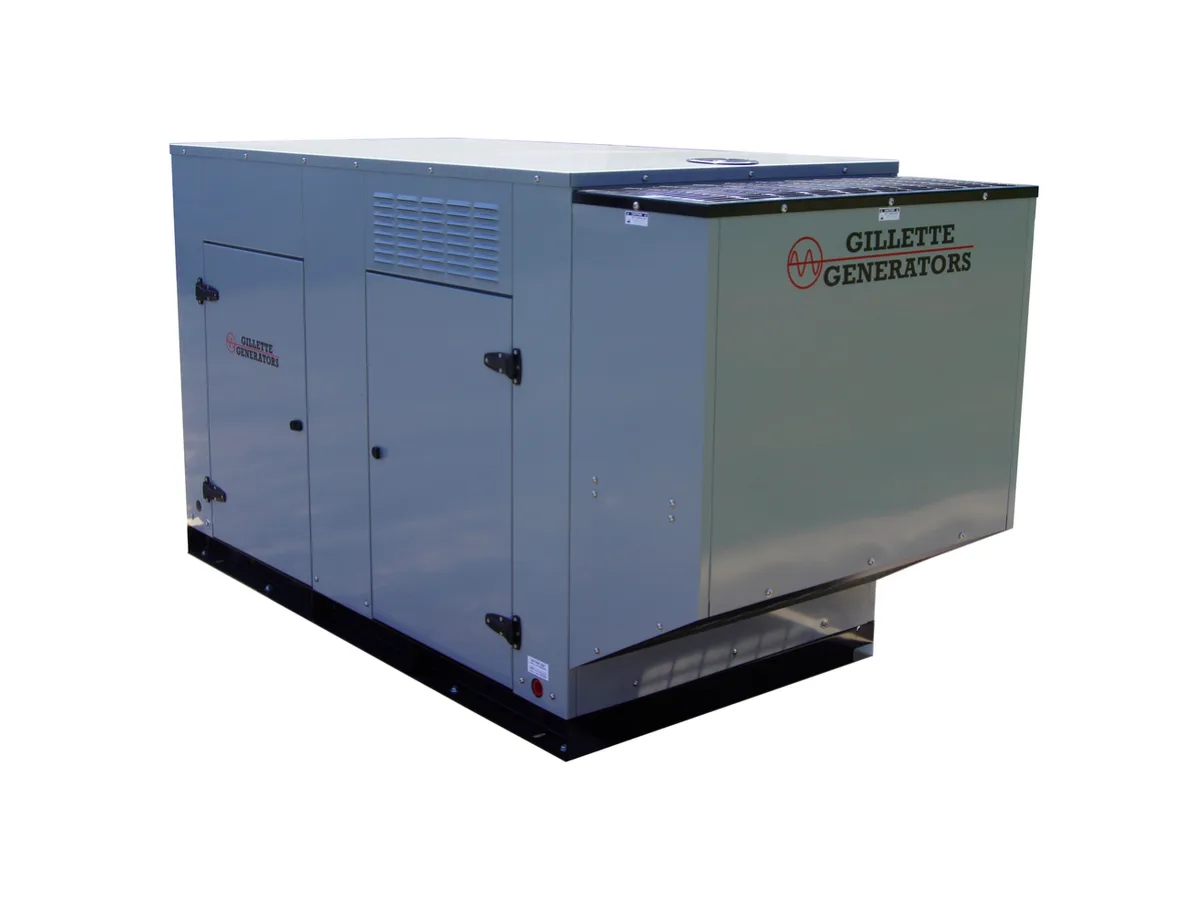

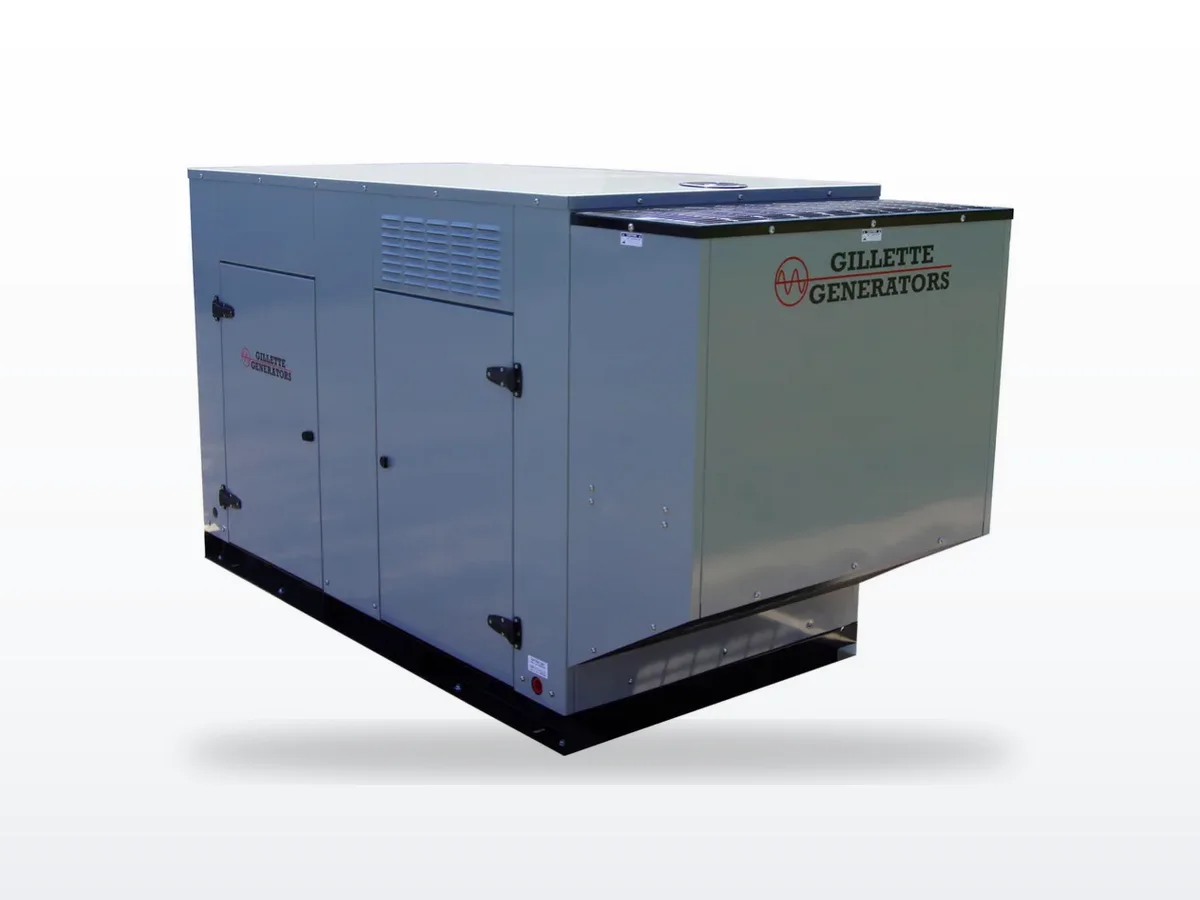

60 kW stationary diesel standby generator with John Deere engine. Made-in-USA commercial diesel unit with DSE controller and Stamford or Marathon alternator.
Tier 33-phasecommercialtelecom
G
Gillette
New

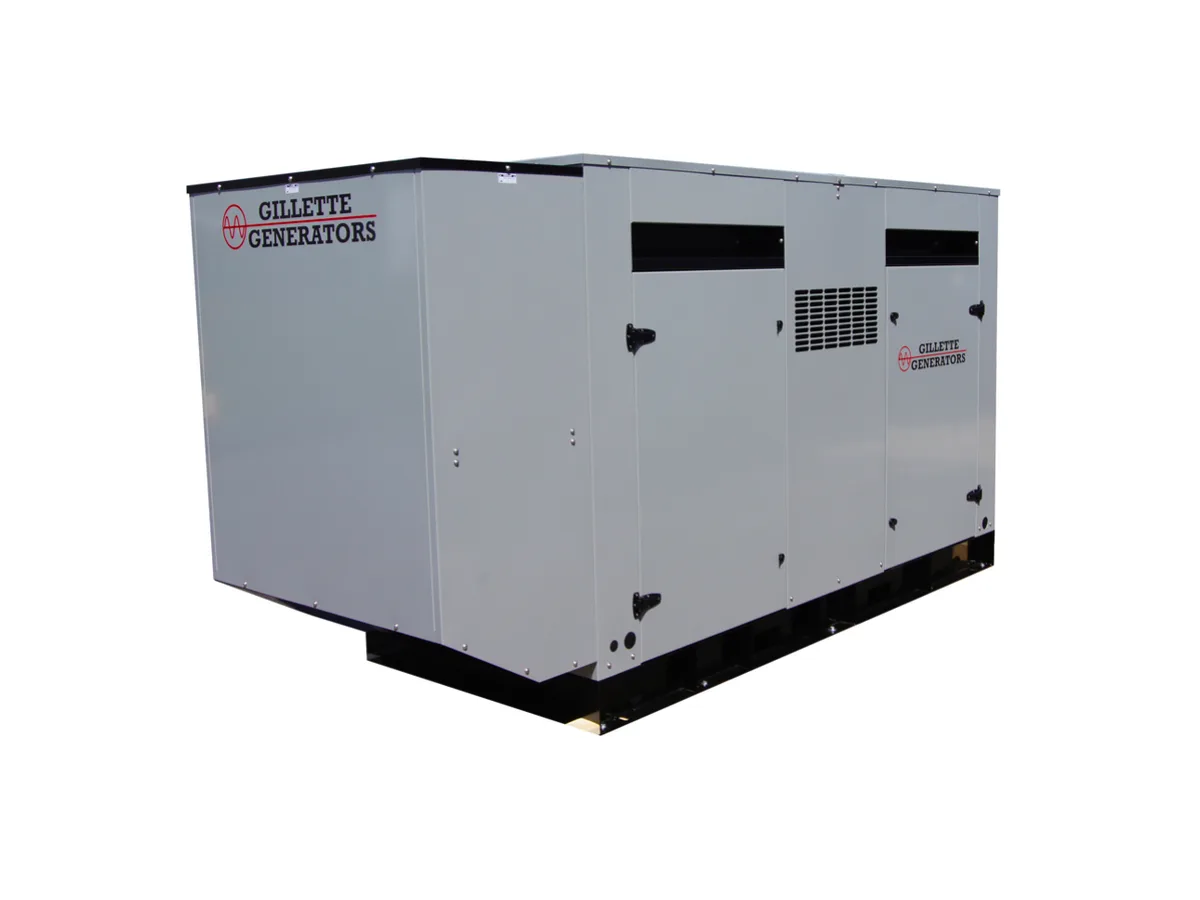

Gillette SPD-1000
100 kW standby · Diesel · Liquid-cooled
100 kW stationary diesel standby generator with Perkins 1104D-E44TAG2 engine. Made-in-USA with Stamford UCI274D alternator and DSE 7420 MKII controller.
Tier 33-phasecommercialtelecom
G
Gillette
New

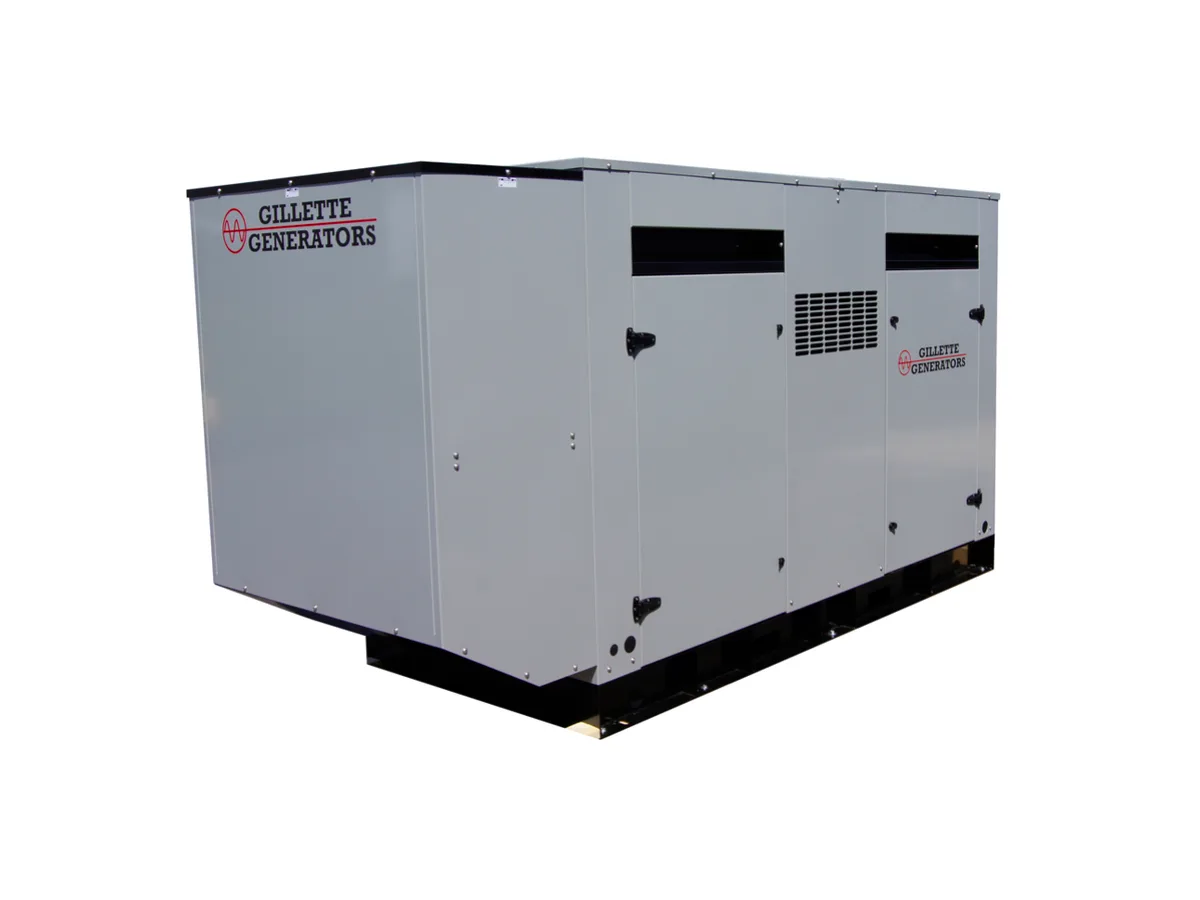

Gillette SPJD-1550
