Overview#

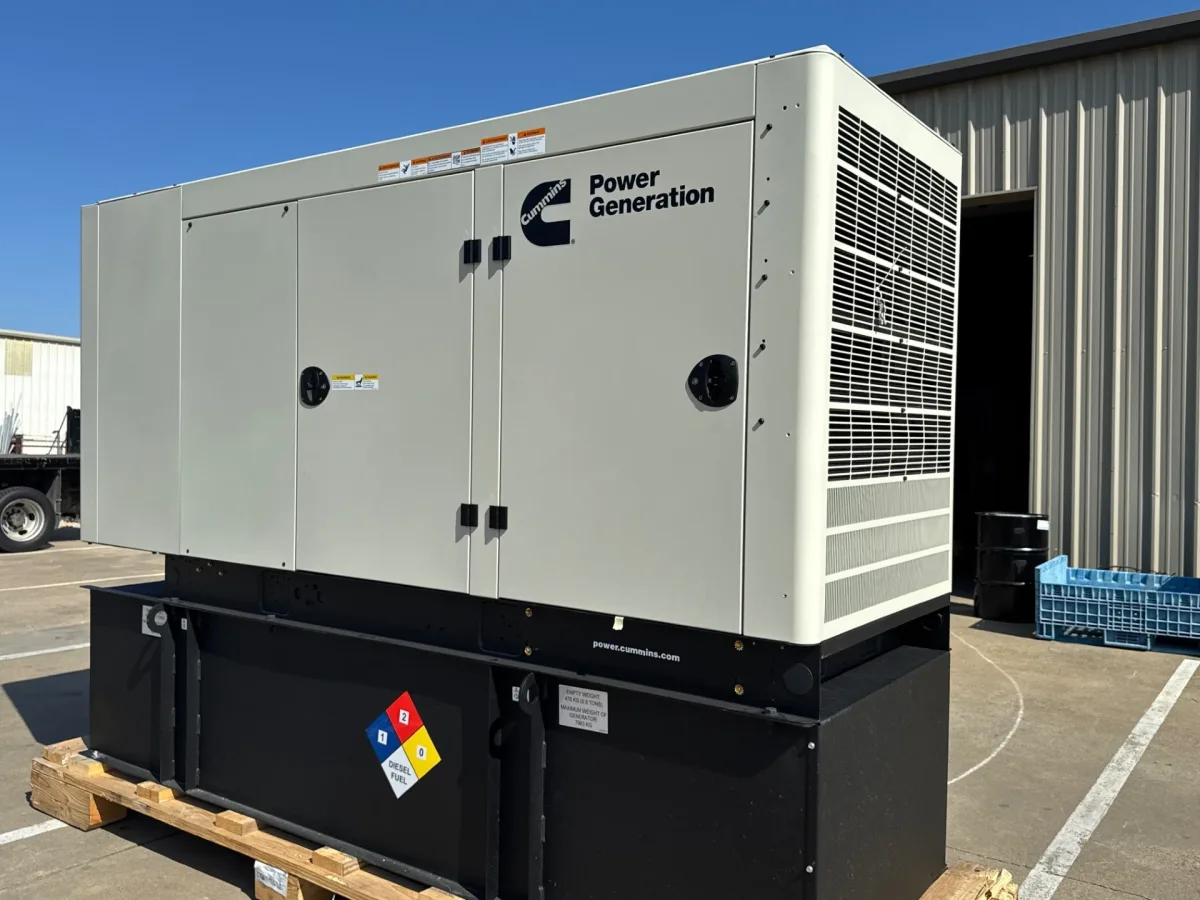

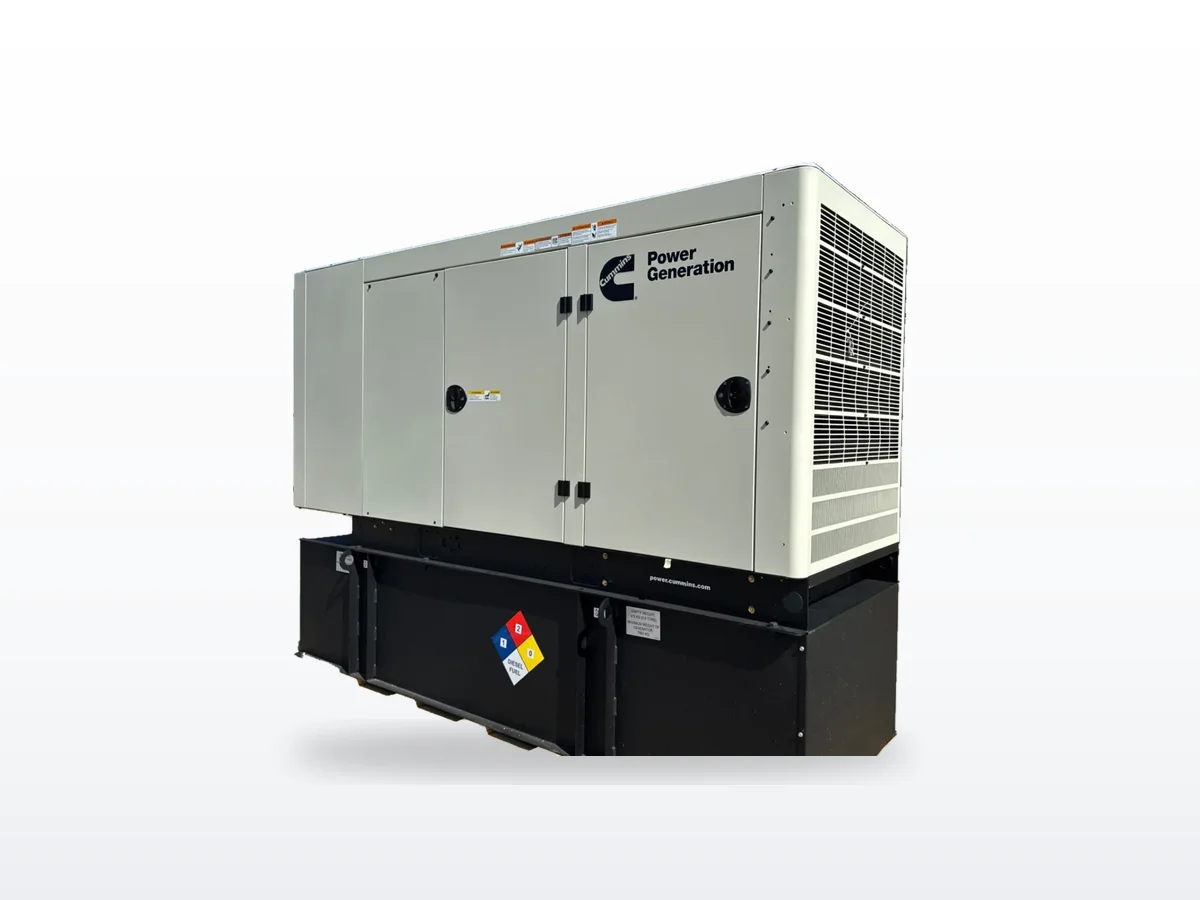

The Cummins C80 D6 (model designation C80D6C) is an 80 kW standby diesel generator set built on the QSB5-G13 engine platform — a 4.5-liter, 4-cylinder turbocharged and charge-air-cooled industrial diesel. Rated at 100 kVA standby and 90 kVA prime at 60 Hz, the C80D6C is designed for commercial and light-industrial standby applications where reliability and sound attenuation are priorities.
Cummins' QSB5 series specification sheet lists the PowerCommand 2.3 control with AmpSentry protective relay and a high-ambient radiator as standard; Cummins' 2025 North America rating card lists the PC 1.1 as the C80D6C's standard controller and the UC3E as its standard alternator, so confirm the controller when ordering. The standard cooling package provides reliable running at up to 50 °C (122 °F) ambient temperature. Cummins offers an aluminum sound-attenuated enclosure (Sound Level 1 or Level 2) designed to withstand 180 mph wind loads in accordance with ASCE 7-10. The generator set is available Listed to UL 2200, is certified to International Building Code (IBC) 2012, and is EPA Tier 3 certified.
The C80D6C accepts full rated load in a single step per NFPA 110 for Level 1 systems, and dual-wall sub-base fuel tanks are offered as optional features.
Technical Specifications#
Power Ratings (60 Hz, 1800 rpm)
| Rating | kW | kVA |
|---|---|---|
| Standby (ESP) | 80 | 100 |
| Prime (PRP) | 72 | 90 |
Engine — Cummins QSB5-G13
| Parameter | Value |
|---|---|
| Displacement | 4.5 L (272 in³) |
| Configuration | Cast iron, inline 4-cylinder |
| Bore x Stroke | 107 mm x 124 mm |
| Aspiration | Turbocharged and charge air cooled |
| Rated speed | 1800 rpm |
| Emissions | EPA Tier 3 |
| Starting voltage | 2x 12V in parallel, negative ground |
| Battery capacity | 850 amps per battery at 0°C (32°F) |
| Lube oil filter | Spin-on with relief valve |
Physical (Sound Level 1 enclosure)
| Dimension | Value |
|---|---|
| Length | 3016 mm (119 in) |
| Width | 1016 mm (40 in) |
| Height | 1473 mm (58 in) |
| Wet weight (average) | 1185 kg (2614 lbs) |
Control System — PowerCommand 2.3
The QSB5 series specification sheet lists PowerCommand 2.3 as standard, providing integrated voltage regulation, engine protection, AmpSentry protective relay, a PCCNet RS485 interface, and a 320 x 240 pixel graphic LED backlight LCD. (The 2025 rating card lists the PC 1.1 as the C80D6C's standard controller.) AmpSentry protective relay functions include overcurrent warning and shutdown, over/under voltage, over/under frequency, field overload, reverse kW and VAR shutdown, and short circuit protection. Digital voltage regulation uses 3-phase line-to-line sensing with configurable torque matching.
Alternator
| Parameter | Value |
|---|---|
| Design | Brushless, 4-pole, drip-proof, revolving field |
| Stator winding | 2/3 pitch |
| Rotor | Direct coupled, flexible disc |
| Insulation | Class H per NEMA MG1-1.65 |
| Temperature rise | 120°C standby |
| THD voltage | < 5% no load to full linear load |
| Excitation | Torque match (shunt); PMG optional |
Our Service Experience#
On these units we pay close attention to the turbocharger and charge air cooler. Battery condition is the other routine concern: the PowerCommand 2.3 control provides battery monitoring and testing features, and weak-battery warnings should not be deferred. Cummins' InPower PC-based service tool provides detailed diagnostics, data logging and fault simulation.
Frequently Asked Questions#
What voltages does the C80 D6 support? The C80D6C alternator supports 120/240V single-phase and three-phase configurations including 120/208V, 120/240V, 277/480V, and 347/600V. A reconnectable full 1-phase output alternator is available as an option.
What is the emissions compliance status of the C80 D6? The C80D6C is EPA Tier 3 certified, and Cummins' specification sheet states that the engine is certified to U.S. EPA stationary emission regulation 40 CFR, Part 60.
Does the C80 D6 meet NFPA 110 requirements? Yes, per Cummins' QSB5 series specification sheet, the generator set accepts full rated load in a single step in accordance with NFPA 110 for Level 1 systems, and Cummins products bearing the Prototype Test Support (PTS) symbol meet the prototype test requirements of NFPA 110 for Level 1 systems.
What is the warranty on the C80D6C? Base warranty is 2 years / 400 hours for standby applications, or 1 year / unlimited hours for prime power. Three-year and five-year standby warranty options are offered.#
FAQ#
What is the standby rating of the Cummins C80 D6?#
The Cummins C80 D6 (model C80D6C) is rated at 80 kW standby / 100 kVA at 60 Hz, 1800 rpm. Prime rating is 72 kW / 90 kVA.
What engine does the Cummins C80 D6 use?#
The C80 D6 uses the Cummins QSB5-G13 — a 4.5-liter, inline-4-cylinder, turbocharged and charge-air-cooled diesel engine rated at 1800 rpm. It is EPA Tier 3 certified.
Is the Cummins C80 D6 EPA compliant?#
Yes. The C80D6C is EPA Tier 3 certified, and its engine is certified to U.S. EPA stationary emission regulation 40 CFR, Part 60.
What fuel type does the Cummins C80 D6 use?#
The C80 D6 runs on diesel fuel.
What is the warranty on the Cummins C80 D6?#
Base warranty is 2 years / 400 hours for standby applications, or 1 year / unlimited hours for prime power. Three-year and five-year standby warranty options are offered.
