Overview#

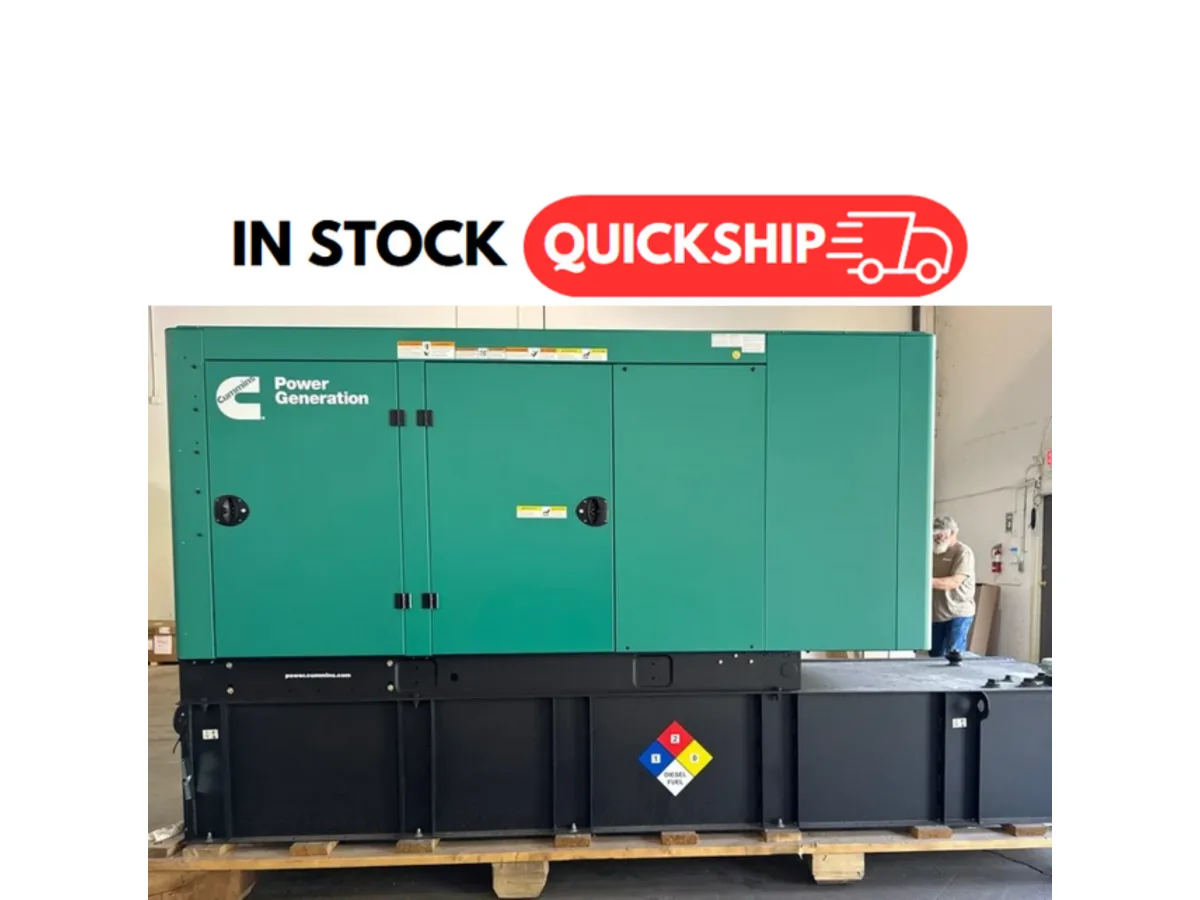

The Cummins C100 D6 (model designation C100D6C) is a 100 kW standby diesel generator set built on the QSB5-G13 engine — a 4.5-liter, 4-cylinder turbocharged and charge-air-cooled industrial diesel running at 1800 rpm. It is rated at 125 kVA standby and 113 kVA prime at 60 Hz.
Standard cooling is a high-ambient radiator providing reliable running at up to 50°C (122°F) ambient. The QSB5 series specification sheet lists PowerCommand 2.3 as standard; the 2025 North America rating card lists PC 1.1 as the standard controller for the C100D6C, so confirm the control fitted to a given unit. The optional aluminum enclosure (Sound Level 1 or Level 2) is designed to withstand 180 mph wind loads per ASCE 7-10. The generator set is available listed to UL 2200, low-voltage models are CSA certified to product class 4215-01, and the generator set is certified to IBC 2012. The engine is certified to U.S. EPA stationary emission regulation 40 CFR Part 60 (EPA Tier 3).
Dual-wall sub-base fuel tanks are offered as options. The C100D6C accepts full rated load in a single step per NFPA 110 for Level 1 systems.
Technical Specifications#
Power Ratings (60 Hz, 1800 rpm)
| Rating | kW | kVA |
|---|---|---|
| Standby (ESP) | 100 | 125 |
| Prime (PRP) | 90 | 113 |
Engine — Cummins QSB5-G13
| Parameter | Value |
|---|---|
| Displacement | 4.5 L (272 in³) |
| Configuration | Cast iron, inline 4-cylinder |
| Bore x Stroke | 107 mm x 124 mm |
| Aspiration | Turbocharged and charge air cooled |
| Rated speed | 1800 rpm |
| Emissions | EPA Tier 3 |
| Starting voltage | 2x 12V in parallel, negative ground |
| Battery capacity | 850 amps per battery at 0°C (32°F) |
| Battery charging alternator | 100 amps |
| Lube oil filter | Spin-on with relief valve |
Control System — PowerCommand 2.3
The QSB5 series specification sheet lists PowerCommand 2.3 as standard; the 2025 North America rating card lists PC 1.1 as the standard controller for the C100D6C, so confirm the control fitted to a given unit. PowerCommand 2.3 provides integrated voltage regulation, AmpSentry protective relay, PCCNet RS485 network interface, and a 320x240 graphic display. AmpSentry functions cover overcurrent warning and shutdown, over/under voltage, over/under frequency, field overload, reverse kW and VAR shutdown, and short circuit protection. Three-phase line-to-line digital voltage regulation with configurable torque matching is standard. InPower PC-based service tool supports detailed diagnostics and fault simulation.
Alternator
| Parameter | Value |
|---|---|
| Design | Brushless, 4-pole, drip-proof, revolving field |
| Stator winding | 2/3 pitch |
| Rotor | Direct coupled, flexible disc |
| Insulation | Class H per NEMA MG1-1.65 |
| Temperature rise | 120°C standby |
| THD voltage | < 5% no load to full linear load |
| Excitation | Torque match (shunt); PMG optional |
Our Service Experience#
The C100D6C runs the QSB5-G13, a compact and well-supported 4-cylinder engine. We pay close attention to intake temperatures and charge air cooler condition on these units. Any signs of coolant contamination in the intake manifold are an immediate shutdown event. The PowerCommand 2.3 control's AmpSentry relay is well-suited for motor-starting loads typical in commercial buildings, but the trip curves should be confirmed against the actual connected load profile during commissioning.
Frequently Asked Questions#
What is the difference between the C100 D6 and C100D6C? "C100 D6" is the name this page uses; "C100D6C" is the Cummins model number printed on the QSB5 series specification sheet and the 2025 North America rating card.
What control system does the C100 D6 use? The QSB5 series specification sheet lists PowerCommand 2.3 as standard, with AmpSentry protective relay, PCCNet RS485 interface, digital voltage regulation and compatibility with the InPower service tool; auxiliary configurable signal inputs (8) and relay outputs (8) are an option. The 2025 North America rating card lists PC 1.1 as the standard controller for the C100D6C, so confirm the control on a specific unit.
Does the C100D6C qualify for NFPA 110 Level 1 standby power? Yes. Per the Cummins QSB5 series specification sheet, the generator set accepts full rated load in a single step in accordance with NFPA 110 for Level 1 systems.
What is the operating temperature range? The standard cooling package provides reliable running at up to 50°C (122°F) ambient. Coolant heater options are offered for cold weather (below 4°C / 40°F) and extreme cold (below -18°C / 0°F).#
FAQ#
What is the standby rating of the Cummins C100 D6?#
The Cummins C100 D6 (model C100D6C) is rated at 100 kW standby / 125 kVA at 60 Hz, 1800 rpm. Prime rating is 90 kW / 113 kVA.
What engine does the Cummins C100 D6 use?#
The C100 D6 uses the Cummins QSB5-G13 — a 4.5-liter, inline-4-cylinder, turbocharged and charge-air-cooled diesel engine rated at 1800 rpm. It is EPA Tier 3 certified.
Is the Cummins C100 D6 EPA compliant?#
Yes. The engine is certified to U.S. EPA stationary emission regulation 40 CFR Part 60, and the specification sheet lists EPA Tier 3 emissions.
What fuel type does the Cummins C100 D6 use?#
The C100 D6 runs on diesel fuel.
What is the warranty on the Cummins C100 D6?#
The QSB5 series specification sheet lists a base warranty of 2 years / 400 hours for standby and 1 year / unlimited hours for prime, with 3-year and 5-year standby warranty options.
