Series Overview#

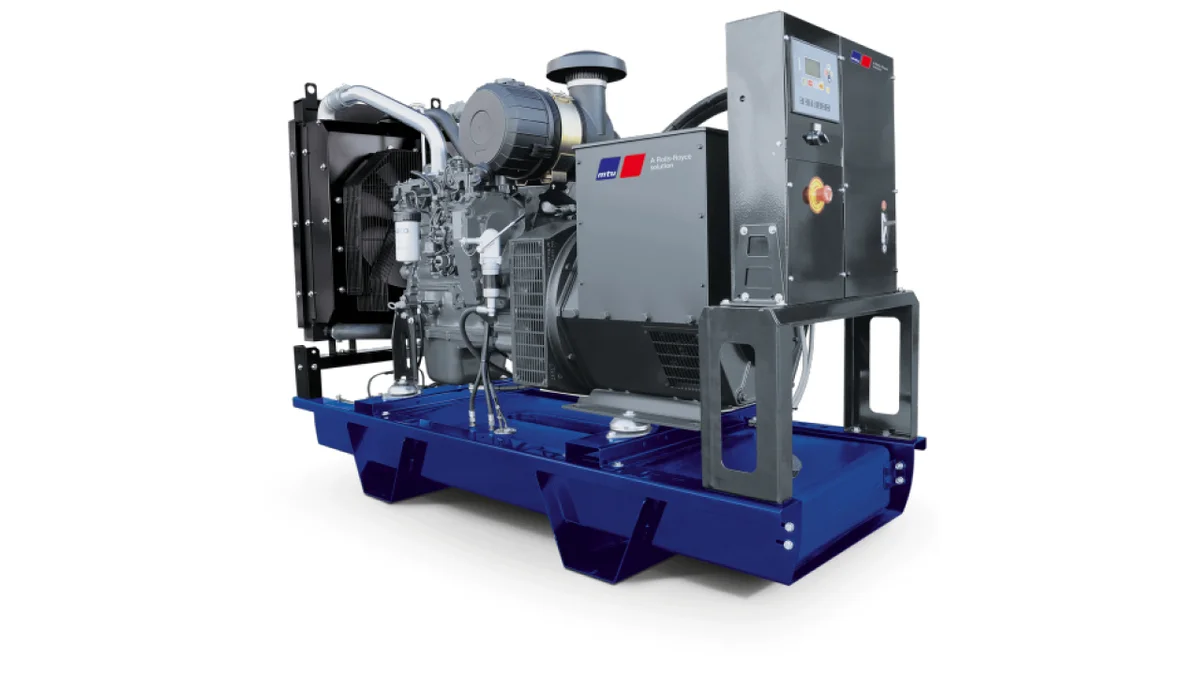

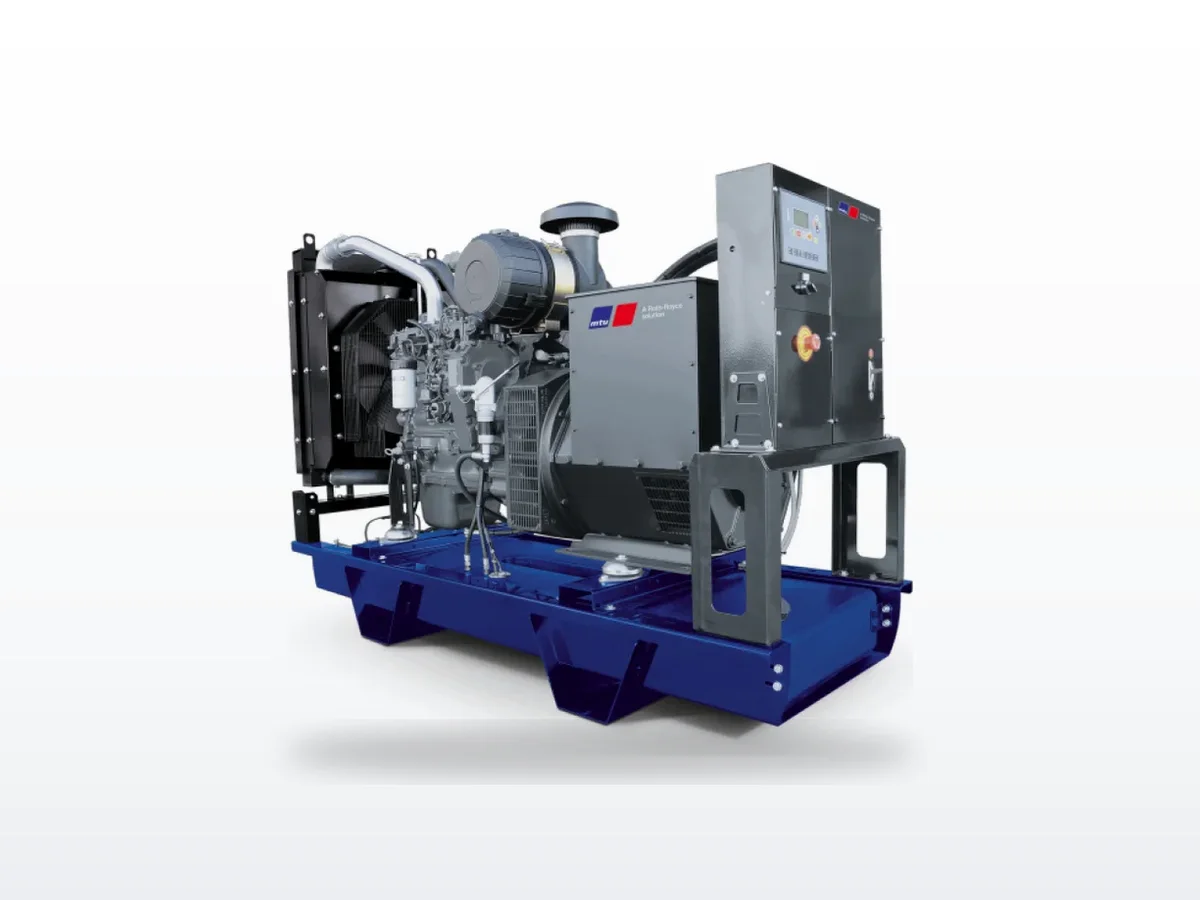

The MTU 3R0096 Series consists of a single model — the DS30 at 30 kW standby (27 kW prime) — built on the John Deere 3029TFG89, a 2.9-liter, 3-cylinder naturally aspirated diesel. This is the smallest diesel generator set in the MTU Onsite Energy catalog and the entry point to the MTU lineup for sites with modest standby requirements. The unit carries EPA Tier 3 certification and is available in both single-phase and three-phase configurations from 120/240V through 347/600V.
At 62 inches long and approximately 1,623 pounds dry, the DS30 is among the more compact commercial standby units available from any manufacturer at this power level. The John Deere 3029 engine is a well-established industrial platform with broad parts availability through both MTU distributors and the John Deere dealer network — an advantage for sites located outside major metro areas where MTU-specific service coverage may be limited.
The mechanical droop governor (plus or minus 1% speed regulation) is simpler to maintain than electronic isochronous governors used on larger MTU units, but it also means frequency will vary slightly with load changes. For installations with sensitive electronic equipment, verify that this regulation meets the tolerance requirements before specifying this unit.
Common Applications#
- Small commercial standby: Offices, retail spaces, and small professional buildings under 30 kW. The single-phase option makes this unit suitable for sites with single-phase utility service, which is common in smaller commercial buildings.
- Light industrial: Pump stations, telecommunications shelters, and remote monitoring stations where a compact, reliable diesel standby is required and utility gas is not available.
- Small office buildings: The 30 kW rating covers the critical load of most small office buildings — HVAC, lighting, and IT infrastructure — without oversizing.
Service & Maintenance#
The 3R0096 Series follows John Deere service intervals: oil and filter changes every 250 hours or 12 months, whichever comes first. The naturally aspirated configuration eliminates turbocharger maintenance, simplifying the service profile compared to the turbocharged engines in the larger 4R0113 and 6R0113 Series.
Battery condition is the most common cause of start failures on small standby diesels. The 12V starting system uses 925 CCA batteries. Load-test annually under cold-crank conditions and replace proactively at 36–48 months regardless of resting voltage test results.
Coolant thermostat failures can cause overheating under sustained load, particularly in enclosed equipment rooms or high-ambient installations. The unit-mounted radiator is rated for 50 degrees C ambient, but enclosed spaces with gravity exhaust louvers effectively reduce this by 5 degrees C. Verify adequate ventilation during installation.
Fuel filter with water separator must be checked at each service interval. The small fuel system is intolerant of water contamination — even minor amounts can cause hard starting and rough running on the mechanical injection system.
Application Guidance#
The MTU 3R0096 DS30 is the right specification for sites requiring 30 kW or less of standby power where diesel is the preferred or required fuel type. The compact footprint (62 x 30 inches) fits tight equipment rooms and rooftop installations where larger units cannot physically be placed. The John Deere 3029 engine's broad parts availability through both MTU and independent dealers provides a service advantage over proprietary-engine platforms at this power level.
This series is not appropriate above 30 kW. For 50–100 kW requirements, the MTU 4R0113 Series provides two models on the John Deere 4045 platform. For 150–200 kW, the MTU 6R0113 Series moves to the John Deere 6068 inline-6. Sites considering natural gas instead of diesel should evaluate the MTU Onsite Energy Gas lineup, which starts at 100 kW. Buyers comparing the DS30 against Cummins C30 D5 or Caterpillar DE22 units should weigh parts availability, local dealer coverage, and whether the mechanical governor meets the frequency regulation requirements of the connected loads.
