MQ Power · WhisperWatt Super-Silent

MQ Power DCA-220 WhisperWatt

194 kW standby / 176 kW prime · Diesel · Liquid-cooled

220 kVA (176 kW prime) portable diesel generator. John Deere-powered WhisperWatt Super-Silent at 69 dBA with 319-gallon tank.

MQ Power MQ Power DCA-220 WhisperWatt generator — specifications and details
Standby power
194 kW / 176 kW prime
Voltage options
120V, 127V, 139V, 208V, 220V, 240V, 254V, 277V, 416V, 440V, 480V
Frequency / Phase
50, 60 Hz · 1/3-phase
Engine
John Deere 6068HFG06 · 6.8L
EPA / Emissions
Tier 4 Final
construction-largerental-fleeteventstemporary-poweremergency-standbycommercial-backup
Configure & QuoteDownload spec sheet

Overview#

The MQ Power DCA-220 WhisperWatt is a 220 kVA (176 kW prime / 194 kW standby) portable diesel generator powered by a John Deere 6068HFG06 6.8L engine. The sheet states 69 dB(A) at 23 feet and lists a bunded-design spill containment that captures up to 122% of engine fluids.

The sheet lists dimensions of 141.73" x 51.18" x 88.19", the same as the DCA-180 sheet. The DCA-220 lists 323 hp gross against 257 hp gross for the DCA-180.

DEF#

The DCA-220 sheet lists a 29.8-gallon (112.8 L) DEF tank. Fuel consumption is 12.0 gal/h at full load, 9.4 at 3/4 load and 6.9 at 1/2 load.

Common applications#

  • Construction sites requiring portable power
  • Event production
  • Emergency response for commercial facilities
  • Industrial temporary power

Engineering specifications

Physical

Length
141.73 in
Width
51.18 in
Height
88.19 in
Dry weight
8,399 lb

Acoustic

Sound @ 7m, full load
69 dBA
Enclosure
Sound-attenuated

Fuel system & runtime

Integral fuel tank
319 gal
Fuel use @ full load
12 GPH
Fuel use @ 75% load
9.4 GPH
Fuel use @ 50% load
6.9 GPH

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your MQ Power DCA-220 WhisperWatt

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the MQ Power DCA-220 WhisperWatt

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

34.5 hours(1.4 days)

Fuel consumption ≈ 9.26 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

Does the DCA-220 require DEF?
The DCA-220 sheet lists a 29.8-gallon (112.8 L) DEF tank, and the sheet lists SCR-related DEF level indication. The engine is a John Deere 6068HFG06.
How does the DCA-220 compare to the DCA-180 and DCA-300?
The DCA-220 is rated 176 kW prime against 144 kW for the DCA-180 and 240 kW for the DCA-300. The DCA-180 sheet lists a John Deere 6068HFG05 at 257 hp gross and the DCA-220 sheet a 6068HFG06 at 323 hp gross; both list a 319-gallon tank.
What is the runtime at half load?
The sheet lists a 319-gallon tank and fuel consumption of 6.9 gal/h at 1/2 load.

Compatible equipment

Why we recommend MQ Power

MQ Power is our go-to recommendation for portable diesel generators. The WhisperWatt line is the industry standard for quiet temporary power — if you need a portable diesel for construction, events, or emergency deployment, this is what we spec.

We are growing our MQ Power sales and have increasing fleet experience with WhisperWatt units. Our technicians service Isuzu and Kubota engines across multiple brands, so MQ Power units get the same expert attention as any unit in our service territory.

See all MQ Power generators →

Similar models

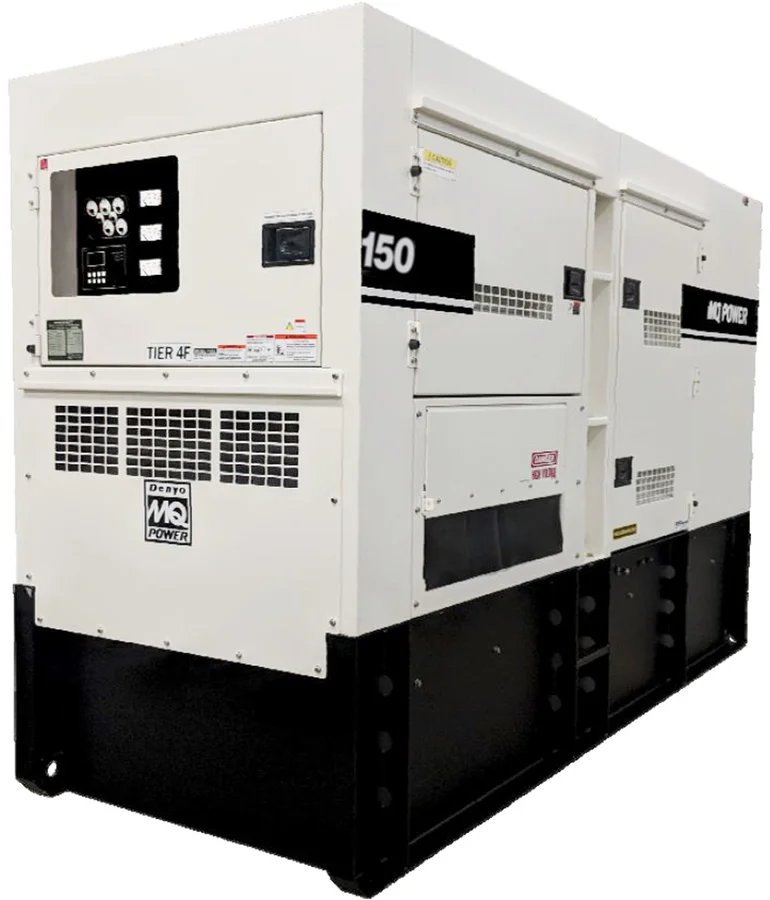

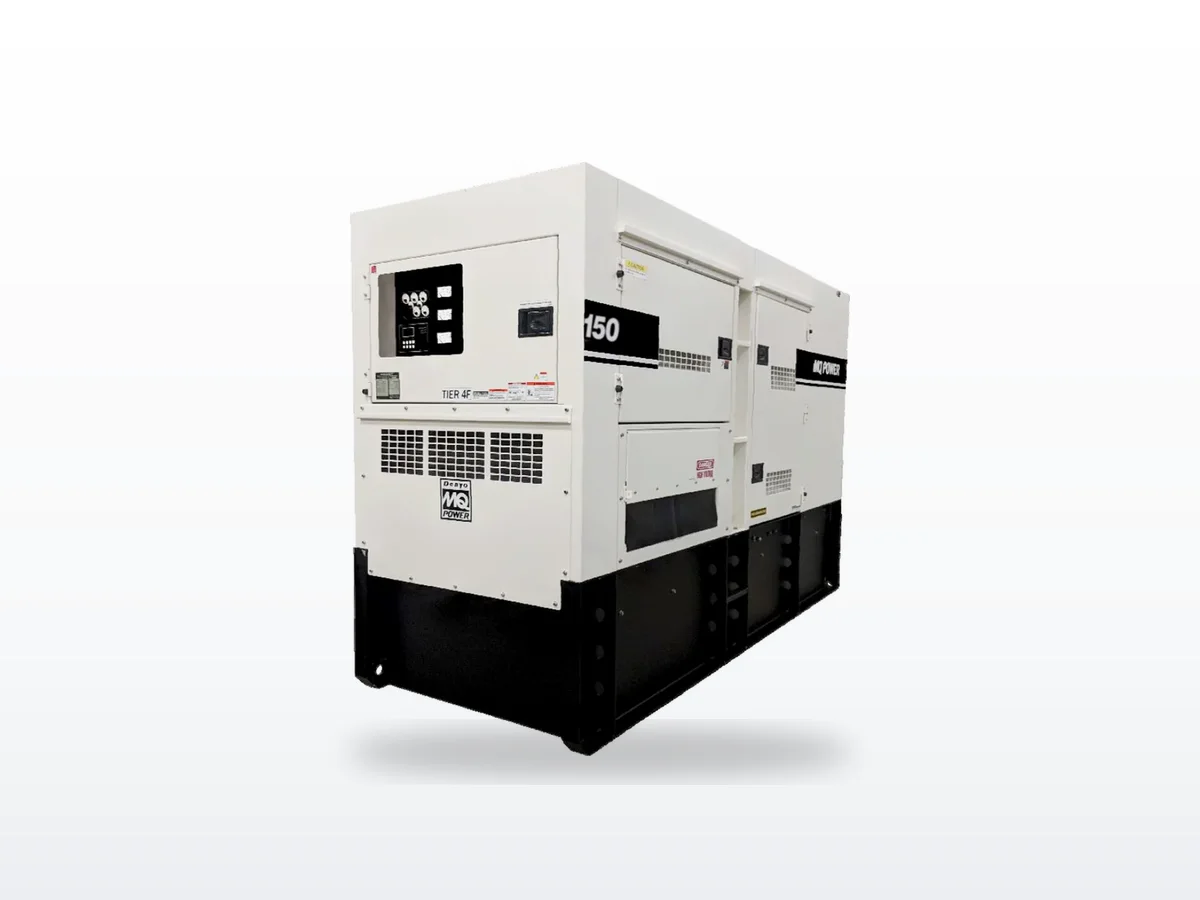

MQ Power MQ Power DCA-180 WhisperWatt 158 kW liquid-cooled standby generator

MQ Power

MQ Power DCA-180 WhisperWatt

WhisperWatt 180 kVA - John Deere 6068HFG05, 70 dBA at 23 ft, 319-gal tank.

158 kW standby · Diesel · Liquid-cooled

180 kVA (144 kW prime) portable diesel generator. John Deere-powered WhisperWatt Super-Silent with a 319-gallon tank.

Tier 4 Final3-phaseconstruction-largerental-fleet

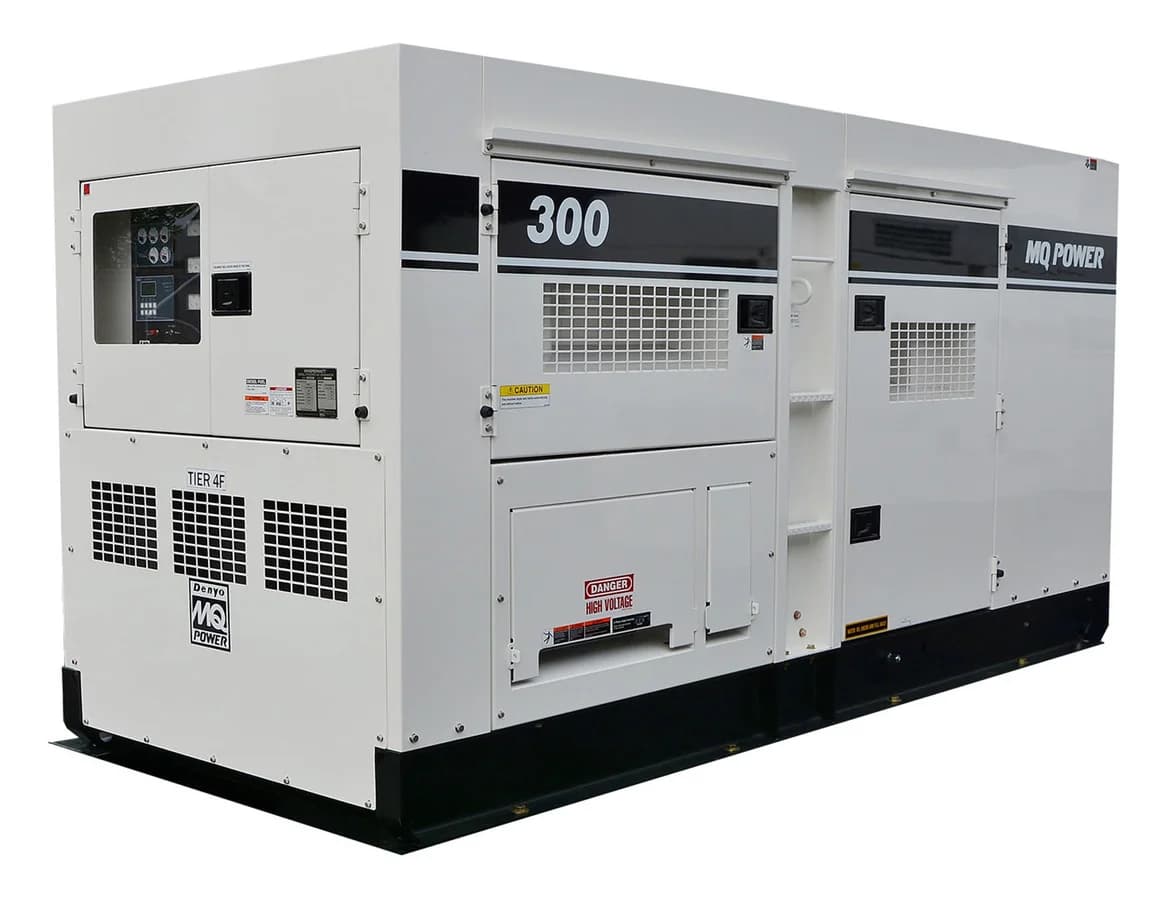

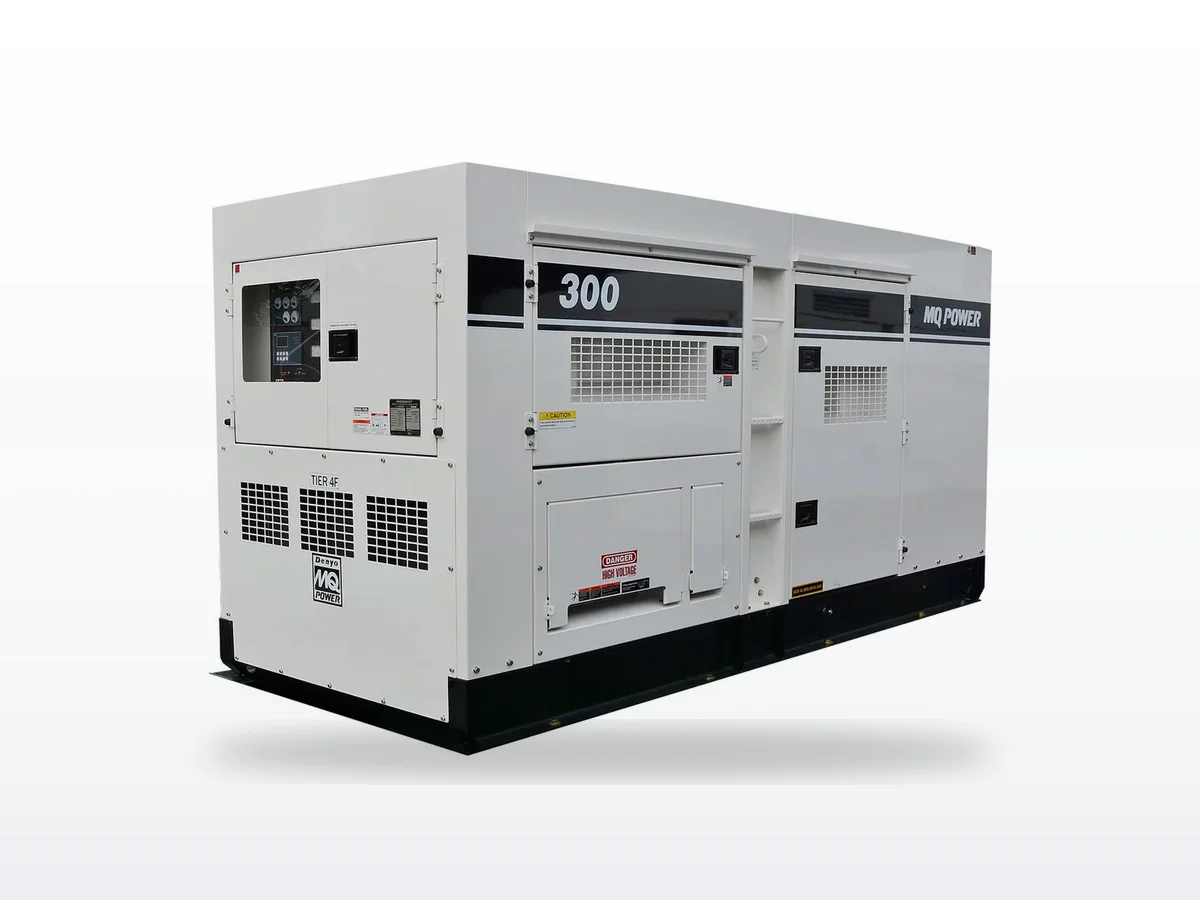

MQ Power MQ Power DCA-300 WhisperWatt 264 kW liquid-cooled standby generator
