Kohler · KG Series (Industrial Gaseous)

Kohler KG40

40 kW standby · Natural Gas / LPG / Dual Fuel (NG/LPG) · Liquid-cooled

40 kW gaseous-fueled commercial standby generator. Kohler's entry-level industrial gaseous unit for light commercial backup on natural gas or propane.

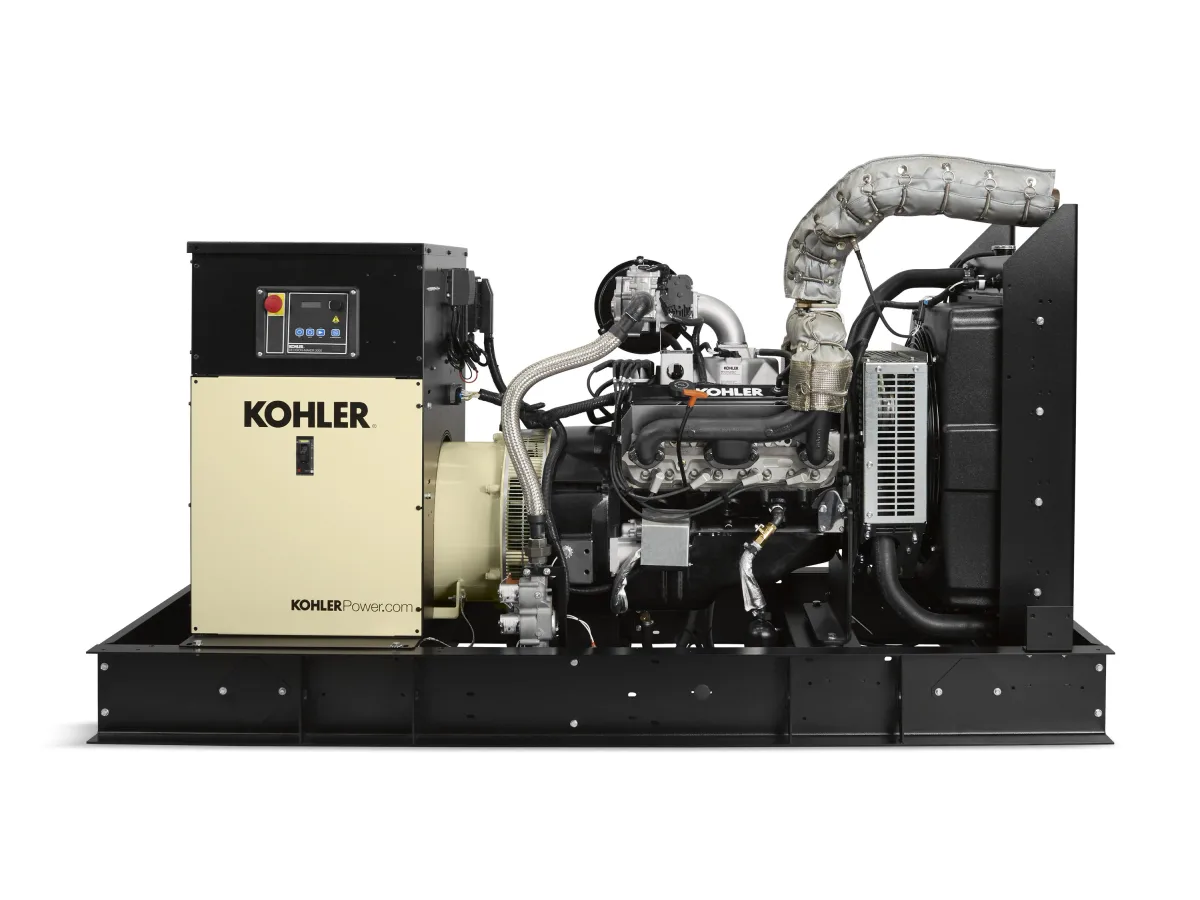

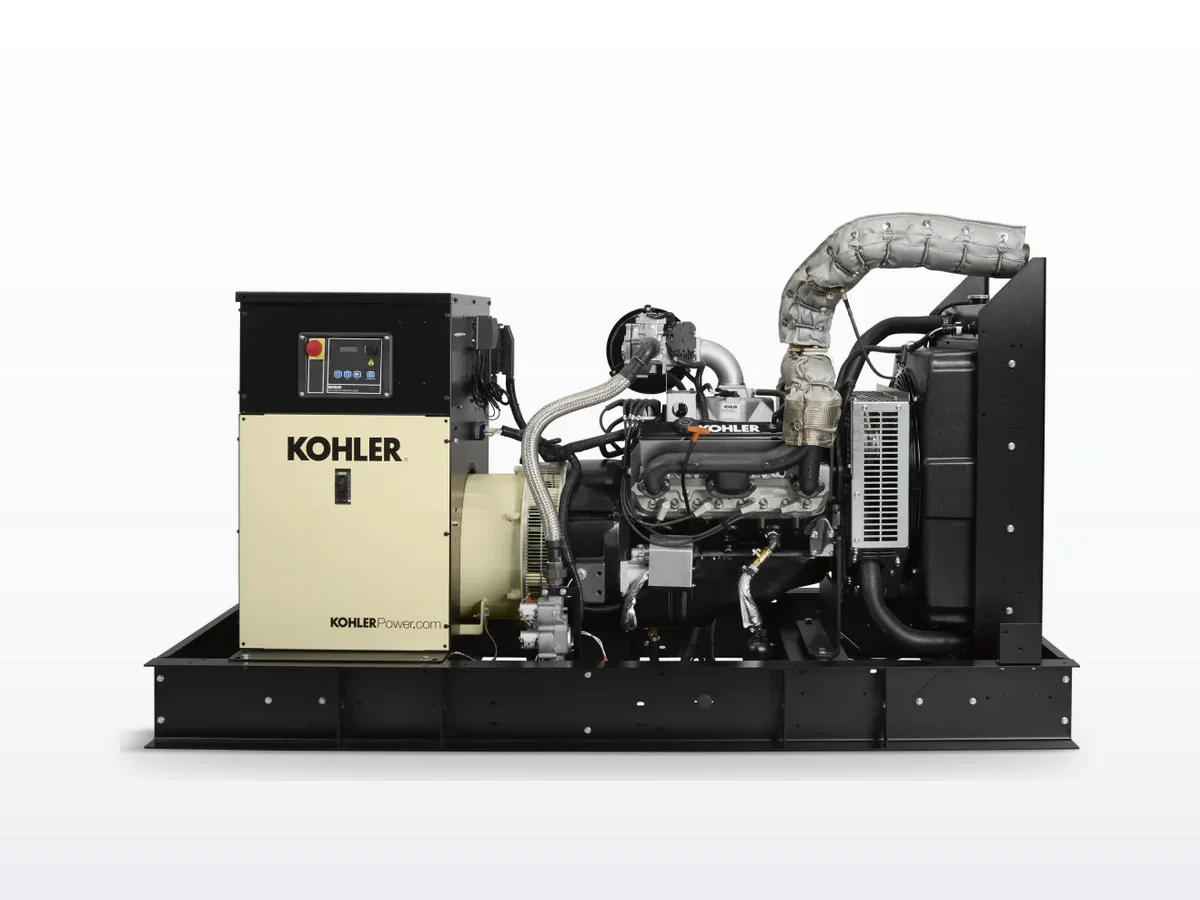

Kohler Kohler KG40 generator — specifications and details
Standby power
40 kW
Voltage options
120/240V, 208V, 240V, 480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Kohler KG6208 · 6.2L
Alternator
Kohler

Overview#

The Kohler KG40 is a 40-kilowatt commercial standby generator and the smallest unit in Kohler's industrial gaseous (KG) lineup. It runs on natural gas or LP propane with field-selectable fuel switching, and is sized for the light-commercial bracket: convenience stores, small restaurants, telecom huts, and single-tenant retail spaces where loads rarely exceed 30-35 kW.

It shares the same platform philosophy as its larger siblings (KG60 through KG400) — gaseous-only, EPA Subpart JJJJ certified, no on-site fuel storage required — but in a smaller, lighter package that fits tighter mechanical spaces.

Sizing guidance#

At 40 kW nameplate, real-world capacity is:

  • 32 kW continuous at 80% loading (the recommended maximum for standby duty)
  • Single motor starting up to about 5 HP without soft-start
  • Derate above 1000 ft elevation or 25°C ambient

If your load study shows peak demand between 28-35 kW, the KG40 is correctly sized. If you're above 35 kW or expect growth, the KG60 provides meaningful headroom without a significant footprint increase.

When to spec the KG40#

  • Sites with confirmed peak demand under 32 kW
  • Tight mechanical pads where the KG60 enclosure won't fit
  • Budget-constrained projects where the smaller engine reduces both capital and service cost
  • Sites where the AHJ permits gaseous fuel for the application class

Our service experience#

The KG40 is less commonly deployed than the KG60 in our territory — most commercial projects size slightly larger for safety margin. Where we do see it: small telecom shelters, standalone ATM/banking kiosks, and single-restaurant builds. Service patterns mirror the KG60 (same KG6208 6.2L V8 engine, same ignition system, same coolant requirements).

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Ready to order this model?

Configure your Kohler KG40

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Kohler KG40

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

420,000 BTU/hr≈ 420.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Parts cross-reference

starting Battery
Group 31 (recommended)

Frequently Asked Questions

What is the standby power rating of the Kohler KG40?
The KG40 is rated 40 kW standby at 60 Hz. It's the entry point of Kohler's industrial gaseous lineup, sized for single-tenant retail, small restaurants, and telecom shelters.
Does the KG40 run on natural gas or propane?
Both. Like all KG-series units, the KG40 is dual-fuel NG/LPG with field-selectable switching. No diesel variant exists in the KG line.
What's the difference between the KG40 and KG60?
Both the KG40 and KG60 use the same Kohler KG6208 6.2L naturally-aspirated V8 platform — the difference is in alternator winding and rating, not engine displacement. The KG40 is rated 40 kW standby; the KG60 is rated 60 kW standby. If your peak demand exceeds 32 kW (80% of the KG40 nameplate), step up to the KG60 for headroom.

Compatible equipment

More in the KG Series (Industrial Gaseous)

Kohler KG Series: 40–200 kW gaseous gensets with Kohler-built engines for commercial and light industrial standby.

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohler generators →

Similar models

Kohler Kohler KG45 45 kW liquid-cooled standby generator

Kohler

Kohler KG45

45 kW gaseous standby -- no fuel storage, no SPCC plan. Kohler KG6208 NA V8 at 1800 RPM with rare-earth PM alternator.

45 kW standby · Natural Gas / LPG / Dual Fuel (NG/LPG) · Liquid-cooled

45 kW gaseous-fueled commercial standby generator with Brushless Rare-Earth Permanent-Magnet alternator. Industrial gaseous unit for commercial backup on natural gas or propane.

3-phasecommercialhealthcare
Kohler Kohler 40REOZK 40 kW liquid-cooled standby generator

Kohler

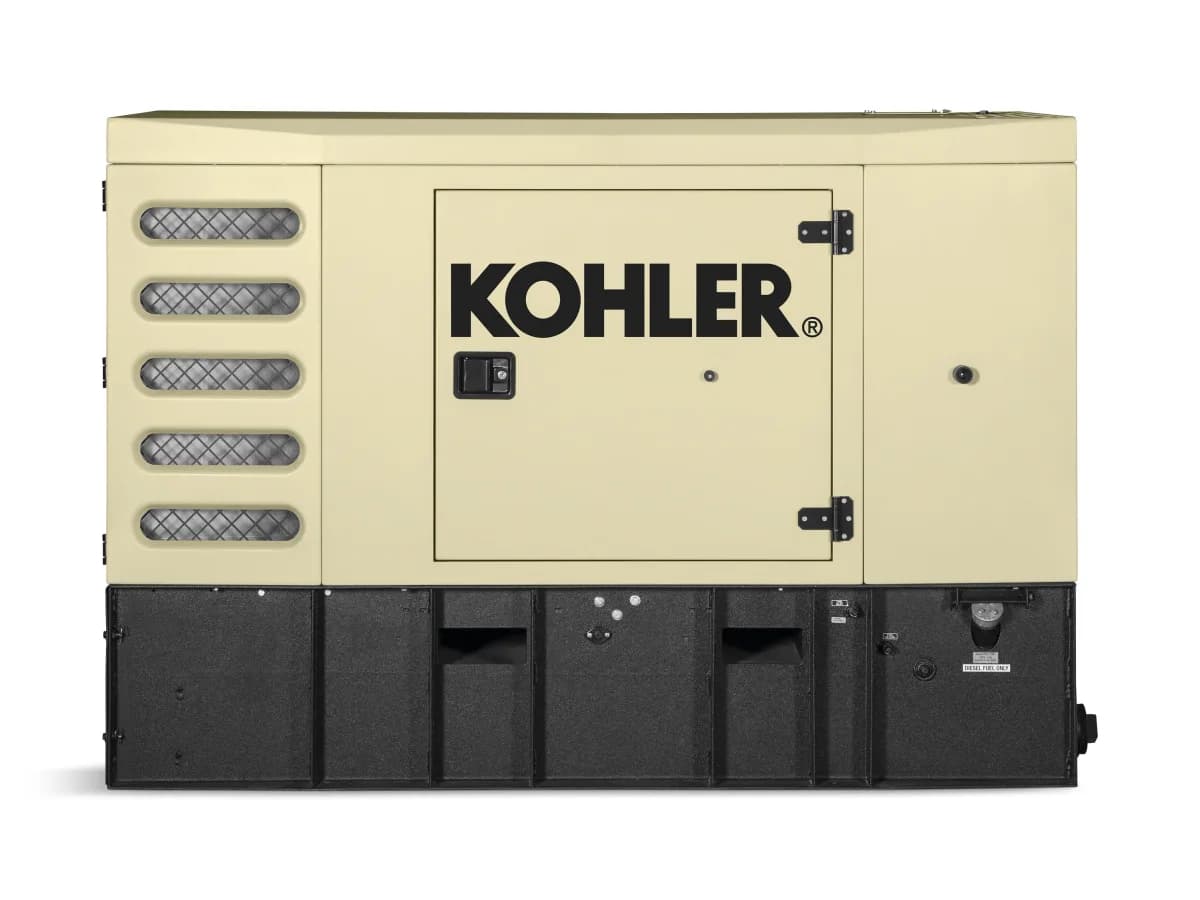

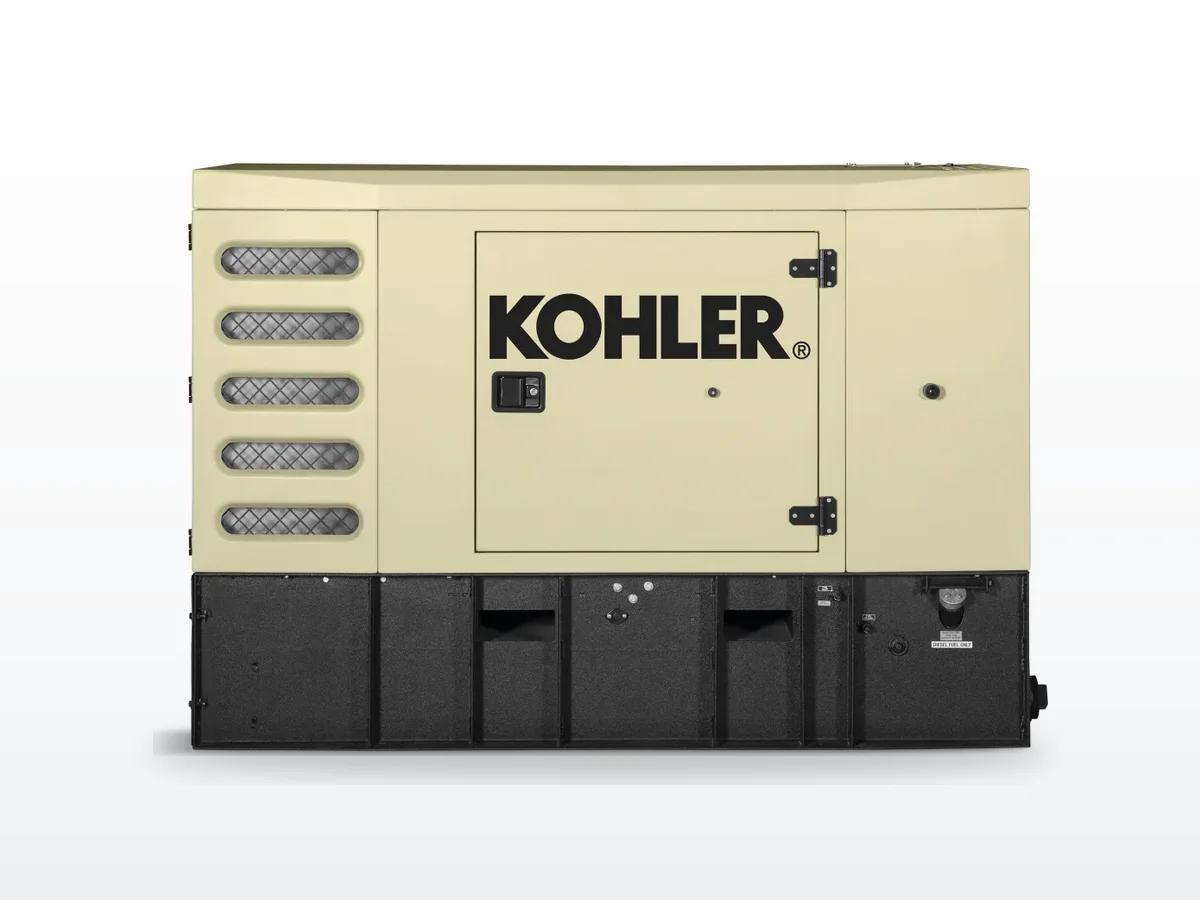

Kohler 40REOZK

40 kW compact diesel standby -- Kohler KDI 3404TM turbo at 1800 RPM. Sub-3% THD with quiet enclosure options.

40 kW standby · Diesel · Liquid-cooled

40 kW diesel commercial standby generator. Kohler-powered diesel for commercial, healthcare, education, and government standby applications.

3-phasecommercialhealthcare
Kohler Kohler 45REOZT4 40 kW liquid-cooled standby generator

Kohler

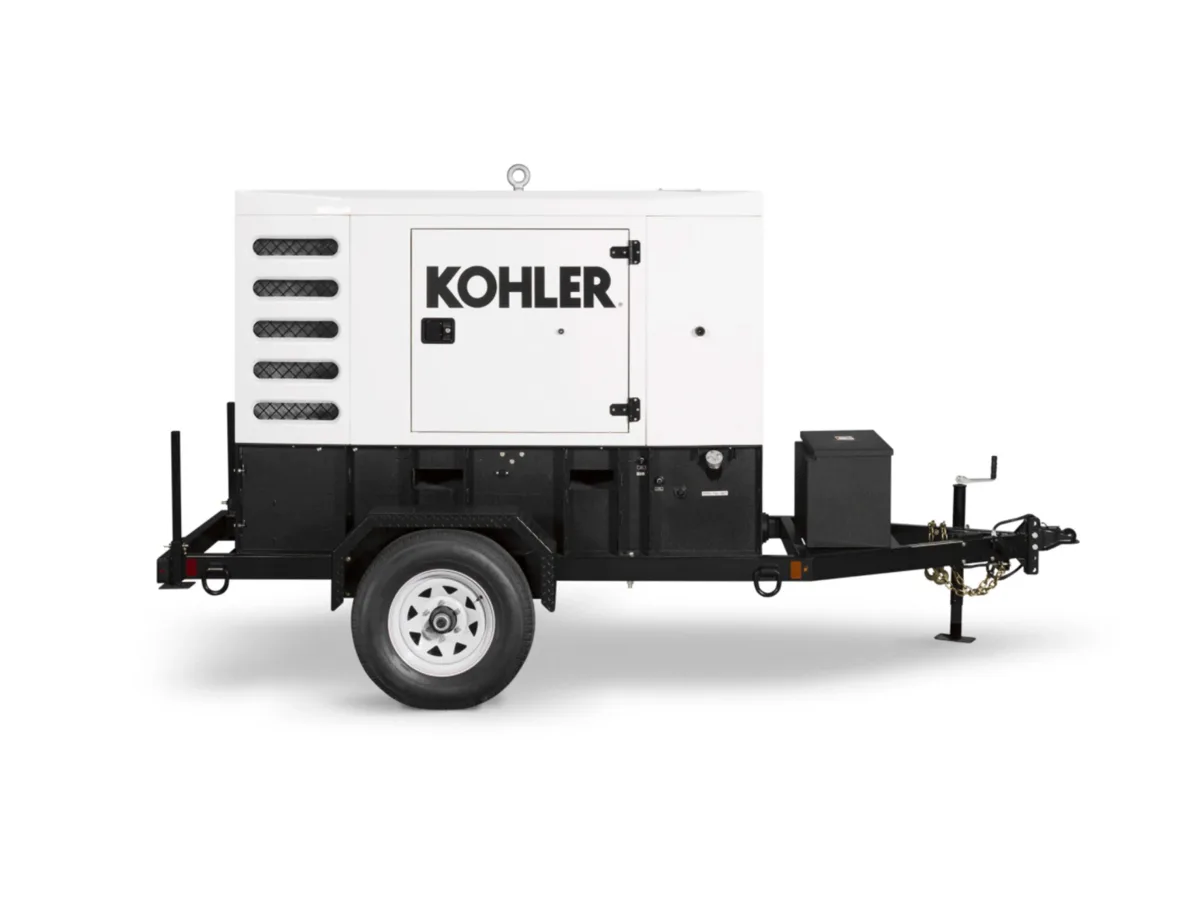

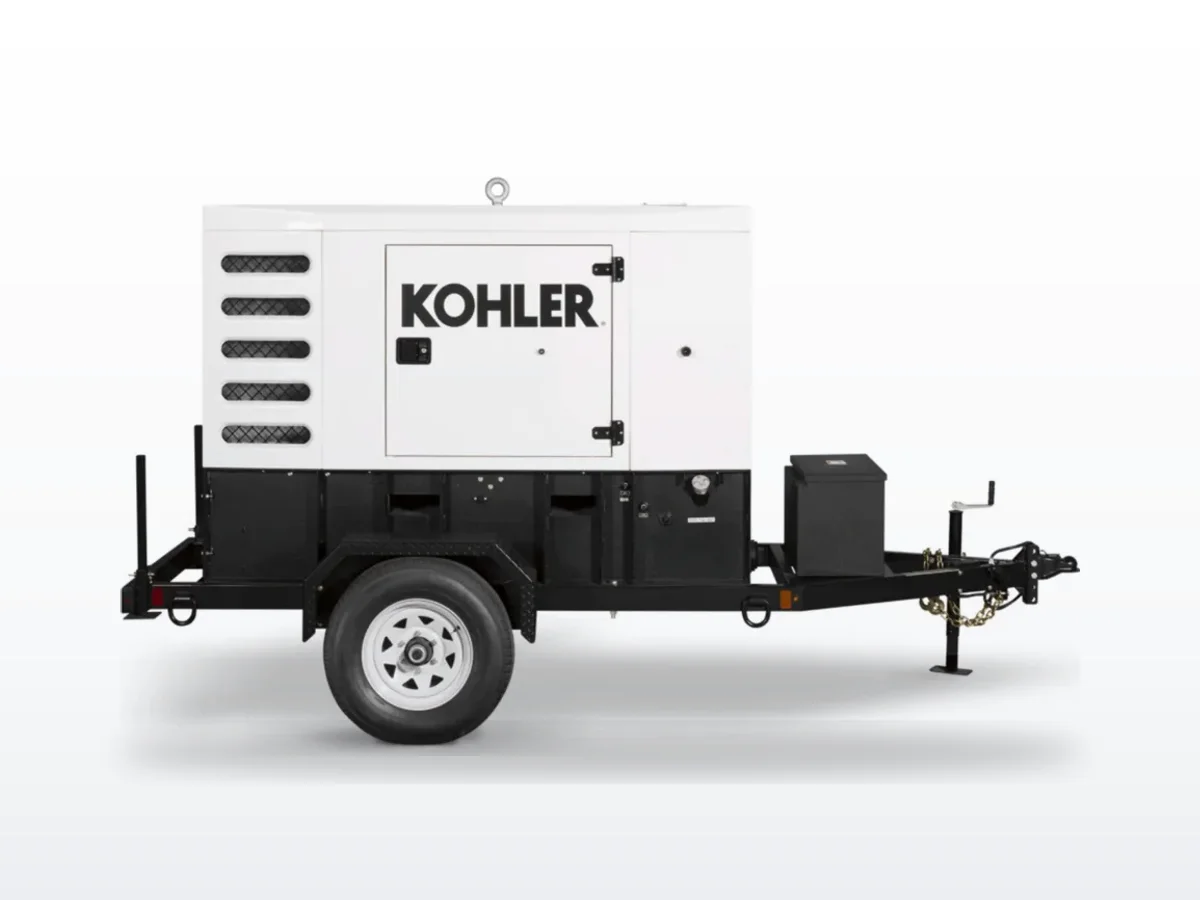

Kohler 45REOZT4
