What is the standby rating of the Kohler KD700?

The KD700 is rated at 670–700 kW standby and 600–630 kW prime at 0.8 power factor, 60 Hz, 1800 RPM (277/480V).

What engine does the Kohler KD700 use?

The KD700 uses the Kohler KD18L06, a 17.96-litre six-cylinder inline diesel engine rated at 1053 BHP at 1800 RPM. The engine is compatible with HVO renewable diesel fuel.

Is the Kohler KD700 EPA Tier 4 certified?

No. The KD700 is EPA certified for stationary emergency use at Tier 2. Tier 4 Final variants are available in separate KD Series models designated with a -4 suffix.

What alternator type does the KD700 use?

The KD700 uses a brushless, permanent-magnet pilot exciter alternator — Kohler's standard for the KD Series industrial diesel platform.

Kohler · KD Series (Industrial Diesel)

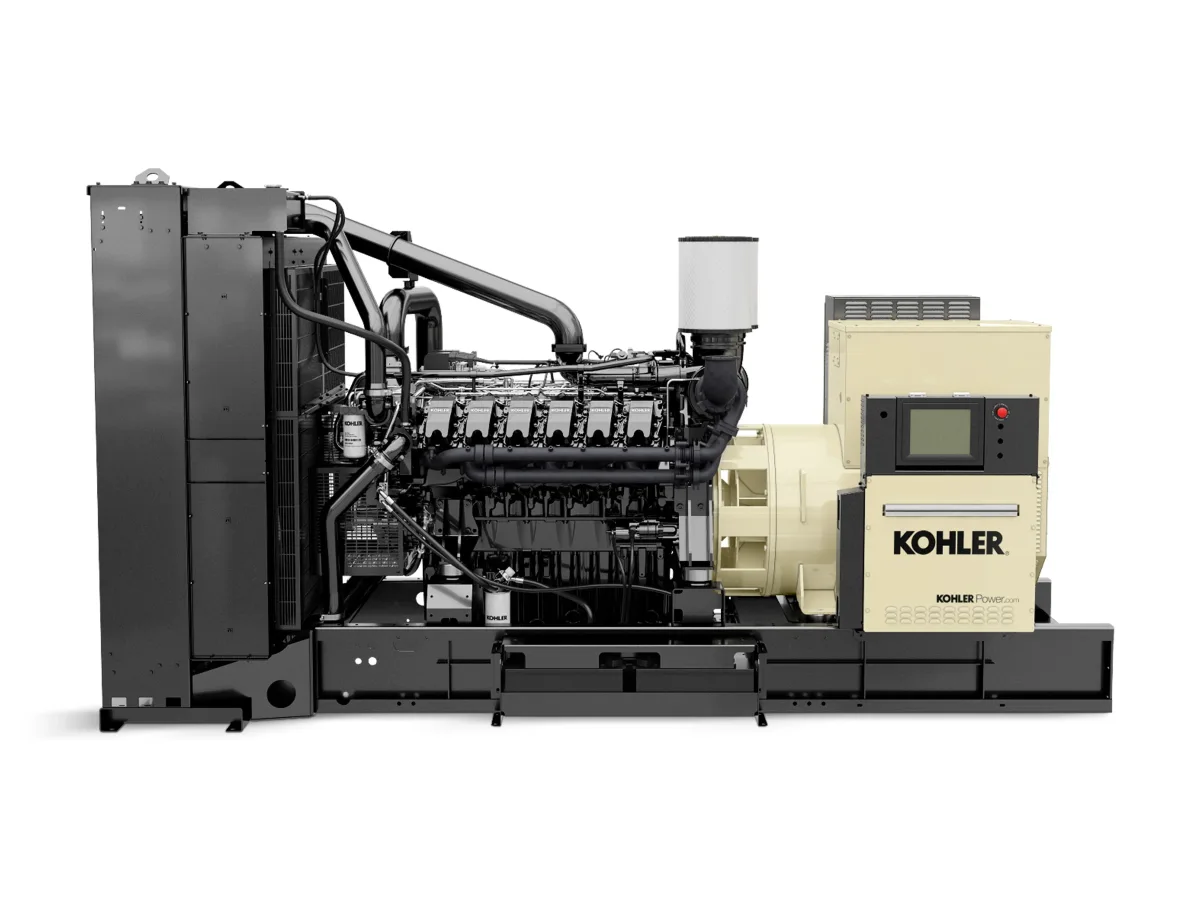

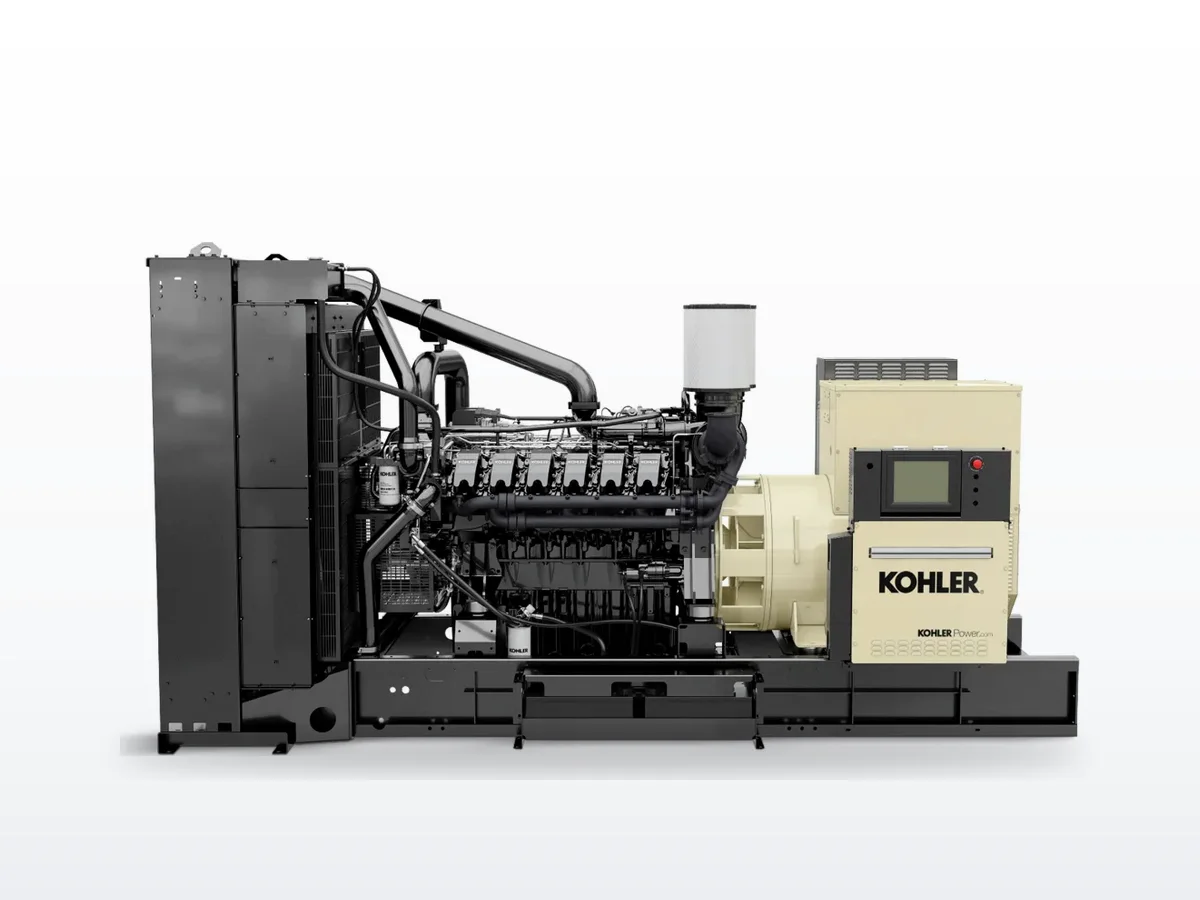

Kohler KD700

Name: Kohler KD700
Brand: Kohler
SKU: kd700
Availability: InStock

700 kW standby / 630 kW prime · Diesel · Liquid-cooled

700 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and mission-critical facilities.

Standby power: 700 kW / 630 kW prime
Voltage options: 277/480V
Frequency / Phase: 60 Hz · 3-phase
Engine: Kohler KD18L06 · 17.96L
EPA / Emissions: Tier 2
Alternator: Kohler

Data Centers Healthcare Manufacturing Commercial Government

Configure & Quote Download spec sheet

Overview#

The Kohler KD700 is a 700-kilowatt diesel industrial standby generator from Kohler's KD Series platform. Powered by the Kohler KD18L06 — a 17.96-litre six-cylinder inline diesel engine rated at 1053 BHP — the KD700 serves data centers, healthcare facilities, and commercial buildings requiring reliable large-scale backup power. The engine is compatible with HVO (hydrotreated vegetable oil) renewable diesel. The KD Series uses Kohler-designed engines and permanent-magnet pilot exciter alternators for sub-3% total harmonic distortion.

KD Series platform#

The KD Series is Kohler's large industrial diesel generator line, covering 700 to 4000 kW. Designed for mission-critical facilities, every KD Series unit carries UL 2200 listing and meets NFPA 110 Level 1 requirements when equipped with the necessary accessories. Hurricane-rated enclosures with 186 mph wind load ratings are available across the platform.

Our service experience#

OnPoint Generators provides installation, maintenance, and emergency service for Kohler KD Series generators throughout Northern California. Our technicians are experienced with large diesel platforms in the megawatt class, including load bank testing, fuel system maintenance, and cooling system service for high-capacity industrial units.

Engineering specifications

Physical

Length: 141.7 in
Width: 74.8 in
Height: 84.7 in
Wet weight: 12,345 lb

Fuel system & runtime

Fuel use @ full load: 48.1 GPH
Fuel use @ 75% load: 38.2 GPH

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Kohler KD700

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Kohler KD700

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

5.4 hours(0.2 days)

Fuel consumption ≈ 37.11 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Kohler KD700 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality / degradation	Injector fouling, hard starting, black smoke under load	4,380+	moderate
Turbocharger	Power loss, excessive exhaust smoke, oil at turbo seals	15,000+	moderate
Cooling system (hoses / thermostat)	Overtemperature fault, coolant loss, high EGT	10,000+	moderate
Battery (starting)	Slow crank, failed exercise, low voltage alarm	8,760+	minor

Frequently Asked Questions

What is the standby rating of the Kohler KD700?: The KD700 is rated at 670–700 kW standby and 600–630 kW prime at 0.8 power factor, 60 Hz, 1800 RPM (277/480V).
What engine does the Kohler KD700 use?: The KD700 uses the Kohler KD18L06, a 17.96-litre six-cylinder inline diesel engine rated at 1053 BHP at 1800 RPM. The engine is compatible with HVO renewable diesel fuel.
Is the Kohler KD700 EPA Tier 4 certified?: No. The KD700 is EPA certified for stationary emergency use at Tier 2. Tier 4 Final variants are available in separate KD Series models designated with a -4 suffix.
What alternator type does the KD700 use?: The KD700 uses a brushless, permanent-magnet pilot exciter alternator — Kohler's standard for the KD Series industrial diesel platform.

Compatible equipment

Transfer switches

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohlergenerators →

Similar models

Kohler

Kohler KD800

800 kW KD Series -- Kohler KD27V12 27L V12 engine with sub-3% THD and PM pilot exciter. HVO-compatible for renewable fuel initiatives.

800 kW standby · Diesel · Liquid-cooled

800 kW industrial standby for data centers, hospitals, and mission-critical facilities requiring premium power quality and NFPA 110 Level 1.

800 kW diesel industrial standby generator. KD Series platform with KD27V12 engine for data centers, healthcare, and mission-critical facilities.

Tier 23-phasedata-centerhealthcare

Kohler

Kohler KD900

900 kW KD Series -- Kohler KD27V12 with sub-3% THD and PM pilot exciter. Clean power for sensitive loads.

900 kW standby · Diesel · Liquid-cooled

900 kW industrial standby for data centers, hospitals, and mission-critical facilities requiring premium power quality and NFPA 110 Level 1.

900 kW diesel industrial standby generator. Entry-level KD Series platform for data centers, healthcare, and mission-critical facilities.

Tier 23-phasedata-centerhealthcare

Kohler

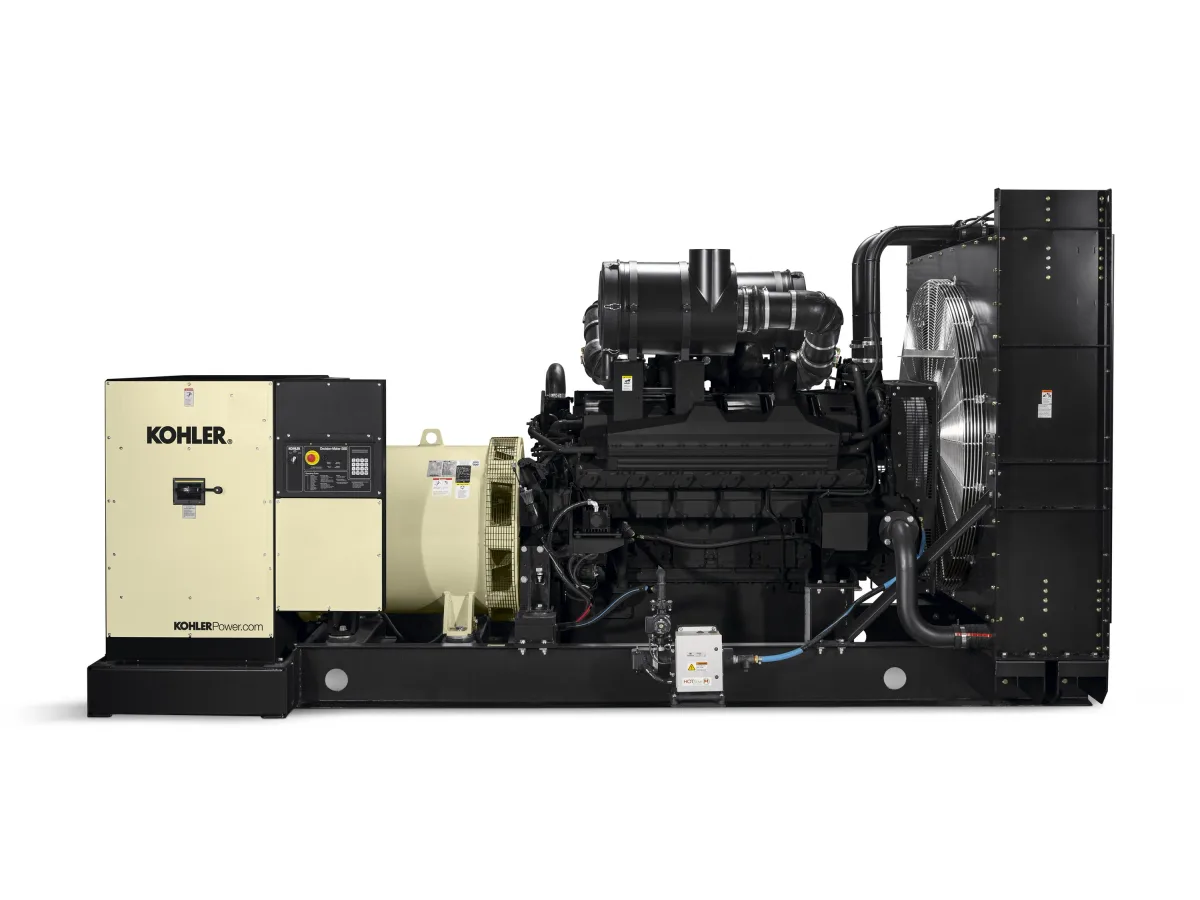

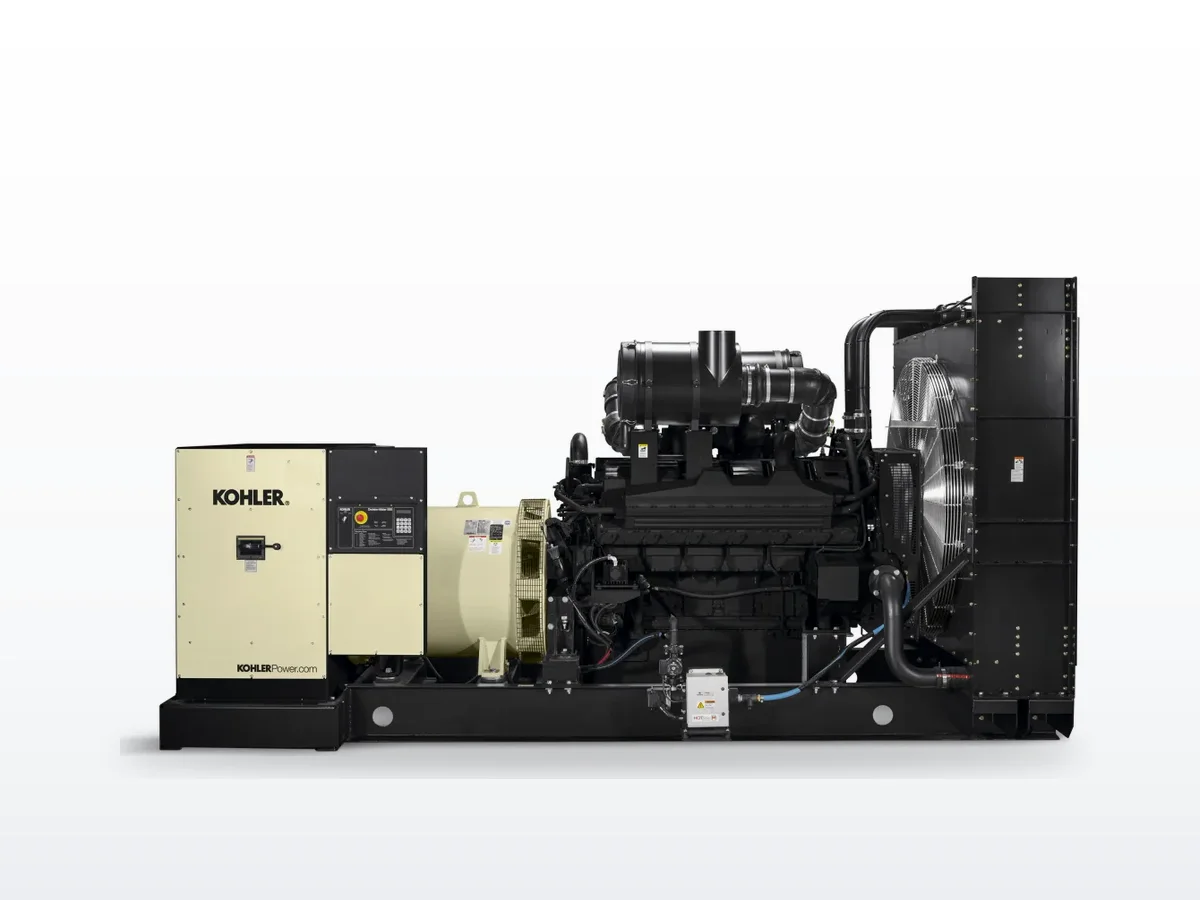

Kohler 750REOZMD

760 kW diesel standby -- Mitsubishi S12A2-Y2PTAW-2, sub-3% THD. Decision-Maker controller for load management and paralleling.

760 kW standby · Diesel · Liquid-cooled

760 kW commercial/industrial standby for hospitals, data centers, and large campuses requiring NFPA 110 Level 1.

760 kW diesel commercial/industrial standby generator powered by Mitsubishi. Suitable for hospitals, data centers, and large commercial complexes.

Tier 23-phasecommercialhealthcare

Need service or parts for the Kohler KD700?

We service every major OEM and stock genuine parts for the most common models.

Get A Quote Or call (831) 375-1463

Last reviewed: June 13, 2026
