Kohler · KD Series (Industrial Diesel)

Kohler KD800

800 kW standby / 720 kW prime · Diesel · Liquid-cooled

800 kW diesel industrial standby generator. KD Series platform with KD27V12 engine for data centers, healthcare, and mission-critical facilities.

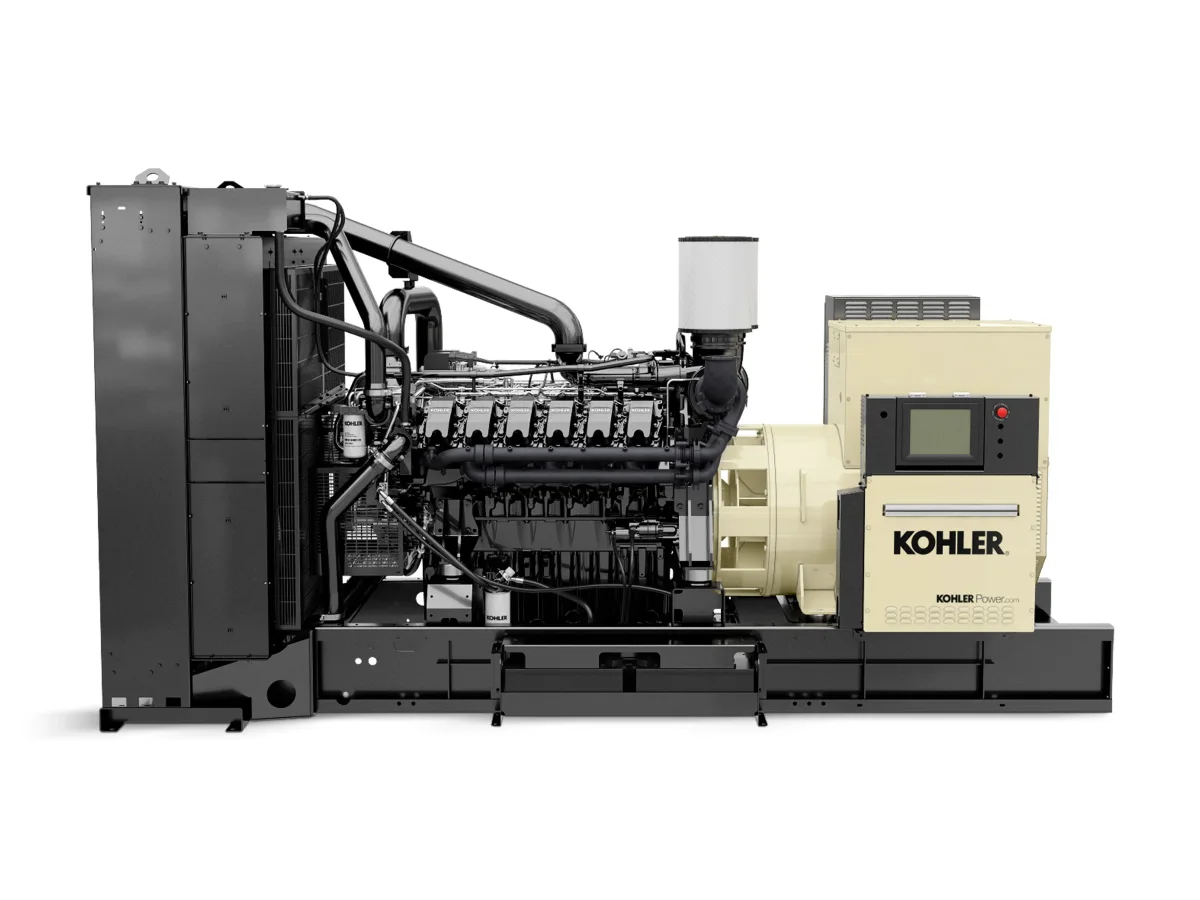

Kohler Kohler KD800 generator — specifications and details
Standby power
800 kW / 720 kW prime
Voltage options
277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Kohler KD27V12 · 27L
EPA / Emissions
Tier 2
Alternator
Kohler
Data CentersHealthcareManufacturingCommercialGovernment
Configure & QuoteDownload spec sheet

Overview#

The Kohler KD800 is an 800-kilowatt diesel industrial standby generator from Kohler's KD Series platform. Powered by the Kohler KD27V12 — a 27-litre V12 diesel engine rated at 1195 BHP — the KD800 delivers reliable backup power for data centers, healthcare facilities, and large commercial buildings. The engine is compatible with HVO (hydrotreated vegetable oil) renewable diesel fuel.

KD Series platform#

The KD Series is Kohler's large industrial diesel generator line, covering 700 to 4000 kW. Designed for mission-critical facilities, every KD Series unit carries UL 2200 listing and meets NFPA 110 Level 1 requirements when equipped with the necessary accessories. Hurricane-rated enclosures with 186 mph wind load ratings are available across the platform.

Our service experience#

OnPoint Generators provides installation, maintenance, and emergency service for Kohler KD Series generators throughout Northern California. Our technicians are experienced with large diesel platforms, including load bank testing, fuel system maintenance, and cooling system service for high-capacity industrial units.

Engineering specifications

Physical

Length
164.6 in
Width
75.7 in
Height
86.6 in
Wet weight
16,440 lb

Fuel system & runtime

Fuel use @ full load
57.5 GPH
Fuel use @ 75% load
44.6 GPH

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler KD800

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Kohler KD800

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

4.5 hours(0.2 days)

Fuel consumption ≈ 44.36 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Kohler KD800 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Fuel quality / degradationInjector fouling, hard starting, black smoke under load4,380+moderate
TurbochargerPower loss, excessive exhaust smoke, oil at turbo seals15,000+moderate
Cooling system (hoses / thermostat)Overtemperature fault, coolant loss, high EGT10,000+moderate
Battery (starting)Slow crank, failed exercise, low voltage alarm8,760+minor

Frequently Asked Questions

What is the standby rating of the Kohler KD800?
The KD800 is rated at 720–800 kW standby and 640–720 kW prime at 0.8 power factor, 60 Hz, 1800 RPM (277/480V).
What engine does the Kohler KD800 use?
The KD800 uses the Kohler KD27V12, a 27-litre V12 diesel engine rated at 1195 BHP at 1800 RPM. The engine is compatible with HVO renewable diesel fuel.
What alternator type does the KD800 use?
The KD800 uses a brushless, permanent-magnet pilot exciter alternator with sustained short-circuit capability up to 300% of rated current for 10 seconds.
