Kohler · REOZ Series (Diesel Commercial Standby)

Kohler 30REOZK4

30 kW standby / 28 kW prime · Diesel · Liquid-cooled

30 kW Tier 4 Final diesel commercial standby generator. Kohler-powered diesel with EPA Tier 4 Final emissions compliance for commercial and institutional applications.

Kohler Kohler 30REOZK4 generator — specifications and details
Standby power
30 kW / 28 kW prime
Voltage options
120/208V, 277/480V, 120/240V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Kohler KDI 1903 TCR · 1.9L
EPA / Emissions
Tier 4 Final

Overview#

The Kohler 30REOZK4 is a 30-kilowatt EPA Tier 4 Final diesel commercial standby generator powered by a Kohler diesel engine at 1800 RPM. Unlike the standard 30REOZK, this model is certified for both stationary emergency and non-emergency applications, making it suitable for jurisdictions with stricter air quality requirements. The unit features a 4-pole rotating-field alternator with PowerBoost excitation and sustained short-circuit capability up to 300% of rated current.

Our service experience#

OnPoint services Tier 4 Final diesel generators across Northern California, where Bay Area Air Quality Management District rules often require Tier 4 certification.

Engineering specifications

Physical

Length
86 in
Width
40 in
Height
63.9 in
Wet weight
3,080 lb

Acoustic

Enclosure
Sound-attenuated

Fuel system & runtime

Integral fuel tank
77 gal
Fuel use @ full load
2.8 GPH
Fuel use @ 75% load
2.1 GPH
Fuel use @ 50% load
1.4 GPH

Photos

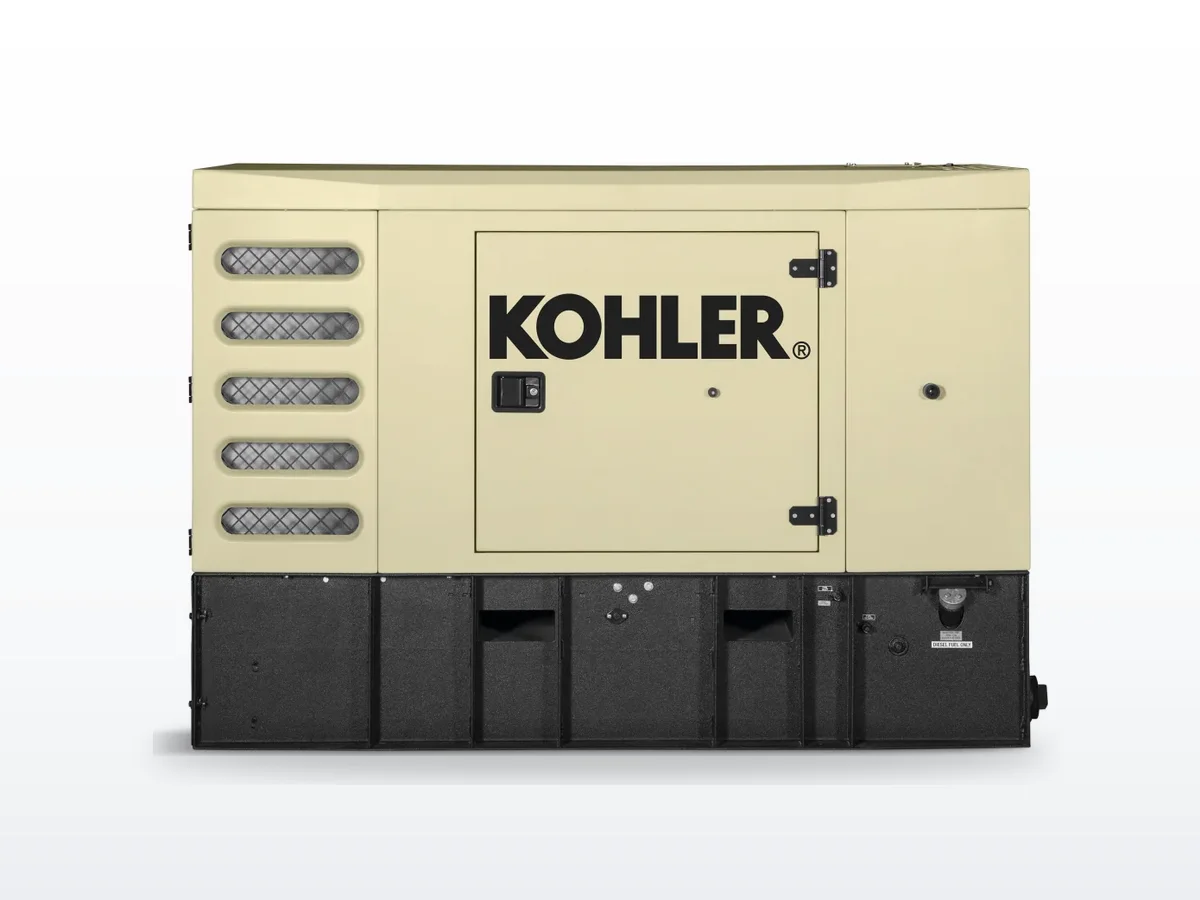

Kohler 30REOZK4 — product photo

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler 30REOZK4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Kohler 30REOZK4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

35.6 hours(1.5 days)

Fuel consumption ≈ 2.16 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What makes the 30REOZK4 different from the 30REOZK?
The 30REOZK4 is the EPA Tier 4 Final variant, certified for both stationary emergency and non-emergency applications. It uses exhaust aftertreatment to meet stricter emissions requirements.
What engine is in the Kohler 30REOZK4?
The 30REOZK4 uses a Kohler diesel engine rated at 1800 RPM with EPA Tier 4 Final emissions certification.

Compatible equipment

More in the REOZ Series (Diesel Commercial Standby)

Kohler's diesel commercial standby series — 10 to 510 kW, John Deere and Kohler engines, built for life-safety loads.

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohler generators →

Similar models

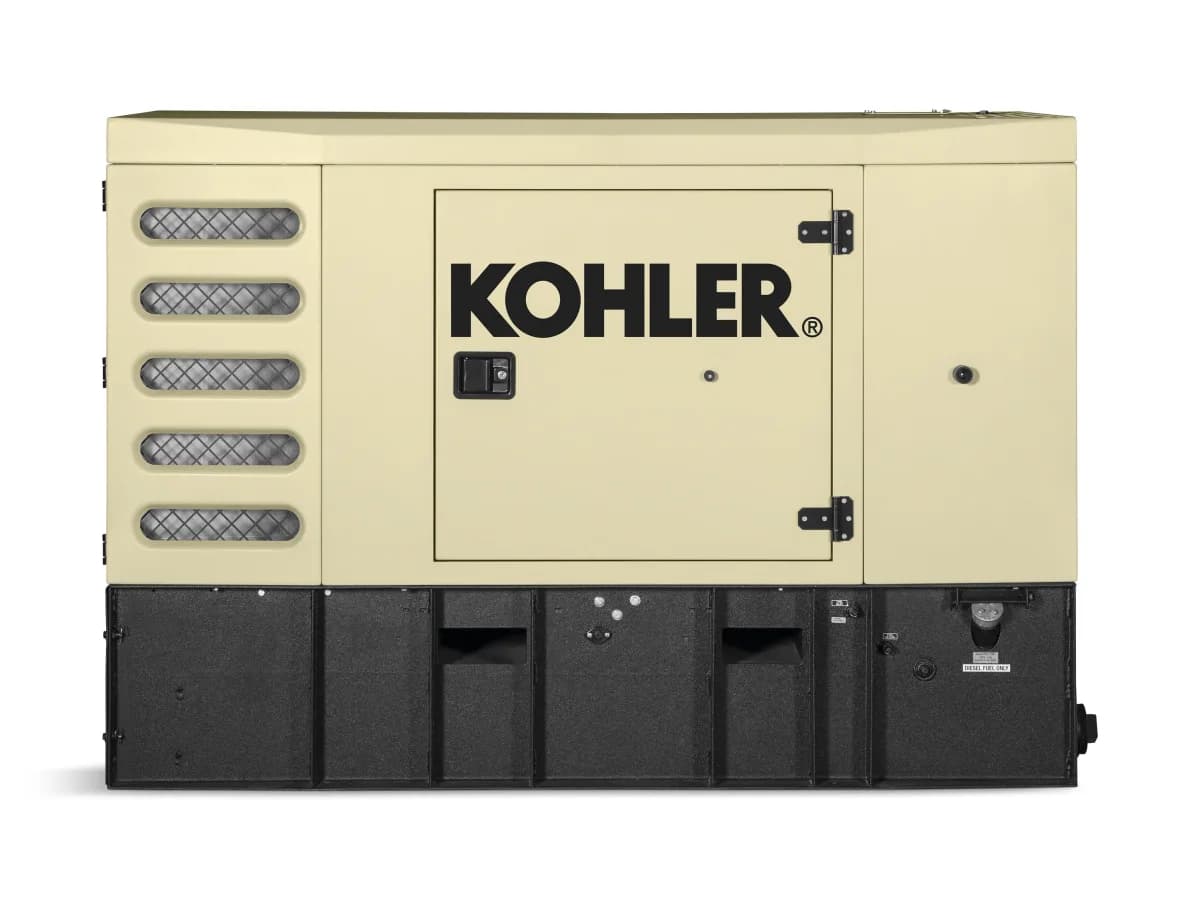

Kohler Kohler 30REOZK 31 kW liquid-cooled standby generator

Kohler

Kohler 30REOZK

Compact diesel standby, up to 31 kW (23-31 kW by voltage, phase and alternator) -- Kohler KDI2504TM/G18 at 1800 RPM. Quiet operation with sub-3% THD for sensitive loads.

31 kW standby · Diesel · Liquid-cooled

Diesel commercial standby generator rated up to 31 kW standby (23-31 kW by voltage, phase and alternator). Kohler-powered diesel for commercial, healthcare, education, and government standby applications.

3-phasecommercialhealthcare

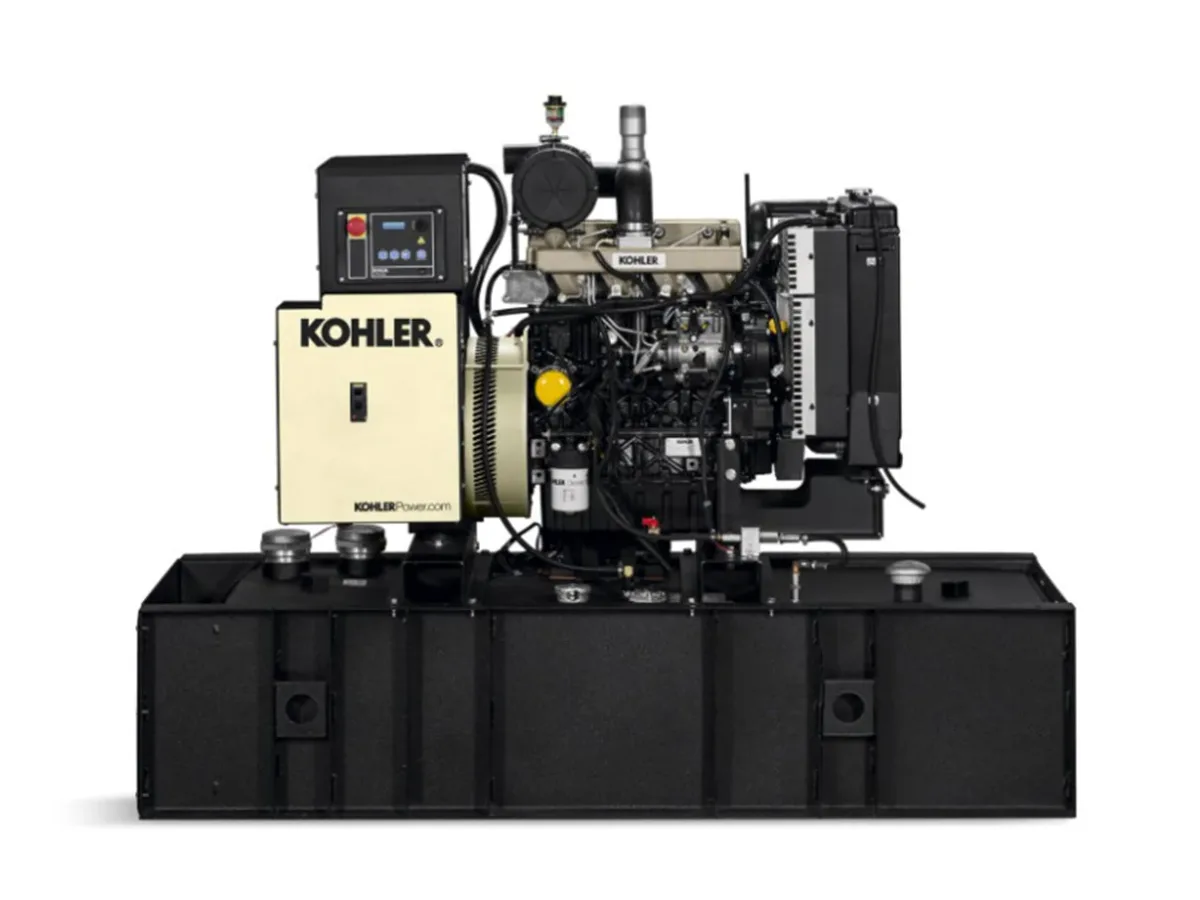

Kohler Kohler 20REOZK 20 kW liquid-cooled standby generator

Kohler

Kohler 20REOZK

Compact 20 kW diesel standby -- Kohler KDI2504ESM at 1800 RPM. Quiet operation with sub-3% THD for sensitive loads.

20 kW standby · Diesel · Liquid-cooled

20 kW diesel commercial standby generator. Kohler-powered diesel for small commercial, retail, and light institutional standby applications.

3-phasecommercialhealthcare

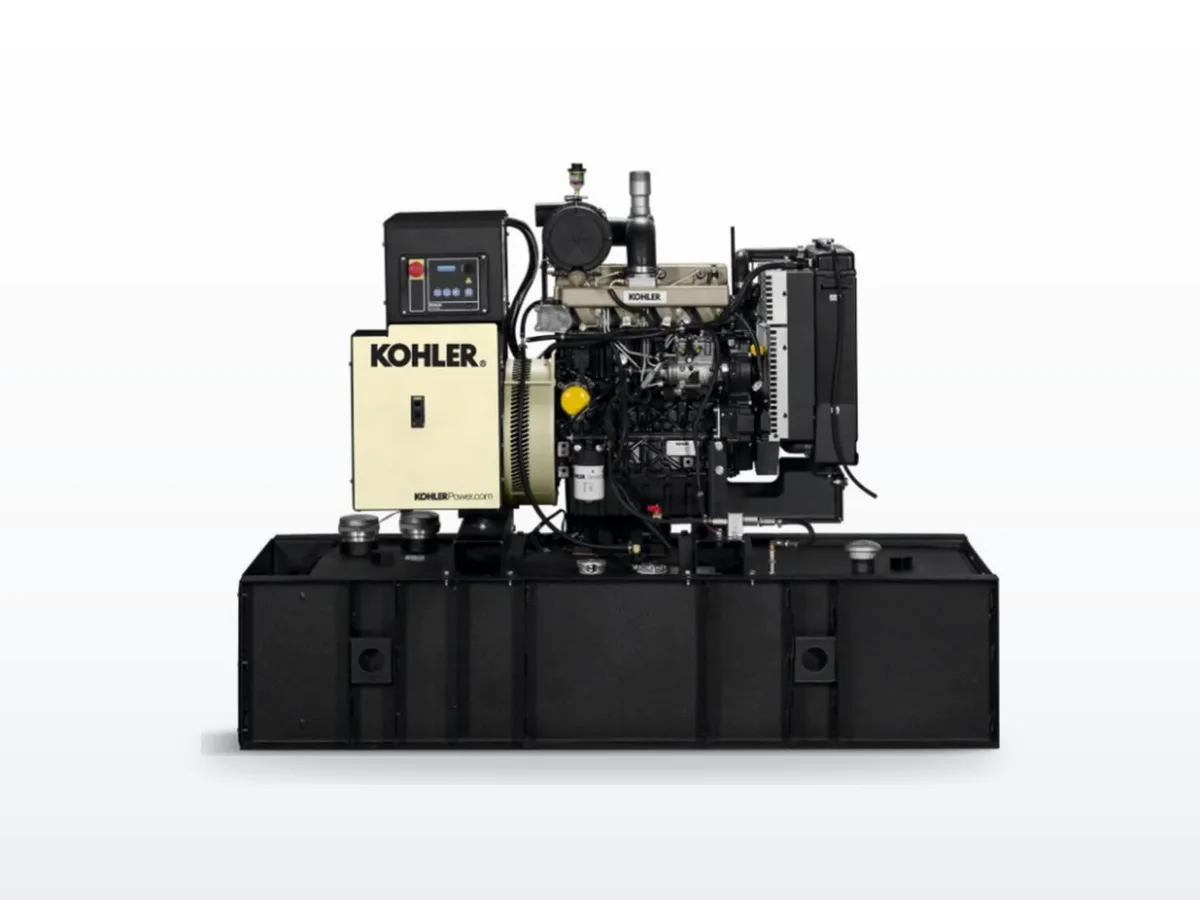

Kohler Kohler 40REOZK 40 kW liquid-cooled standby generator
