Kohler · REOZ Series (Diesel Commercial Standby)

New

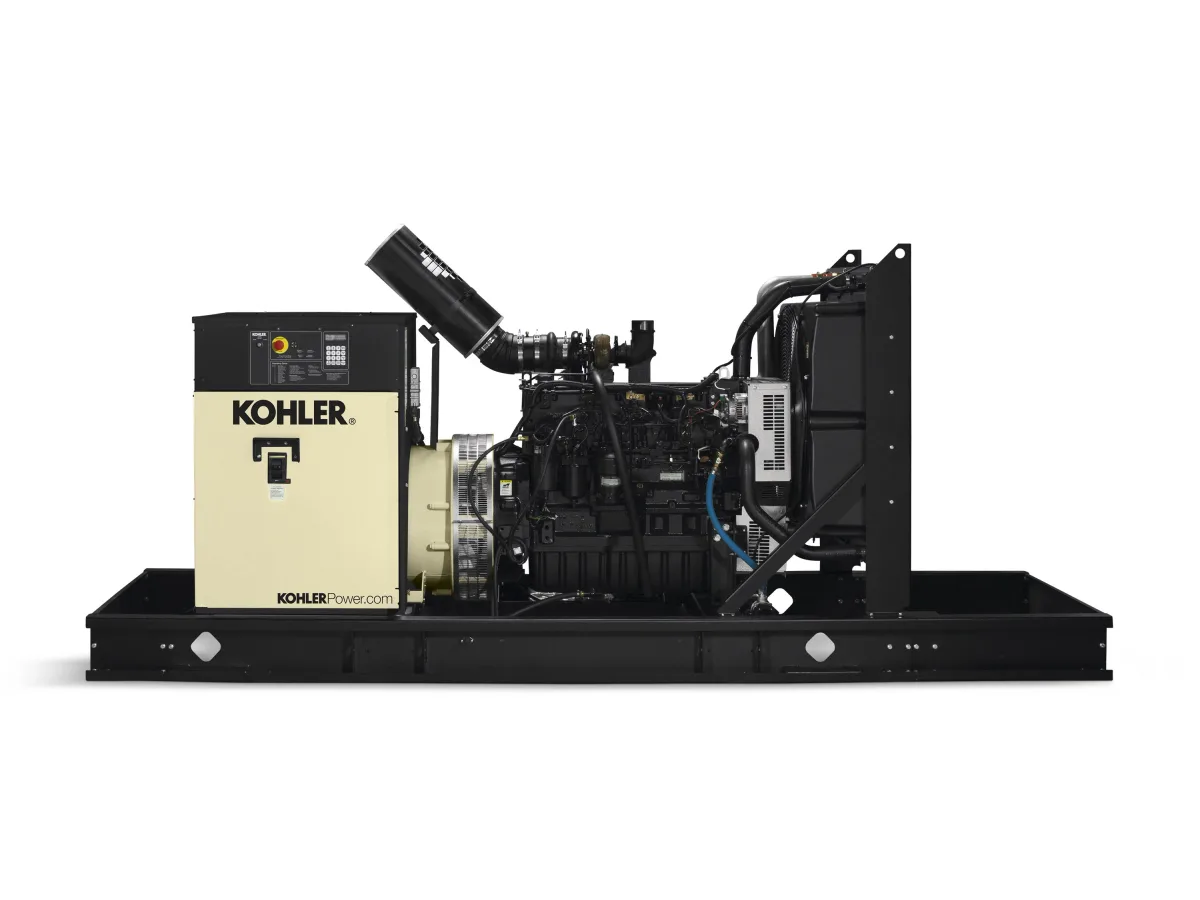

Kohler 250REOZJE

255 kW standby / 230 kW prime · Diesel · Liquid-cooled

255 kW diesel commercial standby generator powered by John Deere. Mid-range diesel workhorse for commercial, healthcare, and institutional applications.

Standby power: 255 kW / 230 kW prime
Voltage options: 277/480V, 120/208V, 120/240V
Frequency / Phase: 60 Hz · 1/3-phase
Engine: John Deere 6090HF484B · 9L
EPA / Emissions: Tier 3
Alternator: Kohler 4UA10

commercialhealthcaredata-centerindustrial-lightgovernmentmission-critical

Overview#

The Kohler 250REOZJE is a 255-kilowatt standby (230 kW prime) diesel generator powered by a John Deere engine at 1800 RPM. Typical applications include commercial buildings, healthcare facilities, and institutional campuses.

Our service experience#

OnPoint Generators services Kohler REOZ diesel generators throughout Northern California. We typically structure accounts for mid-range diesel units around annual NFPA 110 service plus semi-annual fuel and filter inspections.

Engineering specifications

Physical

Length: 118.1 in
Width: 51.2 in
Height: 74.4 in
Wet weight: 5,400 lb

Fuel system & runtime

Fuel use @ full load: 17.6 GPH
Fuel use @ 75% load: 13.3 GPH

Photos

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Request a quote

Get pricing & lead time on the Kohler 250REOZJE

Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.

Request a quote →Download datasheet

Estimate runtime for the Kohler 250REOZJE

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

14.7 hours(0.6 days)

Fuel consumption ≈ 13.58 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Kohler 250REOZJE under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 250 hours or 12 months
Coolant change: Every 3000 hours
Air filter: Every 500 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 15,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality / degradation	Injector fouling, hard starting, filter clogging	4,380+	moderate
Turbocharger	Power loss, excessive smoke under load	12,000+	moderate
Battery (starting)	Failed to start, slow crank	8,760+	minor
