What engine powers the Kohler 150REOZJF?

The 150REOZJF uses a John Deere diesel engine running at 1800 RPM (model 6068HF285K).

What is the standby power rating of the 150REOZJF?

The 150REOZJF is rated at 154 kW standby and 140 kW prime per Kohler published specifications.

Does OnPoint service the Kohler 150REOZJF?

Yes. OnPoint Generators provides maintenance, repair, and load bank testing for Kohler REOZ diesel generators throughout Northern California, including the 154 kW class.

Kohler · REOZ Series (Diesel Commercial Standby)

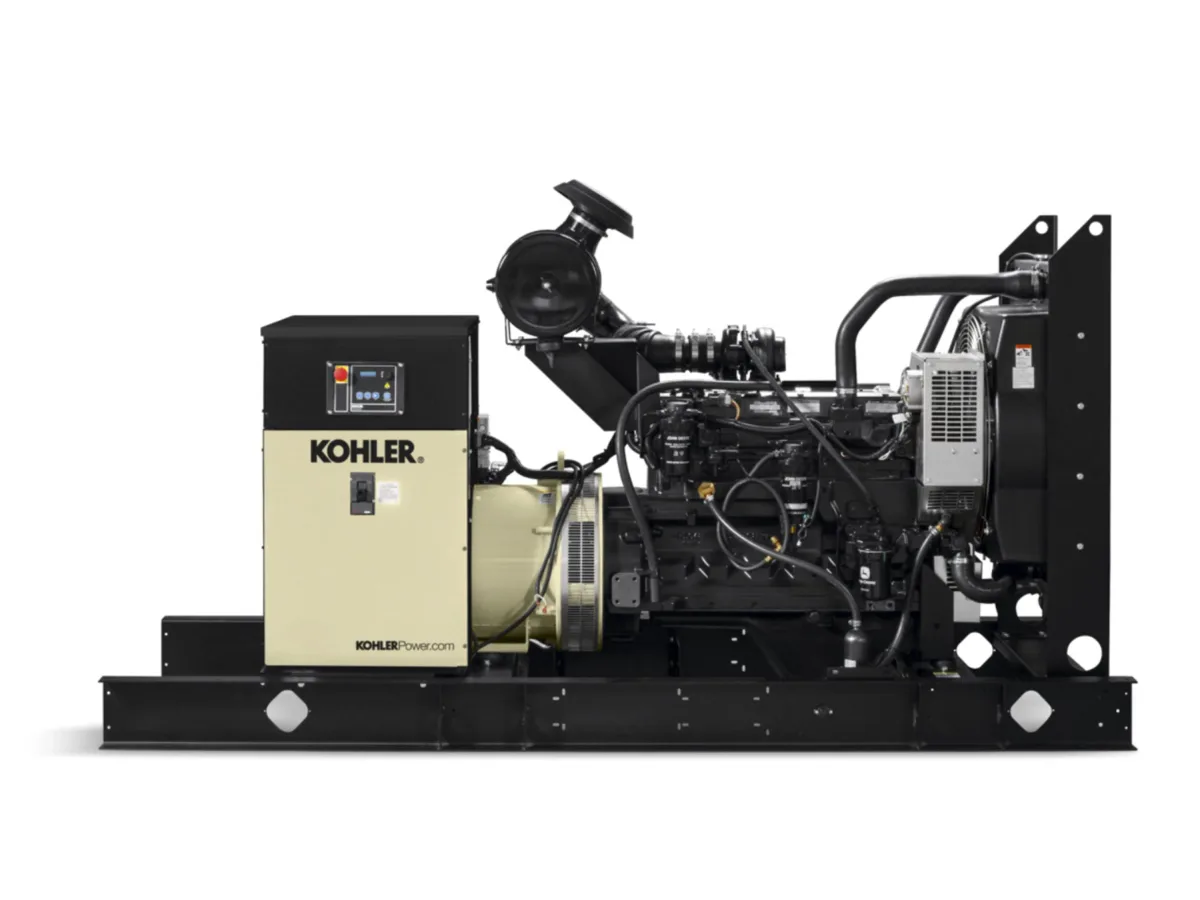

Kohler 150REOZJF

154 kW standby / 140 kW prime · Diesel · Liquid-cooled

154 kW diesel commercial standby generator powered by John Deere. Reliable standby power for commercial and institutional facilities.

Standby power: 154 kW / 140 kW prime
Voltage options: 277/480V, 120/208V, 120/240V
Frequency / Phase: 60 Hz · 1/3-phase
Engine: John Deere 6068HF285K · 6.8L
EPA / Emissions: Tier 3
Alternator: Kohler 4R13X

Commercial Healthcare Governmentindustrial-light

Overview#

The Kohler 150REOZJF is a 154-kilowatt standby (140 kW prime) diesel generator powered by a John Deere engine at 1800 RPM. Typical applications include commercial buildings, healthcare, and institutional facilities.

Our service experience#

OnPoint Generators services Kohler REOZ diesel generators throughout Northern California. We typically structure service for this class around annual NFPA 110 maintenance plus semi-annual fuel quality and filter inspections.

Engineering specifications

Physical

Length: 116.1 in
Width: 44.1 in
Height: 60 in
Wet weight: 3,090 lb

Fuel system & runtime

Fuel use @ full load: 11.7 GPH
Fuel use @ 75% load: 9.3 GPH

Photos

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Kohler 150REOZJF

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Kohler 150REOZJF

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

22.2 hours(0.9 days)

Fuel consumption ≈ 9.03 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Kohler 150REOZJF under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 250 hours or 12 months
Coolant change: Every 3000 hours
Air filter: Every 500 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 15,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality / degradation	Injector fouling, hard starting, filter clogging	4,380+	moderate
Turbocharger	Power loss, excessive smoke under load	12,000+	moderate
Battery (starting)	Failed to start, slow crank	8,760+	minor

Frequently Asked Questions

What engine powers the Kohler 150REOZJF?: The 150REOZJF uses a John Deere diesel engine running at 1800 RPM (model 6068HF285K).
What is the standby power rating of the 150REOZJF?: The 150REOZJF is rated at 154 kW standby and 140 kW prime per Kohler published specifications.
Does OnPoint service the Kohler 150REOZJF?: Yes. OnPoint Generators provides maintenance, repair, and load bank testing for Kohler REOZ diesel generators throughout Northern California, including the 154 kW class.

Compatible equipment

Transfer switches

More in the REOZ Series (Diesel Commercial Standby)

Kohler's diesel commercial standby series — 10 to 510 kW, John Deere and Kohler engines, built for life-safety loads.

View all 33models in this series →

Similar models

Kohler

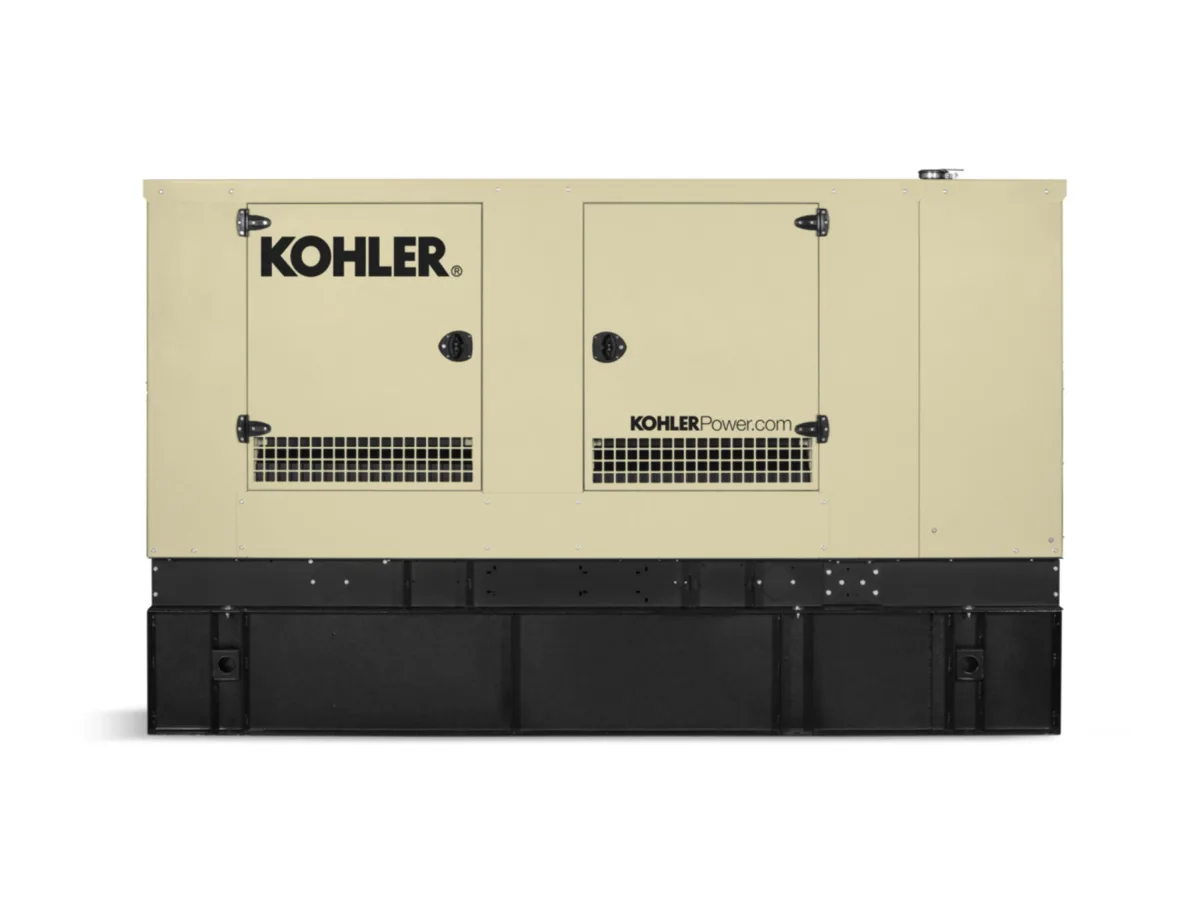

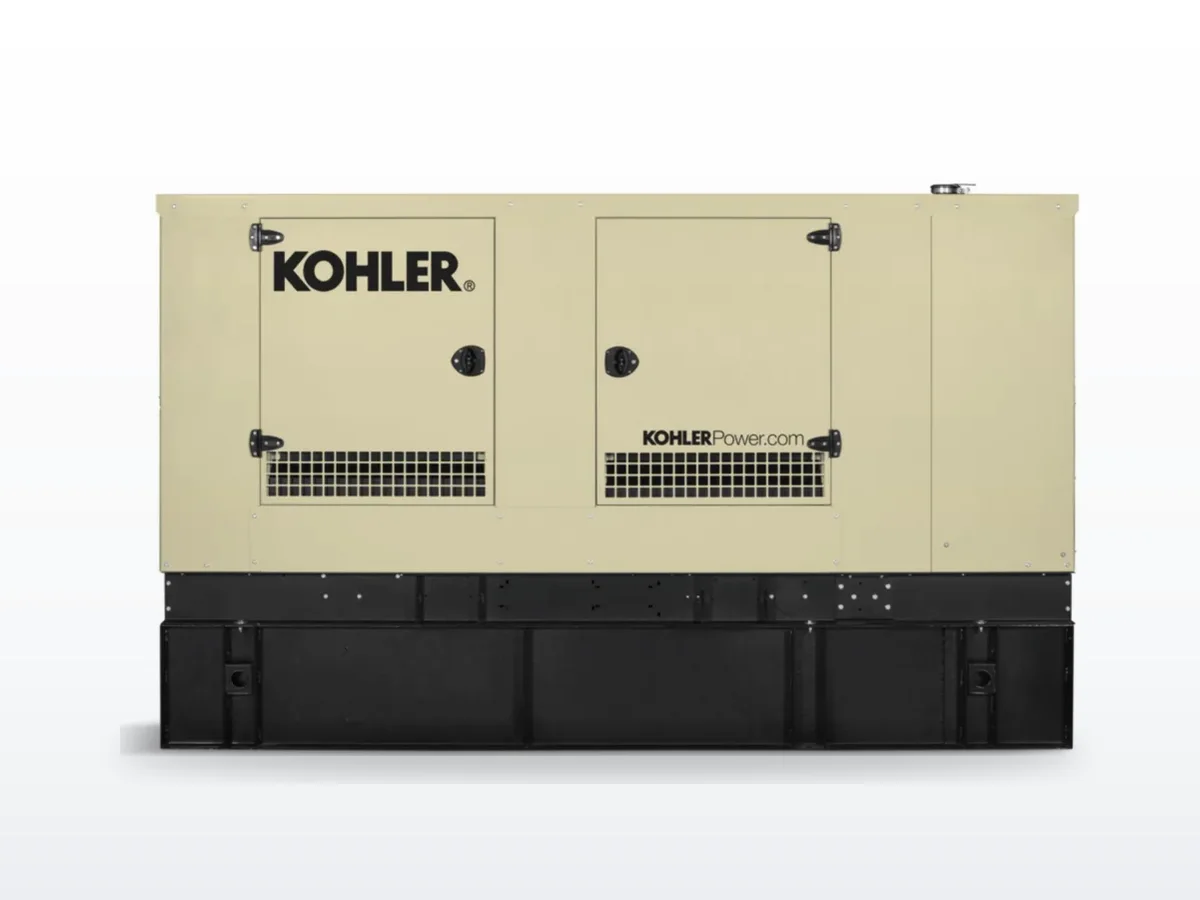

Kohler 150REOZJ4

THD below 3% at 150 kW -- the healthcare and commercial default. John Deere 6068HG550 with Decision-Maker controller.

150 kW standby · Diesel · Liquid-cooled

150 kW commercial standby for hospitals, schools, retail, and institutional facilities requiring clean power and NFPA 110 compliance.

154 kW diesel commercial standby generator powered by John Deere. Reliable standby power for commercial and institutional facilities.

Tier 4 Final3-phasecommercialhealthcare

Kohler

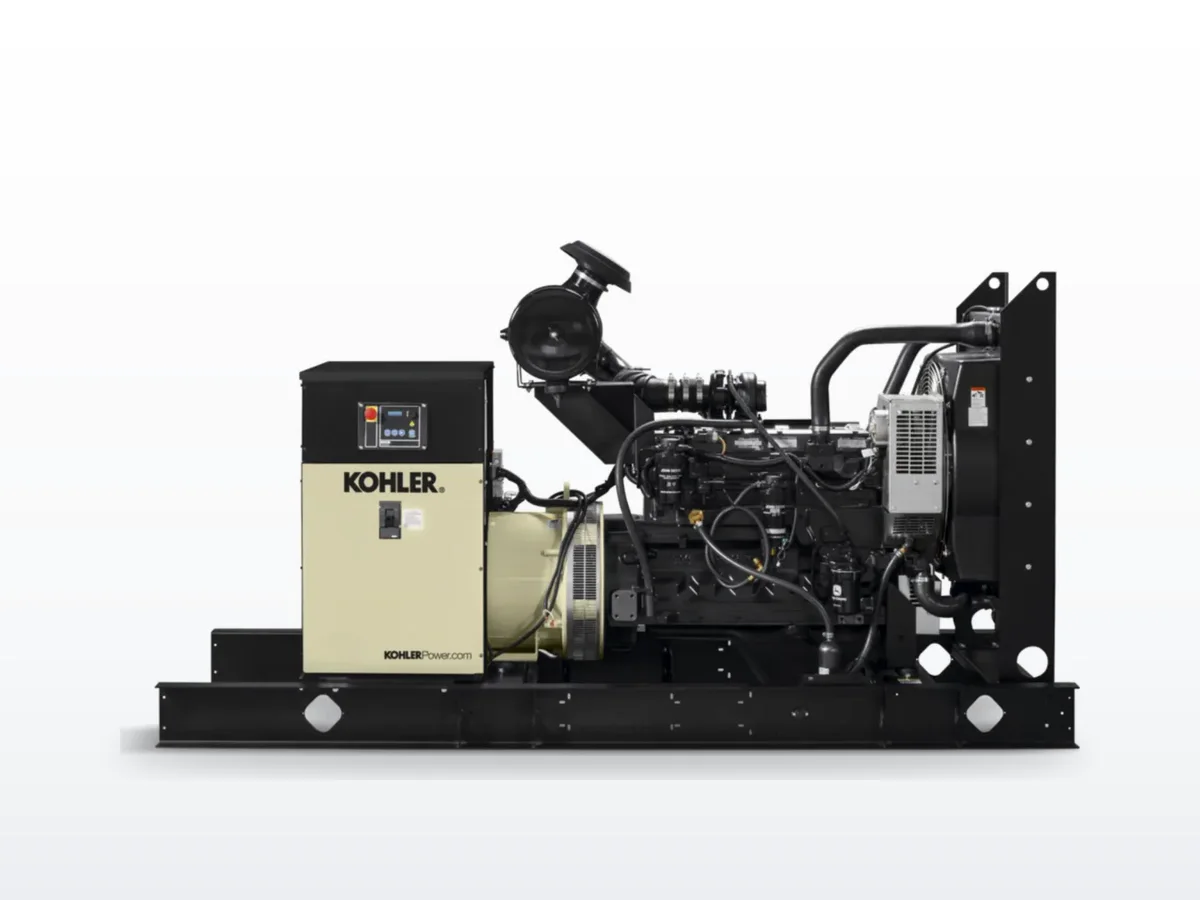

Kohler 180REOZJG

THD below 3% at 180 kW -- the healthcare and commercial default. John Deere 6068HFG82E with Decision-Maker controller.

180 kW standby · Diesel · Liquid-cooled

180 kW commercial standby for hospitals, schools, retail, and institutional facilities requiring clean power and NFPA 110 compliance.

180 kW diesel commercial standby generator powered by John Deere. Reliable standby power for commercial and institutional facilities.

Tier 33-phasecommercialhealthcare

Kohler

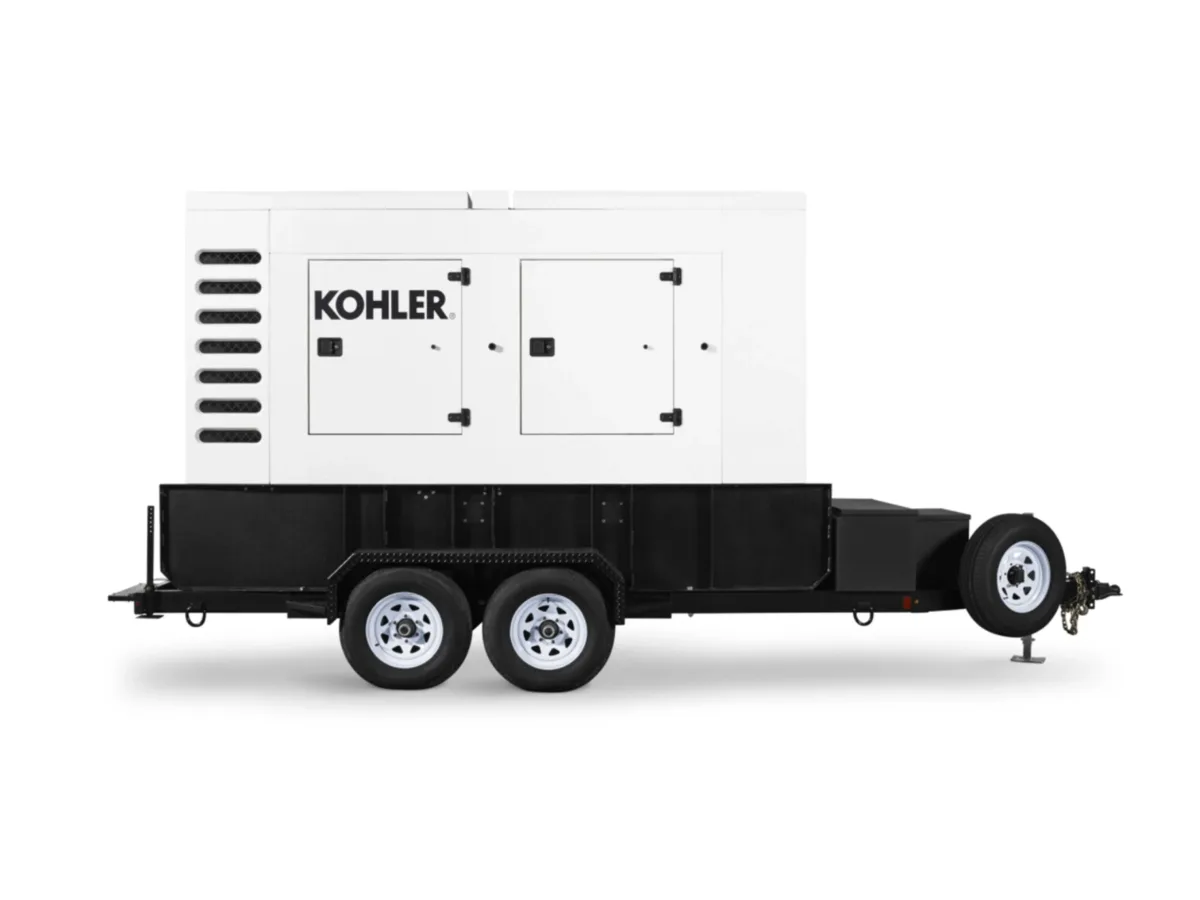

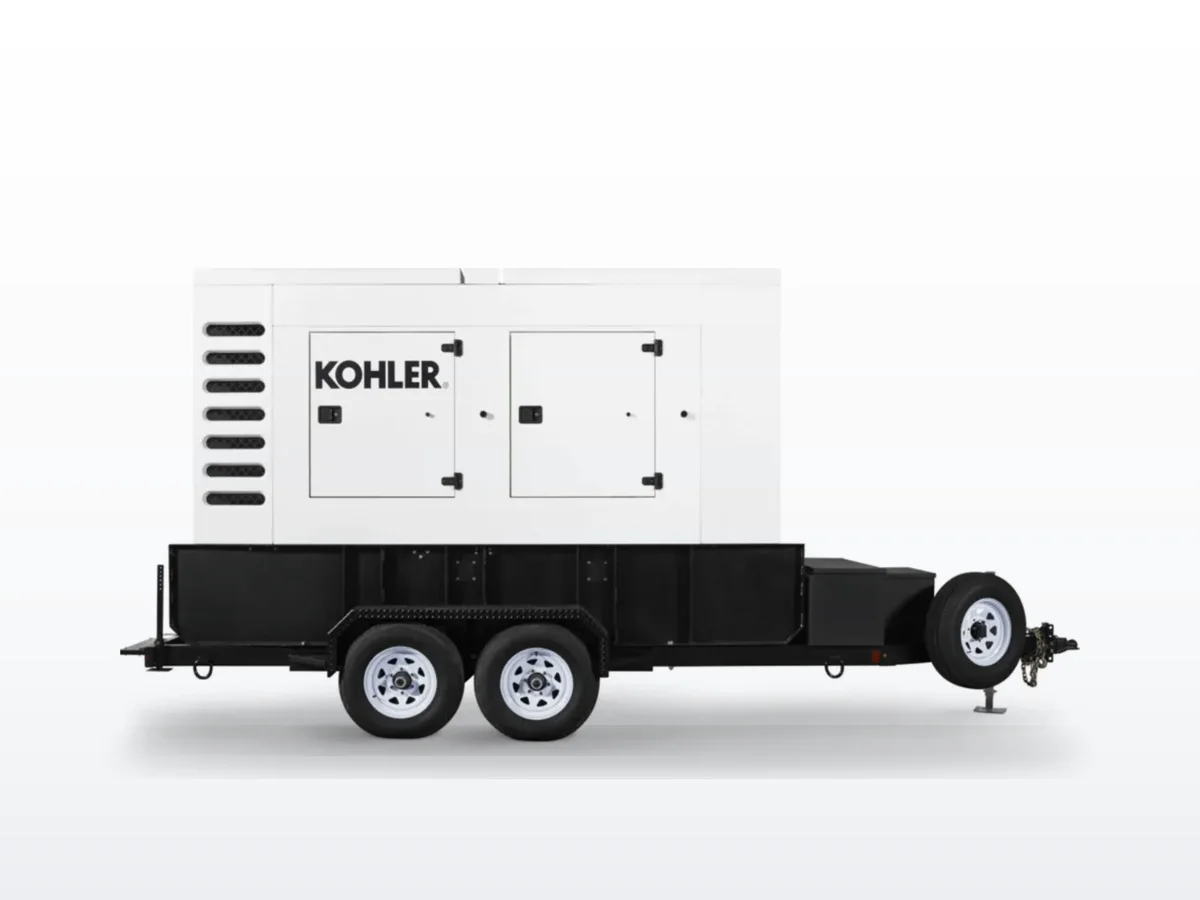

Kohler 175REOZT4

150 kW mobile diesel trailer -- Tier 4 John Deere 6068HG550. DOT-towable for large temporary power and emergency deployment.

150 kW standby · Diesel · Liquid-cooled

150 kW mobile standby for large construction projects, event power, emergency response, and planned outage bridge power.

154 kW diesel mobile trailer Tier 4 Final commercial standby generator powered by John Deere. Reliable standby power for commercial and institutional facilities.

Tier 4 Final3-phasecommercialhealthcare
