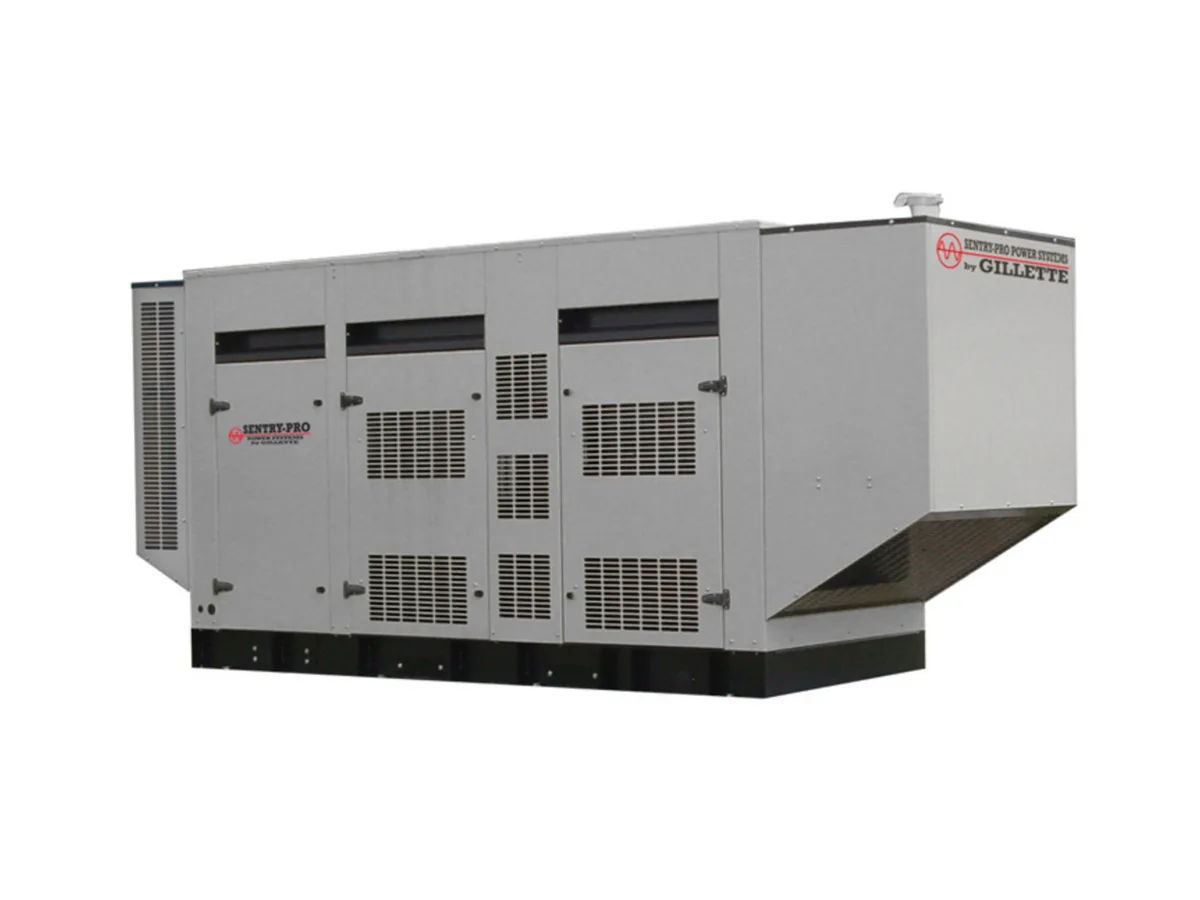

The Gillette SPVD-5500 is a 550-kilowatt stationary diesel standby generator — the mid-point of the 16.1L Volvo TAD16xx platform. The TAD1642GE produces 749 bhp from 16.1L displacement. Stamford HCI534F alternator, Basler DGC-2020 controller.
This model bridges the SPVD-5000 (500 kW, TAD1641) and SPVD-6000 (600 kW, TWD1644) — the three models represent the full 16.1L output range before stepping to 17.3L at 700 kW.
At 331 psi BMEP, the TAD1642GE operates at a moderate specific loading for 16.1L — higher than the 500 kW TAD1641 (302 psi) but lower than the 600 kW TWD1644 (369 psi). This positions the SPVD-5500 as the balanced option in the 16.1L range for facilities that need more than 500 kW but can't justify the jump to 600 kW.
The TAD1642 is the same Volvo 16.1L platform we service on Blue Star VD-series generators. At 550 kW, the engine has good thermal margin and responds well to standard diesel maintenance. The older ASCE 7-05 wind certification is worth noting for coastal or high-wind installations — verify current certification status with Gillette if wind load compliance is a project requirement.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
6.5 hours(0.3 days)
Fuel consumption ≈ 30.78 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Gillette SPVD-5500 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / degradation
Injector fouling, hard starting
4,380+
moderate
Turbocharger
Power loss, excessive smoke
12,000+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Frequently Asked Questions
How does the TAD1642 differ from the TAD1641 in the SPVD-5000?
Same 16.1L I6 block. The TAD1642GE produces 749 bhp at 331 psi BMEP vs. 685 bhp at 302 psi BMEP for the TAD1641. Higher turbo boost and fuel delivery push 50 kW more output from identical displacement. Same enclosure footprint.
Why does the SPVD-5500 have a lower wind load rating?
The SPVD-5500 spec sheet lists ASCE 7-05 at 180 MPH rather than ASCE 7-22 at 200 MPH. This appears to be an older certification on this particular model that has not been updated. For projects requiring current ASCE 7-22 certification, verify with Gillette whether an updated certification is available.
What fuel consumption at 550 kW?
39.9 gal/hr at full load. At 75%: 28.8 gal/hr. At 50%: 19.1 gal/hr.
550 kW Tier 2 diesel standby generator from Blue Star Power Systems. Volvo Penta TAD1642GE-B 16.1L inline-six with DSE DCP7310 controller, 208-600V output.
Tier 23-phasecommerciallarge-commercial
Kohler
New
Kohler 550REOZVB
550 kW standby · Diesel · Liquid-cooled
550 kW diesel commercial/industrial standby generator powered by Volvo. Suitable for hospitals, data centers, and large commercial complexes.
Tier 23-phasecommercialhealthcare
G
Gillette
New

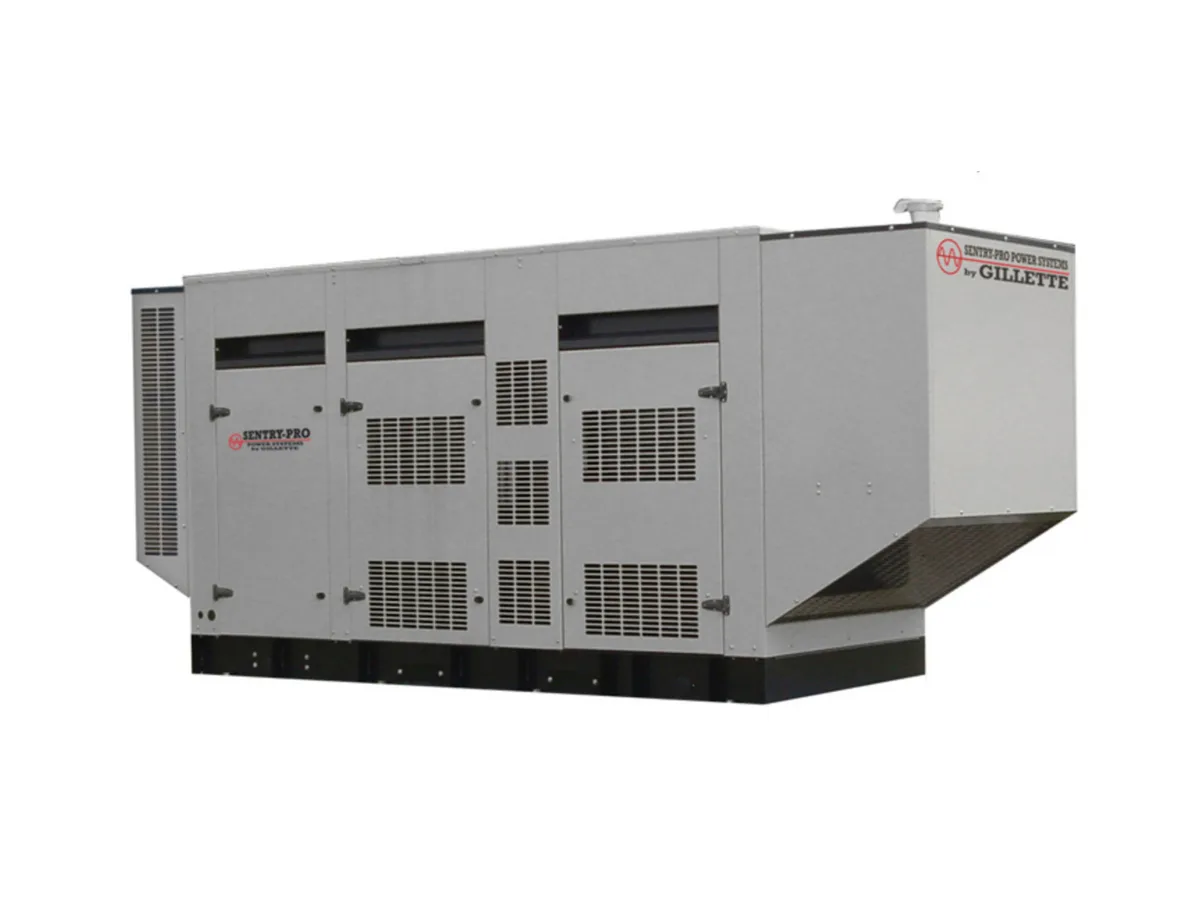

Gillette T4D-6000
