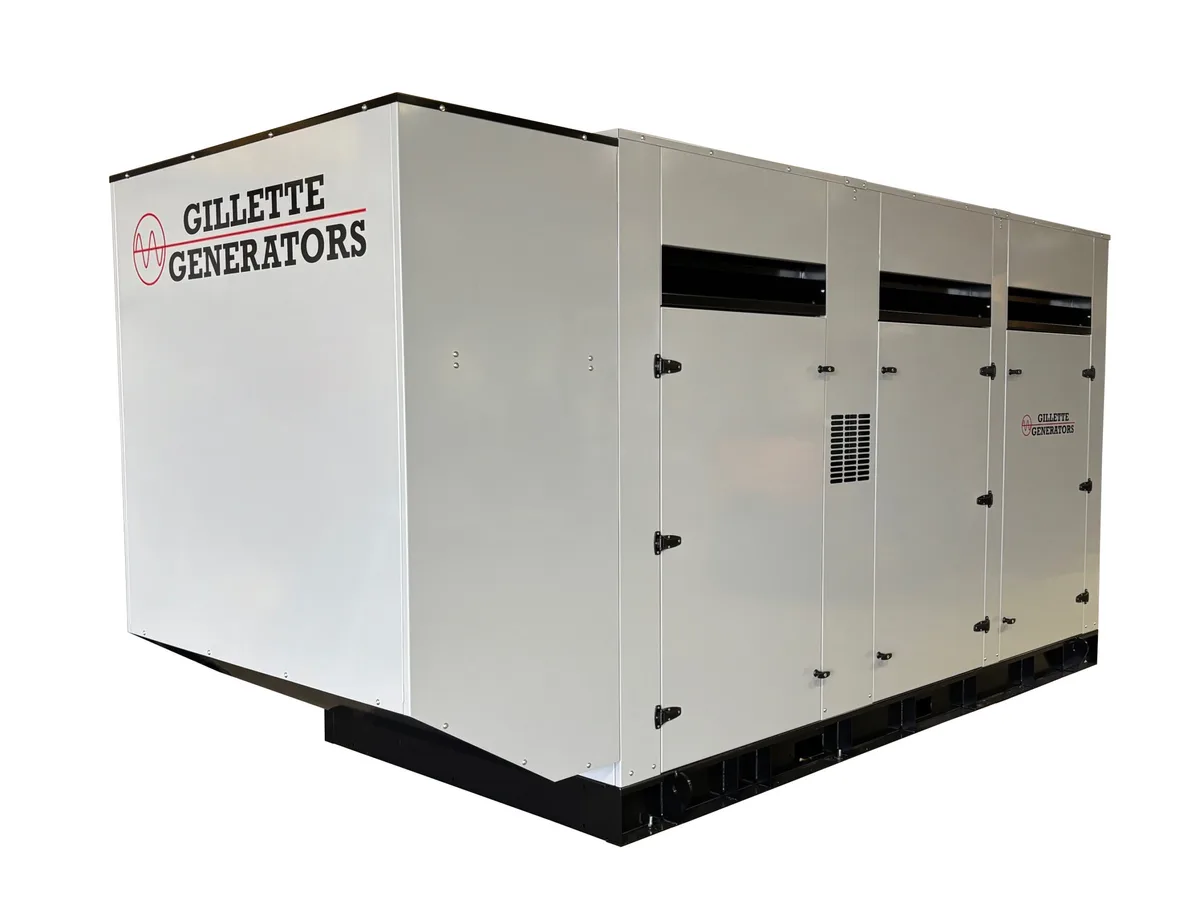

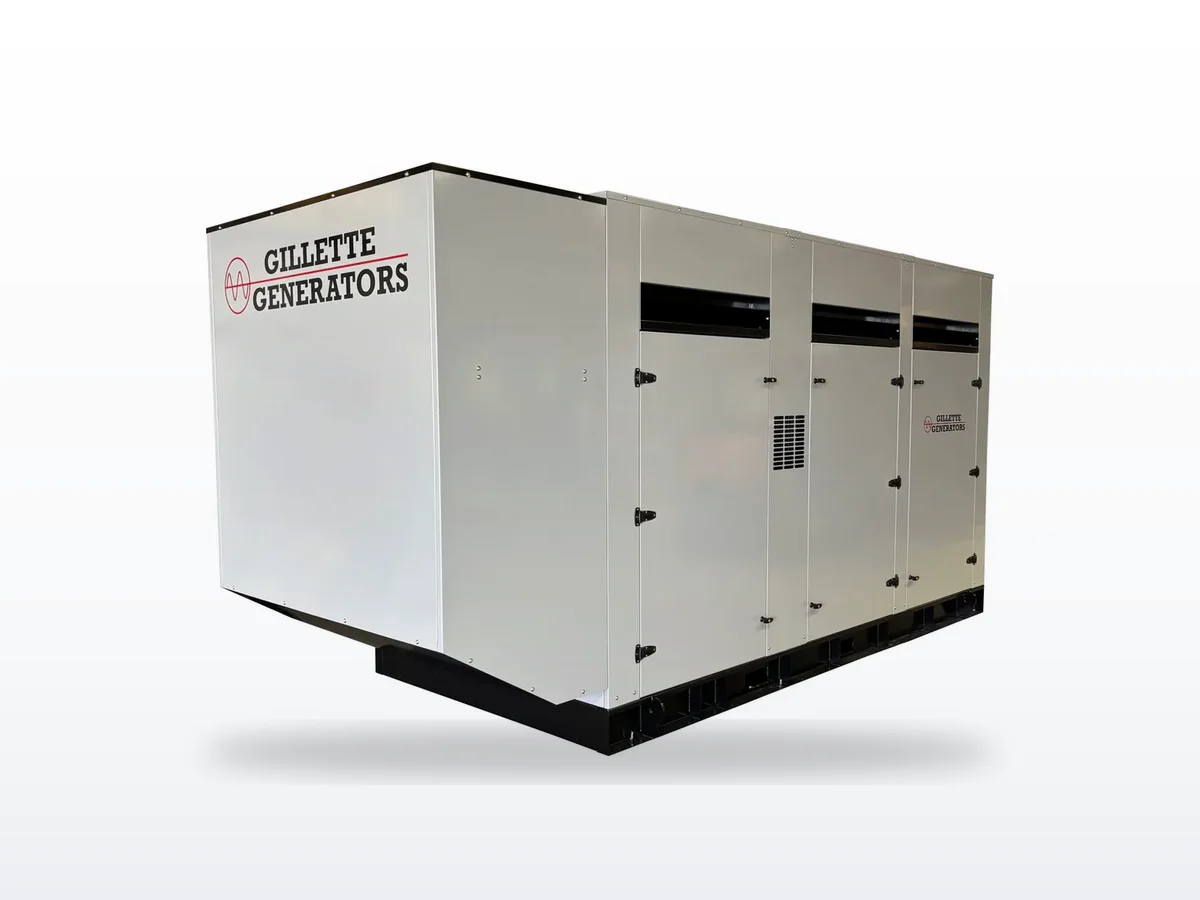

The Gillette SPVD-5000 is a 500-kilowatt stationary diesel standby generator on Volvo Penta's TAD1641GE — the 16.1L inline-6 that begins the larger Volvo platform used from 500 to 700 kW. This is the same engine platform used in Blue Star VD-series generators at identical output levels. Stamford HCI534 alternator, Basler DGC-2020 controller.
At 500 kW, this transitions from the 12.8L enclosure to a larger footprint (152 x 72 x 80 in open vs. 132 x 52 x 65 in for the 12.8L models).
The TAD16xx/TWD16xx 16.1L powers three SPVD models:
Model
Engine
Aspiration
Standby kW
Emissions
SPVD-5000
TAD1641GE
Air-to-air aftercooled
500
Tier II
SPVD-5500
TAD1642GE
Air-to-air aftercooled
550
Tier II
SPVD-6000
TWD1644GE
Water-to-air aftercooled
600
Tier II
The SPVD-6000 notably switches from air-to-air to water-to-air aftercooling (indicated by the "TWD" prefix) to achieve 600 kW from the same 16.1L displacement.
The Volvo 16.1L at 500 kW is a platform we service extensively on Blue Star VD generators. The Delphi E3 fuel injection and EMS 2.2 engine management are transparent and well-documented. At 500 kW, this engine is comfortably within its output envelope (302 psi BMEP) — less stressed than the 400 kW 12.8L at 340 psi BMEP. Annual load bank testing and fuel quality management are standard service items.
Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
7.0 hours(0.3 days)
Fuel consumption ≈ 28.39 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Gillette SPVD-5000 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / degradation
Injector fouling, hard starting
4,380+
moderate
Turbocharger
Power loss, excessive smoke
12,000+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Frequently Asked Questions
What displacement change occurs at the SPVD-5000?
The SPVD-5000 steps from the 12.8L TAD13xx platform (SPVD-2500 through 4000) to the 16.1L TAD16xx platform. This is a 26% displacement increase — 984 cu in vs. 780 cu in — with a larger bore (5.67" vs. 5.16") and longer stroke (6.50" vs. 6.22"). The larger engine also moves to a larger enclosure footprint.
Is the TAD1641GE the same platform as Blue Star VD500?
Yes — the Volvo TAD1641GE is the same engine used in Blue Star's 500 kW VD-series generators. Service procedures, parts, and Volvo Penta documentation are directly transferable. We service both brands with the same tooling and consumables.
Why does the emissions tier drop from Tier III to Tier II at 500 kW?
The 16.1L TAD1641GE is EPA Tier II — a lower emissions tier than the 12.8L TAD13xx models (Tier III). This is consistent with EPA regulatory structure where larger displacement engines have different tier requirements. For emergency standby duty, Tier II is typically acceptable under EPA emergency generator provisions.
What fuel consumption at 500 kW?
36.8 gal/hr at full load. At 75%: 26.8 gal/hr. At 50%: 18.0 gal/hr. A 750-gallon tank at 75% load provides approximately 28 hours.
Factory-direct at 15-30% below major brands. Volvo Penta 12.8L engine + Basler controller — no proprietary lock-in. 3-7 day lead times.

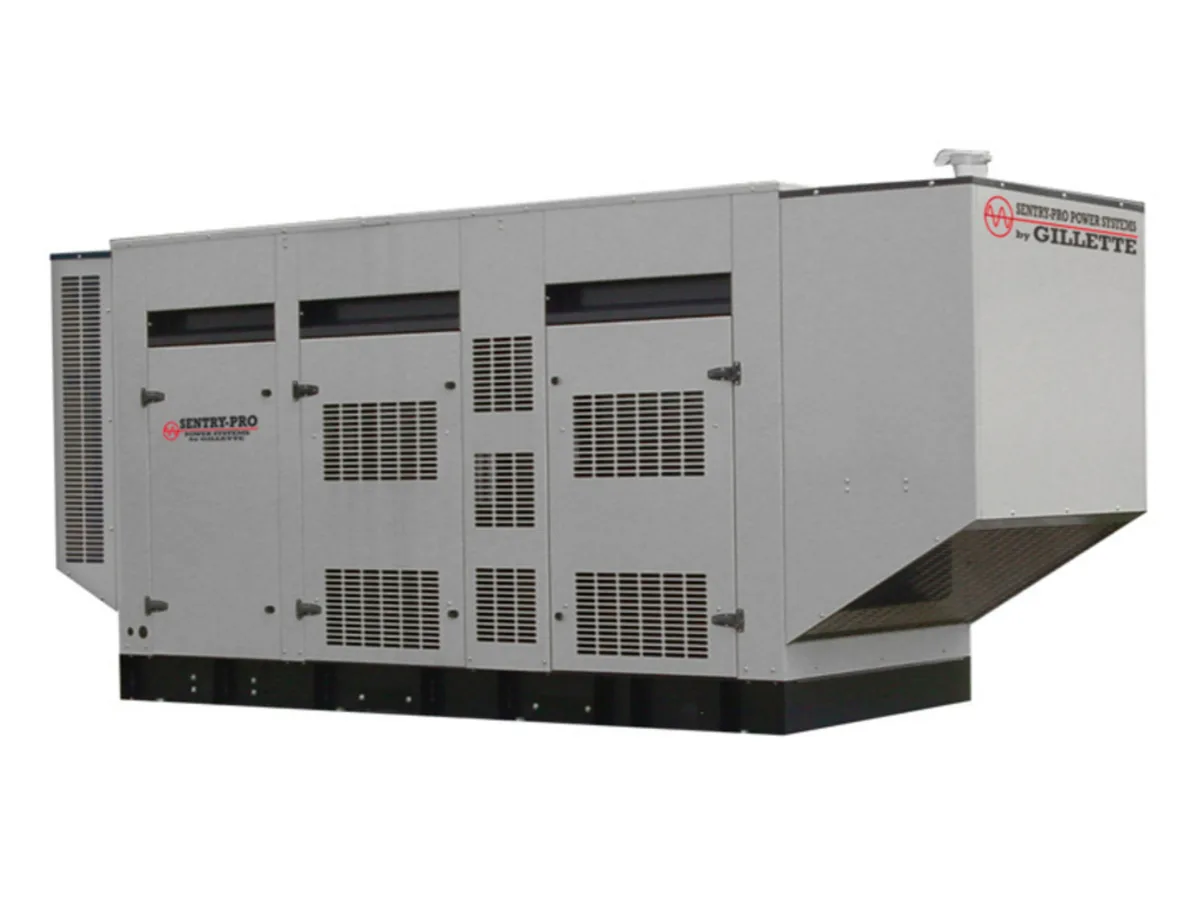

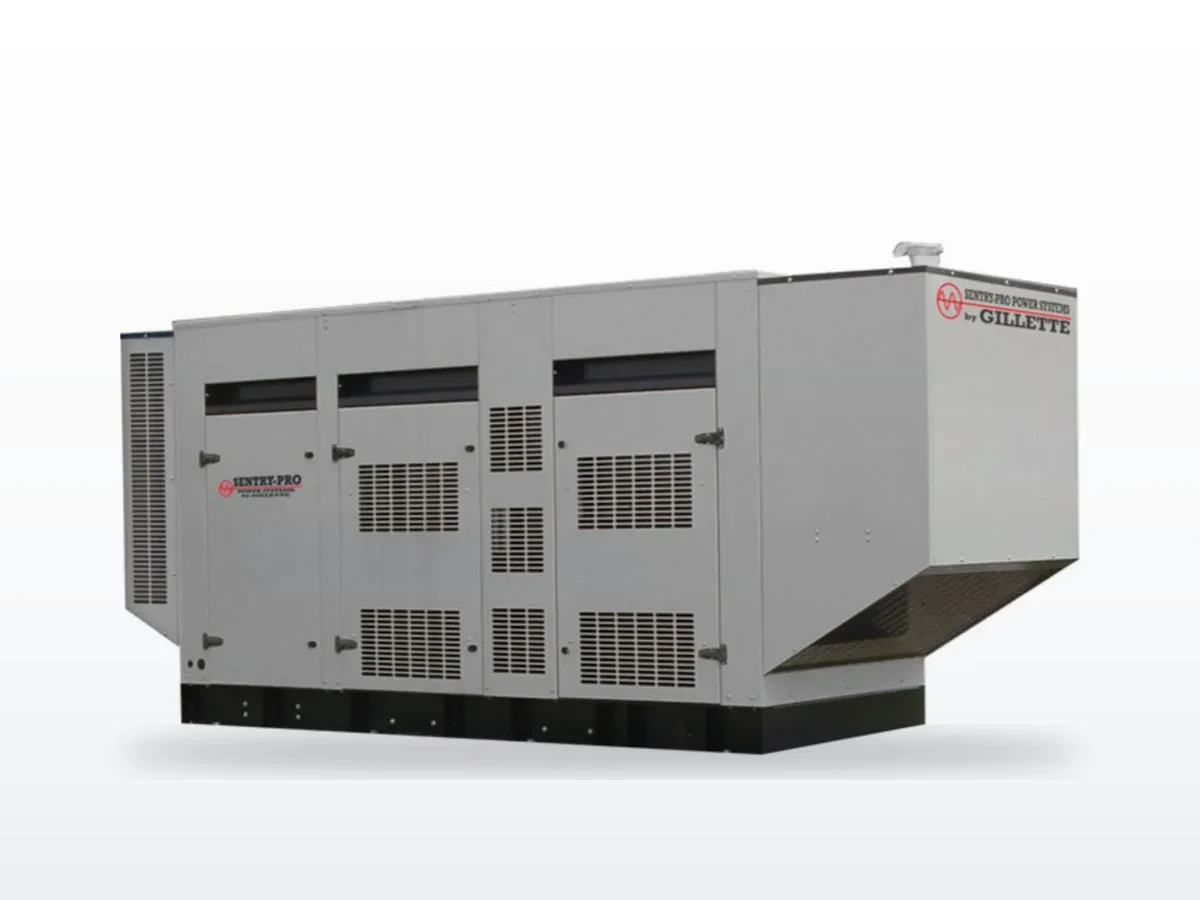

400 kW standby · Diesel · Liquid-cooled
400 kW diesel standby for hospitals, data centers, hotels, and large commercial or campus facilities.
400 kW stationary diesel standby generator with Volvo Penta TAD1353GE 12.8L engine. Stamford S4L1DG alternator, Basler DGC-2020 controller. Made in USA.
Tier 33-phasecommercialhospital
Gillette

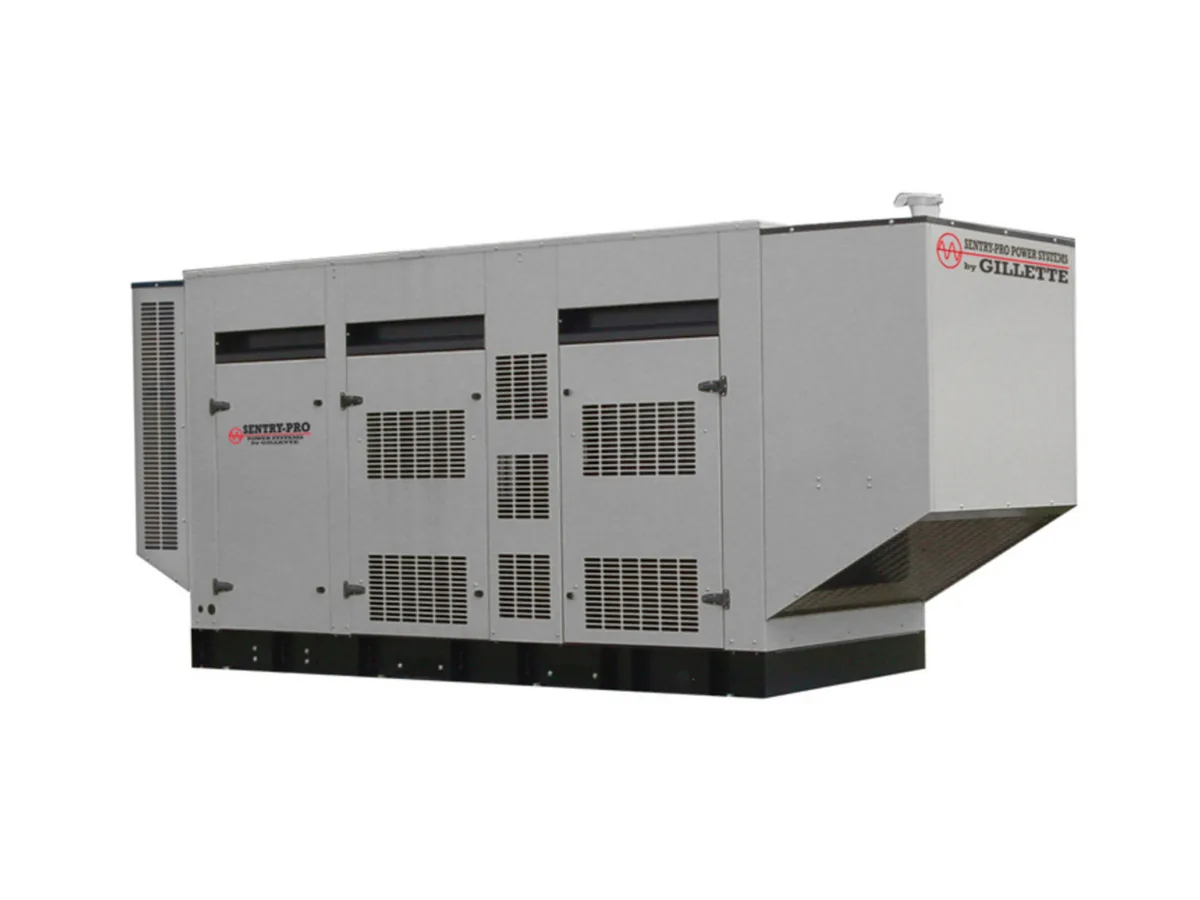

Gillette SPVD-5500
Factory-direct at 15-30% below major brands. Volvo Penta 16.1L engine + Basler controller — no proprietary lock-in. 3-7 day lead times.
550 kW standby · Diesel · Liquid-cooled
550 kW diesel standby for data centers, hospitals, industrial campuses, and large municipal infrastructure.
550 kW stationary diesel standby generator with Volvo Penta TAD1642GE 16.1L engine. Stamford HCI534F alternator, Basler DGC-2020 controller. Made in USA.
Tier 23-phasedata-centerhospital
Gillette

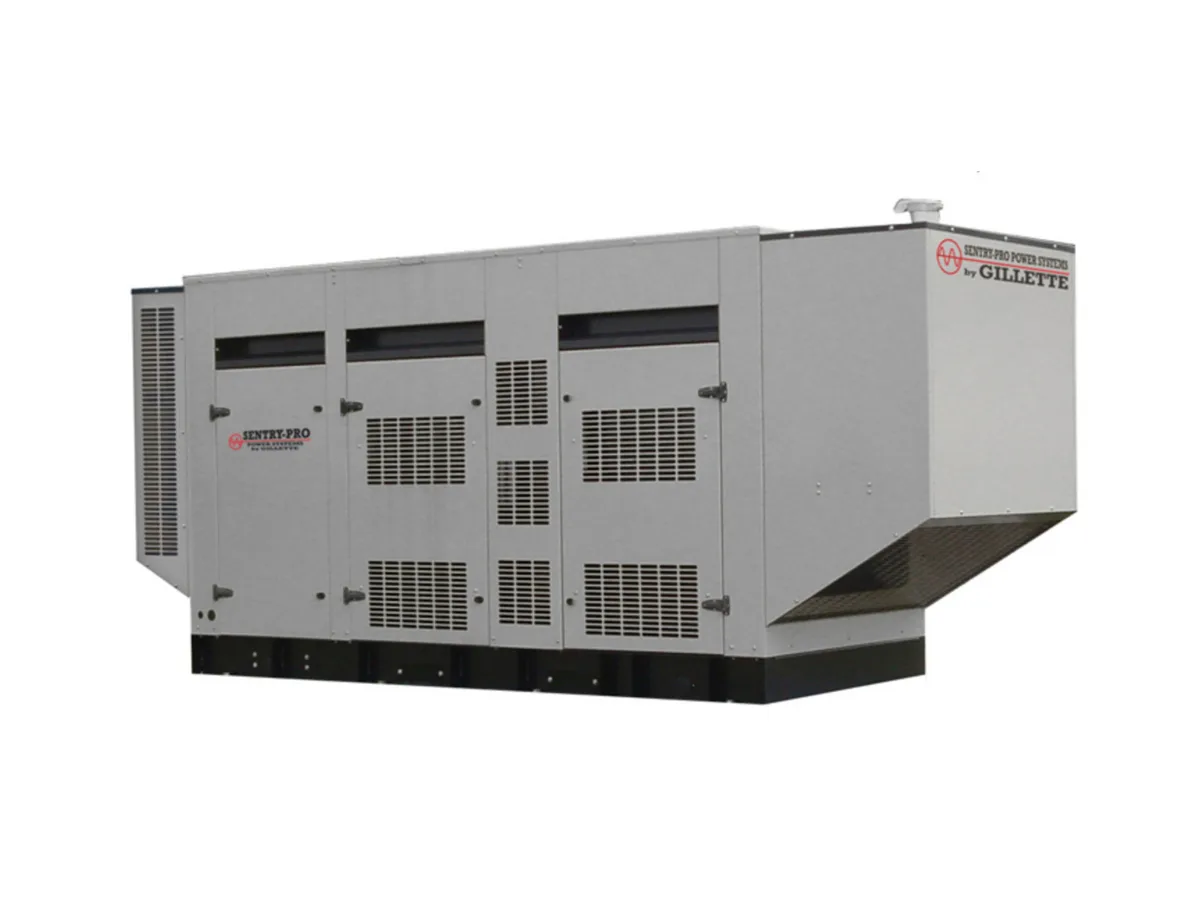

Gillette T4D-6000
