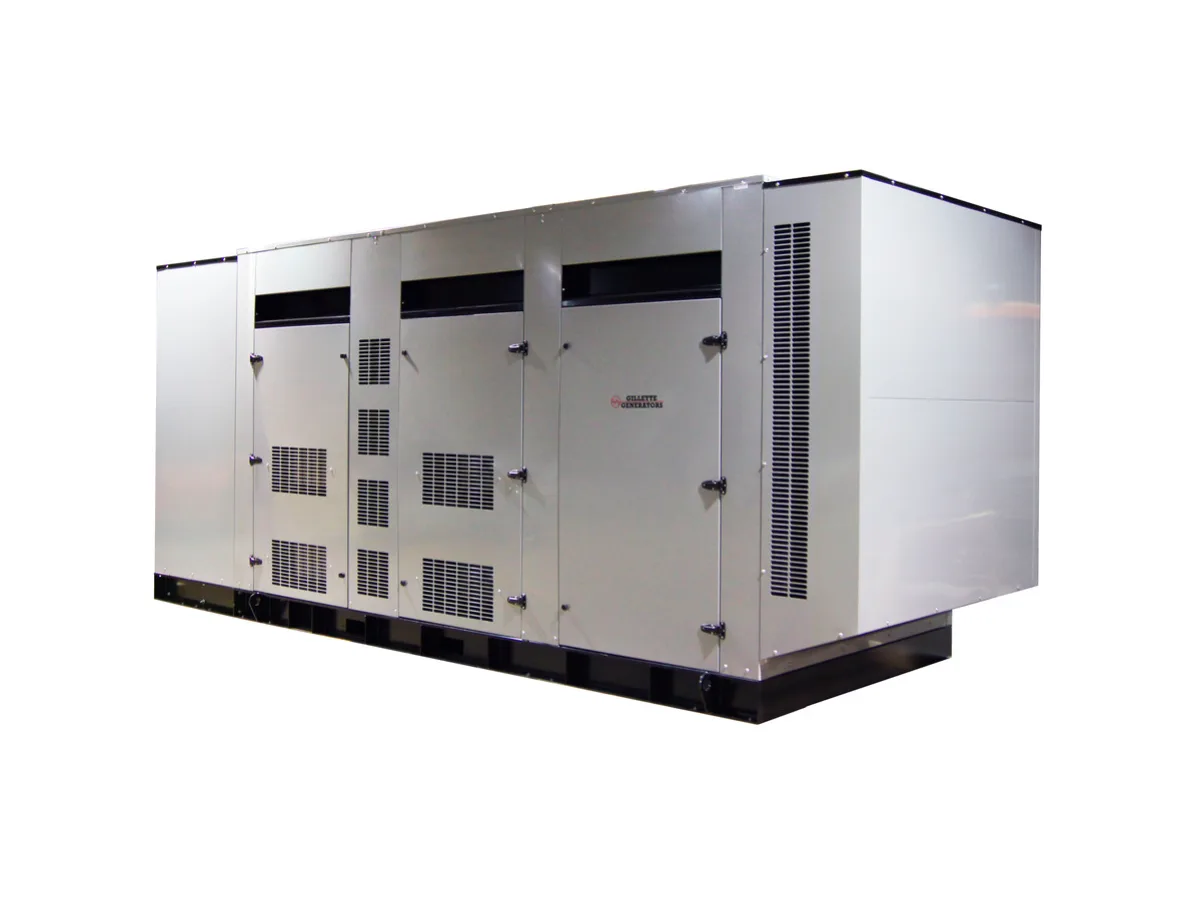

The Gillette SPMI-8000 is an 800-kilowatt stationary diesel standby generator — the entry point into the Mitsubishi S-series diesel platform at Gillette. The Mitsubishi S12A2 is a 33.9L turbocharged and water-to-air aftercooled V12 producing 1,207 bhp. Stamford AVK HCI634H alternator with PMG excitation, DSE 7420 MKII with UL 6200, three-phase only.
At 800 kW diesel, this is a utility-grade standby generator for data centers, large hospitals, industrial plants, and campus-wide distributions. The SPMI series extends from 800 kW to 2,000 kW — Gillette's diesel lineup for the largest commercial and institutional applications.
Mitsubishi's S-series industrial diesel engines are the standard power source for large diesel generators globally. The S12A2 in the SPMI-8000 represents the 12-cylinder entry point:
33.9L V12 — 2,071 cu in, 5.91" bore × 6.30" stroke
Water-to-air aftercooling — more effective and consistent than air-to-air intercooling at this displacement
15.3:1 compression ratio — moderate compression for the displacement class
EPA Tier II — the SPMI series is Tier II (not Tier III like the smaller diesel models)
The Mitsubishi S-series is used by Caterpillar (in some models), Blue Star, and numerous other assemblers at this power class. Parts availability through Mitsubishi's industrial power network is established.
The Mitsubishi S-series is a well-established platform in our territory's larger installations. At 800 kW, these generators require structured preventive maintenance programs with dedicated service teams. Annual full-load bank testing is mandatory — no exceptions at this power class. Fuel management is especially critical: 67.4 gal/hr fuel consumption means large on-site tanks that require regular fuel quality testing and polishing to prevent injector damage.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
3.8 hours(0.2 days)
Fuel consumption ≈ 51.99 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Gillette SPMI-8000 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Turbocharger(s)
Significant power loss, heavy exhaust smoke
12,000+
severe
Fuel quality / degradation
Injector fouling, hard starting, filter clogging
4,380+
moderate
Battery bank (24V)
Failed start, slow cranking
8,760+
minor
Frequently Asked Questions
What engine does the SPMI-8000 use?
Mitsubishi S12A2-Y2PTAW-2 — a 33.9L turbocharged and aftercooled V12 diesel producing 1,207 bhp at standby. This is Mitsubishi's industrial power generation platform used globally in the 800-1000 kW diesel class. Water-to-air aftercooling (not air-to-air) provides more consistent intake air temperatures.
Why does the SPMI series use PMG excitation?
At 800 kW and above, Stamford AVK alternators use Permanent Magnet Generator (PMG) excitation instead of shunt excitation. PMG provides faster voltage recovery under severe load transients, maintains excitation during three-phase faults for proper relay operation, and enables one-step full-load acceptance — critical for data centers and hospitals.
What is the fuel consumption at full load?
67.4 gal/hr at full load (800 kW). At 75%: 46.1 gal/hr. At 50%: 31.3 gal/hr. A 1,000-gallon sub-base tank at 75% load provides approximately 22 hours of runtime. Plan fuel delivery logistics for extended outages.
How does the SPMI-8000 compare to the SP-8000 (natural gas)?
Both are 800 kW standby units. The SPMI-8000 (diesel, Mitsubishi 33.9L V12, 18,950 lbs) is nearly identical in physical size to the SP-8000 (natural gas, PSI 39.2L V12, 17,975 lbs). Diesel provides on-site fuel independence; gas provides unlimited runtime on utility supply. At 800 kW, diesel is the more common choice for mission-critical standby.
