Generac · SD Series (Industrial Diesel)

Generac SD500-T4

500 kW standby / 456 kW prime · Diesel · Liquid-cooled

500 kW industrial diesel standby generator. Tier 4 Final certified. Perkins 18.1L turbocharged-aftercooled inline-6 with SCR/DPF aftertreatment.

Generac Generac SD500-T4 generator — specifications and details
Standby power
500 kW / 456 kW prime
Voltage options
120/208V, 120/240V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Perkins 2806F-E18TAG1 · 18.1L
EPA / Emissions
Tier 4 Final
Alternator
K0552124N27

Overview#

The Generac SD500-T4 is a 500-kilowatt EPA Tier 4 Final industrial diesel standby generator. Built on the Perkins 18.1-liter turbocharged and aftercooled inline-six platform — the same engine used in the standard SD500 — the T4 variant adds selective catalytic reduction (SCR) and diesel particulate filter (DPF) aftertreatment to meet Tier 4 Final emission standards.

Generac's sheet lists an EGR, DOC, SCR and DPF after-treatment system and a padlockable external DEF (diesel exhaust fluid) fill cap. Generac's sheet lists the open set only with its sub-base fuel tank, at 186.2 x 71.0 x 113.8 inches, and gives its weight as "contact factory". The sheet's 456 kW prime rating carries its note that EPA certified prime ratings are not available in the US or its territories.

Our Service Experience#

The SD500-T4 is typically specified for mission-critical facilities in air quality management districts that mandate Tier 4 Final regardless of application type. The aftertreatment system is the primary service differentiator versus the standard SD500. DEF quality is critical — use ISO 22241-compliant DEF only, store in a climate-controlled environment (DEF degrades above 86°F and freezes at 12°F), and never mix DEF brands.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
38.3 GPH
Fuel use @ 75% load
26.4 GPH
Fuel use @ 50% load
17.8 GPH

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Generac SD500-T4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Generac SD500-T4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

6.8 hours(0.3 days)

Fuel consumption ≈ 29.55 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What makes the SD500-T4 different from the standard SD500?
The SD500-T4 is EPA Tier 4 Final certified, including SCR (selective catalytic reduction) and DPF (diesel particulate filter) aftertreatment systems. Generac's sheet lists a padlockable external DEF (diesel exhaust fluid) fill cap.
What is the fuel consumption of the Generac SD500-T4?
The SD500-T4 consumes approximately 38.3 gallons per hour of diesel at full load, 26.4 gph at 75% load, and 17.8 gph at 50% load.
What maintenance does the Tier 4 Final aftertreatment require?
The SCR system requires a continuous supply of diesel exhaust fluid (DEF) — monitor DEF level and quality at each service visit. Standby installations need regular exercise under at least 50% load to maintain DPF and SCR system health.

Compatible equipment

Similar models

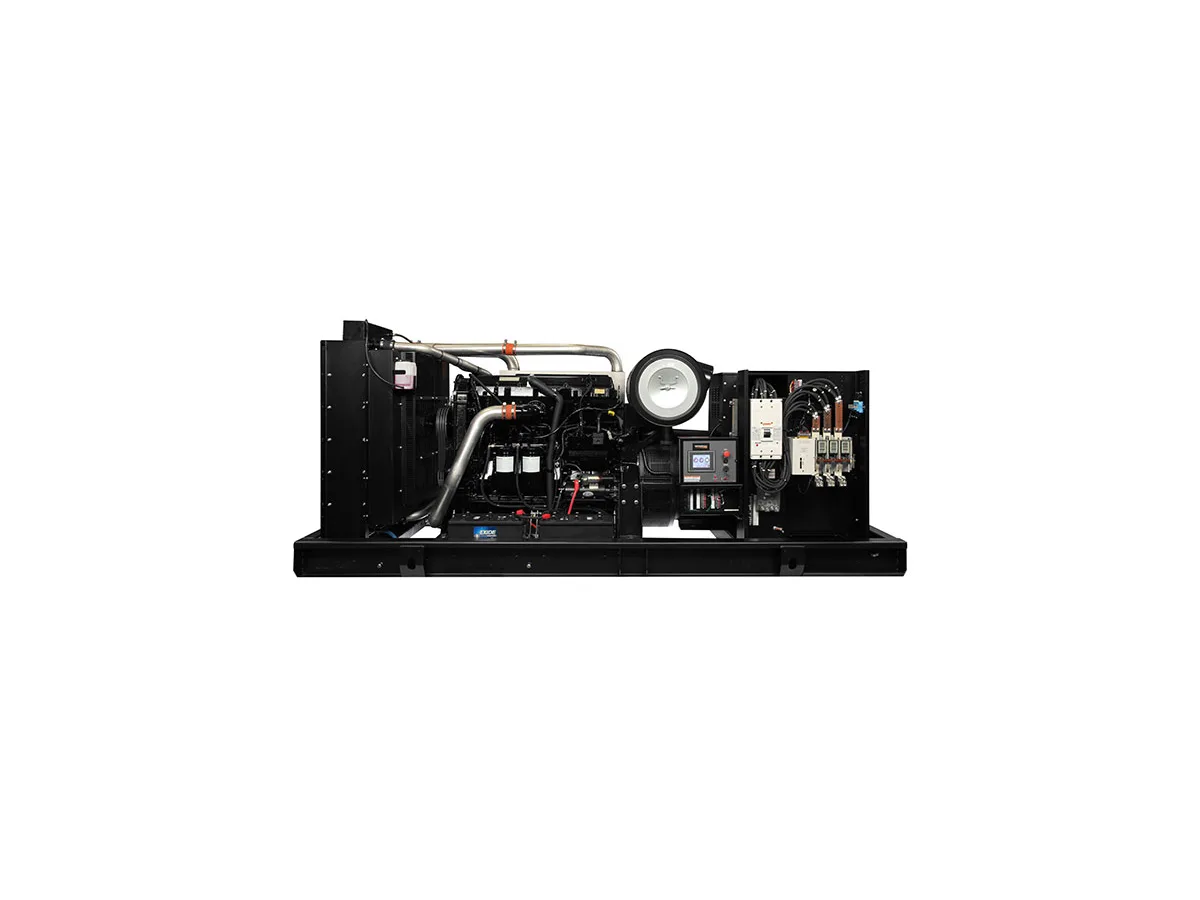

Generac Generac SD500 500 kW liquid-cooled standby generator

Generac

Generac SD500

500 kW industrial diesel with Perkins engine. Paralleling for multi-MW installations.

500 kW standby · Diesel · Liquid-cooled

500 kW diesel standby generator. Perkins 15.2L turbocharged-aftercooled inline-6, EPA Certified Stationary Emergency.

3-phasecommercial-standbyindustrial

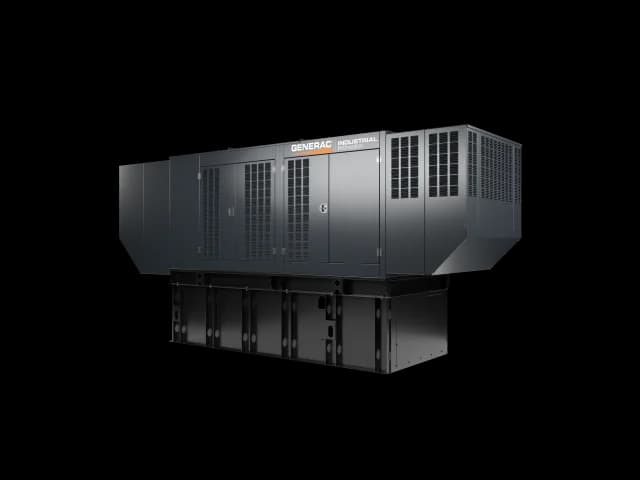

Generac Generac MD500-T4 500 kW liquid-cooled standby generator

Generac

Generac MD500-T4

500 kW Tier 4 Final modular diesel with factory paralleling. N+1 redundancy, lower emissions, and scalable power architecture.

500 kW standby · Diesel · Liquid-cooled

500 kW modular diesel standby generator system, Tier 4 Final emissions. Factory-paralleled configuration with Perkins 18.1L inline-6 engine for N+1 redundancy.

Tier 4 Final3-phasecommercial-standbyindustrial

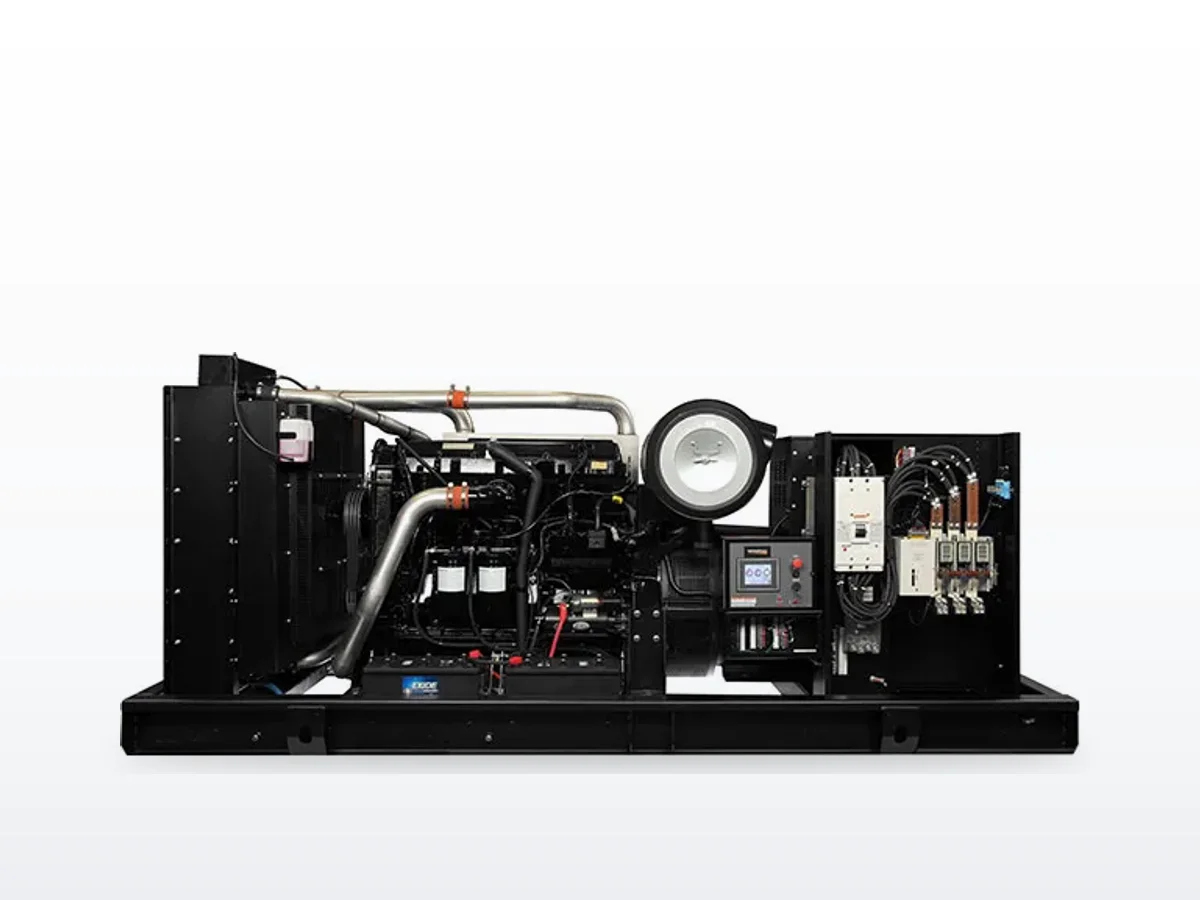

Generac Generac SD600 600 kW liquid-cooled standby generator
