What engine does the Cummins C2500 D6 use?

The C2500 D6 uses the Cummins QSK60 -- a 60-liter, V-16 diesel engine with MCRS fuel injection. At 2500 kW, this model operates at the top of the QSK60 power band, delivering maximum output from the platform.

What are the standby and prime ratings of the C2500 D6?

Standby rating is 2500 kW (3125 kVA) at 60 Hz, 0.8 power factor. Prime rating is 2275 kW (2844 kVA). Both at 1800 rpm, 60 Hz, three-phase.

What are the service intervals for the C2500 D6?

Oil and filter changes are due at 500 hours or 12 months. Air filter replacement at 1,000-hour intervals. Fuel filter at 500 hours. Coolant flush at 6,000 hours. Major overhaul interval is 40,000 hours under standard standby duty conditions.

How does the C2500 D6 compare to the C3000 D6?

The C2500 D6 uses the QSK60 (60L, V-16) while the C3000 D6 steps up to the QSK95-G2 (95L, V-16) platform. The QSK95 provides substantially more displacement for the 3000+ kW class, operating with greater thermal headroom at those higher power levels.

Can {company} service the C2500 D6 in Northern California?

Yes. OnPoint Generators provides authorized Cummins service for mega-diesel generators across the San Francisco Bay Area and Northern California. V-16 QSK60 engines require specialized tooling and bank-to-bank balance verification. We use Cummins INSITE diagnostics on every service visit.

Cummins · Cummins D6 Commercial Diesel

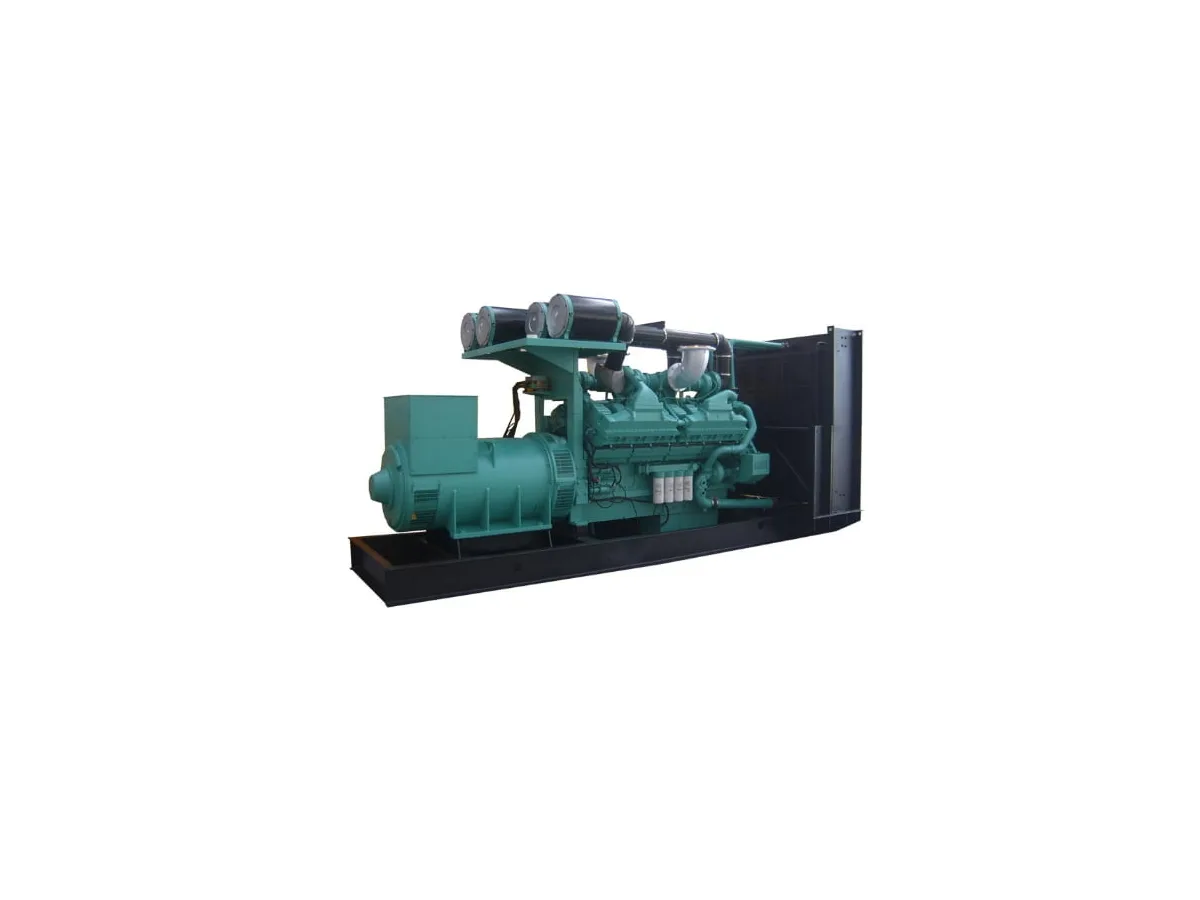

Cummins C2500 D6

Name: Cummins C2500 D6
Brand: Cummins
SKU: c2500-d6

2500 kW standby / 2275 kW prime · Diesel · Liquid-cooled

2500 kW diesel standby generator with QSK60 60L V-16 engine. PowerCommand control, liquid-cooled, top of the QSK60 platform for data center and mission-critical standby applications.

Standby power: 2500 kW / 2275 kW prime
Voltage options: 277/480V, 346/600V, 4160V, 12470V, 13800V
Frequency / Phase: 60 Hz · 3-phase
Engine: Cummins QSK60 · 60L
EPA / Emissions: Tier 2

Data Centers Manufacturing Commercialparalleling-arrayutility

Configure & Quote Download spec sheet

Overview#

The Cummins C2500 D6 is a 2500 kW (2.5 MW) standby diesel generator set powered by the QSK60 -- a 60-liter, V-16 diesel engine with Modular Common Rail fuel injection (MCRS). Rated at 3125 kVA standby and 2844 kVA prime at 60 Hz, the C2500 D6 represents the maximum output of the QSK60 platform.

At 2.5 MW, the C2500 D6 is the largest genset available on the QSK60 engine. Facilities needing more than 2500 kW per unit must step up to the QSK95-G2 platform (C3000 D6 and above). This makes the C2500 D6 a natural choice when maximizing power density per engine platform is the goal -- particularly in data centers and industrial plants where fewer, larger gensets reduce paralleling complexity.

Full Cummins vertical integration covers engine, alternator, PowerCommand controls, and cooling. Medium-voltage output options (4160V, 12470V, 13800V) and PowerCommand paralleling controllers enable multi-genset arrays for facilities requiring 5-25 MW of redundant standby capacity. Fuel consumption runs approximately 175 gallons per hour at full rated load.

Engineering specifications

Fuel system & runtime

Fuel use @ full load: 175 GPH
Fuel use @ 75% load: 131 GPH
Fuel use @ 50% load: 91 GPH

Ready to order this model?

Configure your Cummins C2500 D6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Cummins C2500 D6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

1.5 hours(0.1 days)

Fuel consumption ≈ 135.00 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Cummins C2500 D6 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 40,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel injection system (MCRS)	Injector fault codes, rough running, power imbalance between banks	—	moderate
Turbocharger system (dual turbo)	Reduced boost pressure, excessive exhaust smoke, turbo bearing wear	—	moderate
Cooling system (V-16 dual-circuit)	Coolant temperature exceedances, radiator capacity limits at high ambient	—	severe
Fuel quality / tank degradation	Filter clogging, hard starting, injector fouling from stagnant fuel	—	moderate
Starting system (24V battery bank)	Slow crank, failed start on infrequently exercised units	—	minor

Frequently Asked Questions

What engine does the Cummins C2500 D6 use?: The C2500 D6 uses the Cummins QSK60 -- a 60-liter, V-16 diesel engine with MCRS fuel injection. At 2500 kW, this model operates at the top of the QSK60 power band, delivering maximum output from the platform.
What are the standby and prime ratings of the C2500 D6?: Standby rating is 2500 kW (3125 kVA) at 60 Hz, 0.8 power factor. Prime rating is 2275 kW (2844 kVA). Both at 1800 rpm, 60 Hz, three-phase.
What are the service intervals for the C2500 D6?: Oil and filter changes are due at 500 hours or 12 months. Air filter replacement at 1,000-hour intervals. Fuel filter at 500 hours. Coolant flush at 6,000 hours. Major overhaul interval is 40,000 hours under standard standby duty conditions.
How does the C2500 D6 compare to the C3000 D6?: The C2500 D6 uses the QSK60 (60L, V-16) while the C3000 D6 steps up to the QSK95-G2 (95L, V-16) platform. The QSK95 provides substantially more displacement for the 3000+ kW class, operating with greater thermal headroom at those higher power levels.
Can OnPoint Generators service the C2500 D6 in Northern California?: Yes. OnPoint Generators provides authorized Cummins service for mega-diesel generators across the San Francisco Bay Area and Northern California. V-16 QSK60 engines require specialized tooling and bank-to-bank balance verification. We use Cummins INSITE diagnostics on every service visit.

Compatible equipment

Transfer switches

Similar models

Cummins

Cummins C2250 D6

2.25 MW diesel with QSK60 V-16 engine. Mid-range of the QSK60 platform. Full Cummins vertical integration. Paralleling for multi-MW arrays.

2.3 MW standby · Diesel · Liquid-cooled

2250 kW diesel standby for Tier III/IV data centers, large industrial facilities, and mission-critical infrastructure.

2250 kW diesel standby generator with QSK60 60L V-16 engine. PowerCommand control, liquid-cooled, for data center, industrial, and mission-critical standby applications.

Tier 23-phasedata-centerindustrial

Cummins

Cummins C2000 D6

2 MW diesel with QSK60 V-16 engine. Full Cummins vertical integration. Paralleling for multi-MW arrays. Proven mega-diesel platform.

2 MW standby · Diesel · Liquid-cooled

2000 kW diesel standby for Tier III/IV data centers, large industrial facilities, and mission-critical infrastructure requiring multi-megawatt power.

2000 kW diesel standby generator with QSK60 60L V-16 engine. PowerCommand control, liquid-cooled, for data center, industrial, and mission-critical standby applications requiring multi-megawatt power.

Tier 23-phasedata-centerindustrial

Cummins

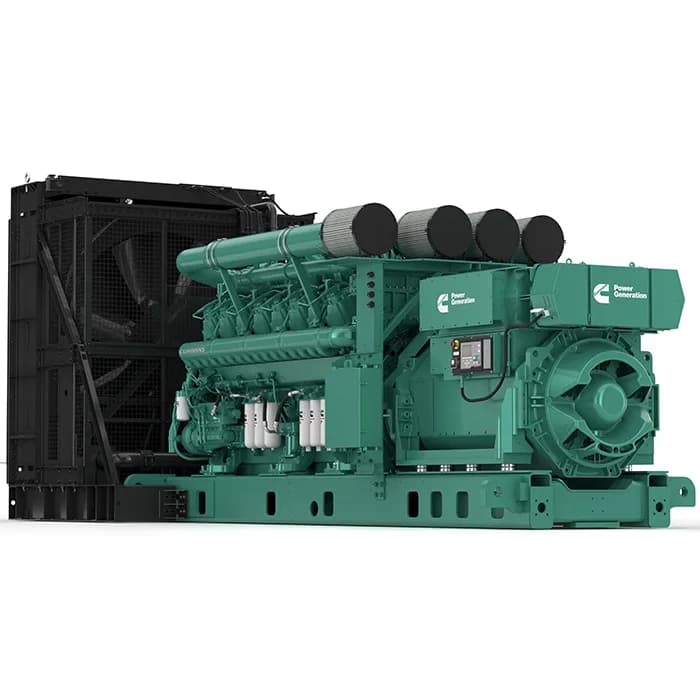

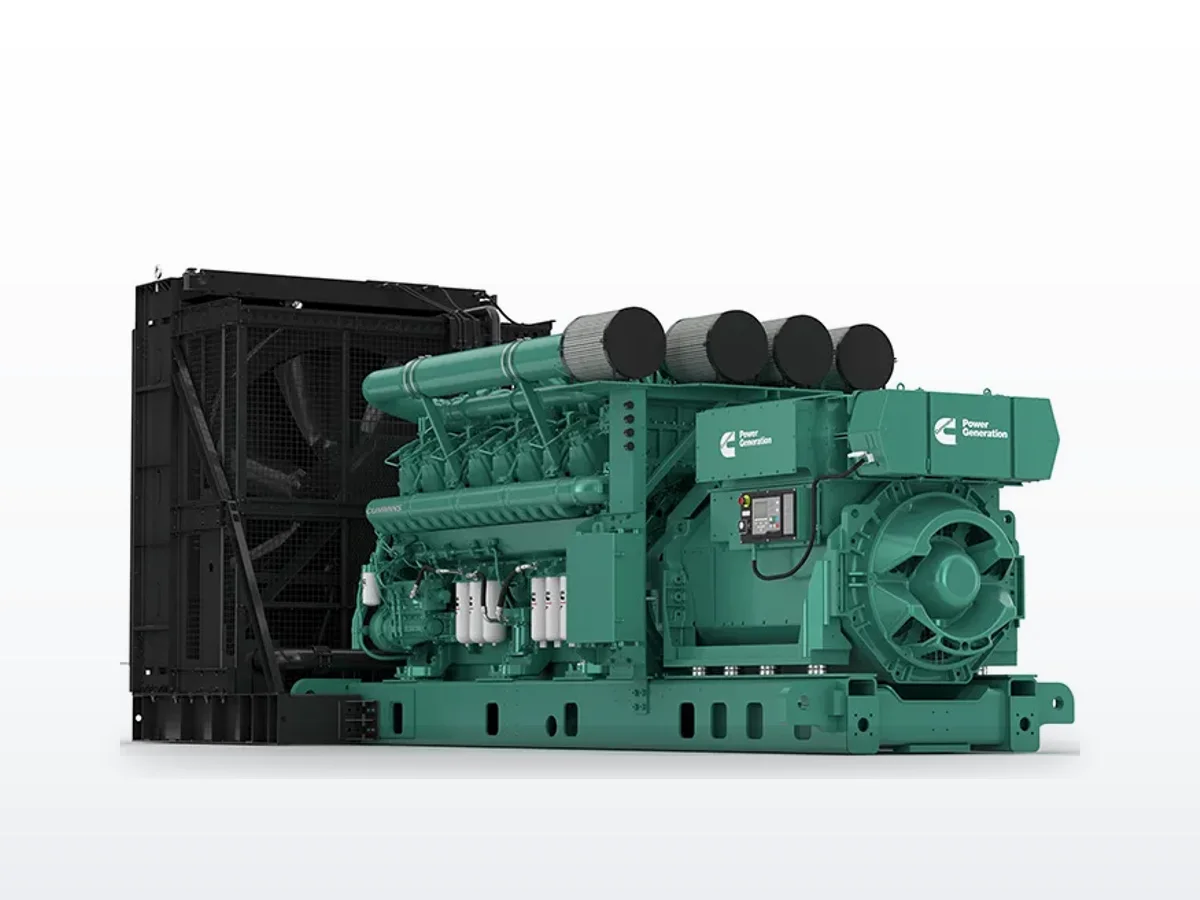

Cummins C3000 D6
