What engine is in the JD60-04FT4?

The John Deere 4045HFG04 — a 4.5-liter inline-four turbocharged-aftercooled diesel rated 133 HP (99.2 kWm) at 1800 RPM. This is the same engine used in the JD80-03FT4 (80 kW), conservatively rated at 60 kWe for this genset configuration. EPA Tier 4 Final certified with SCR/DOC exhaust aftertreatment requiring DEF (diesel exhaust fluid).

Does the JD60-04FT4 require DEF?

Yes. The JD60-04FT4 uses SCR (selective catalytic reduction) with DOC (diesel oxidation catalyst) aftertreatment. DEF consumption is approximately 4.3% of fuel consumption, and the integrated DEF tank holds 3.8 gallons. At full load, the 3.8-gallon DEF tank provides roughly 18 hours of operation before needing replenishment.

How does the JD60-04FT4 compare to the JD80-03FT4?

Both use the same John Deere 4045HFG04 engine (4.5L, 133 HP) and share the same physical footprint (90 x 54 x 66 in). The JD60 is paired with a smaller Stamford UCI224F alternator (60 kWe) while the JD80 uses a larger UCI274C alternator (80 kWe). The JD60 consumes less fuel at full load (4.82 vs 5.96 gph) and is 200 lbs lighter (3,650 vs 3,850 lbs). Choose the JD60 if the load study shows peak demand under 60 kW.

What is the altitude deration for the JD60-04FT4?

Rated power is available up to 8,400 ft (2,560 m) at ambient temperatures to 122F (50C). This excellent altitude ceiling makes the JD60-04FT4 suitable for virtually any installation in the western United States.

What engine is in the JD60-04FT4?

The John Deere 4045HFG04 — a 4.5-liter inline-four turbocharged-aftercooled diesel rated 133 HP (99.2 kWm) at 1800 RPM. This is the same engine used in the JD80-03FT4 (80 kW), conservatively rated at 60 kWe for this genset configuration. EPA Tier 4 Final certified with SCR/DOC exhaust aftertreatment requiring DEF (diesel exhaust fluid).

Does the JD60-04FT4 require DEF?

Yes. The JD60-04FT4 uses SCR (selective catalytic reduction) with DOC (diesel oxidation catalyst) aftertreatment. DEF consumption is approximately 4.3% of fuel consumption, and the integrated DEF tank holds 3.8 gallons. At full load, the 3.8-gallon DEF tank provides roughly 18 hours of operation before needing replenishment.

How does the JD60-04FT4 compare to the JD80-03FT4?

Both use the same John Deere 4045HFG04 engine (4.5L, 133 HP) and share the same physical footprint (90 x 54 x 66 in). The JD60 is paired with a smaller Stamford UCI224F alternator (60 kWe) while the JD80 uses a larger UCI274C alternator (80 kWe). The JD60 consumes less fuel at full load (4.82 vs 5.96 gph) and is 200 lbs lighter (3,650 vs 3,850 lbs). Choose the JD60 if the load study shows peak demand under 60 kW.

What is the altitude deration for the JD60-04FT4?

Rated power is available up to 8,400 ft (2,560 m) at ambient temperatures to 122F (50C). This excellent altitude ceiling makes the JD60-04FT4 suitable for virtually any installation in the western United States.

Blue Star Power Systems · Diesel Product Line (John Deere, 60 kW, Tier 4 Final)

New

Blue Star JD60-04FT4

Name: Blue Star JD60-04FT4
Brand: Blue Star Power Systems
Availability: PreOrder

60 kW standby · Diesel · Liquid-cooled

60 kW Tier 4 Final diesel standby/prime generator from Blue Star Power Systems. John Deere 4045HFG04 4.5L inline-four with SCR/DOC, DSE DCP7310 controller, 208-600V.

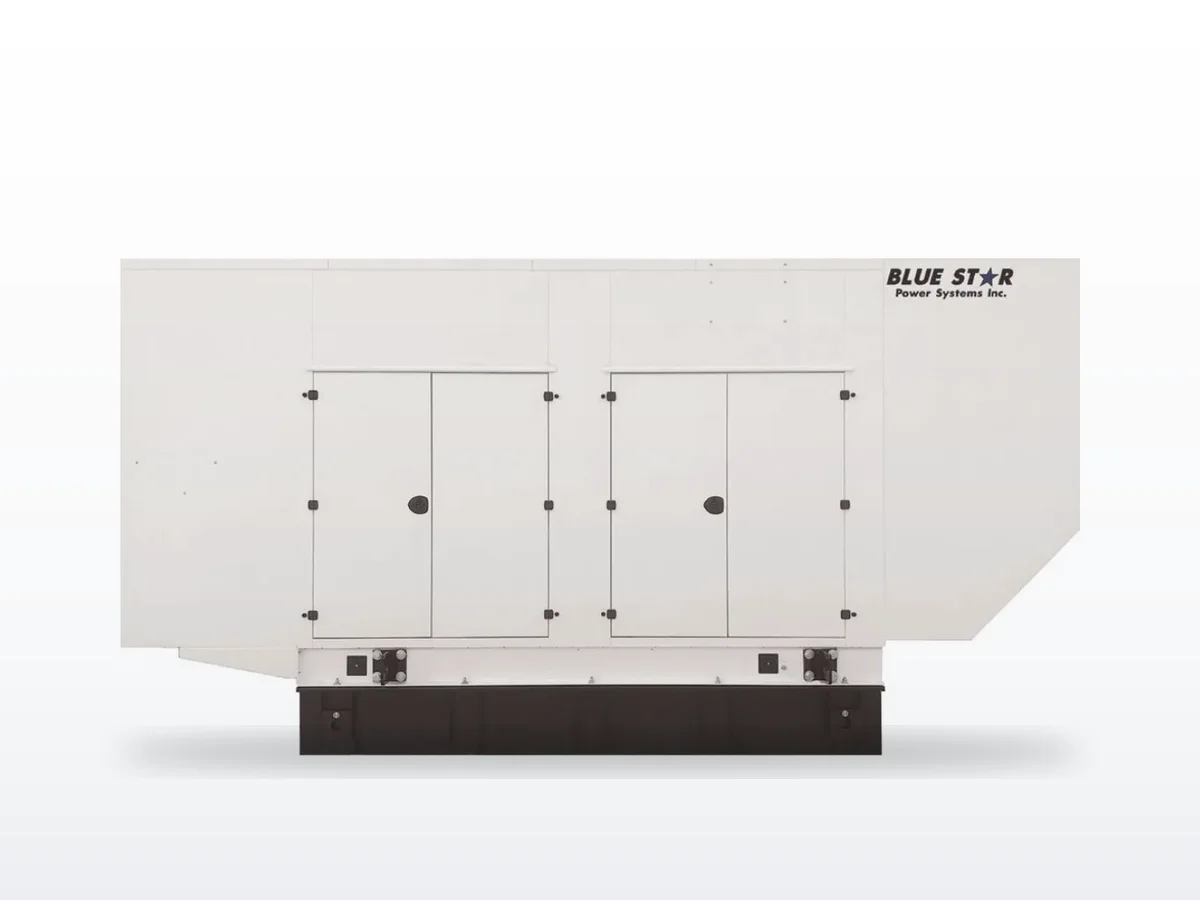

Photo coming soon

Standby power: 60 kW / 60 kW prime
Voltage options: 120/240V, 120/208V, 277/480V, 347/600V
Frequency / Phase: 60 Hz · 1/3-phase
Engine: John Deere 4045HFG04 · 4.5L
EPA / Emissions: Tier 4 Final
Alternator: Stamford UCI224F

commercialsmall-commercialretailrestaurantschoolmunicipalresidential-high-end

Overview#

The Blue Star JD60-04FT4 is a 60-kilowatt EPA Tier 4 Final diesel standby/prime generator built around the John Deere 4045HFG04 — a 4.5-liter inline-four with SCR/DOC exhaust aftertreatment. This is a current-production active model.

The JD60-04FT4 shares its engine with the JD80-03FT4 (80 kW) but is paired with a smaller alternator for applications where 60 kW meets the load study. Both standby and prime ratings are equal at 60 kWe.

The John Deere 4045HFG04 platform#

The 4045HFG04 is John Deere's mid-range PowerTech genset engine:

4.5L inline-four — stepping up from the 2.9L three-cylinder in the JD40-05FT4, with bore of 4.20 in and stroke of 5.00 in
Turbocharged with charge-air cooling — CAC for improved power density and transient response
SCR/DOC aftertreatment — selective catalytic reduction with diesel oxidation catalyst, requiring DEF fluid (approximately 4.3% of fuel consumption)
3.8-gallon integrated DEF tank — provides roughly 18 hours of full-load operation between refills
8,400 ft altitude ceiling — excellent for virtually any US installation

Variant selection guide#

The JD60-04FT4 shares its engine platform with the JD80-03FT4:

JD40-05FT4 (40 kW, John Deere 3029HG530 2.9L I-3, Tier 4 Final) — smaller engine, no DEF required (DOC/DPF only). Choose this for loads under 40 kW or when DEF-free operation is preferred.
JD80-03FT4 (80 kW, John Deere 4045HFG04 4.5L I-4, Tier 4 Final) — same engine, larger alternator. Same footprint, 200 lbs heavier. Choose this if the load study shows peak demand between 60-80 kW.
VD100-04FT4 (100 kW, Volvo Penta, Tier 4 Final) — next step up, different engine OEM, for loads above 80 kW.

When to spec the JD60-04FT4#

48-60 kW emergency standby or continuous prime loads on diesel fuel
Jurisdictions requiring Tier 4 Final emissions (California CARB for non-emergency, mandated T4F installations)
Small-to-mid commercial facilities: retail centers, restaurants, small offices, schools
Sites at any elevation up to 8,400 ft

Our service experience#

Engineering specifications

Physical

Length: 90 in
Width: 54 in
Height: 66 in
Dry weight: 3,650 lb

Acoustic

Sound @ 7m, full load: 77 dBA
Enclosure: Open

Fuel system & runtime

Fuel use @ full load: 4.82 GPH
Fuel use @ 75% load: 3.92 GPH
Fuel use @ 50% load: 2.8 GPH
DEF tank: 3.8 gal

Thermal & ventilation

Heat to coolant: 211,740 BTU/hr
Heat radiated: 80,340 BTU/hr
Exhaust flow: 533 CFM
Exhaust temp: 910 °F
Combustion air: 226 CFM

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Request a quote

Get pricing & lead time on the Blue Star JD60-04FT4

Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.

Request a quote →Download datasheet

Estimate runtime for the Blue Star JD60-04FT4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

53.8 hours(2.2 days)

Fuel consumption ≈ 3.72 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star JD60-04FT4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
DEF system (SCR catalyst)	Derate warning, NOx fault, DEF quality alert	4,380+	moderate
Fuel quality / tank contamination	Hard starting, filter clogging, injector fouling	4,380+	moderate
Battery	Failed to start, slow crank	8,760+	minor
Coolant hoses	Slow coolant loss, weeping at clamps	8,000+	minor

Frequently Asked Questions

What engine is in the JD60-04FT4?: The John Deere 4045HFG04 — a 4.5-liter inline-four turbocharged-aftercooled diesel rated 133 HP (99.2 kWm) at 1800 RPM. This is the same engine used in the JD80-03FT4 (80 kW), conservatively rated at 60 kWe for this genset configuration. EPA Tier 4 Final certified with SCR/DOC exhaust aftertreatment requiring DEF (diesel exhaust fluid).
Does the JD60-04FT4 require DEF?: Yes. The JD60-04FT4 uses SCR (selective catalytic reduction) with DOC (diesel oxidation catalyst) aftertreatment. DEF consumption is approximately 4.3% of fuel consumption, and the integrated DEF tank holds 3.8 gallons. At full load, the 3.8-gallon DEF tank provides roughly 18 hours of operation before needing replenishment.
How does the JD60-04FT4 compare to the JD80-03FT4?: Both use the same John Deere 4045HFG04 engine (4.5L, 133 HP) and share the same physical footprint (90 x 54 x 66 in). The JD60 is paired with a smaller Stamford UCI224F alternator (60 kWe) while the JD80 uses a larger UCI274C alternator (80 kWe). The JD60 consumes less fuel at full load (4.82 vs 5.96 gph) and is 200 lbs lighter (3,650 vs 3,850 lbs). Choose the JD60 if the load study shows peak demand under 60 kW.
What is the altitude deration for the JD60-04FT4?: Rated power is available up to 8,400 ft (2,560 m) at ambient temperatures to 122F (50C). This excellent altitude ceiling makes the JD60-04FT4 suitable for virtually any installation in the western United States.

Compatible equipment

Transfer switches

Tier 33-phaselight-commercialsmall-office
