Blue Star Power Systems · Diesel Product Line (John Deere)
New

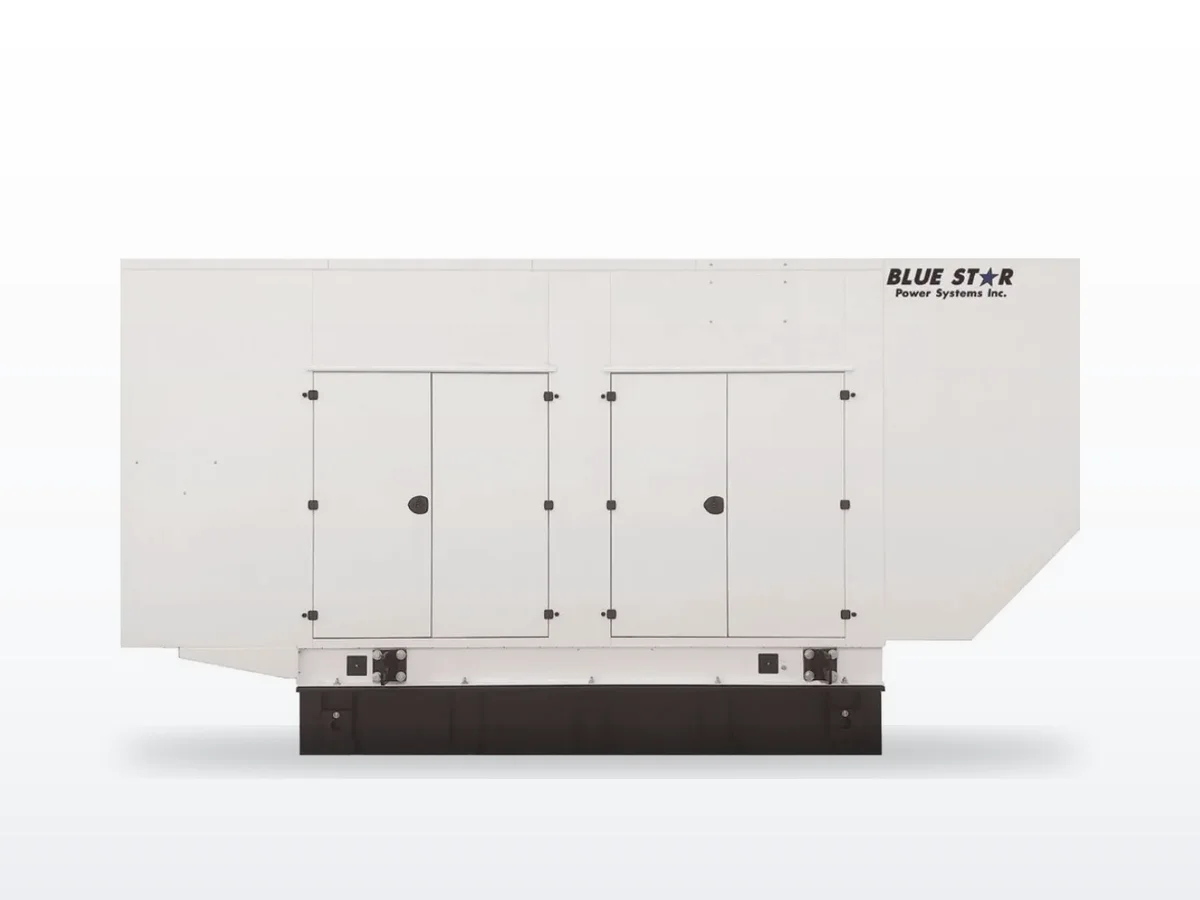

Blue Star JD40-03
40 kW standby · Diesel · Liquid-cooled
40 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 4045TF280 engine, Stamford UCI224 alternator, DSE DCP7310 controller.
The Blue Star JD40-03 is a 40-kilowatt Tier 3 diesel standby generator built around a John Deere 4045TF280 four-cylinder engine. It bridges the gap between the compact JD30-03IT4 and the more common JD50-03, making it a practical choice when the load profile sits comfortably in the 30–40 kWe range and a 50 kWe set would be over-engineered.
Blue Star Power Systems, Inc., based in North Mankato, Minnesota and now part of DEUTZ AG, assembles this unit using third-party components chosen for parts availability: the John Deere 4045 engine, a Stamford UCI224 alternator, and a DSE DCP7310 controller. No proprietary parts make this unit difficult to service outside the Blue Star network.
The 4045TF280 is among the most widely deployed generator-duty diesel engines in North America. At 4.5 liters and four cylinders, it covers the 30–65 kWe standby range across multiple OEMs. Key advantages: John Deere has agricultural and construction service infrastructure in nearly every U.S. county, Tier 3 certification requires no aftertreatment hardware, and the platform has decades of documented failure modes with well-understood service intervals.
The JD40-03's open architecture means any qualified diesel technician can service it. Oil and fuel filters cross-reference to standard John Deere 4045 part numbers. We recommend keeping a basic spares kit on-site — this is especially useful in our Northern California service territory where dedicated Blue Star dealers are limited.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
74.1 hours(3.1 days)
Fuel consumption ≈ 2.70 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Blue Star JD40-03 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / tank contamination
Hard starting, filter clogging, injector fouling
4,380+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Coolant hoses
Slow coolant loss, weeping at clamps
8,000+
minor
Frequently Asked Questions
What engine does the JD40-03 use?
The John Deere 4045TF280 — a 4.5-liter, four-cylinder turbocharged diesel from John Deere's industrial PowerTech series. It produces 75 HP at 1800 RPM and is EPA Tier 3 certified for stationary emergency use. The 4045 platform is one of the most widely deployed generator engines in the 30–80 kW class, with service parts available at John Deere dealers across the U.S.
What controller does the JD40-03 use?
The DSE DCP7310 Digital Control Panel, featuring CAN Bus J1939 engine communication, digital metering, RS-485 interface, and 8 programmable contact inputs. It is cULus Listed, CE Approved, and NFPA 110 Level 1 compatible. Remote monitoring is supported via the DSE2548 annunciator.
How does the JD40-03 compare to the JD50-03?
The JD40-03 and JD50-03 both use the same John Deere 4045TF280 engine on the same 80×38×58 in footprint, but are rated differently: 40 kWe vs 50 kWe standby. The JD50-03 uses a slightly higher-frame Stamford alternator (UCI224D–F range vs UCI224C–D on the JD40). Full-load fuel consumption is 3.50 gph vs 4.23 gph. If your load is solidly below 40 kWe, the JD40 offers cost savings; if there's any chance of growth toward 50 kWe, size up to the JD50.
Is the JD40-03 available with an enclosure?
Yes. Blue Star offers three enclosure levels: Level 1 (weather-protective aluminum), Level 2 (weather-protective with sound attenuation foam), and Level 3 (Level 2 plus frontal sound and exhaust hood). The OPU open package unit is also available for indoor or custom-enclosure installations. All enclosures are rated for 200 MPH wind per IBC 2021 / ASCE/SEI 7-16.
