Blue Star JD40-05FT4MP
40 kW standby · Diesel · Liquid-cooled
40 kW Tier 4 Final mobile trailer diesel generator built by Blue Star Power Systems. John Deere 3029HG530 three-cylinder engine, Stamford UCI224D alternator, DSE DCP7310 controller, 130-gallon integrated fuel tank.
The Blue Star JD40-05FT4MP is a 40-kilowatt EPA Tier 4 Final mobile trailer diesel generator powered by the John Deere 3029HG530 — a 2.9-liter, three-cylinder turbocharged and charge-air-cooled engine. It is the smallest model in Blue Star's Tier 4 Final mobile lineup and the only mobile JD model that does not require DEF fluid, using DOC/DPF aftertreatment instead of SCR.
Blue Star Power Systems (North Mankato, Minnesota) mounts the 3029HG530 on an aluminum road trailer with a 130-gallon integral fuel tank, pairing it with a Stamford UCI224D alternator and DSE DCP7310 controller. At 7,500 lbs, the JD40-05FT4MP is tow-capable with a heavy-duty pickup. The deration ceiling of 8,000 ft at 122°F is the highest in the JD mobile series, reflecting the 3-cylinder engine's favorable power-to-displacement ratio at altitude.
The 3029HG530 achieves Tier 4 Final compliance through an Exhaust Filter/Silencer system — a combination of Diesel Oxidation Catalyst (DOC) and Diesel Particulate Filter (DPF) — without Selective Catalytic Reduction. This means no DEF tank to fill, no DEF quality sensor alarms, and no SCR system to inspect. For construction and utility sites where DEF logistics are a constraint, the JD40 eliminates that variable entirely. The JD60-04FT4MP and JD80-03FT4MP step up to SCR-based aftertreatment with a 3.8-gallon DEF tank; the tradeoff is greater output from the same John Deere 4045 platform.
The 3029HG530 three-cylinder engine is a low-complexity platform for this output class. Annual full-load testing and DPF condition monitoring are the primary scheduled maintenance items — the DPF will require periodic regeneration or cleaning depending on run hours and load profile. Verify battery health at each PM (12V system). The 204.5 in trailer length means most standard commercial sites can accept this unit without access constraints. Fuel consumption at 3.54 gph full load makes the 130-gallon tank well-matched to 24–36 hour standby events.
Get pricing & lead time on the Blue Star JD40-05FT4MP
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
47.6 hours(2.0 days)
Fuel consumption ≈ 2.73 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Blue Star JD40-05FT4MP under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / tank contamination
Hard starting, filter clogging, injector fouling
4,380+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Coolant hoses
Slow coolant loss, weeping at clamps
8,000+
minor
Frequently Asked Questions
What engine does the JD40-05FT4MP use?
The John Deere 3029HG530 — a 2.9-liter, three-cylinder turbocharged and charge-air-cooled diesel. This is the compact end of John Deere's PowerTech generator engine family, sized for 40 kWe standby and prime output from a 3-cylinder block. It carries EPA Tier 4 Final certification for mobile off-road applications using an Exhaust Filter/Silencer system (DOC/DPF) without SCR — no DEF fluid is required. Rated power is available to 8,000 ft (2,438 m) elevation at 122°F (50°C) ambient, making it well-suited for high-altitude construction and utility sites.
Does the JD40-05FT4MP require DEF fluid?
No. The 3029HG530 engine meets EPA Tier 4 Final through a Diesel Oxidation Catalyst (DOC) and Diesel Particulate Filter (DPF) — the Exhaust Filter/Silencer system. It does not use Selective Catalytic Reduction (SCR) and therefore requires no Diesel Exhaust Fluid (DEF). This simplifies fluid management on job sites where DEF storage and dispensing infrastructure is not in place. The JD60-04FT4MP and larger models do require DEF.
What controller does the JD40-05FT4MP use?
The DSE DCP7310 Digital Control Panel, with CAN Bus J1939 engine communication, digital metering, RS-485 interface, 8 programmable contact inputs, 10 contact outputs, and NFPA 110 Level 1 compatibility. The panel is cULus Listed and CE Approved with IP 65 ingress protection (with supplied gasket). A 12V battery system and battery charger are included. The JD40 uses a 12V starting system, unlike the 24V system on the larger VD-series mobile models.
What are the fuel capacity and runtime of the JD40-05FT4MP?
The JD40-05FT4MP carries a 130-gallon integral fuel tank on the trailer frame. At full load (3.54 gph), this provides approximately 36 hours of runtime. At 75% load (2.74 gph), runtime extends to approximately 47 hours. The 204.5 × 70 in trailer footprint and 7,500 lb shipping weight allow towing with a standard heavy-duty pickup truck. Combustion air draw is 177 CFM; heat rejected to the coolant circuit is 97,080 BTU/hr.
60 kW Tier 4 Final mobile trailer diesel generator built by Blue Star Power Systems. John Deere 4045HFG04 four-cylinder engine, Stamford UCI224F alternator, DSE DCP7310 controller, 250-gallon integrated fuel tank.
Tier 4 Final3-phaseconstructiontemporary-power
B
Blue Star Power Systems
New
Blue Star JD40-03
40 kW standby · Diesel · Liquid-cooled
40 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 4045TF280 engine, Stamford UCI224 alternator, DSE DCP7310 controller.
Tier 33-phaselight-commercialsmall-office
B
Blue Star Power Systems
New
Blue Star JD40-05FT4
40 kW standby · Diesel · Liquid-cooled

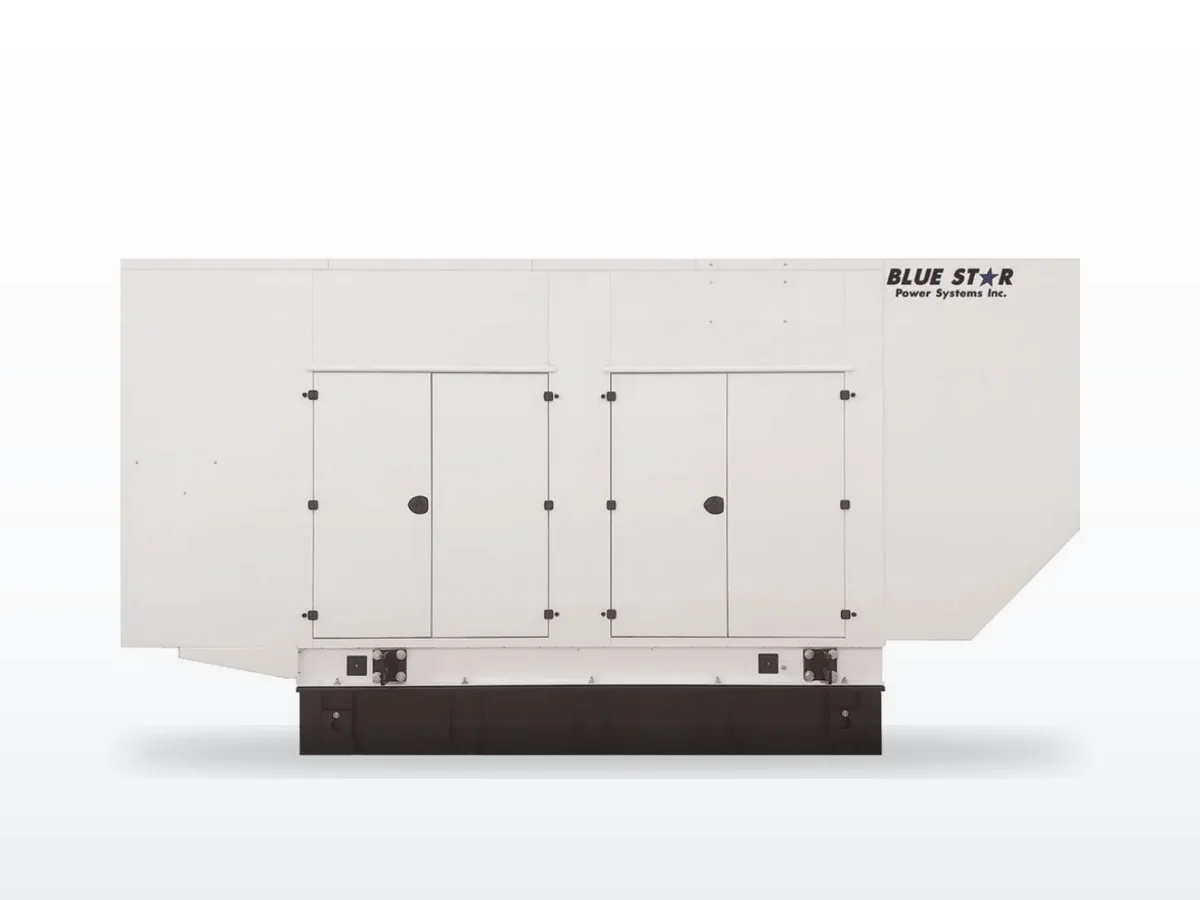

40 kW Tier 4 Final diesel standby/prime generator from Blue Star Power Systems. John Deere 3029HG530 2.9L inline-three with DOC/DPF, DSE DCP7310 controller, 208-600V.
