Triton Power · TP-P

Triton Power TP-P20-T4i-UL

20 kW standby / 17 kW prime · Diesel · Liquid-cooled

20 kW Tier 4 Interim diesel generator with Perkins 404D-22G engine. UL2200-listed for small commercial and light industrial standby applications.

Triton Power Triton Power TP-P20-T4i-UL generator — specifications and details
Standby power
20 kW / 17 kW prime
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Perkins 404D-22G · 2.216L
EPA / Emissions
Tier 4 Interim
Alternator
Leroy Somer

Overview#

The Triton Power TP-P20-T4i-UL is a 20 kW diesel standby generator built on the Perkins 404D-22G turbocharged and aftercooled four-cylinder engine (2.216 L displacement) with a Leroy Somer alternator. It is UL2200 listed, and the sheet lists the engine with a Tier 4i rating. Three-phase at 120/240, 120/208 and 277/480V is rated 20 kW / 25 kVA standby and 17 kW / 21 kVA prime.

The unit uses a Deep Sea Electronics DSE7310 controller with full engine and alternator monitoring including speed, oil pressure, coolant temperature, frequency, voltage, current, and power. Fuel consumption is 6.2 L/hr (1.64 GPH) at full load, dropping to 3.5 L/hr (0.92 GPH) at half load.

Our service experience#

The Triton sheet describes the Perkins 404D-22G as backed by Perkins' global warranty and extensive service network. In our Northern California territory, 20 kW units like this serve small office buildings, retail locations, and branch offices that need reliable backup power.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
1.64 GPH
Fuel use @ 75% load
1.27 GPH
Fuel use @ 50% load
0.92 GPH

Ready to order this model?

Configure your Triton Power TP-P20-T4i-UL

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-P20-T4i-UL

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

158.1 hours(6.6 days)

Fuel consumption ≈ 1.27 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine powers the Triton TP-P20-T4i-UL?
The TP-P20-T4i-UL uses a Perkins 404D-22G turbocharged and air-to-air aftercooled four-cylinder diesel engine with 2.216 L displacement, producing 24.3 kWm (32.57 HP) at 1800 RPM. The sheet lists the engine with a Tier 4i rating, and the unit carries UL2200 listing.
What is the fuel consumption of the TP-P20-T4i-UL?
Full load consumption is 1.64 GPH (6.2 L/hr), 75% load is 1.27 GPH (4.8 L/hr), and 50% load is 0.92 GPH (3.5 L/hr). The unit includes a 10.6-liter oil capacity and 7-liter coolant capacity.
Is the TP-P20-T4i-UL UL listed?
Yes, the manufacturer's spec sheet lists the TP-P20-T4i-UL as UL2200 Listed. NFPA 110 compliance appears on the sheet only as an optional item.
What voltages are available for the TP-P20-T4i-UL?
The sheet lists three-phase at 120/240, 120/208 and 277/480V (20 kW standby, 17 kW prime). A DSE7310 digital controller provides comprehensive engine and alternator monitoring.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

Triton Power Triton Power TP-P10-T4i-UL 10 kW liquid-cooled standby generator

Triton Power

Triton Power TP-P10-T4i-UL

10 kW standby · Diesel · Liquid-cooled

10 kW diesel standby generator with Perkins 403D-11G engine. Compact, UL2200-listed unit for small commercial and telecom applications.

Tier 4 Interim3-phasecommercial-standbytelecom

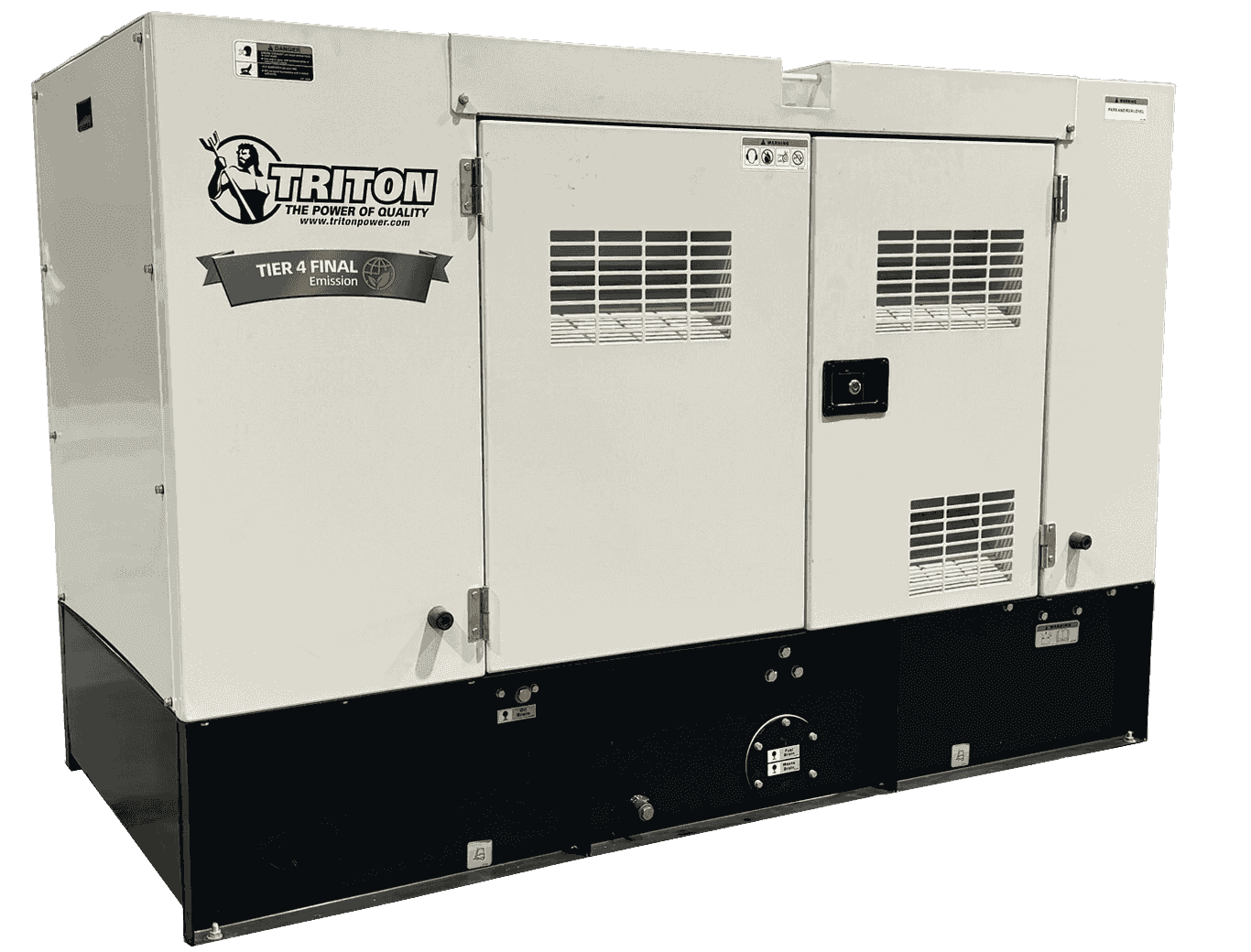

Triton Power Triton Power TP-K15-T4F 13.5 kW liquid-cooled standby generator

Triton Power

Triton Power TP-K15-T4F

13.5 kW standby · Diesel · Liquid-cooled

13.5 kW Tier 4 Final diesel generator with Kubota V1505-E4BG1 engine. Compact unit for telecom, agriculture, and small commercial applications.

Tier 4 Final3-phasecommercial-standbytelecom

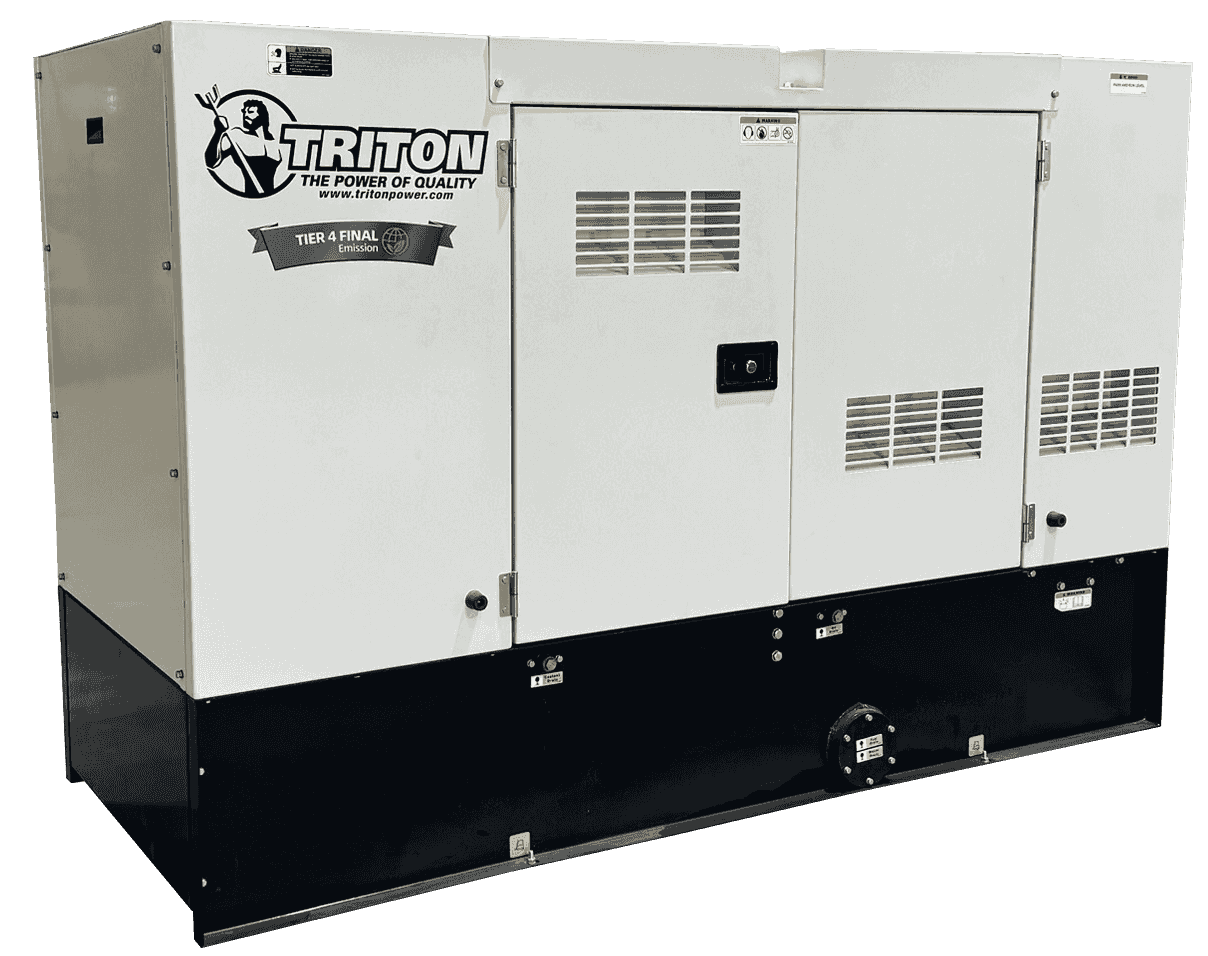

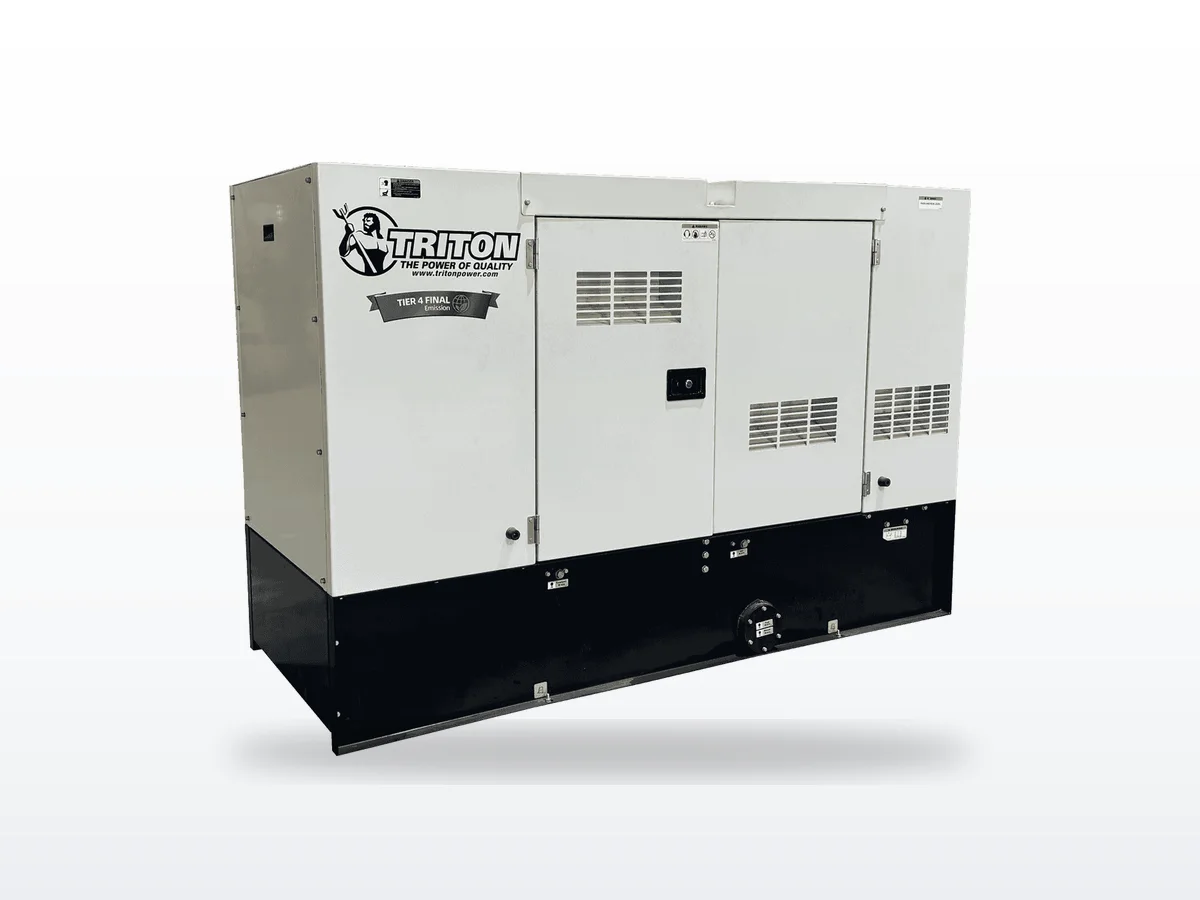

Triton Power Triton Power TP-K30-T4i-UL 30 kW liquid-cooled standby generator
