Triton Power · TP-K

Triton Power TP-K15-T4F

13.5 kW standby / 12.5 kW prime · Diesel · Liquid-cooled

13.5 kW Tier 4 Final diesel generator with Kubota V1505-E4BG1 engine. Compact unit for telecom, agriculture, and small commercial applications.

Triton Power Triton Power TP-K15-T4F generator — specifications and details
Standby power
13.5 kW / 12.5 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Kubota V1505-E4BG1 · 1.498L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-K15-T4F is a 13.5 kW diesel generator powered by the Kubota V1505-E4BG1 naturally aspirated four-cylinder engine (1.498 L displacement) paired with a Leroy Somer alternator. The engine is rated Tier 4 Final. The spec sheet lists a 110-liter fuel tank for the enclosed unit.

Available in three-phase configuration (13.5 kW at 120/208V or 277/480V), the generator features a Deep Sea Electronics DSE7420 controller with comprehensive engine and alternator monitoring. Fuel consumption is rated at 4.1 L/hr (1.08 GPH) at full load, dropping to 2.4 L/hr (0.63 GPH) at half load.

Our service experience#

Compact diesel units like the TP-K15-T4F are a common choice for cell towers, agricultural pump stations, and small retail sites, and our service team supports Triton Power generators from commissioning through repairs and parts sourcing.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
1.08 GPH
Fuel use @ 75% load
0.79 GPH
Fuel use @ 50% load
0.63 GPH

Ready to order this model?

Configure your Triton Power TP-K15-T4F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-K15-T4F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

240.1 hours(10.0 days)

Fuel consumption ≈ 0.83 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine does the Triton TP-K15-T4F use?
The TP-K15-T4F uses a Kubota V1505-E4BG1 naturally aspirated four-cylinder diesel engine with 1.498 L displacement, producing 15.1 kWm (20.2 HP) at 1800 RPM. Its sheet tier rating is Tier 4 Final.
What is the fuel consumption of the TP-K15-T4F?
At full load, the TP-K15-T4F consumes 1.08 GPH (4.1 L/hr). At 75% load it uses 0.79 GPH (3.0 L/hr), and at 50% load just 0.63 GPH (2.4 L/hr). The spec sheet lists a 110-liter fuel tank for the enclosed unit.
What controller does the Triton TP-K15-T4F use?
The TP-K15-T4F features a Deep Sea Electronics DSE7420 digital controller with comprehensive engine and alternator monitoring including speed, oil pressure, coolant temperature, frequency, voltage, current, and power.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

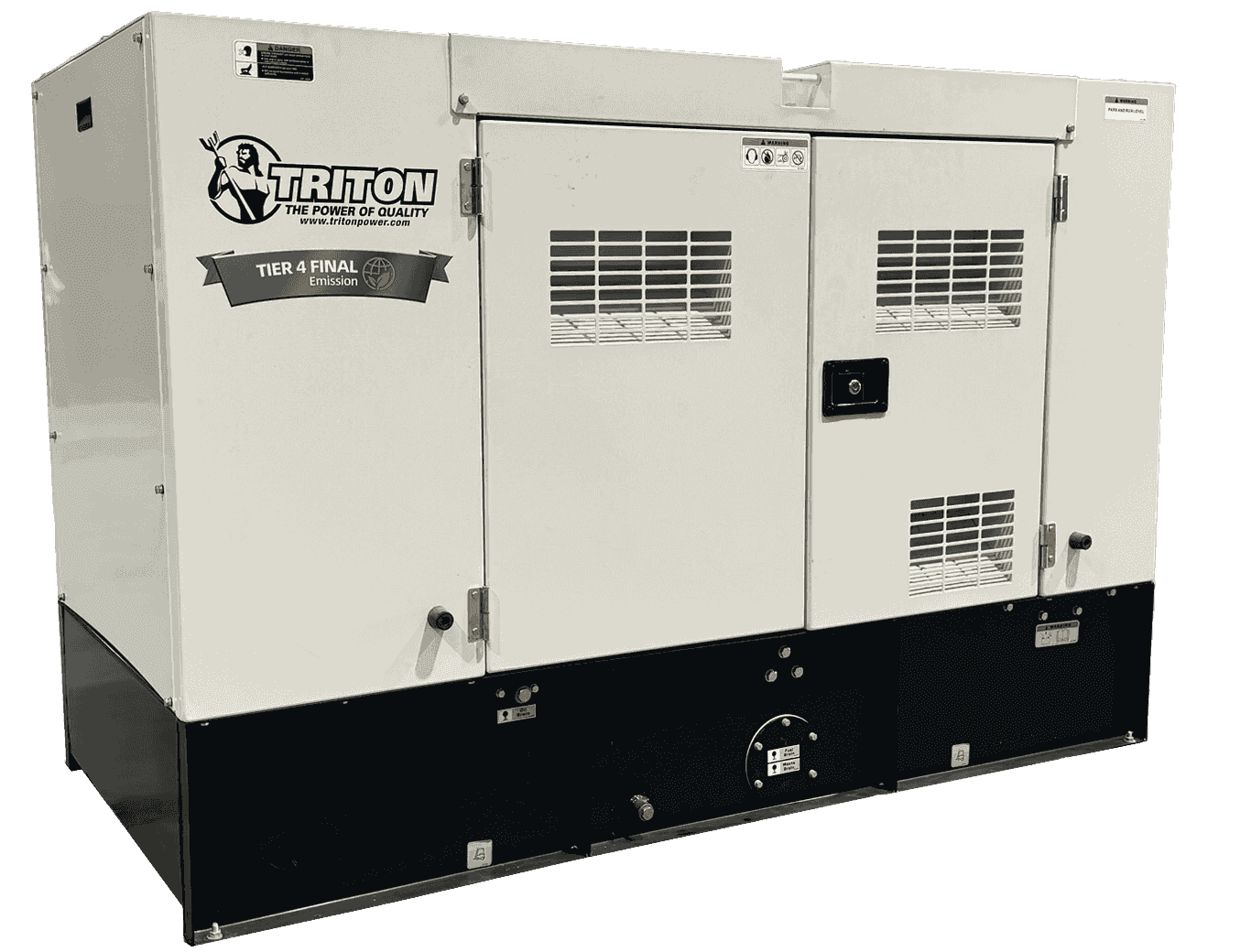

Triton Power Triton Power TP-P10-T4i-UL 10 kW liquid-cooled standby generator

Triton Power

Triton Power TP-P10-T4i-UL

10 kW standby · Diesel · Liquid-cooled

10 kW diesel standby generator with Perkins 403D-11G engine. Compact, UL2200-listed unit for small commercial and telecom applications.

Tier 4 Interim3-phasecommercial-standbytelecom

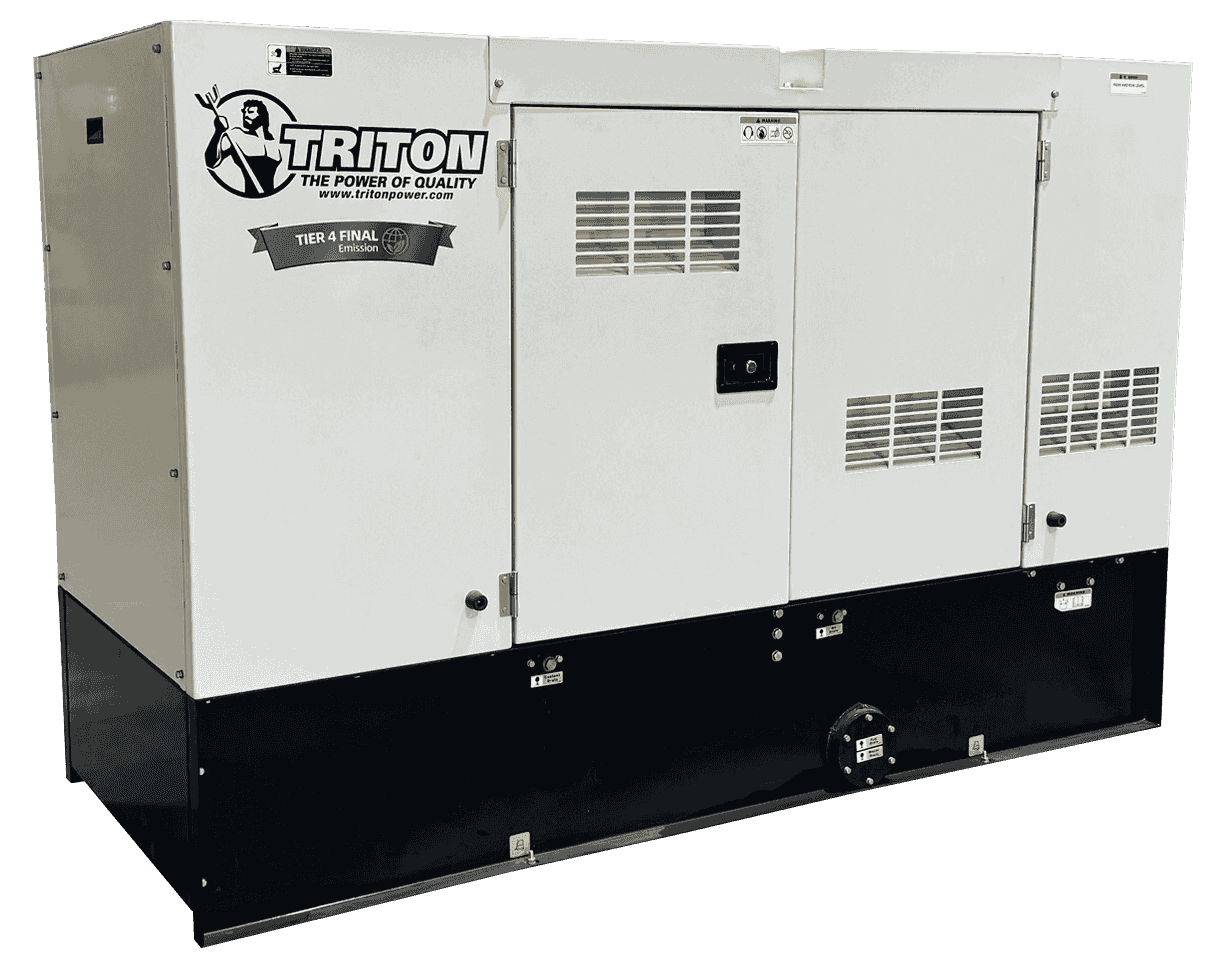

Triton Power Triton Power TP-P20-T4i-UL 20 kW liquid-cooled standby generator

Triton Power

Triton Power TP-P20-T4i-UL

20 kW standby · Diesel · Liquid-cooled

20 kW Tier 4 Interim diesel generator with Perkins 404D-22G engine. UL2200-listed for small commercial and light industrial standby applications.

Tier 4 Interim3-phasecommercial-standbysmall-business

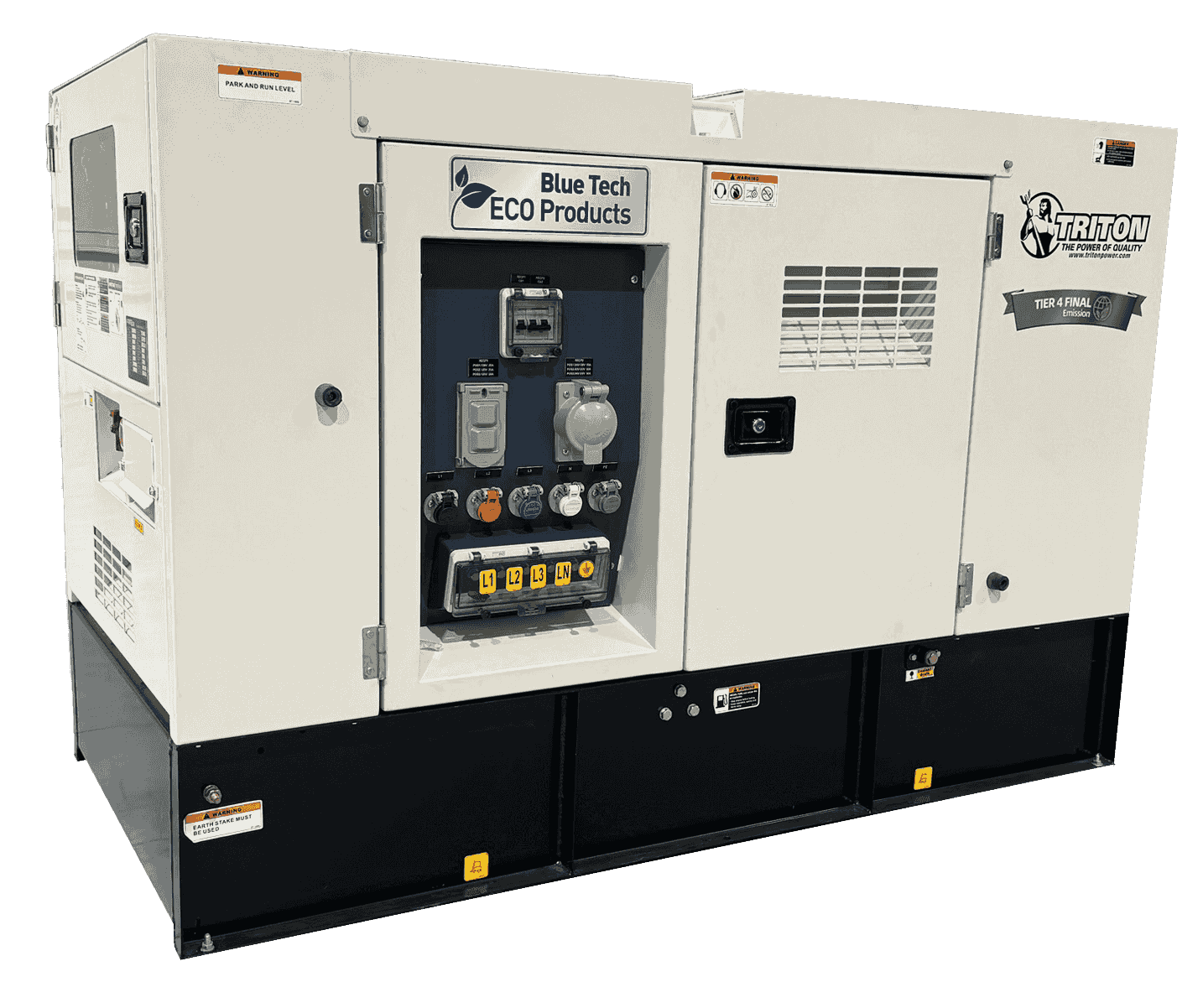

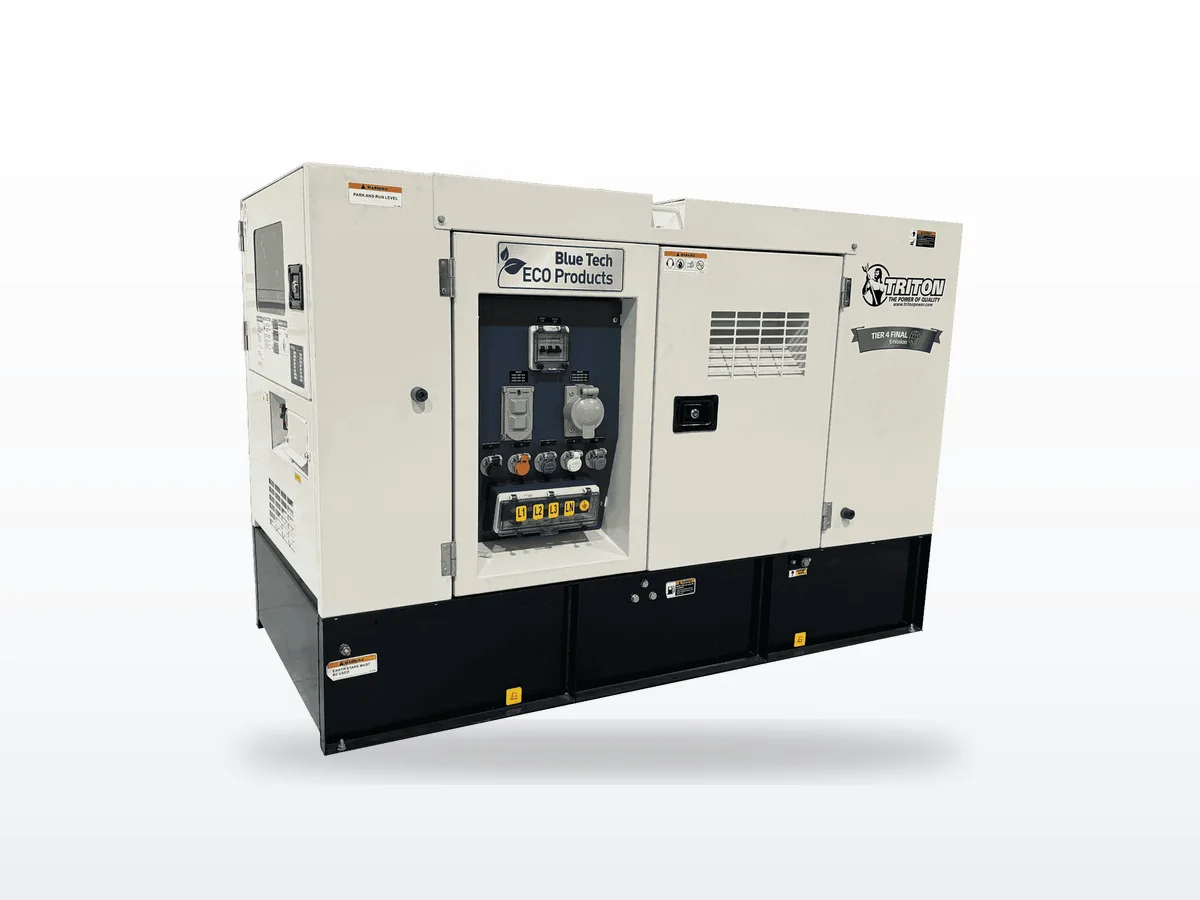

Triton Power Triton Power TP-RK15-T4F Rental Grade 13.5 kW liquid-cooled standby generator
